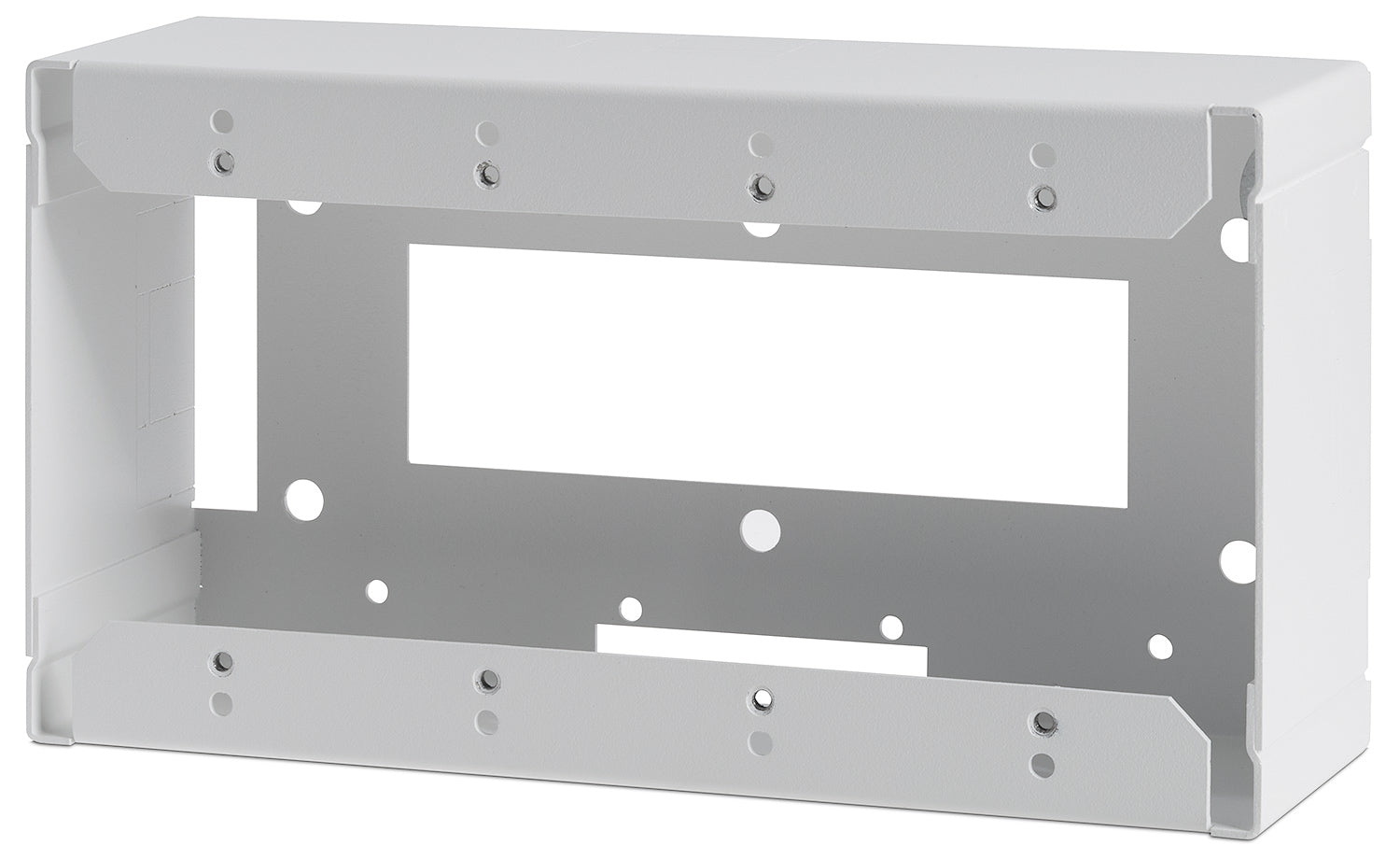

Extron EWB 104 (part number 60-1164-03) — the white four-gang external wall box in Extron's EWB Series, sized for dense wallplate assemblies.

Where a room needs four gangs of AV connectivity but the wall cannot be cut, this enclosure carries the plate instead. It fastens flat to the wall, spans 8.2 inches across the opening and holds 2.50 inches of depth behind it — enough that connector bodies, adapters and a service loop all sit comfortably once the faceplate is screwed home. Cable enters through raceway knockouts on the ends or from the wall cavity through the rear. A grounding screw and PEM #6-32 insert are part of the kit.

Key Capabilities

• Four-gang aperture matched to Extron wallplates and AAP mounting frames
• Steel body at 4.50 in H x 8.2 in W x 2.50 in D (11.4 x 20.8 x 6.4 cm)
• Two small and two large surface raceway knockouts
• Six wall mounting holes rated for fasteners up to 1/4 inch
• 1.4 lbs (0.6 kg) product weight
• White finish, current Extron part number 60-1164-03

Where It Is Used

Teaching walls, hospital procedure rooms, hotel function spaces and open offices with pale wall finishes where a white box vanishes into the surface. Frequently specified alongside white surface raceway on retrofit projects.

Specifications at a Glance

• Configuration: four-gang, wall mount
• Material: steel
• Shipping weight: 3 lb (2 kg)
• Regulatory: c-UL, UL; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB104, EWB-104, part number 60116403.
