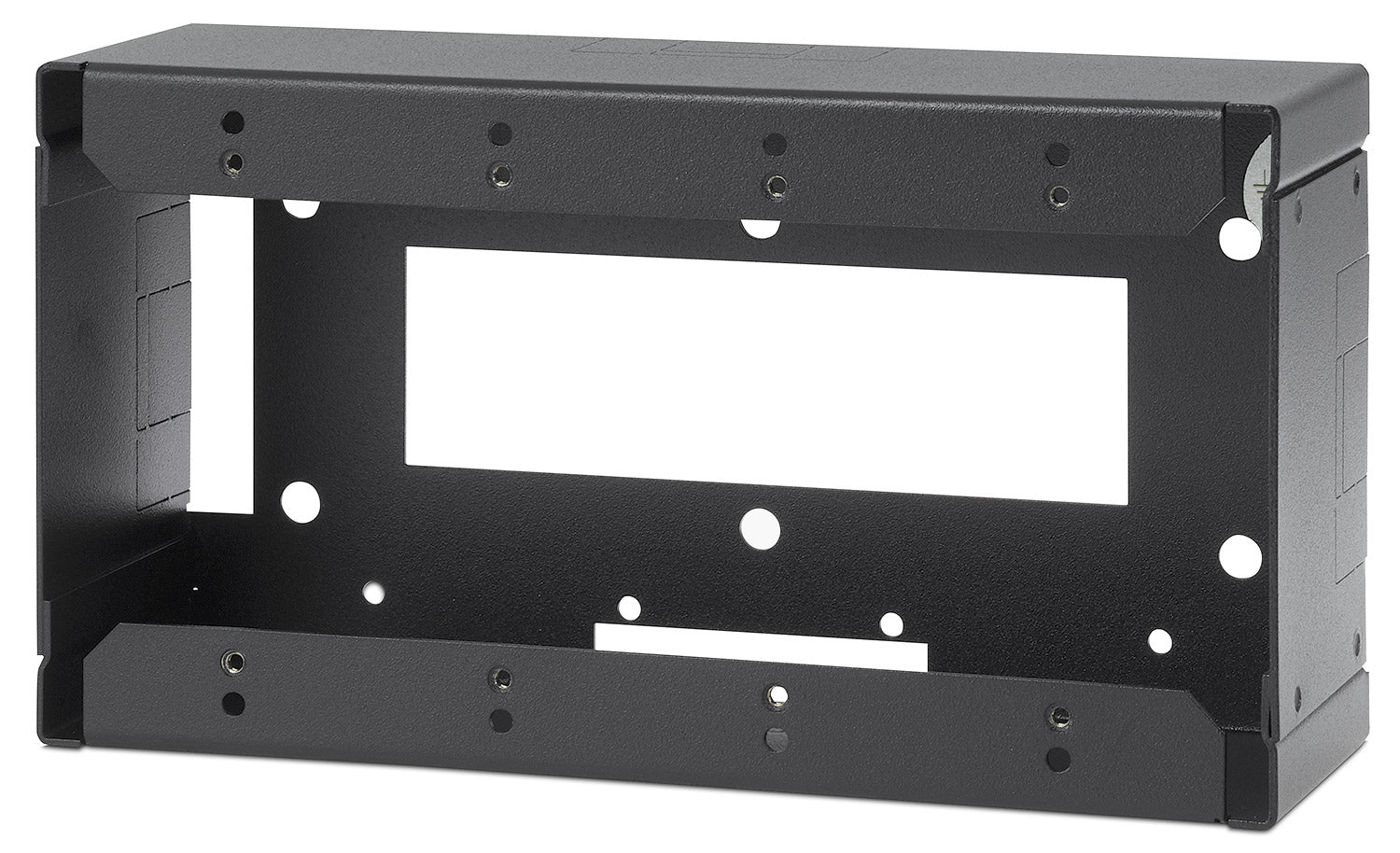

Extron EWB 104 (part number 60-1164-02) — a four-gang steel surface enclosure in black, for mounting wide Extron faceplates on a finished wall.

Four gangs is where AV wallplates start getting dense: transmitters, control panels, audio and pass-through plates all competing for room behind the plate. The EWB 104 gives that assembly a proper home on the wall surface, 8.2 inches wide and 2.50 inches deep, without any need to open the wall. End knockouts accept surface raceway so cable can be routed cleanly along the wall, and a threaded insert on the rear panel takes the supplied grounding screw.

Key Capabilities

• Four-gang opening for Extron wallplates, AAP frames and control panels
• Steel enclosure at 4.50 in H x 8.2 in W x 2.50 in D (11.4 x 20.8 x 6.4 cm)
• Four raceway knockouts — two small, two large
• Six wall mounting holes for fasteners up to 1/4 inch diameter
• Weighs 1.4 lbs (0.6 kg); ships at 3 lb (2 kg)
• Black finish, current Extron part number 60-1164-02

Where It Is Used

Divisible ballrooms, lecture theatres, simulation labs and command centers where a single wall position carries several plates at once. Also a standard choice on masonry and demountable walls that are fed by surface raceway.

Specifications at a Glance

• Configuration: four-gang, wall mount
• Material: steel
• Product weight: 1.4 lbs (0.6 kg)
• Regulatory: c-UL, UL; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB104, EWB-104, part number 60116402.
