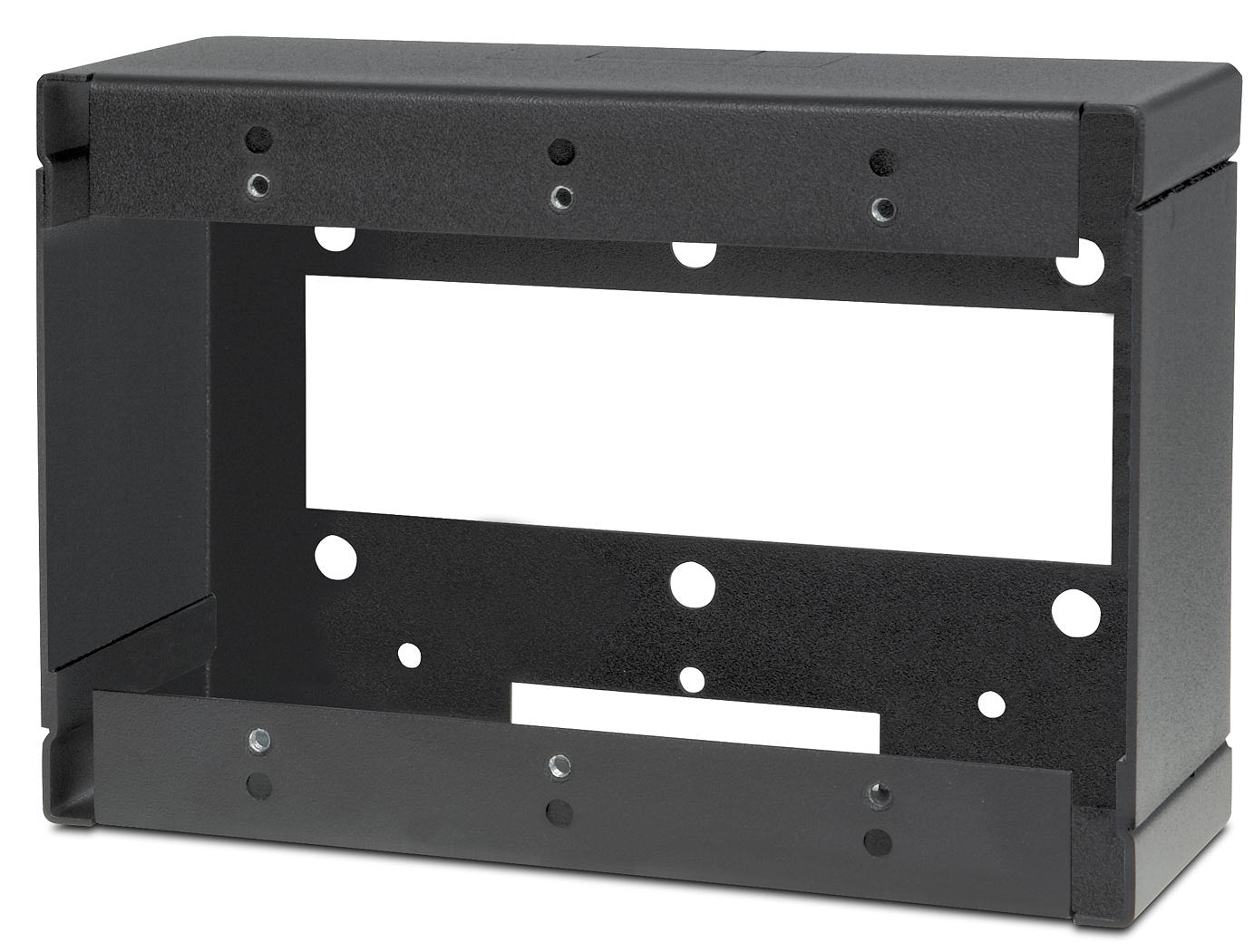

Extron EWB 103 (part number 60-1163-02) — a three-gang steel wall box in black, for surface-mounting Extron wallplates where no in-wall box exists.

When an AV plate has to land on a wall that cannot be opened up, the EWB 103 provides the enclosure instead. It bolts to the wall face and presents a three-gang opening with 2.50 inches of interior depth — enough for connector bodies, adapters and a sensible service loop behind the faceplate. Knockouts on each end let surface raceway feed cable into the box, and a threaded PEM #6-32 insert on the rear panel takes the included grounding screw.

Key Capabilities

• Three-gang opening for Extron wallplates, AAP frames and control panels
• Steel enclosure measuring 4.50" H x 6.4" W x 2.50" D (11.4 x 16.2 x 6.4 cm)
• Two small knockouts (0.9" x 0.75") and two large knockouts (0.9" x 2.0")
• Six wall mounting holes for screws or bolts up to 1/4 inch diameter
• Grounding insert plus grounding screw shipped with every box
• Black finish, current Extron part number 60-1163-02

Where It Is Used

Lecture halls, training rooms, imaging suites and command centers where three gangs of connectivity are needed on a solid or retrofitted wall. Frequently paired with surface raceway on masonry and demountable partition construction.

Specifications at a Glance

• Configuration: three-gang, wall mount
• Material: steel
• Product weight: 1.1 lbs (0.5 kg)
• Regulatory: c-UL, UL; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB103, EWB-103, part number 60116302.
