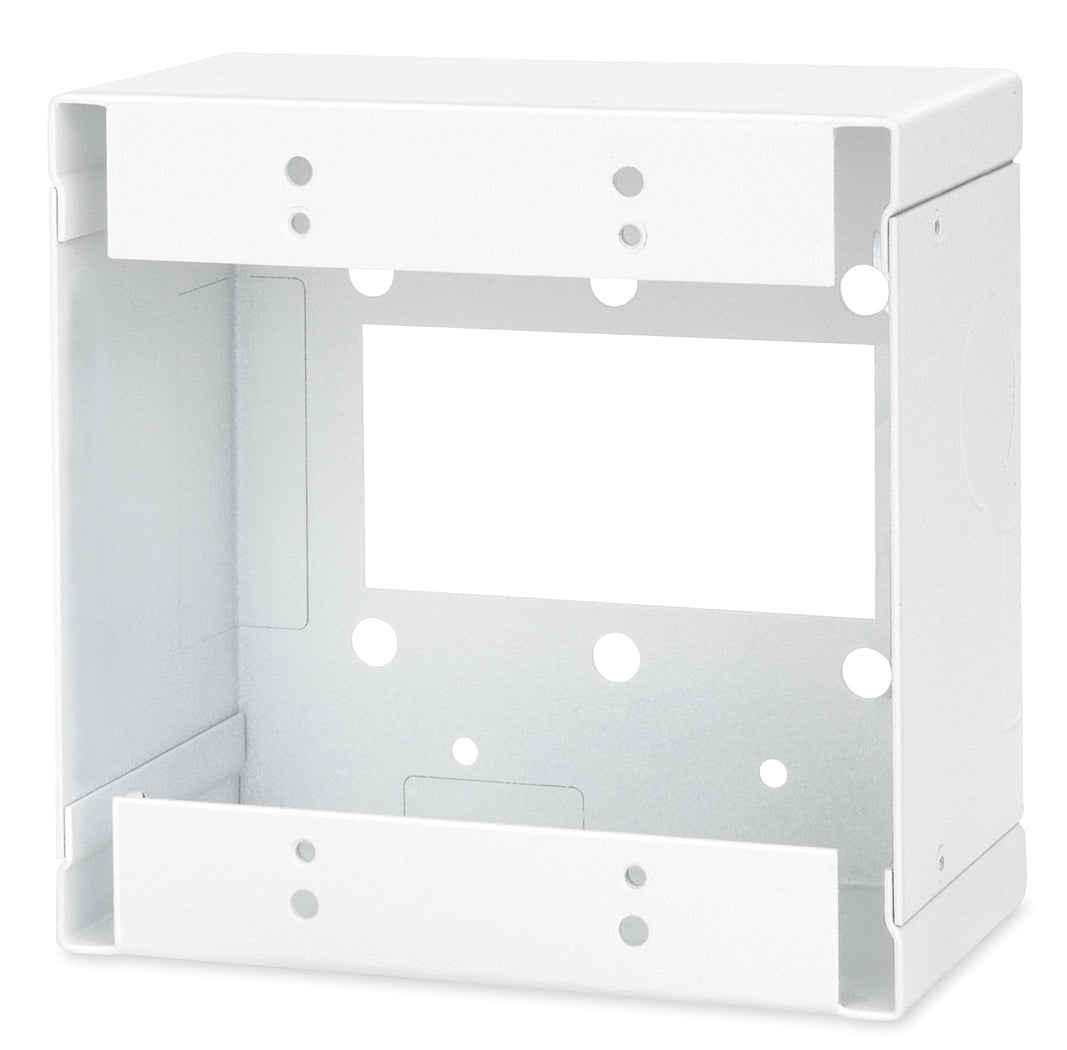

Extron EWB 102 (part number 60-1162-03) — the white two-gang external wall box from Extron's EWB Series.

Two gangs, white finish, surface-mounted: this is the most commonly specified combination in commercial fit-outs, and for good reason. Most rooms need more than one AV connection at a wall position, most walls are light-coloured, and most walls at the point of an AV retrofit have no spare back box. The EWB 102 answers all three. Its steel body offers 2.50 in of internal depth for faceplate wiring, its knockouts take a surface raceway, and six mounting holes hold the wider enclosure flat against the wall.

Key Capabilities

• White finish for light-coloured commercial walls
• Takes a two-gang Extron faceplate mounted on the wall surface
• 2.50 in depth so faceplate wiring can be dressed properly
• Knockouts of 0.9 x 0.75 in and 0.9 x 2.0 in for raceway entry
• Steel enclosure measuring 4.50 in H x 4.56 in W, 0.9 lbs
• Six wall mounting holes; RoHS and WEEE compliant

Where It Is Used

Classrooms, seminar rooms, corporate meeting spaces, hotel function rooms and clinical areas finished in white or light tones, where a pair of AV outlets is added to an existing wall without opening it up.

Specifications at a Glance

• Enclosure: 4.50 in H x 4.56 in W x 2.50 in D (11.4 x 11.6 x 6.4 cm)
• Product weight: 0.9 lbs (0.4 kg)
• Surface raceway knockouts: 2 small, 2 large
• Wall mounting holes: 6
• Compliance: c-UL, UL, RoHS, WEEE

Also referenced as Extron EWB102, EWB-102, part number 60116203.
