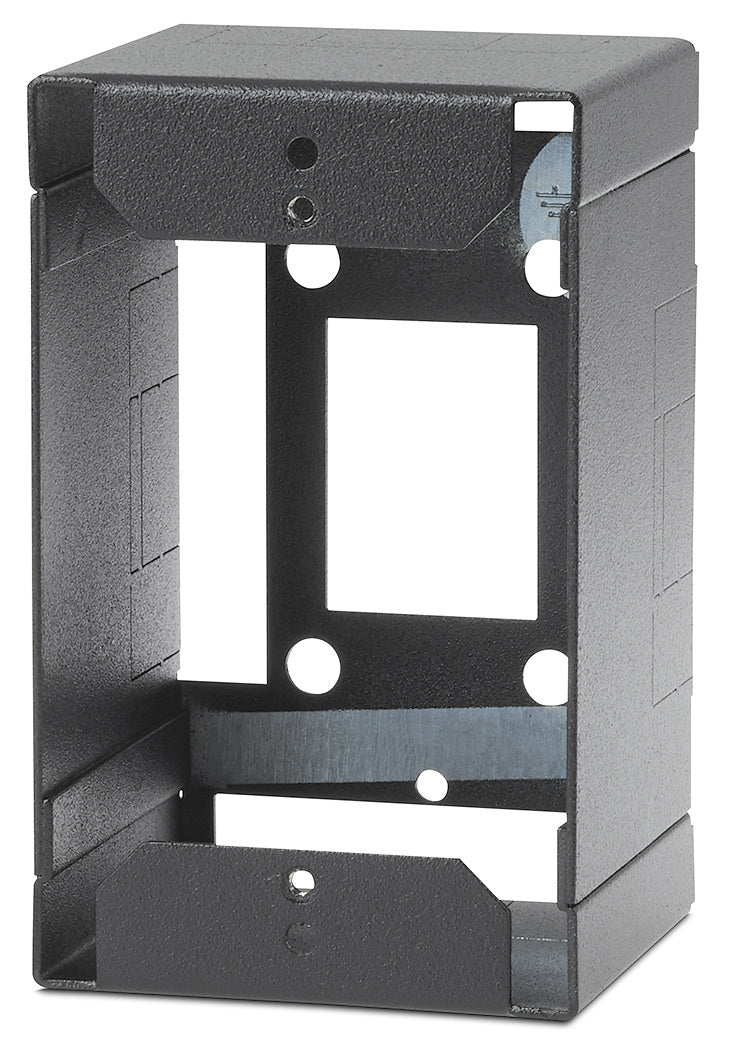

Extron EWB 101 (part number 60-1161-02) — one-gang external wall box in black, for surface-mounting an Extron faceplate where there is no in-wall box.

Retrofits are where this part earns its place. Cutting a back box into a finished wall is disruptive, sometimes impossible on masonry or glazed partitions, and often outside the AV scope entirely. The EWB 101 avoids all of that: it fixes to the wall surface and gives a single-gang faceplate 2.50 in of depth to house its wiring. Knockouts on the box accept cable from a surface-mounted raceway or from the wall cavity behind, so the same box works whether the cabling arrives externally or from the rear.

Key Capabilities

• Surface-mounts a one-gang Extron faceplate with no in-wall box required
• 2.50 in of internal depth to accommodate faceplate wiring
• Two small and two large knockouts for surface raceway channels
• Also takes cable runs from the rear wall space
• Steel construction, black finish
• Four wall mounting holes; c-UL and UL listed

Where It Is Used

Retrofit AV outlets in existing classrooms, offices and meeting rooms, masonry or glass-partitioned walls that cannot be cut, temporary and leased fit-outs, and equipment rooms where surface raceway is already the cabling method.

Specifications at a Glance

• Enclosure: 4.50 in H x 2.75 in W x 2.50 in D (11.4 x 7.0 x 6.4 cm)
• Product weight: 0.7 lbs (0.3 kg)
• Material: steel
• Wall mounting holes: 4
• Compliance: c-UL, UL, RoHS, WEEE; 3-year parts and labor warranty

Also referenced as Extron EWB101, EWB-101, part number 60116102.
