Extron EDID Manager 3.0 (part number 79-536-01) — Windows software for viewing, editing, and transferring display EDID profiles up to 8K.

Matching a source to a display's supported video rate, color space, chroma sampling, and audio format is often the hardest part of getting a signal chain to work reliably, and EDID Manager 3.0 puts every one of those parameters in a single editable window. Beyond viewing and modifying an EDID, the software converts formats, prints a PDF status report for documentation, and pushes a finished EDID straight to compatible Extron hardware to speed up commissioning.

Key Capabilities

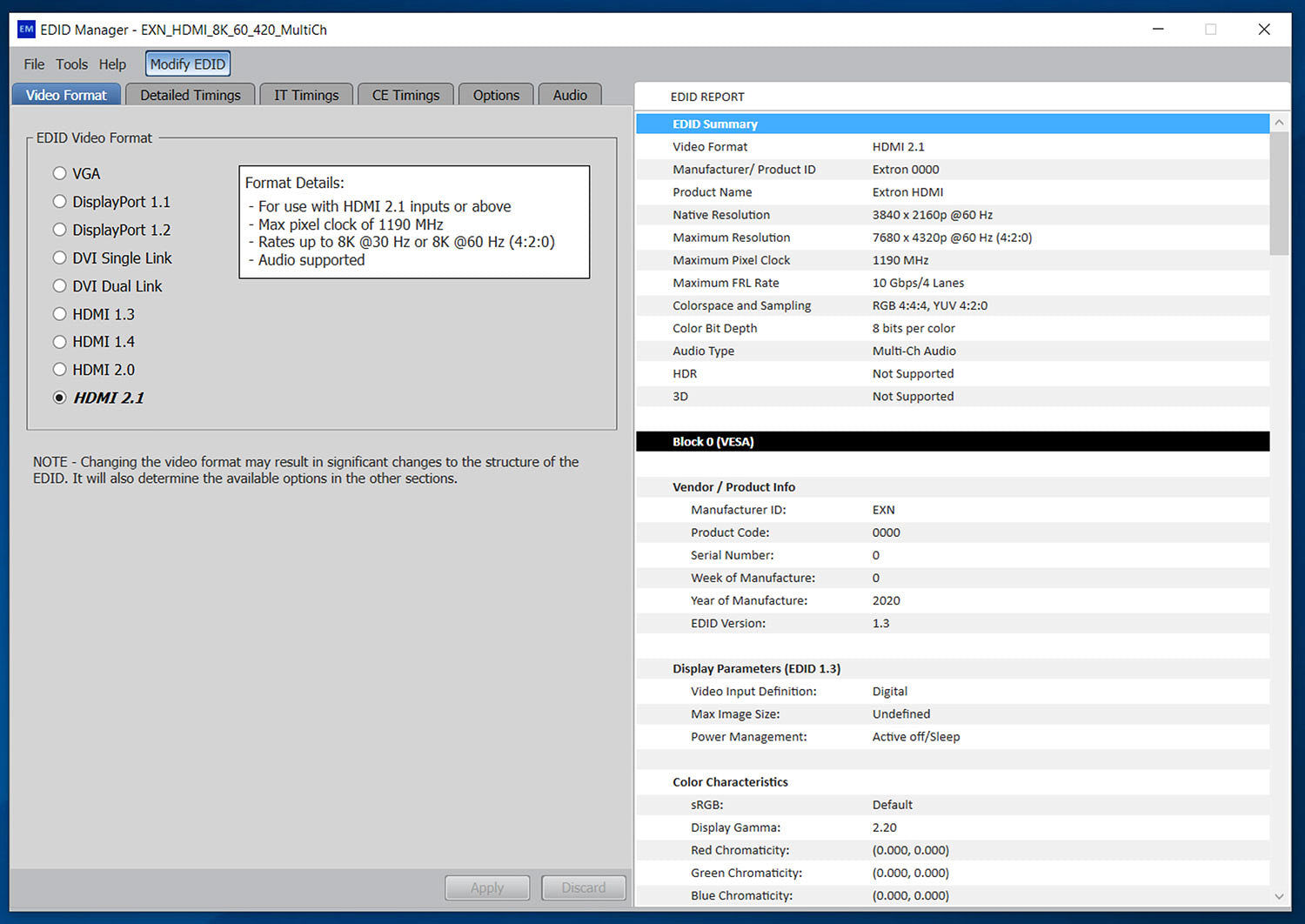

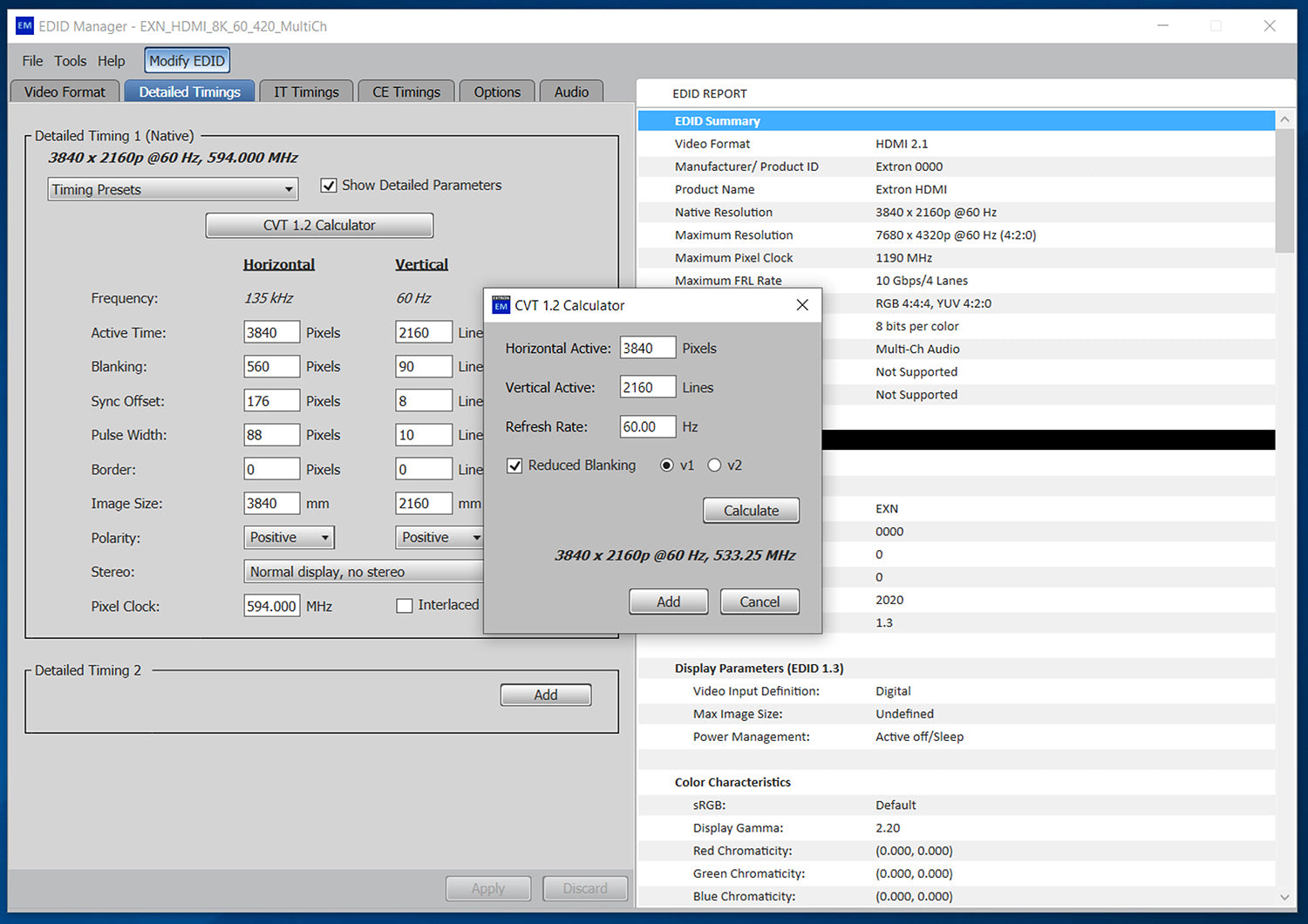

• Views, edits, and converts EDID display profiles for video rate, color space, and bit depth up to 8K
• Generates PDF status reports documenting a display's EDID capabilities
• Transfers custom EDID configurations directly to select Extron products
• Ships with an Extron factory-default EDID library as a starting template
• Shares custom EDID configurations with Extron PCS, VCS, and XTP System Configuration Software

Where It Is Used

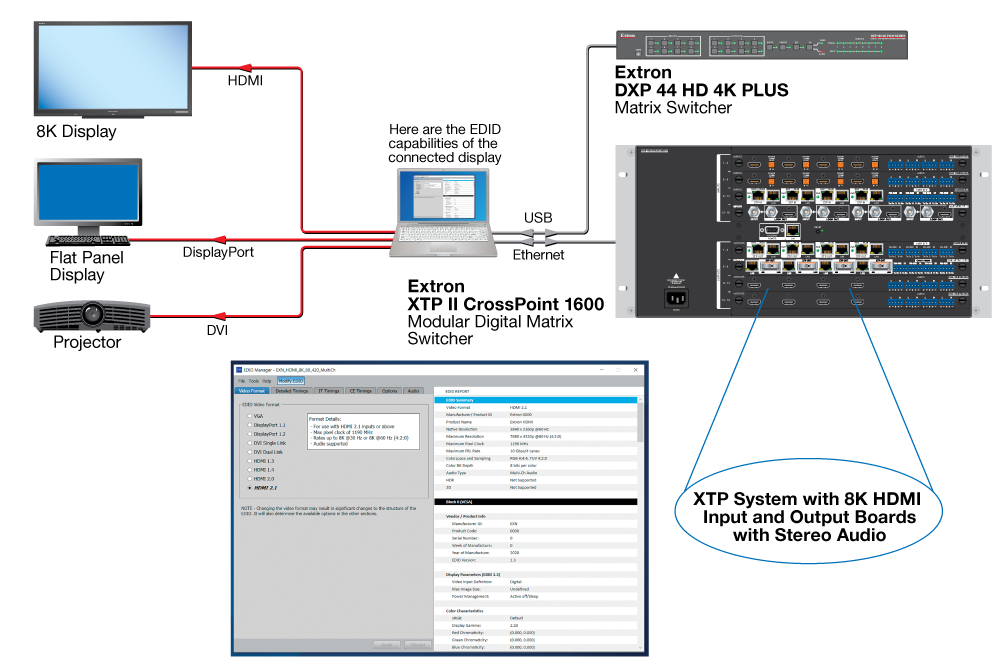

Used during system commissioning to resolve display compatibility issues and document EDID settings on 8K and lower-resolution video installations, from single-display rooms to multi-room AV systems.

Specifications at a Glance

• Platform: Microsoft Windows
• Max resolution class: 8K EDID management
• Output: PDF status reports
• Version: 3.0

Also referenced as ExtronEDIDManager30, Extron-EDID-Manager-3-0, part number 7953601.
