Details

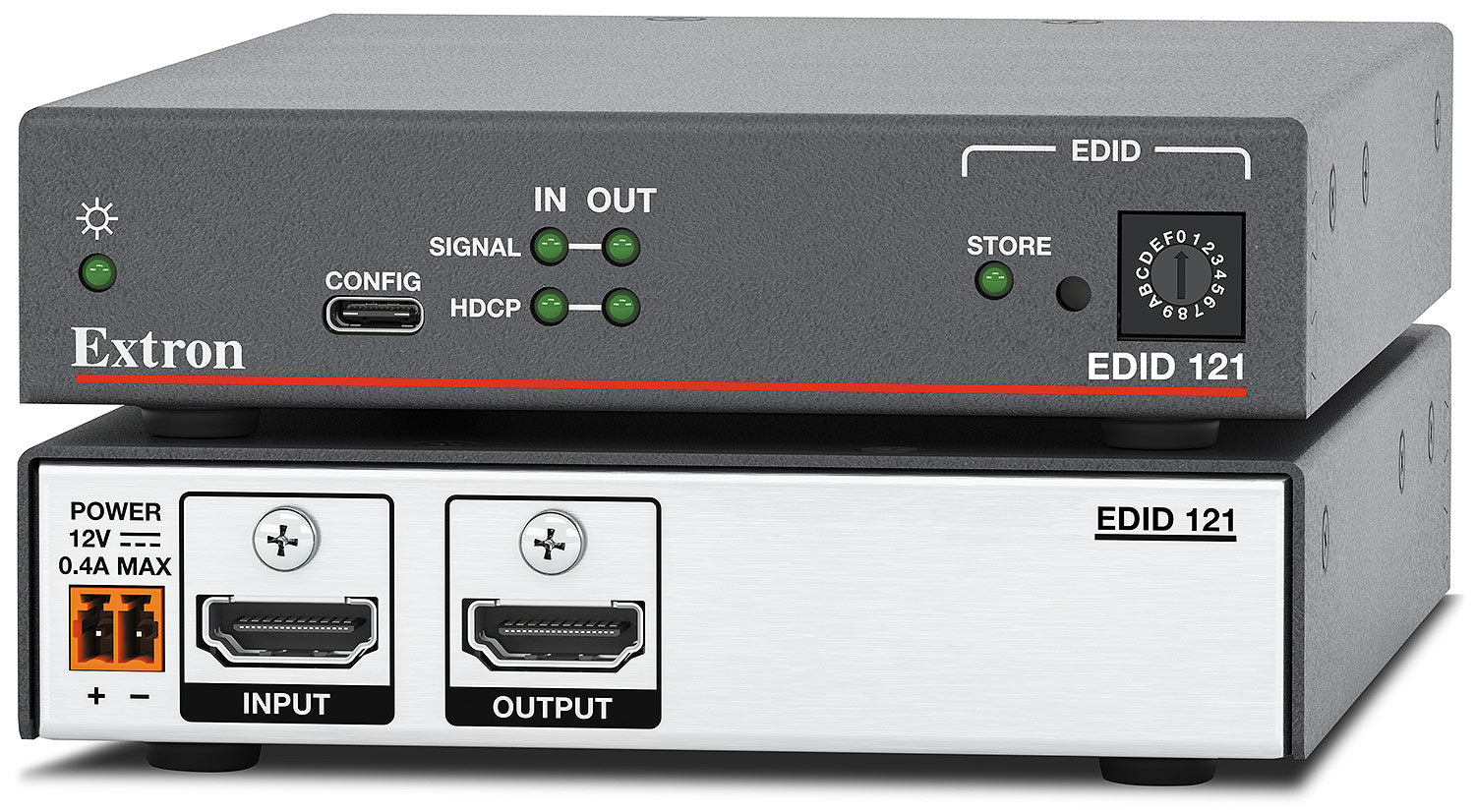

Extron EDID 121 (part number 60-2076-01) — an 8K-capable HDMI EDID emulator that keeps a source locked to the display format you choose.

When a source device cannot read dependable EDID from whatever sits downstream, it guesses an output format, and the result is a wrong resolution, a dropped frame rate or silent audio. The EDID 121 sits inline on a single HDMI link and hands stored EDID to the source the moment power comes up, so the negotiated format stays the same every session. It carries video up to 40.1 Gbps, conforms to HDMI 2.1 and HDCP 2.3, and passes embedded audio through without altering it.

Key Capabilities

Video path rated to 40.1 Gbps with a maximum pixel clock of 1.2 GHz.
VESA resolution range runs from 640x480 all the way to 7680x4320.
Emulates EDID payloads of 128 to 512 bytes, covering 1 to 4 blocks.
Relays HDR10, HDR10+ and Dolby Vision alongside the video.
Set up through a front-panel USB-C port using Extron SIS commands or Extron PCS.
Feeds 250 mA per HDMI output to peripherals plus 1.25 W for active cable assemblies.

Where It Is Used

Anywhere a high-bandwidth source has to behave predictably: 8K and 5K signage walls, medical imaging review stations, broadcast and post-production suites, university lecture capture rooms, and command centers where an operator cannot be troubleshooting a handshake mid-shift. The quarter-rack metal housing tucks behind a display or into a credenza.

Specifications at a Glance

Maximum data rate: 40.1 Gbps; maximum pixel clock 1.2 GHz
Signal type: HDMI 2.1, HDCP 2.3; standards include DVI 1.0 and HDCP 1.x
Connectors: one female 19-pin HDMI type A in, one out, plus front-panel USB-C
Power: external 12 VDC, 0.5 A supply; 4.2 W at the device
Enclosure: metal, 1.0 in H x 4.3 in W x 6.0 in D, 0.513 lbs

Also referenced as Extron EDID121, EDID-121, part number 60207601.

Specifications

Part Number: 60-2076-01

Manufacturer: Extron

Model: EDID 121

Condition: New

Maximum data rate: 40.1 Gbps

Maximum pixel clock: 1.2 GHz

Resolution range, VESA: 640x480 to 7680x4320

Resolution range, SMPTE: Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling)

Resolution range, Ultra Wide and 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880

Frame rate: 24, 25, 30, 50, 60, or 120 fps (subject to the maximum data rate limit)

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0 (subject to the maximum data rate limit)

Color bit depth: 8, 10, or 12 bits per color, subject to the max data rate

Formats: RGB and YCbCr digital video

Signal type: HDMI 2.1, HDCP 2.3

Standards: DVI 1.0, HDMI 2.1, HDCP 1.x, HDCP 2.3

HDR: HDR10, HDR10+, and Dolby Vision

Video input number/signal type: 1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)

Video input connectors: 1 female 19-pin HDMI type A

Input cable length: Up to 15 feet (4.0 m)

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 40.1 Gbps

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 40.1 Gbps

EDID emulation: 128 - 512 byte EDID support (1 - 4 blocks)

Video output number/signal type: 1 single link HDMI

Video output connectors: 1 female 19-pin HDMI type A

Power for active cables: 1.25 W total power for HDMI port

Peripheral device power: 250 mA per HDMI output

Audio input number/signal type: 1 digital embedded audio on HDMI, 1 female 19-pin HDMI type A

Embedded audio formats: LPCM 2.0, Dolby Digital 2.0, Dolby Digital 2.0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS ES Matrix 6.1, DTS ES Discrete 6.1

Audio output number/signal type: 1 digital embedded audio on HDMI, 1 female 19-pin HDMI type A

USB control port: 1 female USB-C on front panel

USB standards: USB 2.0 high speed

Program control: Extron Simple Instruction Set (SIS), Extron PCS

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 0.5 A, 36 watts

Power consumption, device: 4.2 watts

Power consumption, device and power supply: 5.1 watts

Temperature/humidity: Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, noncondensing. Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, noncondensing

Cooling: Convection

Thermal dissipation, device: 10.2 BTU/Hr

Thermal dissipation, device and power supply: 13.2 BTU/Hr

Enclosure type: Metal

Enclosure dimensions: 1.0 in H x 4.3 in W x 6.0 in D (quarter rack wide) (25 mm H x 109 mm W x 152 mm D). Depth excludes connectors

Product weight: 0.513 lbs

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

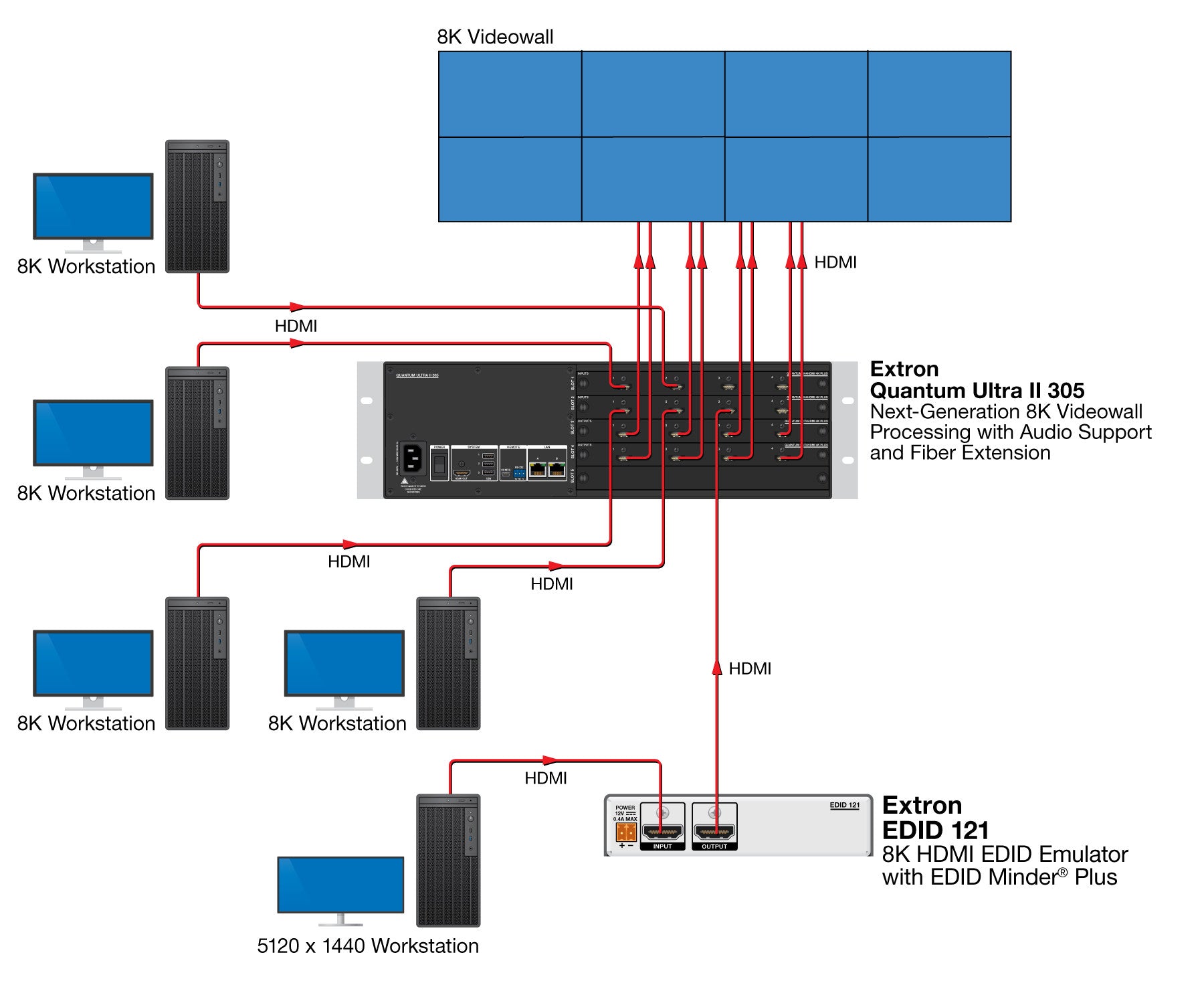

Diagram

Resources

Brochure | EDID 121 60-2076-01 | EDID 121

Manual | EDID 121 60-2076-01 | EDID 121 Setup Guide

Manual | EDID 121 60-2076-01 | EDID 121 User Guide

Specifications | EDID 121 60-2076-01 | EDID 121

Panel Drawing | EDID 121 60-2076-01 | EDID 121
