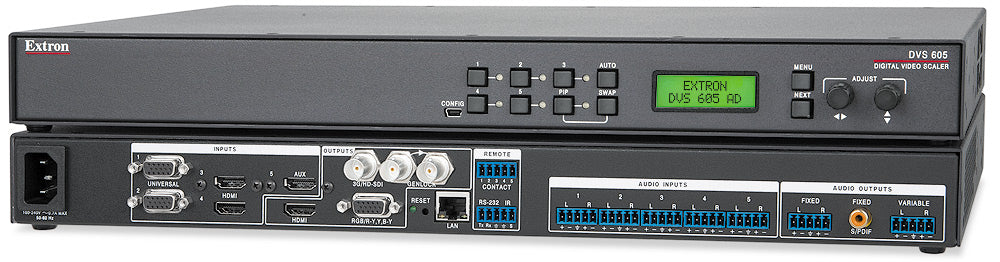

Extron DVS 605 AD (part number 60-1059-04) is the top configuration of the DVS 605 platform, combining dedicated audio switching with an SDI video output.

This model accepts three HDMI inputs plus two auto-sensing analog inputs and scales any of them to simultaneous HDMI, analog, and 3G/HD-SDI outputs. A genlock input with loop-through keeps the SDI output aligned to house sync for broadcast or production integration. A five-input analog audio switcher alongside three HDMI-embedded audio inputs routes sound independently across analog, S/PDIF, HDMI-embedded, and SDI-embedded audio outputs. Integrators choose this variant when a room needs both an SDI feed for recording or distribution and flexible, independently switched audio.

Key Capabilities

Scales 3 HDMI and 2 analog inputs to simultaneous HDMI, analog, and 3G/HD-SDI outputs
Dedicated audio switching across 5 analog stereo inputs plus 3 HDMI-embedded inputs
SDI output includes a genlock input and loop-through for broadcast timing
12-bit video processing with 3D-adaptive comb filter deinterlacing
Full power draw of 31.3 watts, dropping to 16.8 watts in power save mode

Where It Is Used

Conference rooms, command centers, and lecture halls with a recording or streaming requirement use the DVS 605 AD to add an SDI feed and independent audio routing to standard HDMI and analog presentation switching.

Specifications at a Glance

Inputs: 3 HDMI + 2 analog video; 5 analog + 3 HDMI-embedded audio
Outputs: HDMI + analog + 3G/HD-SDI video with genlock
Resolution: up to 1920x1200 / 2K sampled pixel for pixel
Enclosure: 1.72" H x 17.5" W x 10.5" D, 1U full rack, 5.4 lbs

Also referenced as Extron DVS605AD, DVS-605-AD, part number 60105904.

Specifications

Part Number: 60-1059-04

Manufacturer: Extron

Model: DVS 605 AD

Condition: New

Video Input: 2 RGBHV/RGBS/RGsB/RGBcvS/component video (YUVi or YUVp/HDTV)/S-video/composite video + 3 HDMI, 2 female 15-pin HD + 3 female HDMI type A

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Resolution range: 640x480 to 1920x1200 (reduced blanking), NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K sampled pixel for pixel

Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM; DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Output: 1 scaled RGBHV/RGBS/RGsB/component video (YUVp/HDTV) + 1 HDMI + (1) 3G-SDI or HD-SDI with genlock, 1 female 15-pin HD + 1 female HDMI type A + 3 female BNC (SDI, genlock, genlock loop-through)

Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4 and 2.3, SMPTE 292M and 424M

Sync input/output type: Input: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video. Output: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Audio gain: Unbalanced output -6 dB; balanced output 0 dB

Audio frequency response: Line out: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: Preamp <0.110% @ 1 kHz, 20 kHz bandwidth at maximum output; Line out <0.025% @ 1 kHz, 20 kHz bandwidth at maximum output

S/N at maximum power output (unweighted): Preamp 90 dB at rated maximum output; Line out 90 dB at rated maximum output

Crosstalk: Preamp ≤-80 dB @ 1 kHz, fully loaded; Line out ≤-80 dB @ 1 kHz, fully loaded

Stereo channel separation: >84 dB @ 1 kHz

Audio Input: 5 stereo, balanced/unbalanced + 3 stereo de-embedded from HDMI (LPCM-2Ch only), (5) 3.5 mm captive screw 5-pole + 3 female HDMI type A

Audio Input impedance: >10k ohms unbalanced, DC coupled

Audio nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio maximum level: +21 dBu, unbalanced

Analog input gain: -53 dB to +24 dB, adjustable per input

Audio Output: Stereo/mono, balanced/unbalanced - Fixed: 1 analog, 1 S/PDIF digital (LPCM-2Ch, Dolby Digital, or DTS only), 1 HDMI embedded, 1 optional 3G-SDI or HD-SDI embedded. Variable: 1 analog

Audio Output connectors: (2) 3.5 mm captive screw 5-pole, 1 female RCA (S/PDIF), 1 female HDMI type A (shared with HDMI video), 1 optional female BNC (shared with SDI video)

Audio Output impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.25 dB channel to channel

Maximum level (Hi-Z): >+21 dBu balanced; >+11 dBu unbalanced

Analog output volume range: 0 dB to -100 dB in 1.0 dB increments

Serial control port: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 5 pole (uses 3)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

USB control port: 1 front panel female mini USB B, USB 2.0 high speed

Ethernet control port: 1 female RJ-45 connector, 10/100Base-T half/full duplex with autodetect

Contact closure: 1 rear panel 3.5 mm captive screw connector, 5 pole; pins 1-5 = inputs 1-5

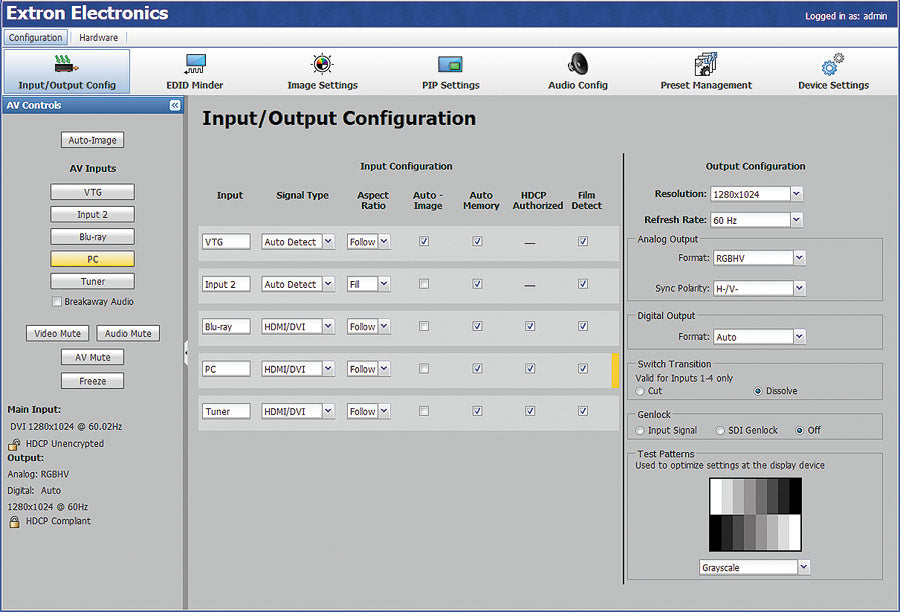

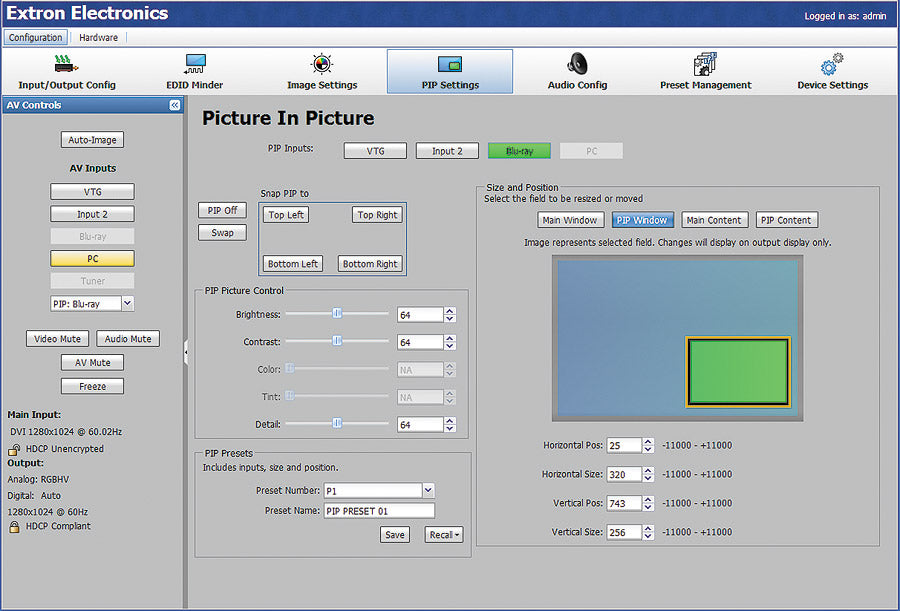

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Power consumption (full power): 31.3 watts

Power consumption (power save mode): 16.8 watts

Thermal dissipation (full power): 102.5 BTU/hr

Thermal dissipation (power save mode): 52.1 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows right to left (as viewed from front panel)

Mounting: Rack mount yes, with included pre-installed brackets

Enclosure: Metal, 1.72" H x 17.5" W x 10.5" D (1U high, full rack wide), depth excludes connectors and knobs, width excludes rack ears

Product weight: 5.4 lbs (2.5 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, KC, VCCI, UL. Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | DVS 605 AD 60-1059-04 | DVS 605 (dvs605_revB.pdf)

Brochure | DVS 605 AD 60-1059-04 | Everlast Power Supplies

Brochure | DVS 605 AD 60-1059-04 | Extron Government Solutions

Brochure | DVS 605 AD 60-1059-04 | Alimentatori Everlast

Brochure | DVS 605 AD 60-1059-04 | DVS 605 (dvs_605_A4_jp_ONLINE.pdf)

Brochure | DVS 605 AD 60-1059-04 | DVS 605 (dvs_605_A4_REV_B_ch_ONLINE.pdf)

Brochure | DVS 605 AD 60-1059-04 | DVS 605 (DVS-605_BR_A4_SP_RevA.pdf)

Brochure | DVS 605 AD 60-1059-04 | DVS 605A - Spec Sheet

Brochure | DVS 605 AD 60-1059-04 | Everlast 电源

Brochure | DVS 605 AD 60-1059-04 | Everlast-Netzteile

Brochure | DVS 605 AD 60-1059-04 | Extron-Lösungen für Behörden

Brochure | DVS 605 AD 60-1059-04 | Fuentes de alimentación Everlast

Brochure | DVS 605 AD 60-1059-04 | Solutions Extron pour structures gouvernementales

Brochure | DVS 605 AD 60-1059-04 | Soluzioni Extron per ambienti governativi

Brochure | DVS 605 AD 60-1059-04 | Sources d'alimentation Everlast

Manual | DVS 605 AD 60-1059-04 | Cleaning Instruction Card

Manual | DVS 605 AD 60-1059-04 | DVS 605 User Guide

Manual | DVS 605 AD 60-1059-04 | DVS 605 取扱説明書

Specifications | DVS 605 AD 60-1059-04 | DVS 605 Series

Panel Drawing | DVS 605 AD 60-1059-04 | DVS 605
