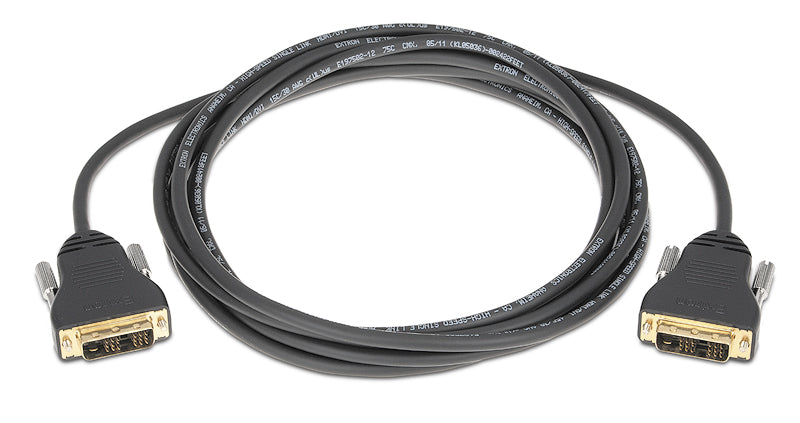

Extron DVID SL Ultra/6 (part number 26-662-06) — a 6 ft (1.8 m) single link DVI-D cable in Extron's slim 30 AWG ultra-flexible construction.

Six feet gives you enough slack to route around a mount arm or drop behind a credenza without coiling excess cable, and the DVID SL Ultra jacket makes that routing painless. Measuring just 0.22 in (5.7 mm) across with a 0.80 in (20.3 mm) bend radius, it behaves more like a patch lead than a video cable while still meeting DVI 1.0 for 1920x1200 at 60 Hz and 1080p/60. Throughput is rated to 4.95 Gbps and the pairs are held to 100 ohms plus or minus 10 ohms.

Key Capabilities

• 6 ft (1.8 m) single link DVI-D cable rated to 1920x1200 at 60 Hz
• Data rates supported up to 4.95 Gbps at refresh rates to 60 Hz
• Slim 0.22 in (5.7 mm) jacket with a 0.80 in (20.3 mm) bend radius
• 30 AWG tinned copper conductors, 32 AWG drain wire, PVC jacket
• Attenuation of 10 dB or less per 6 m at 825 MHz per DVI 1.0
• Compact gold-plated connectors, 1.92 in long including the plug
• Extron Limited Lifetime Performance warranty

Where It Is Used

This length is the default choice for AV presentation furniture, credenza-mounted equipment, wall-mount and pole-mount display assemblies, and clinical carts, where the cable has to bend sharply behind a panel and stay put through repeated adjustment.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Data rate: up to 4.95 Gbps
• Conductor gauge: 30 AWG conductors, 32 AWG drain wire
• Cable outer diameter: 0.22 in (5.7 mm)

Also referenced as Extron DVIDSLUltra/6, DVID-SL-Ultra-6, part number 2666206. Extron lists 26-662-06 as a retired part number.
