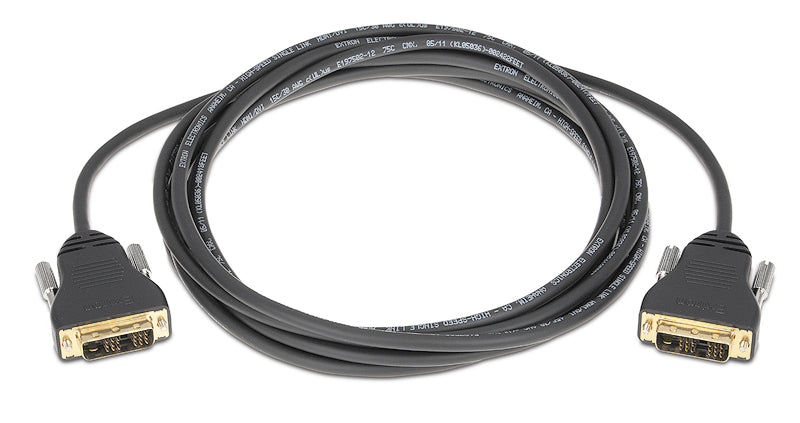

Extron DVID SL Ultra/3 (part number 26-662-03) — a 3 ft (90 cm) single link DVI-D cable using Extron's ultra-flexible 30 AWG construction.

Three feet is the workhorse length in this family: long enough to reach across a shelf or around a mount, short enough that the thin 30 AWG conductors give up nothing. Extron rates the DVID SL Ultra cables for 1920x1200 at 60 Hz and 1080p/60 with throughput to 4.95 Gbps, holds attenuation to 10 dB or less per 6 m at 825 MHz, and keeps far-end crosstalk at 20 dB or better over the same distance. The slim 0.22 in jacket and 0.80 in bend radius are what set the line apart from standard DVI assemblies.

Key Capabilities

• 3 ft (90 cm) ultra-flexible single link DVI-D cable
• Supports 1920x1200 at 60 Hz with data rates to 4.95 Gbps
• Thin 0.22 in (5.7 mm) jacket turning inside a 0.80 in (20.3 mm) radius
• 30 AWG conductors, 32 AWG drain wire, tinned copper throughout
• FEXT of 20 dB or more per 6 m; pair impedance 100 ohms plus or minus 10 ohms
• Gold-plated contacts and Extron Limited Lifetime Performance warranty

Where It Is Used

Integrators reach for this length in tight equipment racks, AV presentation furniture, wall-mount and pole-mount display assemblies, and imaging carts, anywhere a rigid cable would fight the enclosure or push a connector out of alignment.

Specifications at a Glance

• Length: 3 ft (90 cm)
• Maximum resolution: 1920x1200 @ 60 Hz
• Data rate: up to 4.95 Gbps
• Cable outer diameter: 0.22 in (5.7 mm)
• Connector: 1 male DVI-D single link to 1 male DVI-D single link

Also referenced as Extron DVIDSLUltra/3, DVID-SL-Ultra-3, part number 2666203.
