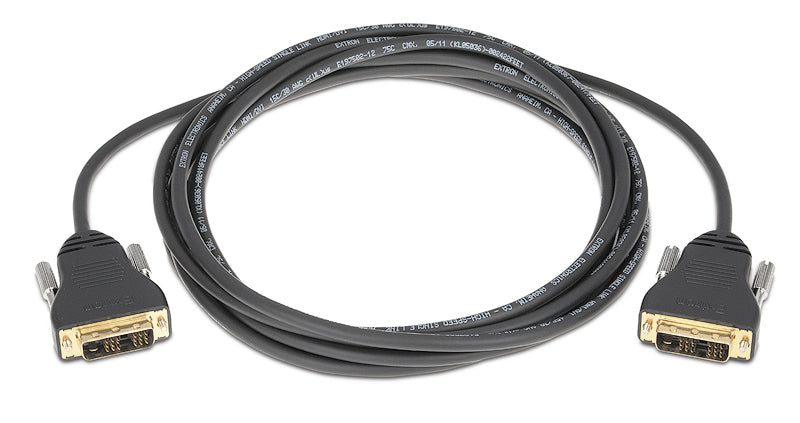

Extron DVID SL Ultra/12 (part number 26-662-12) — a 12 ft (3.6 m) single link DVI-D cable using Extron's ultra-flexible 30 AWG design.

At twelve feet you are reaching across a room, and most cables that long are stiff enough to fight the mount they terminate at. This one is not. The DVID SL Ultra jacket stays 0.22 in (5.7 mm) across at every length in the family and turns inside a 0.80 in (20.3 mm) radius, so the run can drop straight down a pole mount or thread through a furniture grommet. Extron rates it for 1920x1200 at 60 Hz and 1080p/60 with throughput to 4.95 Gbps and far-end crosstalk of 20 dB or better per 6 m.

Key Capabilities

• 12 ft (3.6 m) reach with the same 0.22 in jacket as the short lengths
• Rated for 1920x1200 at 60 Hz and data rates to 4.95 Gbps
• 0.80 in (20.3 mm) bend radius for pole and wall mount drops
• 30 AWG conductors with a 32 AWG drain wire under PVC
• FEXT of 20 dB or more per 6 m; pair impedance 100 ohms plus or minus 10 ohms
• Gold-plated DVI-D single link connectors at both ends
• Extron Limited Lifetime Performance warranty

Where It Is Used

Typical deployments include ceiling and pole-mounted displays fed from a floor box, huddle rooms where the rack sits in a cabinet across the space, and lab benches where a single flexible run is preferred over a coupler and two shorter cables.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Data rate: up to 4.95 Gbps
• Cable outer diameter: 0.22 in (5.7 mm)
• Conductor gauge: 30 AWG conductors, 32 AWG drain wire

Also referenced as Extron DVIDSLUltra/12, DVID-SL-Ultra-12, part number 2666212.
