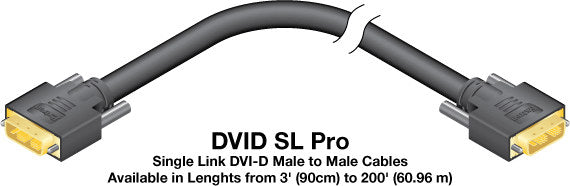

Extron DVID SL Pro/75 (part number 26-649-75) is a 75 ft (22.8 m) single link DVI-D cable for long structured runs between a source rack and a distant display.

Seventy-five feet is well past the distance where an ordinary DVI lead gives up. Extron builds this length from 22 AWG tinned copper conductors with a tinned copper drain wire, jacketed in PVC at 0.47 in outer diameter, and specifies the same electrical envelope as the rest of the family: 100 ohm pairs, attenuation of 8.2 dB or less per 10 m at 825 MHz, and far end crosstalk of 20 dB or more per 10 m. Extron also positions the 75 to 200 ft lengths alongside the HD 4K 101 Plus, which extends a single link DVI-D signal out to 1920x1200 at 60 Hz when the run needs active help.

Key Capabilities

• 75 ft of single link DVI-D with a 1920x1200 at 60 Hz ceiling.
• Data rate up to 4.95 Gbps under the DVI 1.0 standard.
• 22 AWG tinned copper conductors sized for long-distance pulls.
• 0.47 in outer diameter, 4.50 in bend radius.
• Pairs with the Extron HD 4K 101 Plus for extended single link DVI-D runs.
• Gold plated contacts on both male DVI-D single link connectors.

Where It Is Used

At this distance the cable is usually pulled through conduit or cable tray between a machine room and a presentation space. Ampronix supplies the 75 ft length for auditoriums, lecture halls, houses of worship, broadcast facilities, hospital operating suites and command centers where the rack and the display are in different rooms.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Conductor gauge: 22 AWG conductors and drain wire
• Interpair skew: 2.42 ns or less per 12 m
• Safety: cable UL Listed as type CM

Also referenced as Extron DVIDSLPro/75, DVID-SL-Pro-75, part number 2664975.
