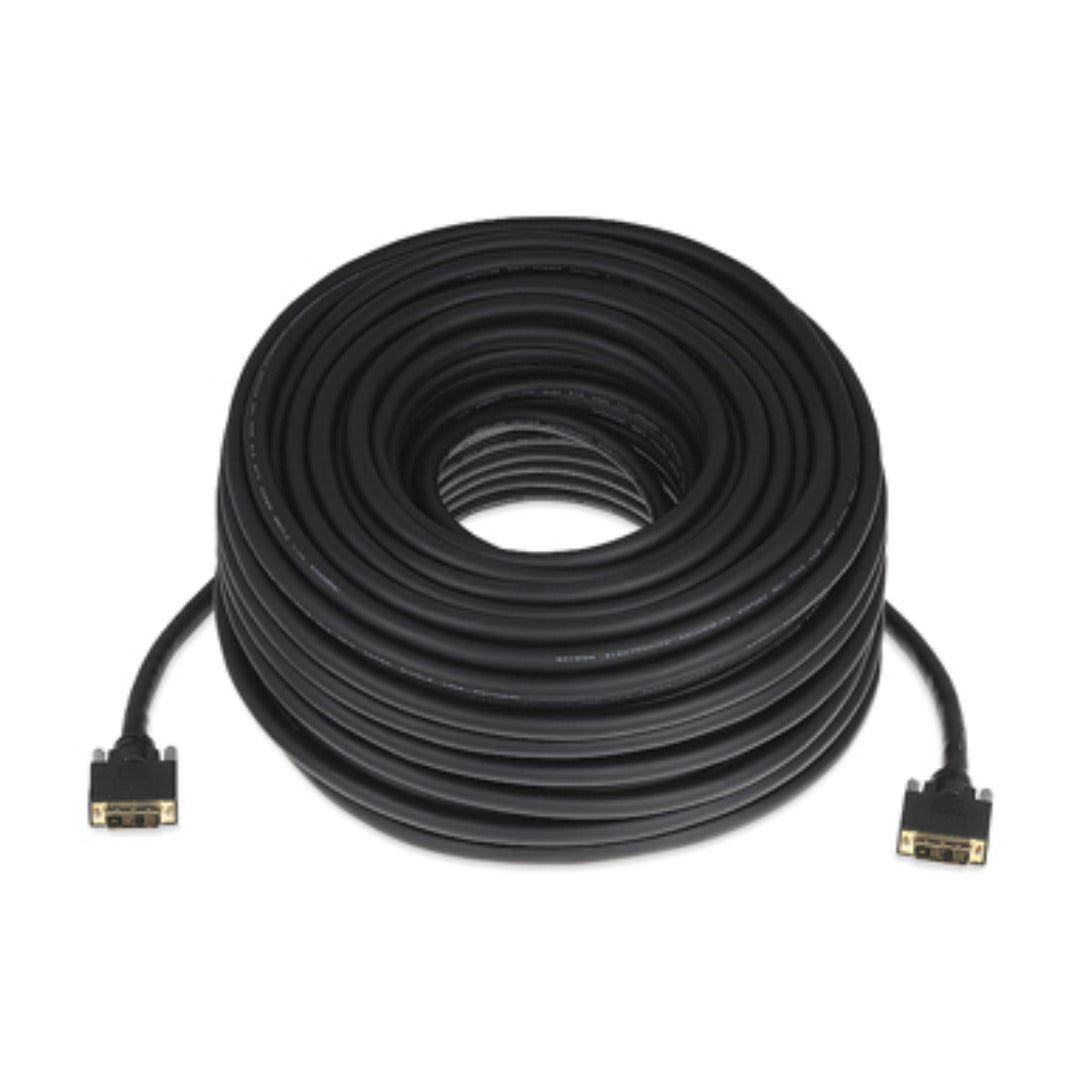

Extron DVID SL Pro/200 (part number 26-649-200) is a 200 ft (60.9 m) single link DVI-D cable and the longest length Extron offers in this family.

Two hundred feet is the outer edge of what a passive DVI-D assembly can be asked to do, and the construction reflects that. Extron uses 22 AWG tinned copper conductors with a tinned copper drain wire inside a 0.47 in PVC jacket, holds each pair at 100 ohms plus or minus 10 ohms, and specifies attenuation of 8.2 dB or less per 10 m at 825 MHz measured against the DVI 1.0 standard. Where a design needs the signal driven rather than simply carried, Extron pairs its 75 to 200 ft lengths with the HD 4K 101 Plus, which extends single link DVI-D to 1920x1200 at 60 Hz.

Key Capabilities

• 200 ft of single link DVI-D, the longest DVID SL Pro length.
• Rated to 1920x1200 at 60 Hz and 4.95 Gbps.
• 22 AWG tinned copper conductors for maximum reach.
• Attenuation of 8.2 dB or less per 10 m at 825 MHz.
• Far end crosstalk of 20 dB or more per 10 m.
• Works with the Extron HD 4K 101 Plus for active extension.

Where It Is Used

This length is specified where the source and the display are simply far apart: stadium and arena scoreboards, large houses of worship, convention centers, broadcast plants and campus lecture theaters. Ampronix supports integrators and facility engineers sourcing Extron cable for these long permanent pulls.

Specifications at a Glance

• Length: 200 ft (60.9 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Bend radius: 4.50 in (114.3 mm)
• Intrapair skew: 350 ps or less per 12 m
• Safety: cable UL Listed as type CM

Also referenced as Extron DVIDSLPro/200, DVID-SL-Pro-200, part number 26649200.
