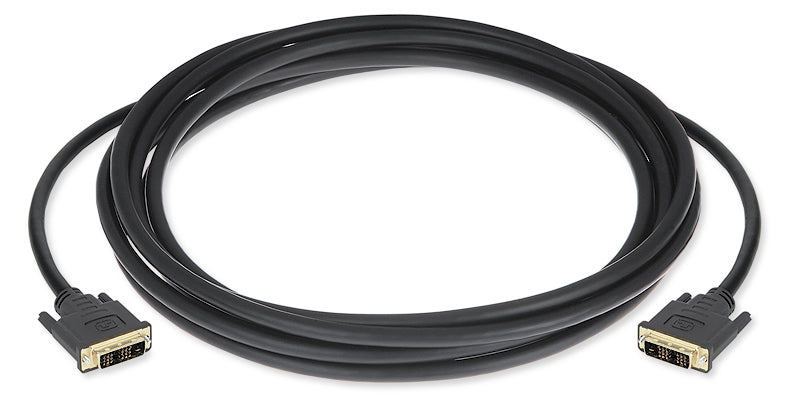

Extron DVID SL Pro/150 (part number 26-649-150) is a 150 ft (45.7 m) single link DVI-D cable for facility-scale digital video links.

Very long DVI-D runs succeed or fail on timing. Extron specifies this cable with intrapair skew of 350 ps or less per 12 m and interpair skew of 2.42 ns or less per 12 m, so the differential pairs and the three color channels stay aligned end to end. The physical build matches the rest of the long lengths: 22 AWG tinned copper conductors, a tinned copper drain wire and a PVC jacket 0.47 in in diameter, with impedance held at 100 ohms plus or minus 10 ohms. Extron lists the HD 4K 101 Plus as the companion product for its 75 to 200 ft lengths when a run calls for active extension.

Key Capabilities

• 150 ft of single link DVI-D, rated to 1920x1200 at 60 Hz.
• Intrapair skew of 350 ps or less per 12 m.
• Interpair skew of 2.42 ns or less per 12 m.
• 22 AWG tinned copper conductors under a 0.47 in PVC jacket.
• Supports data rates up to 4.95 Gbps.
• Gold plated contacts and a Limited Lifetime Performance warranty.

Where It Is Used

At 150 ft the run is infrastructure, not a patch cable: a central equipment room feeding an arena display, a stadium control booth, a large lecture theater, a broadcast facility or a hospital wing. Ampronix supplies Extron cable at this length for integrators specifying permanent, documented cable plant.

Specifications at a Glance

• Length: 150 ft (45.7 m)
• Maximum resolution: 1920x1200 @ 60 Hz
• Cable outer diameter: 0.47 in (12.0 mm)
• Bend radius: 4.50 in (114.3 mm)
• Safety: cable UL Listed as type CM

Also referenced as Extron DVIDSLPro/150, DVID-SL-Pro-150, part number 26649150. Extron lists 26-649-150 as a retired part number.
