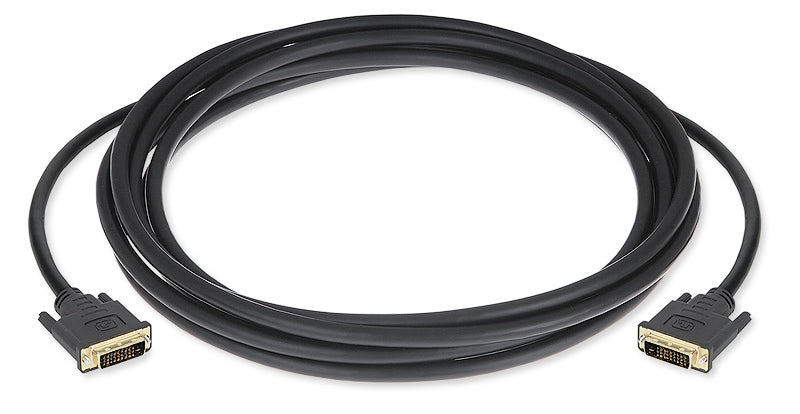

Extron DVID DL Pro/75 (part number 26-651-75) — at 75 ft (22.8 m) this is the longest DVID DL Pro length Extron currently lists, and the longest it rates for full dual link resolution.

Extron states that the 22 AWG DVID DL Pro construction carries 2560x1600 at 60 Hz and 1080p/60 out to 75 feet. That makes this part the end of the passive road for dual link DVI: beyond it the series stops, and an extender or a different signal path becomes the answer. Throughput is rated to 10.2 Gbps with 24-bit color, attenuation stays under 8 dB per 10 m at 0.825 GHz, and both plugs are gold-plated male DVI-D dual link.

Key Capabilities

• Longest DVID DL Pro length Extron lists, rated to full 2560x1600 at 60 Hz
• Data rates to 10.2 Gbps with 24-bit color, 8 bits per color
• 22 AWG tinned copper conductors and drain wire, PVC jacket
• 0.55 in (14.0 mm) outer diameter with a 5.50 in (140.0 mm) bend radius
• Attenuation under 8 dB per 10 m at 0.825 GHz
• UL CL2 rated; Extron Limited Lifetime Performance warranty

Where It Is Used

Seventy-five-foot dual link runs turn up in auditoriums, large operating theatres, broadcast facilities and multi-zone control rooms, wherever a high-resolution source has to reach a display on the far side of the space without inserting active electronics into the path.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Maximum resolution: 2560x1600 @ 60 Hz
• Data rate: up to 10.2 Gbps
• Connector: 1 male DVI-D dual link to 1 male DVI-D dual link
• Safety: UL CL2

Also referenced as Extron DVIDDLPro/75, DVID-DL-Pro-75, part number 2665175.
