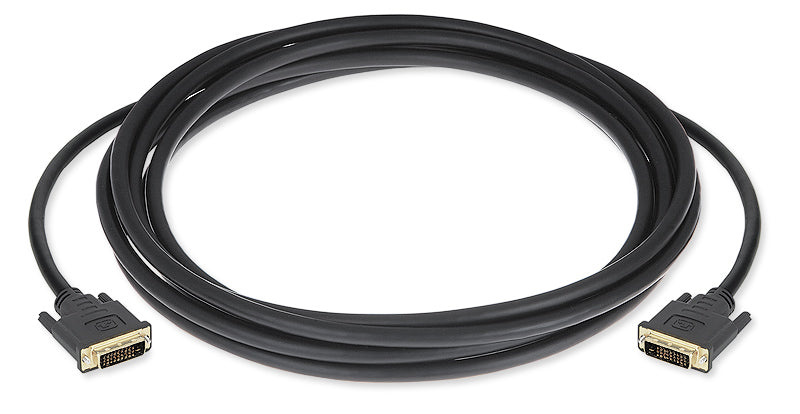

Extron DVID DL Pro/35 (part number 26-651-35) — a 35 ft (10.6 m) dual link DVI-D cable for room-scale high-resolution runs.

Thirty-five feet is past the point where thin DVI assemblies start losing edge definition, which is why Extron moves to 22 AWG tinned copper on every DVID DL Pro length of 25 feet and up. The heavier conductors, a 100 ohm differential pair impedance and attenuation kept under 8 dB per 10 m at 0.825 GHz are what let this cable hold a dual link timing all the way across a room. Extron rates the assembly for 2560x1600 at 60 Hz with throughput to 10.2 Gbps and 24-bit color.

Key Capabilities

• 35 ft dual link DVI-D run supporting data rates to 10.2 Gbps
• Rated for 2560x1600 at 60 Hz and 1080p/60 with 24-bit color
• 22 AWG tinned copper conductors and drain wire in a PVC jacket
• 0.55 in (14.0 mm) outer diameter, 5.50 in (140.0 mm) minimum bend radius
• Skew controlled to 350 ps intrapair and 2.4 ns interpair per 12 m
• UL CL2 rated with Extron Limited Lifetime Performance coverage

Where It Is Used

This length suits a projector or flat panel at the front of a classroom fed from a rack at the back, a control room console driving an overhead display, or a imaging suite where the acquisition workstation and the review monitor sit in separate zones of the same room.

Specifications at a Glance

• Length: 35 ft (10.6 m)
• Maximum resolution: 2560x1600 @ 60 Hz
• Data rate: up to 10.2 Gbps
• Conductor gauge: 22 AWG
• Bend radius: 5.50 in (140.0 mm)

Also referenced as Extron DVIDDLPro/35, DVID-DL-Pro-35, part number 2665135.
