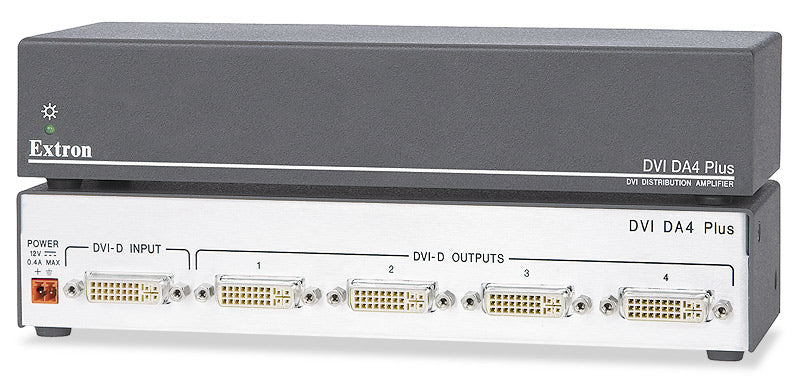

Extron DVI DA4 Plus (part number 60-931-21) — the current production one input, four output DVI distribution amplifier with EDID Minder, in a 1U half-rack metal enclosure.

The problem this solves is not really bandwidth, it is handshaking. A DVI source that loses its EDID conversation will boot to the wrong timing or refuse to output at all. EDID Minder keeps that conversation alive on the source side independently of what the four displays are doing, so screens can be powered down or swapped without disturbing the source. Alongside that, the amplifier equalizes the incoming run and retimes the signal, cleaning up jitter before the split. Extron rates the equalizer at roughly 100 feet of DVI Pro cable carrying 1920x1200 at 8-bit colour. Each output also delivers +5 VDC at 250 mA to run an in-line device such as a DVI 101 equalizer.

Key Capabilities

• Four single link DVI-D outputs on female DVI-I connectors from one female DVI-I input.
• 4.95 Gbps maximum data rate at 1.65 Gbps per colour, 165 MHz pixel clock.
• Computer video to 1920x1200 plus HDTV 1080p/60 and 2K.
• Retimes and reshapes marginal or noisy DVI signals before distribution.
• +5 VDC at 250 mA on each output for peripheral powering.
• 1U half-rack metal chassis, convection cooled, no vents and no fan.

Where It Is Used

Command and control positions, hospital and imaging departments running DVI diagnostic chains, laboratory and industrial visualization, broadcast machine rooms with legacy DVI infrastructure, and lecture theatres feeding several DVI projectors or panels from one PC.

Specifications at a Glance

• I/O: 1 female DVI-I in, 4 female DVI-I out
• Rate: 4.95 Gbps maximum, 165 MHz pixel clock
• Power: external 12 VDC 1.5 A 18 W; unit draws 12 VDC at 0.4 A max
• Enclosure: metal, 1.75" H x 8.75" W x 3.0" D, 2.8 lbs
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DVIDA4Plus, DVI-DA4-Plus, part number 6093121.
