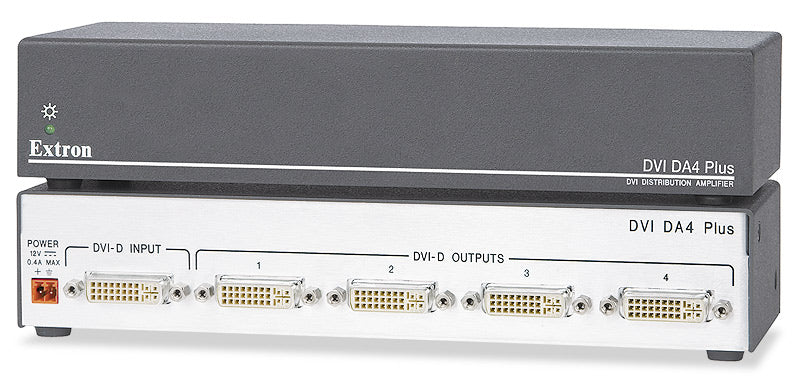

Extron DVI DA4 Plus (part number 60-931-01) — a one input, four output DVI distribution amplifier with EDID Minder, in a 1U half-rack metal enclosure.

DVI sources are notoriously fussy about what is plugged in at boot. EDID Minder solves that by holding a continuous EDID conversation with the source regardless of what the displays are doing, so the source comes up at the right resolution and stays there. On the signal side the amplifier equalizes the incoming DVI run, then retimes and reshapes it before splitting: marginal or noisy input arrives at the four outputs as a clean, low-jitter signal. Extron rates the input equalizer for about 100 feet at 1920x1200 with 8-bit color when Extron DVI Pro cable is used. Each output also carries +5 VDC at 250 mA, enough to power a DVI 101 cable equalizer or similar in-line device.

Key Capabilities

• Four single link DVI-D outputs on female DVI-I connectors, from one female DVI-I input.
• Maximum data rate of 4.95 Gbps, 1.65 Gbps per color, on a 165 MHz pixel clock.
• Handles computer video to 1920x1200, plus HDTV 1080p/60 and 2K.
• Automatic input equalization to roughly 100 feet with Extron DVI Pro cable at 1920x1200 8-bit.
• +5 VDC at 250 mA on every output for downstream peripherals.
• External 12 VDC 1.5 A 18 W Everlast supply, universal 100-240 VAC input.

Where It Is Used

Control rooms and dispatch centres still standardized on DVI, medical imaging and PACS reading positions, industrial and process visualization, simulation and training rigs, and any legacy AV rack where a single DVI source has to reach four monitors without a resolution renegotiation every time one is switched off.

Specifications at a Glance

• I/O: 1 female DVI-I in, 4 female DVI-I out
• Rate: 4.95 Gbps maximum, 165 MHz pixel clock
• Power: external 12 VDC 1.5 A 18 W; unit draws 12 VDC at 0.4 A max
• Enclosure: metal, 1.75" H x 8.75" W x 3.0" D, 1U half rack
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DVIDA4Plus, DVI-DA4-Plus, part number 6093101. Extron lists this part number as retired; 60-931-21 is the current version.
