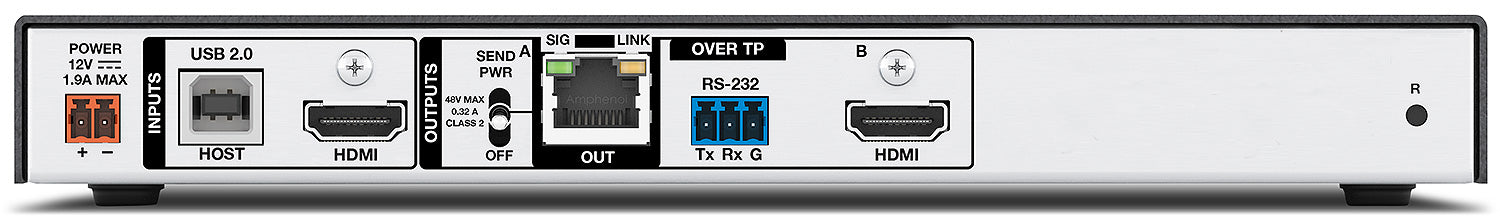

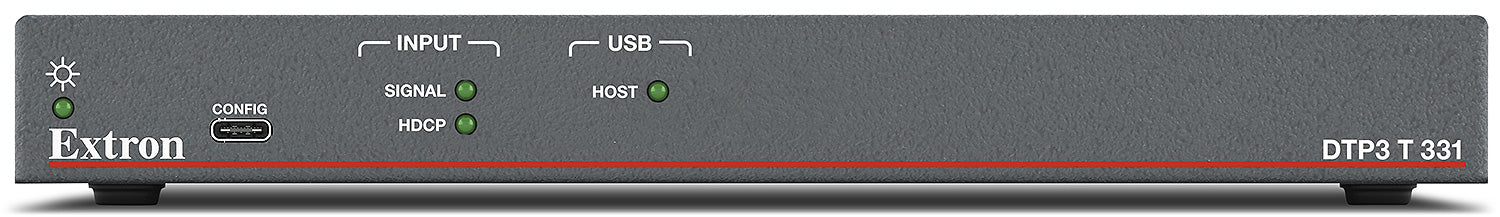

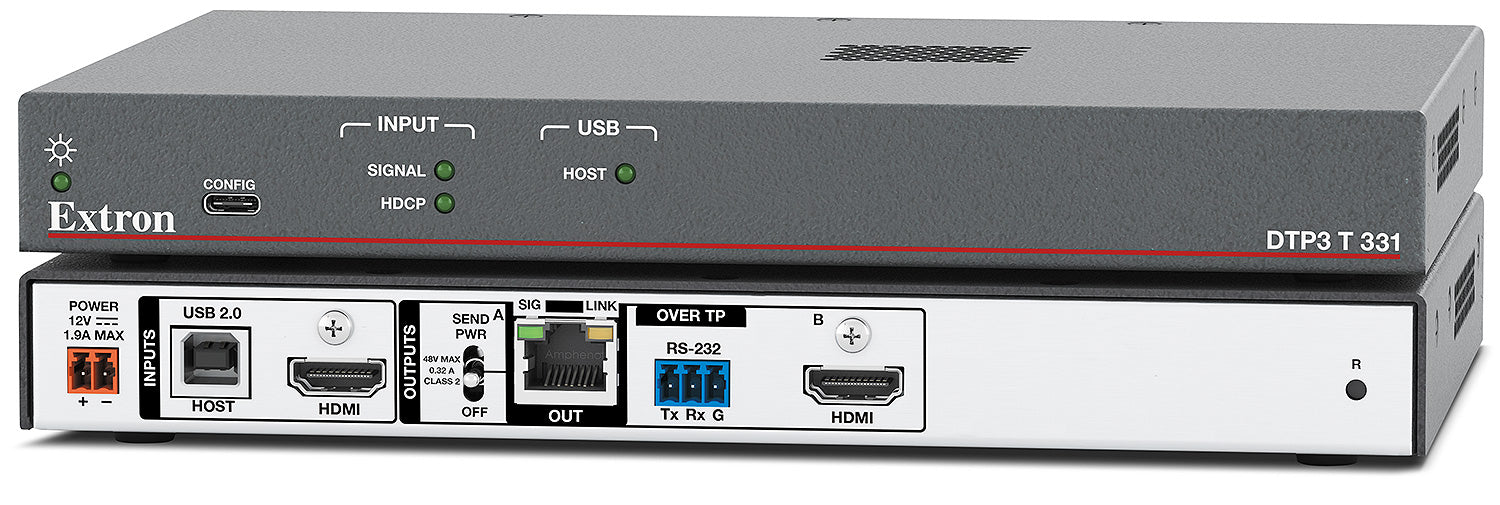

Extron DTP3 T 331 (part number 60-2092-52) — a half-rack DTP3 transmitter pairing 4K/60 HDMI extension with a USB 2.0 host path on the same cable.

The signal chain here is deliberately simple. One female HDMI type A input feeds both a local HDMI loop-through and a DTP3 output on RJ-45. Alongside it, a female USB type B host connector carries peripheral traffic at up to 480 Mbps to the far end, supporting bulk, control, interrupt and isochronous transfers with one built-in hub. RS-232 passes through the same twisted pair from 300 to 115200 baud. Because nothing is compressed, latency stays negligible and 18 Gbps sources arrive intact with HDR metadata.

Key Capabilities

1 female HDMI type A input with a female HDMI loop-through for a local display.
USB 2.0 host extension at up to 480 Mbps on 1 female USB type B port.
18 Gbps (6 Gbps per color) uncompressed at a 600 MHz maximum pixel clock.
330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
Bidirectional RS-232 pass-through, 7 or 8 data bits, 300 to 115200 baud.
Draws only 5.8 watts; accepts remote power on an 18 watt budget.
Ships with a ZipClip 400 kit; optional 1U rack shelf or under-desk mount.

Where It Is Used

Suits hybrid meeting rooms, lecture halls, boardrooms and training spaces where a rack-mounted PC must reach a camera or touch panel at the presentation position, and where a technician wants a confidence monitor beside the source without adding a distribution amplifier.

Specifications at a Glance

Signal type: HDMI 2.0b, HDCP 1.x, HDCP 2.3
Power supply: external 12 VDC, 2.0 A, 24 watts
Enclosure: 1.0 in H x 8.75 in W x 6.0 in D, half rack wide, metal
Thermal dissipation: 19.0 BTU/hr device
Operating range: +32 to +122 degrees F (0 to +50 degrees C)

Also referenced as Extron DTP3T331, DTP3-T-331, part number 60209252.

Specifications

Part Number: 60-2092-52

Manufacturer: Extron

Model: DTP3 T 331

Condition: New

Signal Type: HDMI 2.0b, HDCP 1.x, HDCP 2.3

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, VESA: 640x480 to 4096x2160

Resolution Range, SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)

Ultra Wide and 5K Resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 @ 60 Hz, 5120x1440 @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560 @ 30 Hz, 5120x2880 @ 30 Hz

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, and Dolby Vision

Video Input: 1 HDMI (or single link DVI-D with an appropriate DVI-HDMI adapter); 1 female HDMI type A connector

Video Output: 1 single link HDMI or DVI-D loop-through and 1 DTP3 output; 1 female HDMI and 1 female RJ-45 jack

Audio Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio Bit Depths: 16, 20, 24 bit

Audio Input: 1 digital audio de-embedded from HDMI; 1 female HDMI type A shared with the video input

Audio Output: 1 digital audio embedded with the HDMI output; 1 female HDMI type A shared with the video output

Audio Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Transmitter to Receiver Interconnection: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

USB Maximum Data Rate: Up to high speed (480 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host: 1 USB 2.0 on 1 female USB type B connector

USB Host Support: xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

Built-in USB Hubs: Maximum 1, minimum 1

USB Control Port: 1 front panel, female USB type C

USB Control Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

Serial Control Pass-Through Port: 1 RS-232, 3.5 mm, 3-pole captive screw connector

Baud Rate: 300 to 115200 baud

Serial Protocol: 7 or 8 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

Power Supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 2.0 A, 24 watts

Power Consumption: 5.8 watts device; 6.5 watts device and power supply

Remote Power Budget: 18.0 watts

Thermal Dissipation: 19.0 BTU/hr device; 21.3 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Mounting: Optional 1U high rack shelf or the included ZipClip 400 kit; optional under-desk mount kit or the included ZipClip 400 kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 8.75 in W x 6.0 in D, half rack wide (25 mm H x 222 mm W x 152 mm D); depth excludes connectors

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

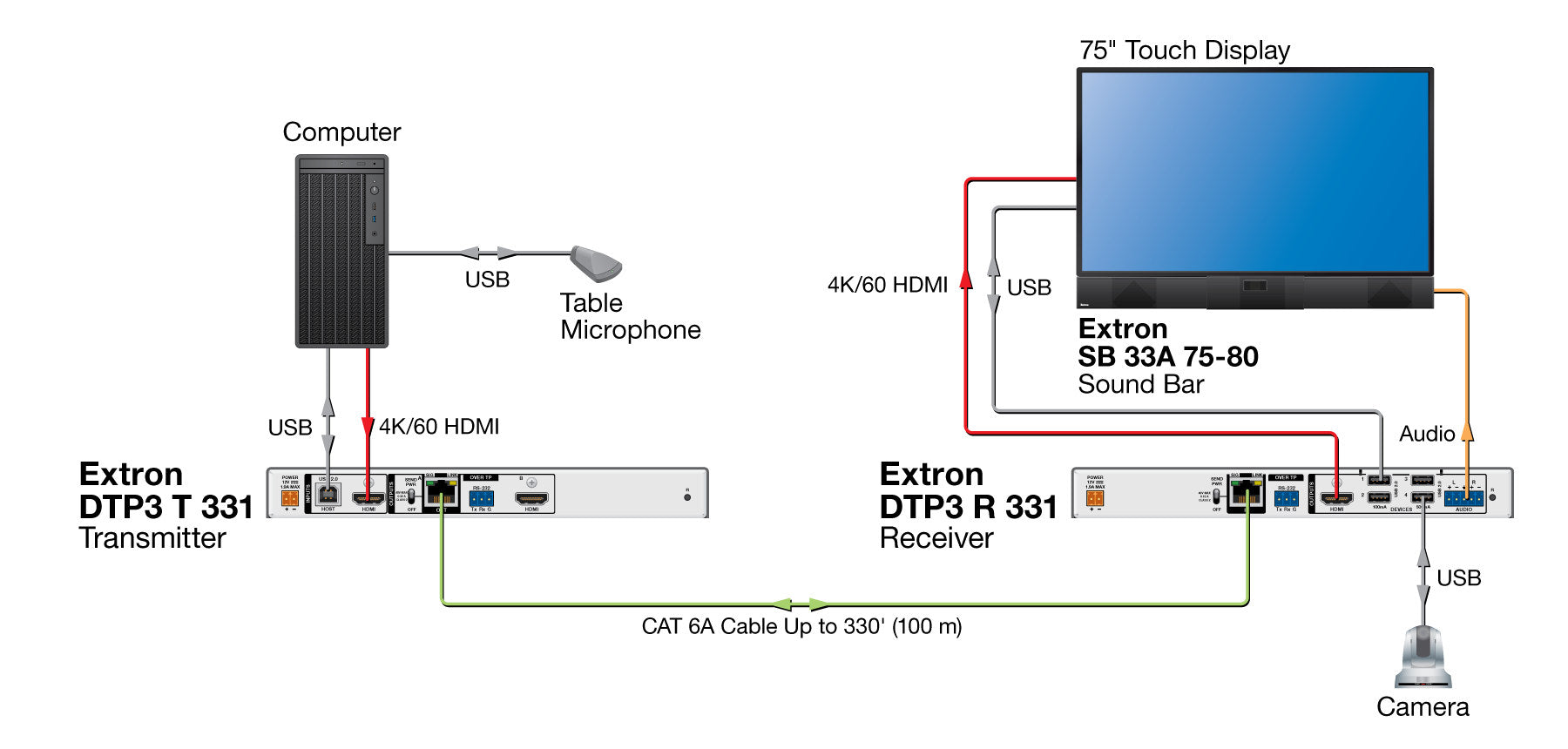

Diagram

Resources

Brochure | DTP3 T 331 60-2092-52 | DTP3 T 331

Manual | DTP3 T 331 60-2092-52 | DTP Compatibility Guide

Manual | DTP3 T 331 60-2092-52 | DTP3 T 331 and DTP3 R 331 Setup Guide

Manual | DTP3 T 331 60-2092-52 | DTP3 T 331 and DTP3 R 331 User Guide

Specifications | DTP3 T 331 60-2092-52 | DTP3 T 331

Panel Drawing | DTP3 T 331 60-2092-52 | DTP3 T 331
