Details

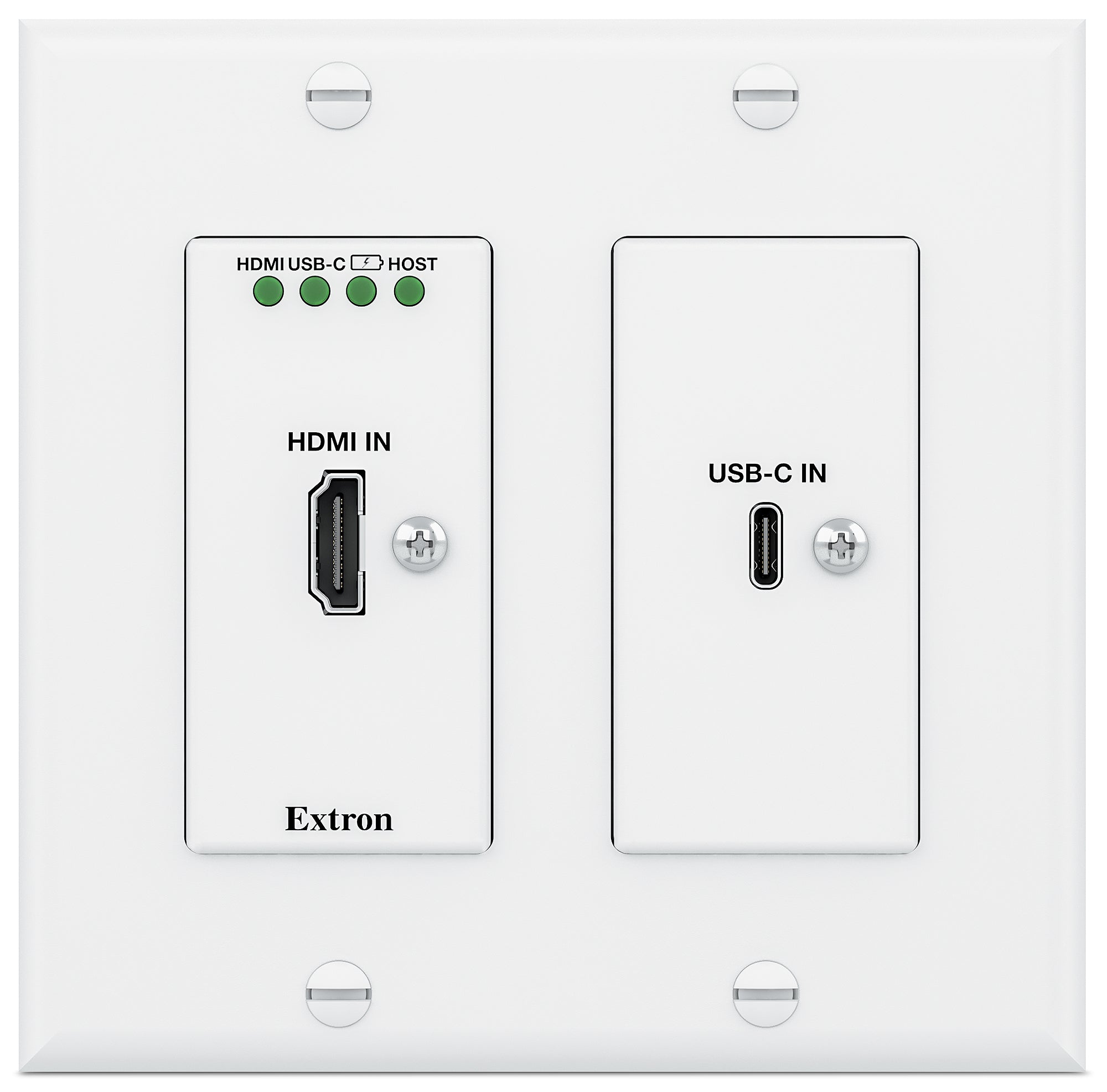

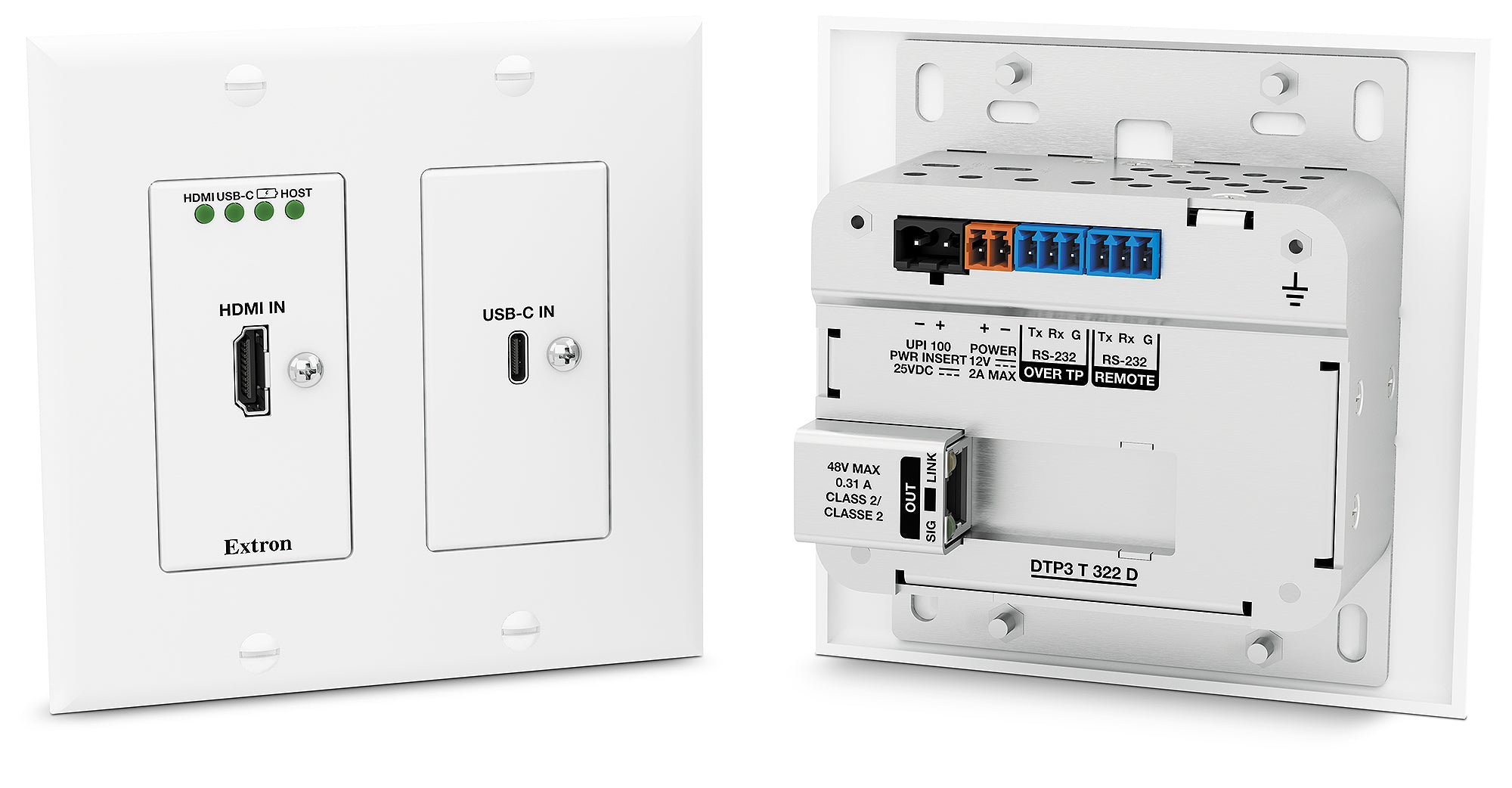

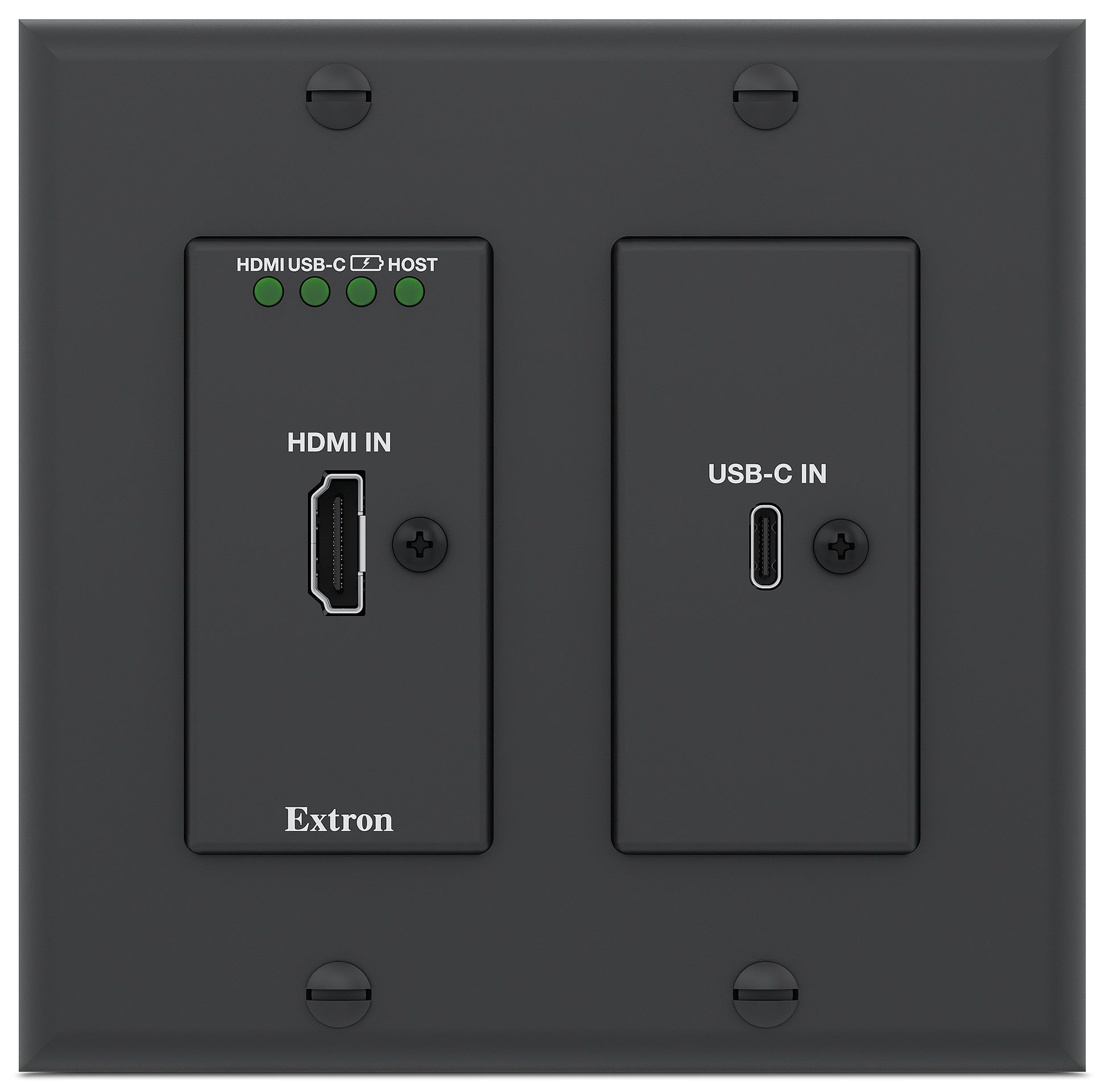

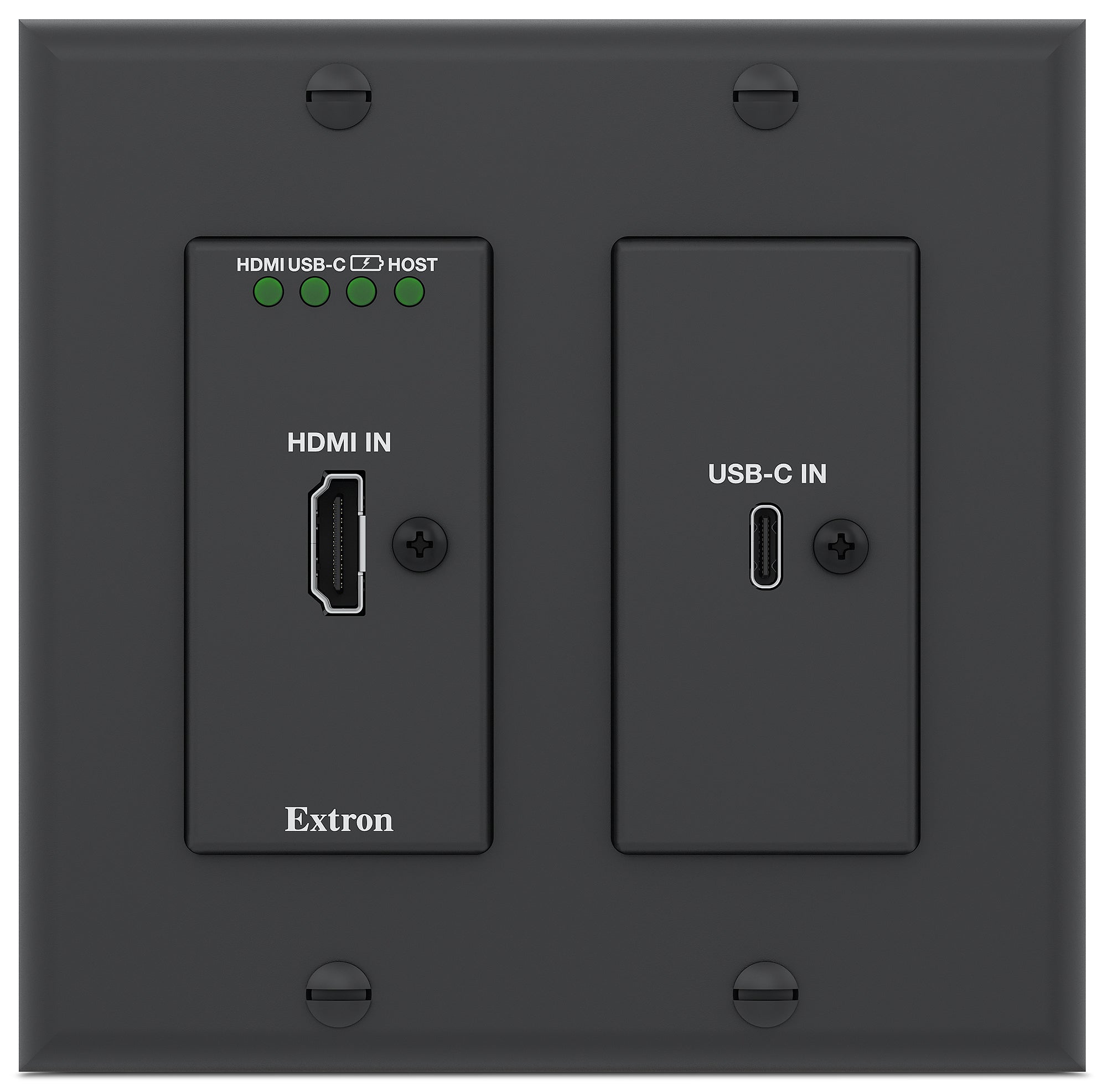

Extron DTP3 T 322 D (part number 60-2066-53, white) — a two-input decorator wallplate transmitter for HDMI, USB-C video and USB 2.0 data over a single twisted pair run.

Three jobs, one plate. Video arrives on either a female HDMI type A port or a female USB type C port supporting DisplayPort Alt Mode over two or four lanes; USB peripheral traffic arrives on a separate USB type C host connection and rides the same link at up to 480 Mbps. All of it lands on one RJ-45 configured as either DTP3 or HDBaseT. The result is that a table or wall position can host a laptop, a camera and a touch controller while the computer and receiver stay in a rack up to a hundred metres off.

Key Capabilities

1 female HDMI type A and 1 female USB type C video input with automatic handling.
Separate USB 2.0 host port; bulk, control, interrupt and isochronous transfers.
18 Gbps (6 Gbps per color) uncompressed at a 600 MHz maximum pixel clock.
Full 330 ft (100 m) at 4K/60 on Extron XTP DTP 22 cable.
Selectable DTP3 or HDBaseT output on a single female RJ-45.
RS-232 control port at 9600 baud plus a pass-through port to 115200 baud.
White faceplate for light wall and furniture finishes.

Where It Is Used

A natural fit for classrooms, training rooms, huddle spaces and boardrooms finished in light paint or pale laminate. Specifiers who need a matching dark plate elsewhere in the same project order the black 60-2066-52, since both share identical electronics and cabling requirements.

Specifications at a Glance

Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
USB-C power delivery to 20 VDC at 5 A when an Extron UPI 100 is used
Power supply: external 12 VDC, 2.0 A, 24 watts; 18 watt remote power budget
Device size: 2.7 in H x 3.5 in W x 2.0 in D (4.2 in H with mounting tabs)
Cooling: convection through vent holes, no fan

Also referenced as Extron DTP3T322D, DTP3-T-322-D, part number 60206653.

Specifications

Part Number: 60-2066-53

Manufacturer: Extron

Model: DTP3 T 322 D

Faceplate Color: White

Condition: New

Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 2.3

Standards: DVI 1.0, HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, HDMI: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x2880 @ 30 Hz

Resolution Range, USB-C: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x1440 @ 30 Hz

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, and Dolby Vision

Video Input: 1 HDMI (or single link DVI-D with appropriate adapters) on 1 female HDMI type A; 1 USB-C (DP Alt-Mode, 2 or 4 lanes) on 1 female USB type C

Video Output: 1 DTP3 or HDBaseT, configurable; 1 female RJ-45

Audio Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio Bit Depths: 16, 20, 24 bit

Audio Input: 1 digital audio de-embedded from HDMI and 1 digital audio de-embedded from USB-C; 1 female HDMI type A and 1 female USB type C, both shared with the video inputs

Audio Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Transmitter to Receiver Interconnection: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

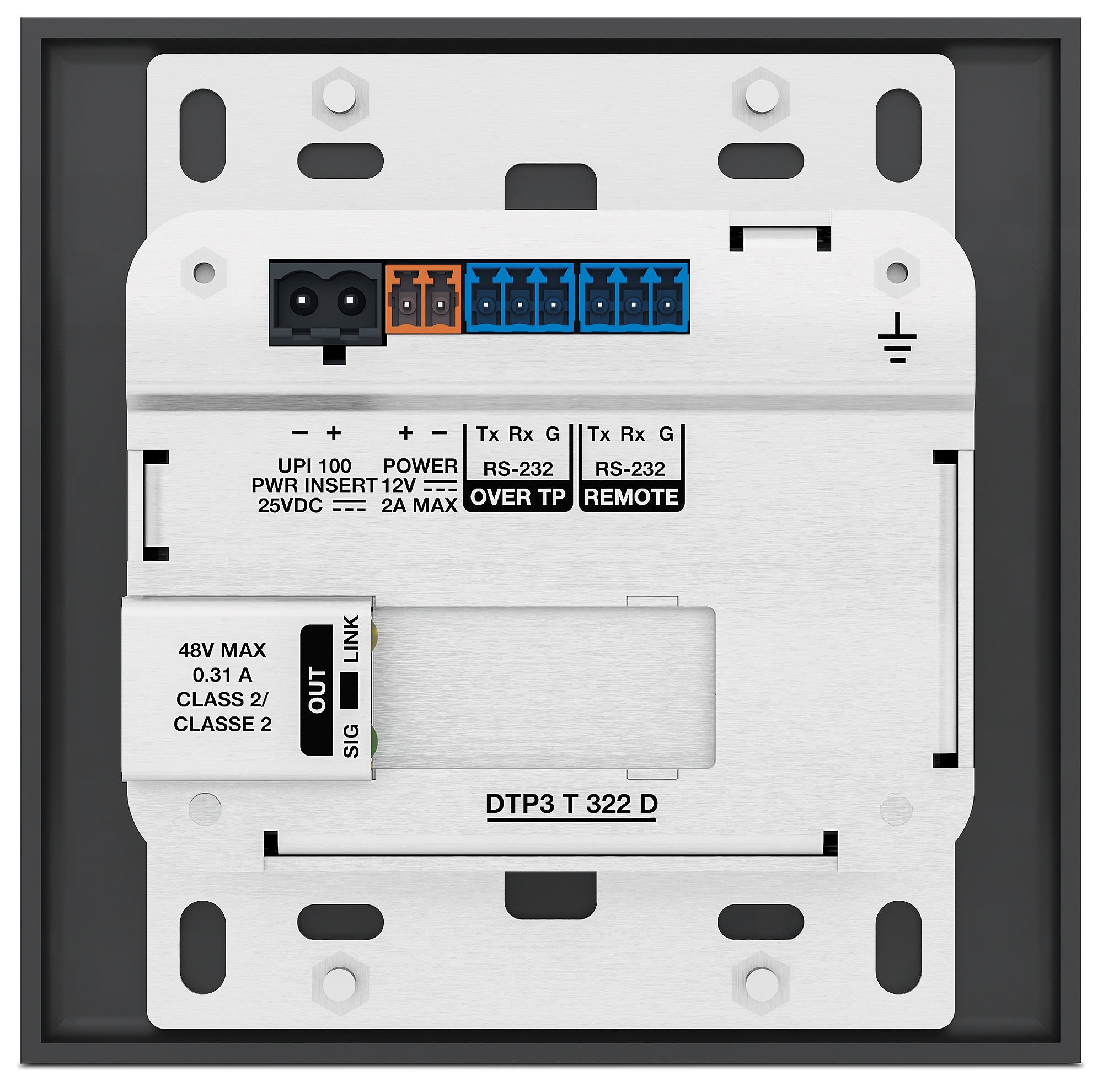

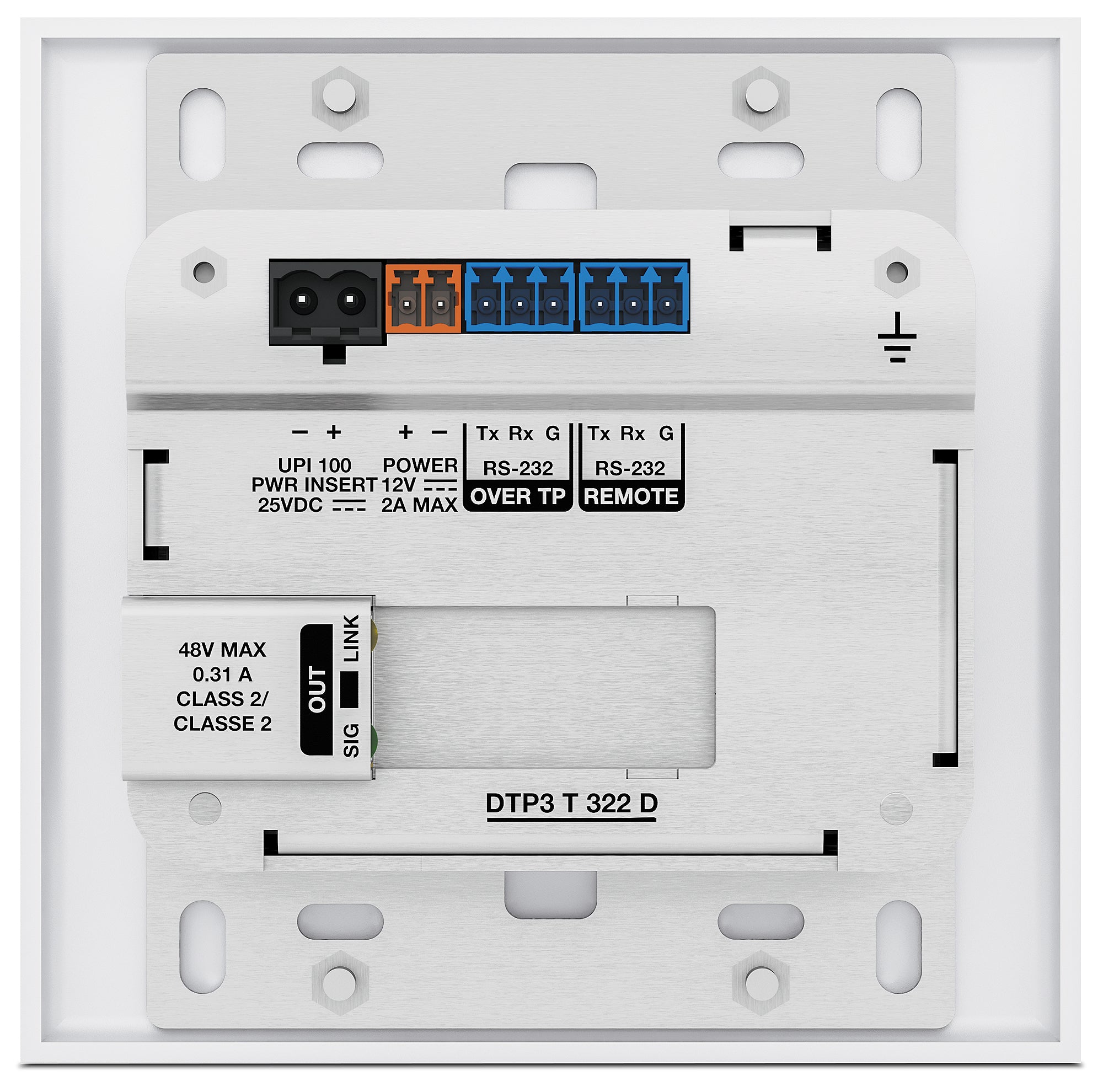

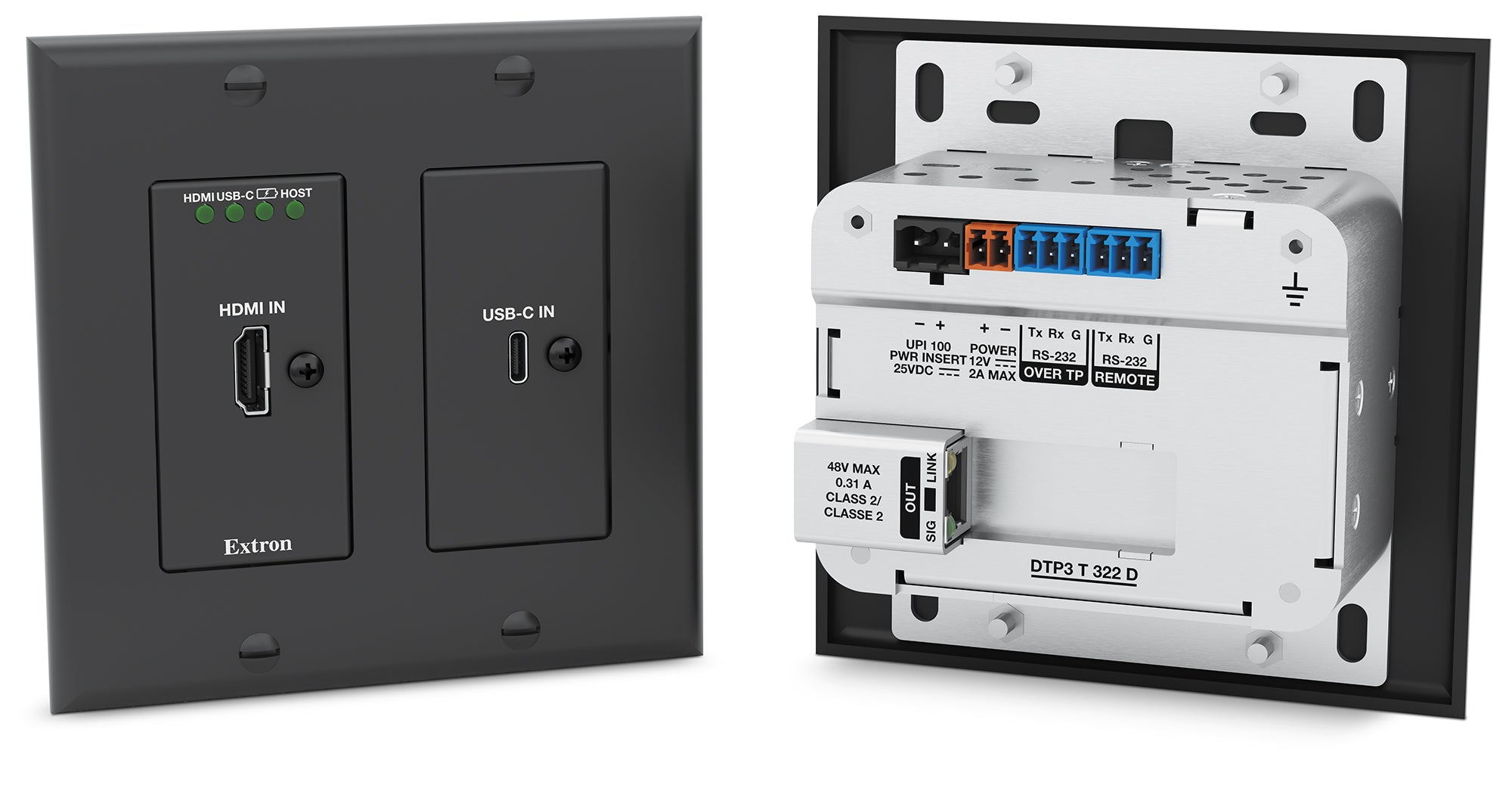

Serial Control Port: 1 RS-232 (plus or minus 5 V) via 3.5 mm, 3-pole captive screw connector at 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pass-Through Port: 1 RS-232, 3.5 mm, 3-pole captive screw connector; 300 to 115200 baud; 7 or 8 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

USB Control Port: 1 front panel, female USB type C

USB Control Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

USB Maximum Data Rate: Up to high speed (480 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host: 1 USB 2.0 on 1 female USB type C connector

Built-in USB Hubs: Maximum 1, minimum 1

USB-C Power Delivery: 5 VDC up to 3 A, 9 VDC up to 3 A, 12 VDC up to 3 A, 15 VDC up to 3 A, 20 VDC up to 3 A, 20 VDC up to 5 A; available only when the UPI 100 is used

Power Supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 2.0 A, 24 watts

Remote Power Budget: 18 watts

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +104 degrees F (0 to +40 degrees C), 10% to 90% noncondensing

Cooling: Convection, vent holes

Mounting: Wall or furniture mount in a decorator-style opening

Enclosure Type: Metal

Faceplate Dimensions: 2.6 in H x 1.3 in W x 0.25 in D (66 mm H x 33 mm W x 6 mm D)

Device Dimensions: 2.7 in H x 3.5 in W x 2.0 in D (68 mm H x 89 mm W x 51 mm D); height is 4.2 in (104 mm) including mounting tabs

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram
