Details

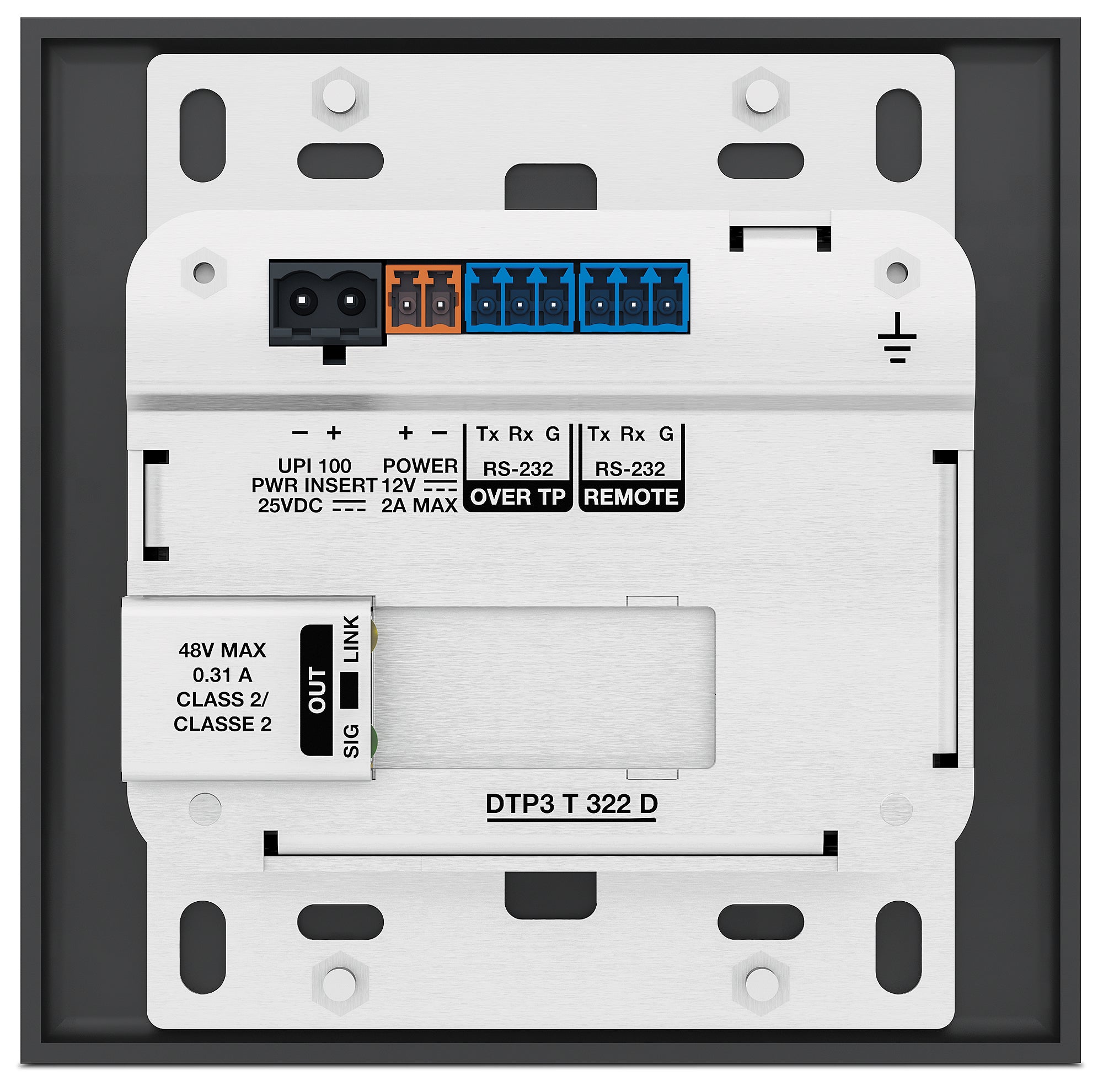

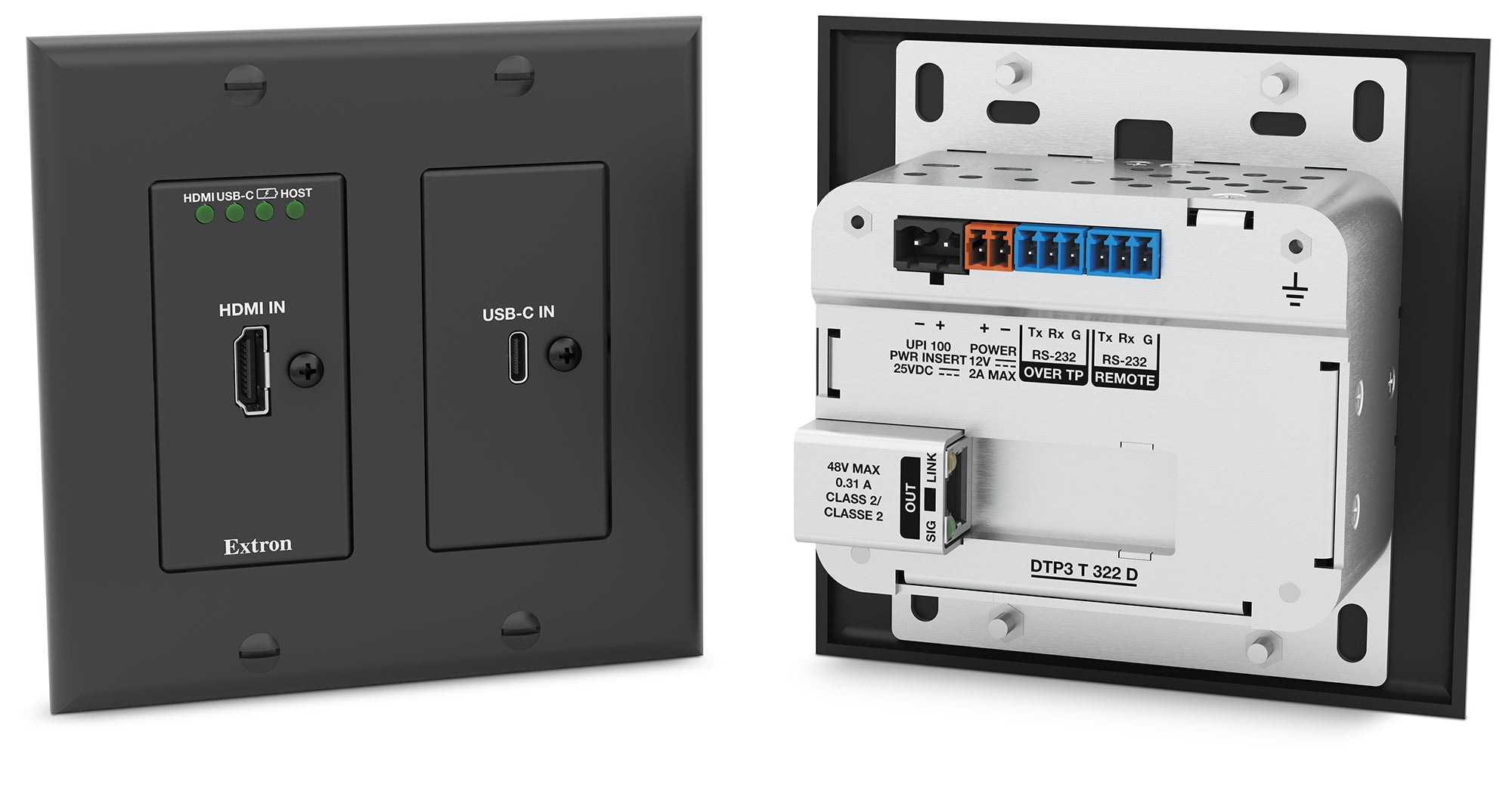

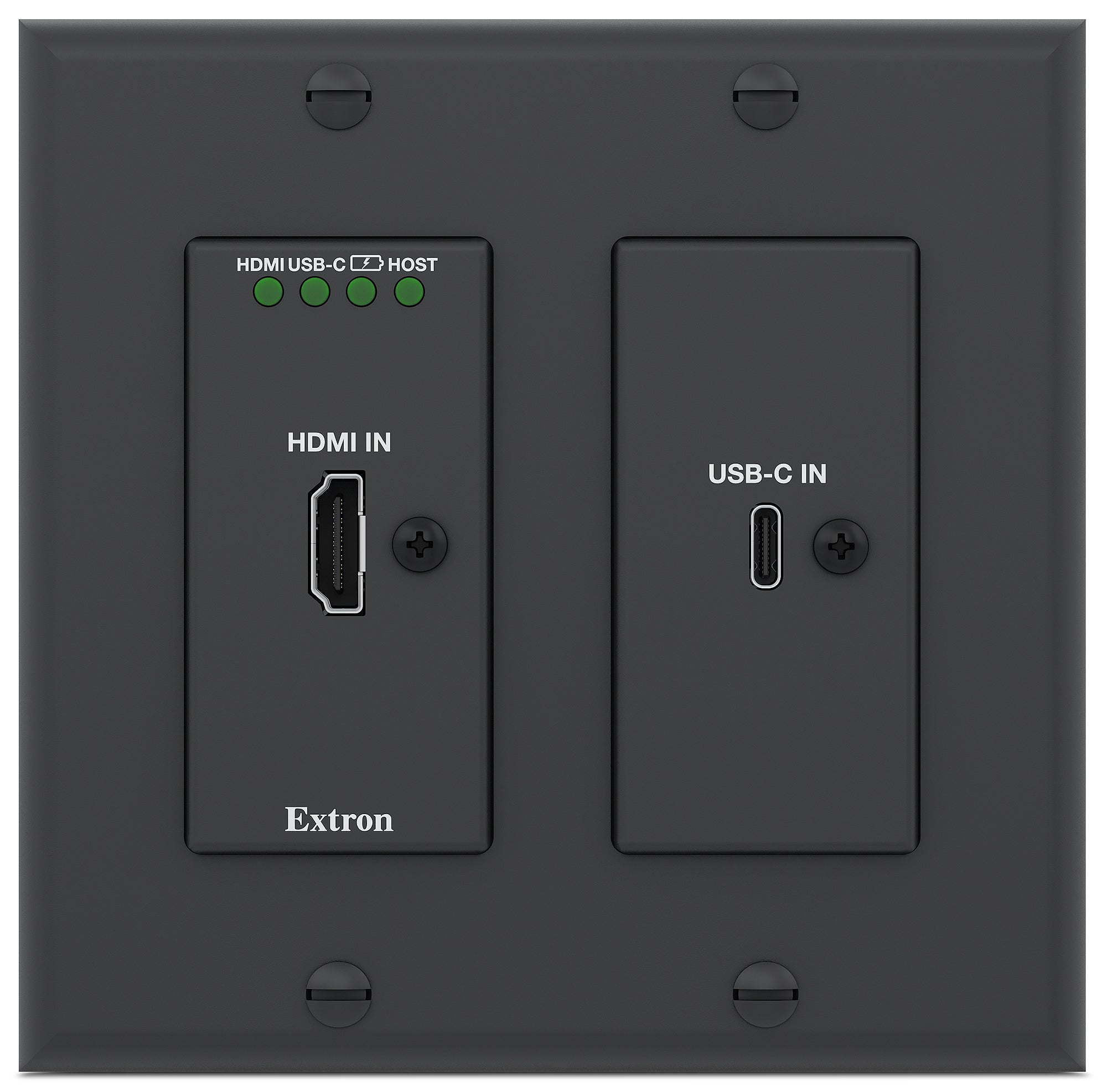

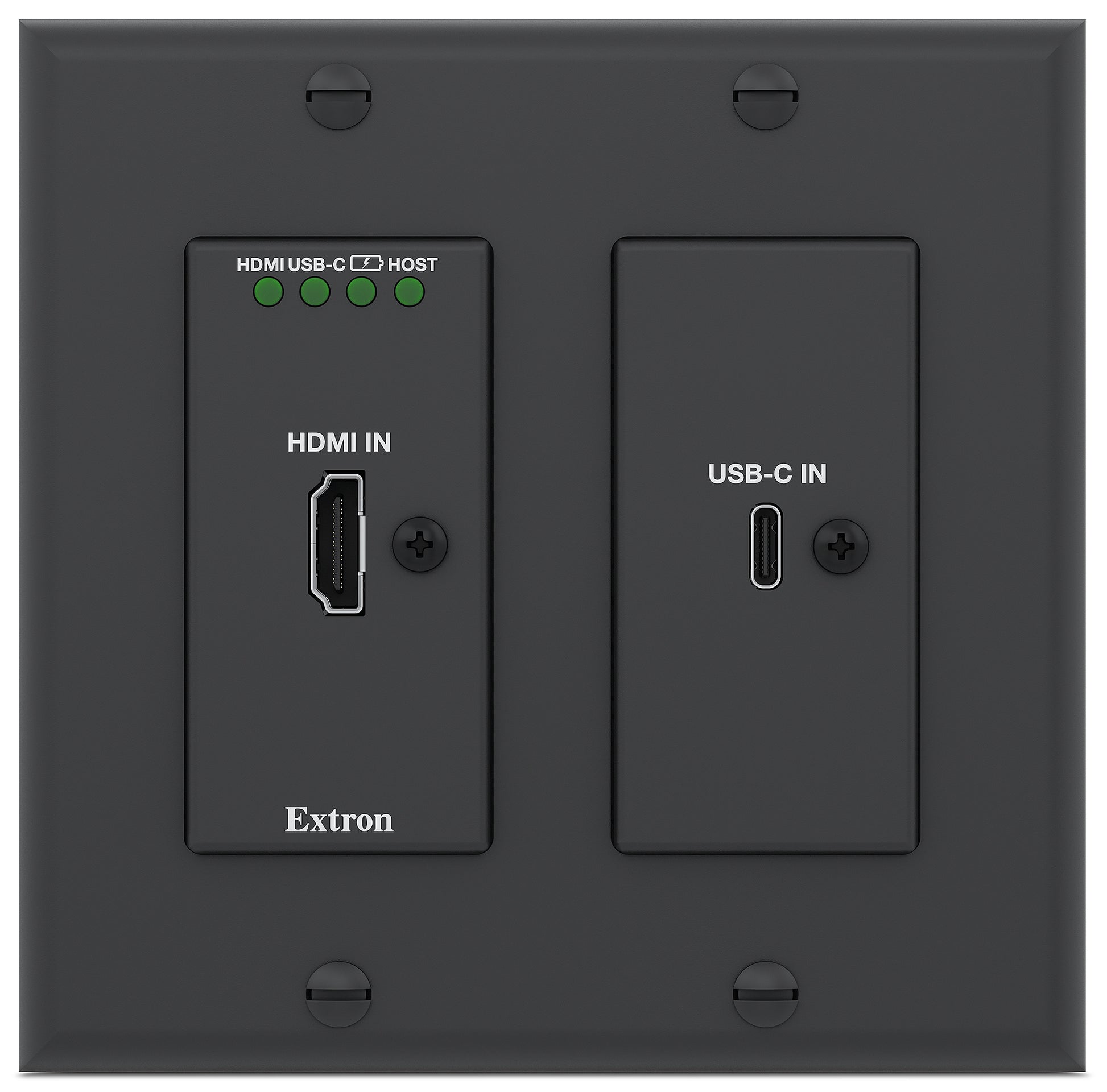

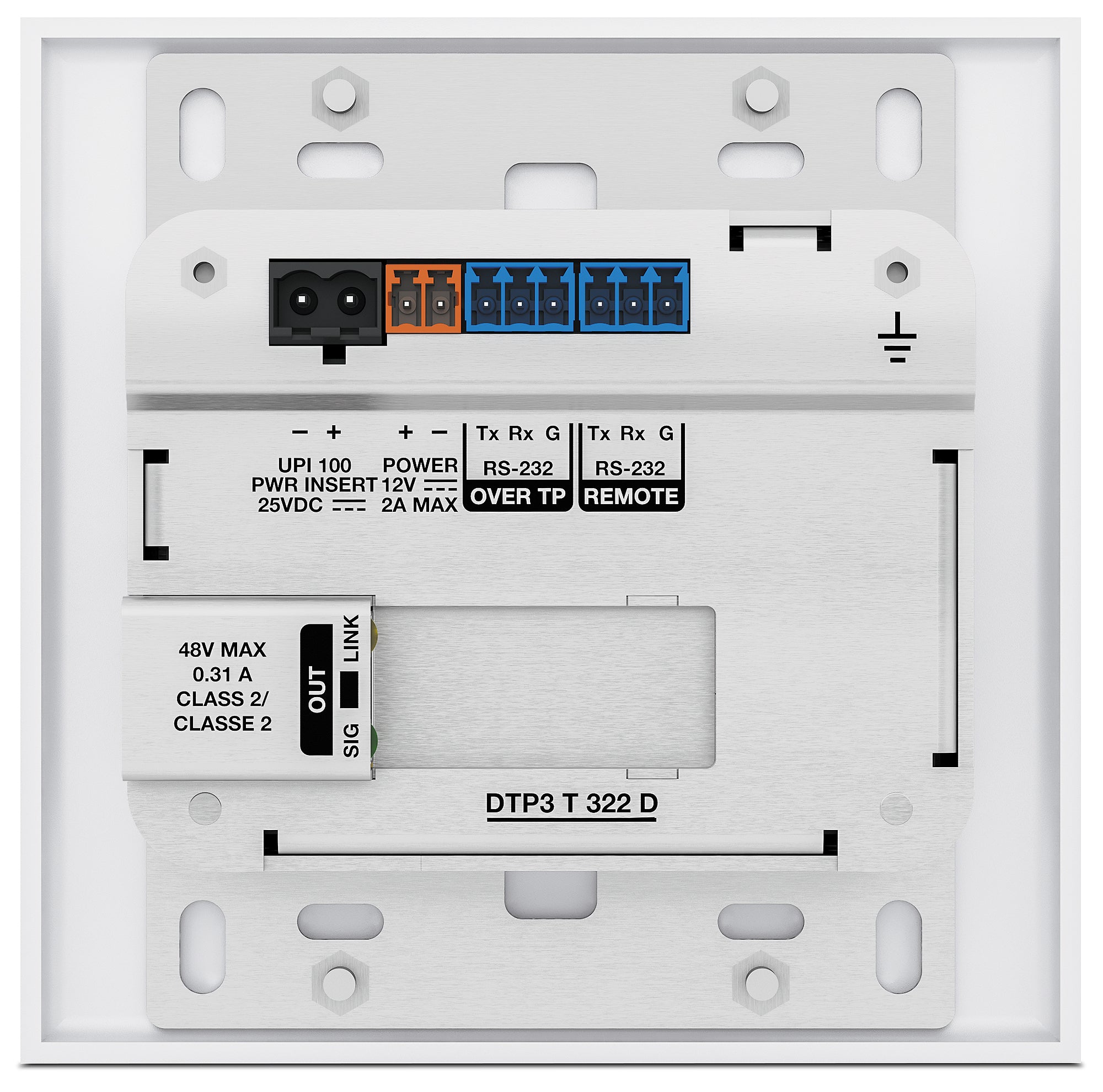

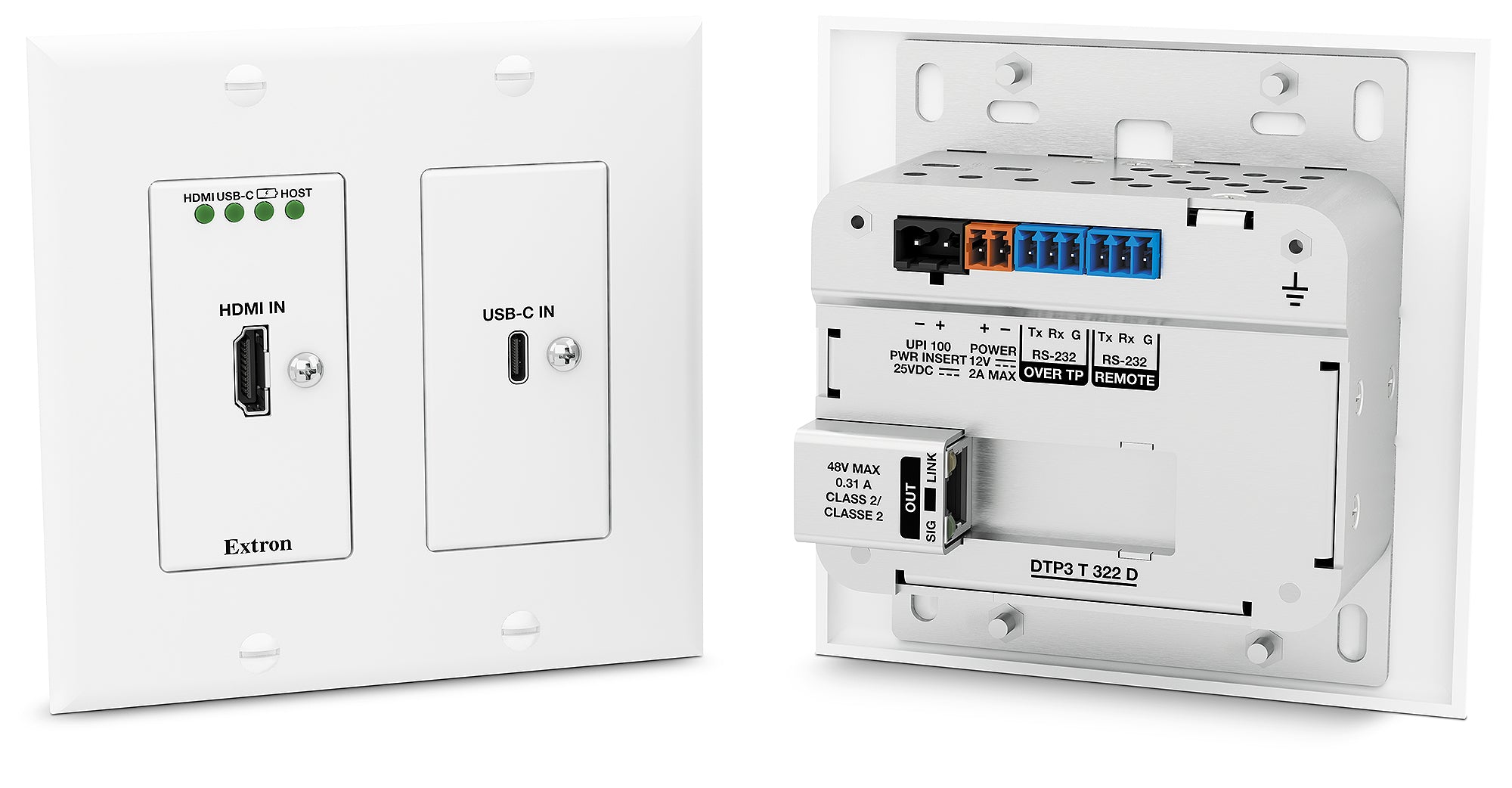

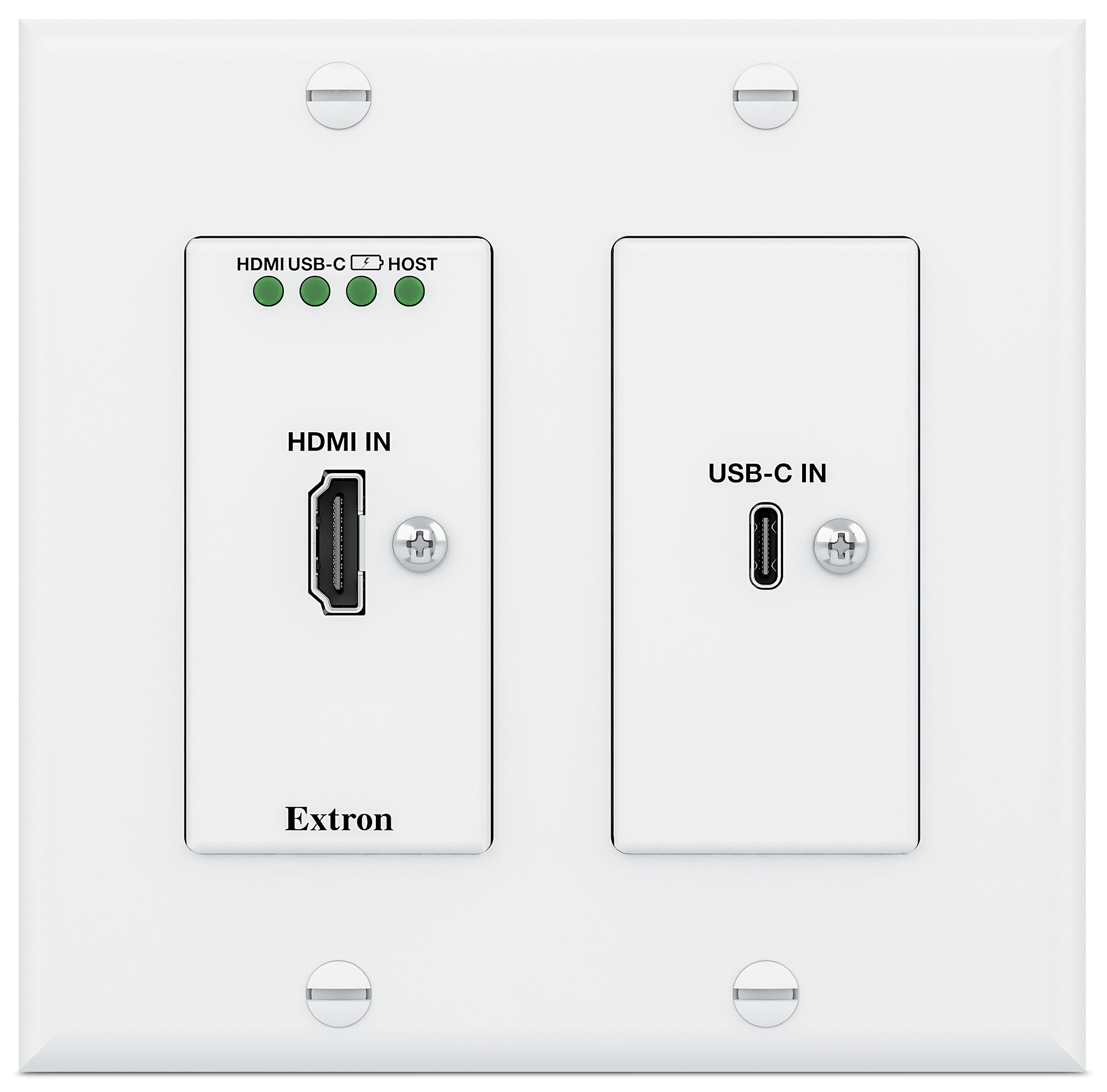

Extron DTP3 T 322 D (part number 60-2066-52, black) — a two-input decorator wallplate transmitter carrying HDMI, USB-C video and USB 2.0 data on one twisted pair link.

What separates this plate from a plain video wallplate is the data path. Beside the female HDMI type A and female USB type C video inputs sits a USB 2.0 host connection on a second USB type C port, running at up to 480 Mbps with bulk, control, interrupt and isochronous transfers. A room camera or touch panel at the wall can therefore reach a computer sitting in a rack a hundred metres away on the same cable that carries the picture. The DTP3 output can be switched to HDBaseT where an older receiver is already installed.

Key Capabilities

Two video inputs: 1 female HDMI type A and 1 female USB type C (DP Alt Mode, 2 or 4 lanes).
USB 2.0 host extension at up to 480 Mbps high speed with one built-in hub.
18 Gbps (6 Gbps per color) uncompressed video, 600 MHz maximum pixel clock.
330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
DTP3 or HDBaseT output, configurable, on a single female RJ-45.
USB-C charging up to 20 VDC at 5 A when an Extron UPI 100 is fitted.
Bidirectional RS-232 pass-through at 300 to 115200 baud.

Where It Is Used

Best suited to hybrid meeting rooms, huddle spaces, boardrooms and classrooms where a single decorator opening has to serve BYOD video, room peripherals and control. The black faceplate matches dark millwork and lectern panels; the white 60-2066-53 covers the lighter finishes in the same building.

Specifications at a Glance

Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
Power supply: external 12 VDC, 2.0 A, 24 watts; 18 watt remote power budget
Device size: 2.7 in H x 3.5 in W x 2.0 in D (4.2 in H with mounting tabs)
Faceplate: 2.6 in H x 1.3 in W x 0.25 in D
Operating range: +32 to +104 degrees F (0 to +40 degrees C)

Also referenced as Extron DTP3T322D, DTP3-T-322-D, part number 60206652.

Specifications

Part Number: 60-2066-52

Manufacturer: Extron

Model: DTP3 T 322 D

Faceplate Color: Black

Condition: New

Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 2.3

Standards: DVI 1.0, HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, HDMI: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x2880 @ 30 Hz

Resolution Range, USB-C: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x1440 @ 30 Hz

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, and Dolby Vision

Video Input: 1 HDMI (or single link DVI-D with appropriate adapters) on 1 female HDMI type A; 1 USB-C (DP Alt-Mode, 2 or 4 lanes) on 1 female USB type C

Video Output: 1 DTP3 or HDBaseT, configurable; 1 female RJ-45

Audio Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio Bit Depths: 16, 20, 24 bit

Audio Input: 1 digital audio de-embedded from HDMI and 1 digital audio de-embedded from USB-C; 1 female HDMI type A and 1 female USB type C, both shared with the video inputs

Audio Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Transmitter to Receiver Interconnection: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

Serial Control Port: 1 RS-232 (plus or minus 5 V) via 3.5 mm, 3-pole captive screw connector at 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pass-Through Port: 1 RS-232, 3.5 mm, 3-pole captive screw connector; 300 to 115200 baud; 7 or 8 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

USB Control Port: 1 front panel, female USB type C

USB Control Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

USB Maximum Data Rate: Up to high speed (480 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host: 1 USB 2.0 on 1 female USB type C connector

Built-in USB Hubs: Maximum 1, minimum 1

USB-C Power Delivery: 5 VDC up to 3 A, 9 VDC up to 3 A, 12 VDC up to 3 A, 15 VDC up to 3 A, 20 VDC up to 3 A, 20 VDC up to 5 A; available only when the UPI 100 is used

Power Supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 2.0 A, 24 watts

Remote Power Budget: 18 watts

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +104 degrees F (0 to +40 degrees C), 10% to 90% noncondensing

Cooling: Convection, vent holes

Mounting: Wall or furniture mount in a decorator-style opening

Enclosure Type: Metal

Faceplate Dimensions: 2.6 in H x 1.3 in W x 0.25 in D (66 mm H x 33 mm W x 6 mm D)

Device Dimensions: 2.7 in H x 3.5 in W x 2.0 in D (68 mm H x 89 mm W x 51 mm D); height is 4.2 in (104 mm) including mounting tabs

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

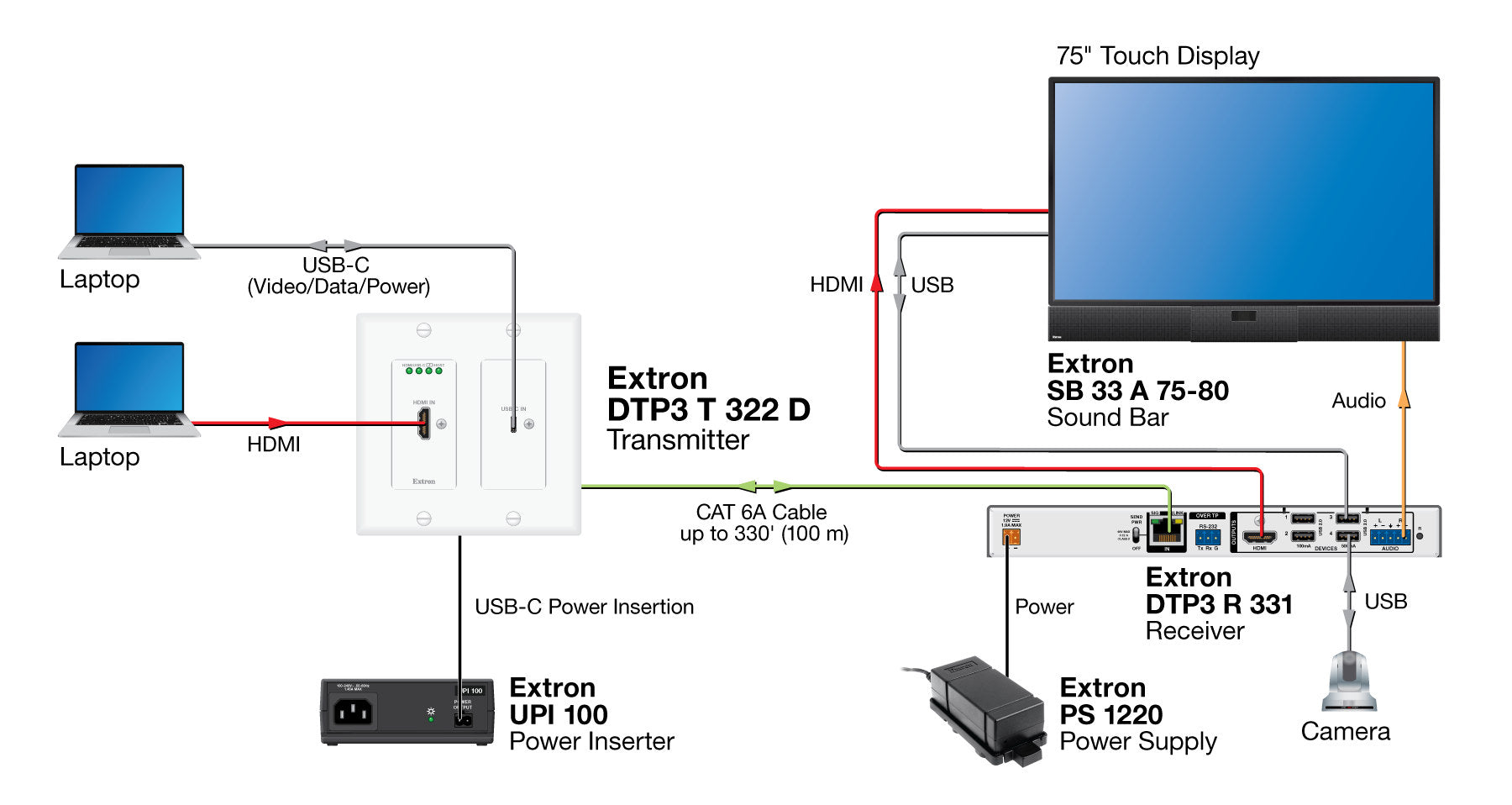

Diagram

Resources

Brochure | DTP3 T 322 D 60-2066-52 | DTP3 T 322 D

Manual | DTP3 T 322 D 60-2066-52 | DTP Compatibility Guide

Manual | DTP3 T 322 D 60-2066-52 | DTP3 T 322 D Setup Guide

Specifications | DTP3 T 322 D 60-2066-52 | DTP3 T 322 D

Panel Drawing | DTP3 T 322 D 60-2066-52 | DTP3 T 322 D

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 322 D 4K/60 USB-C Decorator Wallplate Tx Black 60-2066-52

Name: Extron DTP3 T 322 D 4K/60 USB-C Decorator Wallplate Tx Black 60-2066-52
Brand: Extron
SKU: EXTRON-DTP3T322D-60206652
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 322 D 4K/60 USB-C Decorator Wallplate Transmitter, Black

• Two video inputs plus a USB 2.0 host path in one decorator opening
• USB data at up to 480 Mbps high speed with one built-in hub
• 18 Gbps uncompressed video at a 600 MHz maximum pixel clock
• 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
• DTP3 or HDBaseT output, configurable, on one female RJ-45
• USB-C charging to 20 VDC at 5 A with an Extron UPI 100 fitted
• Black faceplate, 2.6 in H x 1.3 in W; device 2.7 x 3.5 x 2.0 in
