Details

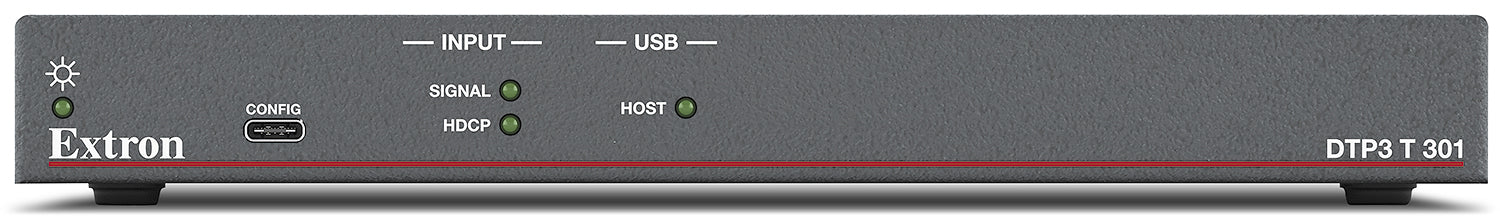

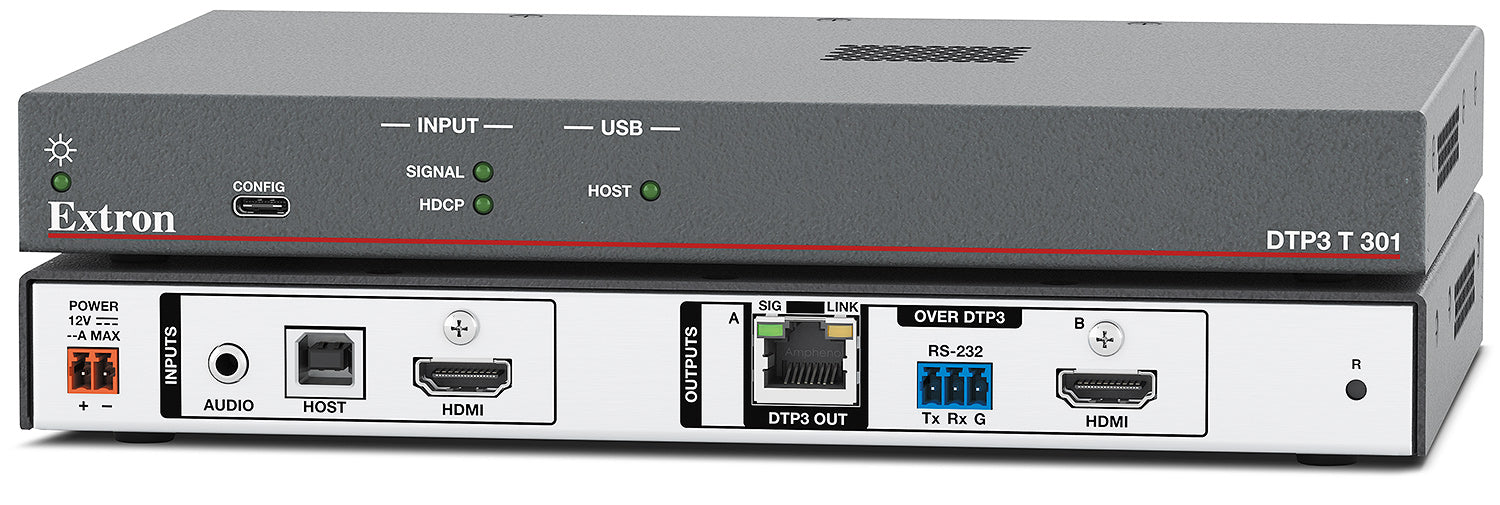

Extron DTP3 T 301 (part number 60-1773-52) — a half-rack DTP3 transmitter that carries 4K/60 HDMI and a USB 2.0 host connection down one twisted pair run.

Video extenders are common; video extenders that also move the room's USB host are not. Alongside the HDMI input and its loop-through, the DTP3 T 301 provides a female USB type B host port whose traffic — bulk, control, interrupt and isochronous — travels the same cable at up to 480 Mbps. That means a soft-codec PC in the rack can reach a camera and speakerphone at the table without a second infrastructure run. A 3.5 mm analog stereo input can be embedded onto the digital video at the transmitter, and RS-232 passes through for remote device control.

Key Capabilities

1 female HDMI type A input with a female HDMI loop-through output.
USB host extension at 480 Mbps throughput on 1 female USB type B connector.
18 Gbps (6 Gbps per color) video, 600 MHz maximum pixel clock, HDCP 2.3.
330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
Analog stereo input at -10 dBV nominal embeds onto the outgoing digital stream.
RS-232 pass-through at 300 to 115 k baud over the twisted pair.
Ships with a ZipClip 400 mounting kit; optional 1U shelf or under-desk kit.

Where It Is Used

Wherever the computer and the peripherals cannot share a room: hybrid meeting spaces with rack-mounted soft-codec PCs, distance-learning classrooms, telemedicine consult rooms, and control positions where a camera, keyboard and microphone sit far from the machine driving them.

Specifications at a Glance

Signal type: HDMI 2.0b, HDCP 1.x, HDCP 2.3
Power: external 12 VDC 4.2 A 50 watt supply; 10.7 watt device draw
Enclosure: 1.0 in H x 8.75 in W x 6.0 in D, half rack wide, metal
Product weight: 1.2 lbs (0.54 kg)
Thermal dissipation: 35.4 BTU/hr device

Also referenced as Extron DTP3T301, DTP3-T-301, part number 60177352.

Specifications

Part Number: 60-1773-52

Manufacturer: Extron

Model: DTP3 T 301

Condition: New

Signal Type: HDMI 2.0b, HDCP 1.x, HDCP 2.3

Standard: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, VESA: 640x480 to 4096x2160

Resolution Range, SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)

Ultra Wide and 5K Resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 @ 60 Hz, 5120x1440 @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560 @ 30 Hz, 5120x2880 @ 30 Hz

Horizontal Frequency Range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency Range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Video Input: 1 HDMI (or single link DVI-D with appropriate DVI-HDMI adapters); 1 female HDMI type A connector

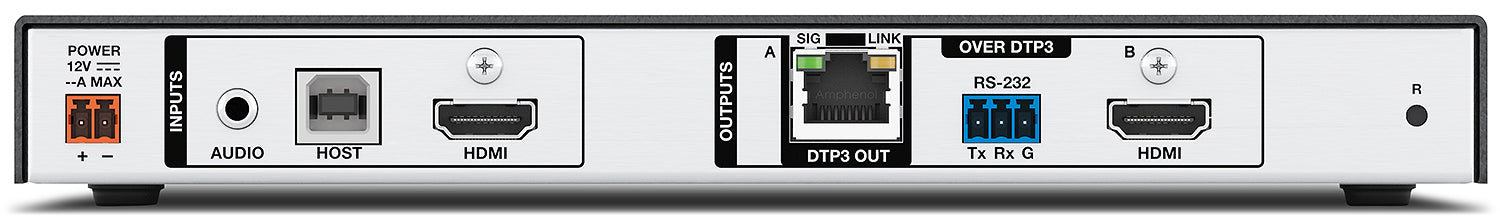

Video Output: 1 single link HDMI or DVI-D loop-through and 1 DTP3 output; 1 female HDMI, 1 female RJ-45 jack

Audio Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio Bit Depths: 16, 20, 24 bit

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Signal to Noise: Greater than 90 dB at maximum output (15 dBu), balanced, unweighted

Stereo Channel Separation: Greater than 80 dB @ 1 kHz to 20 kHz

Audio Input: 1 analog stereo balanced/unbalanced, or 1 digital audio embedded on HDMI; 1 3.5 mm stereo jack, 2 channel, tip (L), ring (R), sleeve (ground) and 1 female HDMI type A shared with the video input

Audio Input Impedance: Greater than 10k ohms, DC coupled

Audio Nominal Level: -10 dBV (316 mVrms)

Audio Maximum Level: +7 dBV (unbalanced)

Audio Output: 1 digital audio embedded with the HDMI output; 1 female HDMI type A shared with the video output

Audio Supported Formats (HDMI): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

USB Host Support: xHCI (USB 3.2 Gen 1/2, USB 3.1 Gen 1/2, USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB Throughput: 480 Mbps

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host Port: 1 USB supporting up to 480 Mbps; 1 female USB type B connector

Built-in USB Hubs: Maximum 1, minimum 0, optional 1

Transmitter to Receiver Interconnection: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

Serial Control Pass-Through Port: 1 RS-232 via 3.5 mm 3-pole captive screw connector

Baud Rate: 300 to 115 k baud

Serial Protocol: 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

USB Control Port: 1 front panel female USB-C

USB Control Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

Power Supply: External. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

Power Consumption: 10.7 watts at 12 VDC device; 11.9 watts device and power supply

Thermal Dissipation: 35.4 BTU/hr device; 39.5 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Mounting: Rack mount with an optional 1U high rack shelf or the included ZipClip 400 kit; furniture mount with an optional under-desk kit or the included ZipClip 400 kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 8.75 in W x 6.0 in D, half rack wide (25 mm H x 222 mm W x 152 mm D); depth excludes connectors

Product Weight: 1.2 lbs (0.54 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

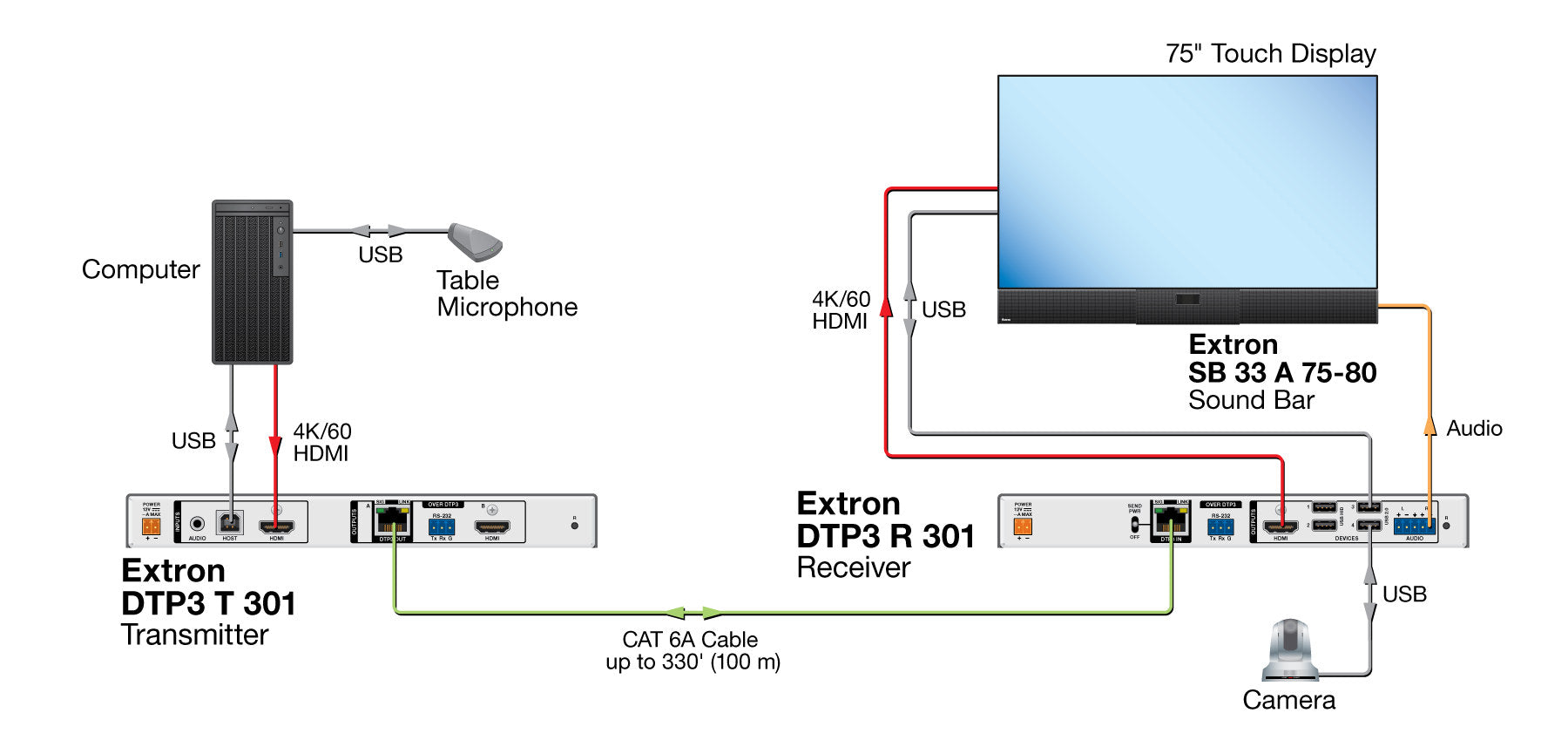

Diagram

Resources

Brochure | DTP3 T 301 60-1773-52 | DTP3 T 301 (dtp3_t_301_revA2.pdf)

Brochure | DTP3 T 301 60-1773-52 | DTP3 T 301 (DTP3-T-301_BR_A4_IT_RevA1.pdf)

Brochure | DTP3 T 301 60-1773-52 | DTP3 T 301 (DTP3-T-301_BR_A4_FR_RevA1.pdf)

Brochure | DTP3 T 301 60-1773-52 | DTP3 T 301 (DTP3-T-301_BR_A4_SP_RevA1.pdf)

Brochure | DTP3 T 301 60-1773-52 | DTP3 T 301 (DTP3-T-301_BR_A4_GE_RevA1.pdf)

Manual | DTP3 T 301 60-1773-52 | DTP Compatibility Guide

Manual | DTP3 T 301 60-1773-52 | DTP3 TR 301 Setup Guide

Manual | DTP3 T 301 60-1773-52 | DTP3 TR 301 User Guide

Manual | DTP3 T 301 60-1773-52 | DTP互換性ガイド

Specifications | DTP3 T 301 60-1773-52 | DTP3 T 301

Specifications | DTP3 T 301 60-1773-52 | DTP3 T/R 301

Panel Drawing | DTP3 T 301 60-1773-52 | DTP3 T 301

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 301 4K/60 HDMI & USB DTP3 Transmitter 60-1773-52

Name: Extron DTP3 T 301 4K/60 HDMI & USB DTP3 Transmitter 60-1773-52
Brand: Extron
SKU: EXTRON-DTP3T301-60177352
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 301 4K/60 HDMI & USB DTP3 Transmitter

• Extends 4K/60 HDMI and a USB 2.0 host on one twisted pair run
• USB throughput of 480 Mbps via 1 female USB type B host port
• 18 Gbps uncompressed video at a 600 MHz maximum pixel clock
• 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
• HDMI loop-through output for a local confidence display
• 3.5 mm analog stereo input embeds audio onto the digital signal
• Half-rack metal chassis, 1.2 lbs, ZipClip 400 mounting kit included
