Extron DTP3 T 212 D 2-Input 4K/60 Decorator Wallplate Transmitter, Black
- • Two inputs behind one decorator plate: female HDMI type A and USB type C
- • 18 Gbps uncompressed at a 600 MHz maximum pixel clock
- • Output switchable between DTP3 and HDBaseT on a single RJ-45
- • 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
- • Analog 3.5 mm stereo input embeds onto the digital video signal
- • Remote powered from the receiver, 18 watt budget, 6.4 watt draw
- • Black faceplate, 2.6 in H x 1.3 in W, 0.55 lbs total weight
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

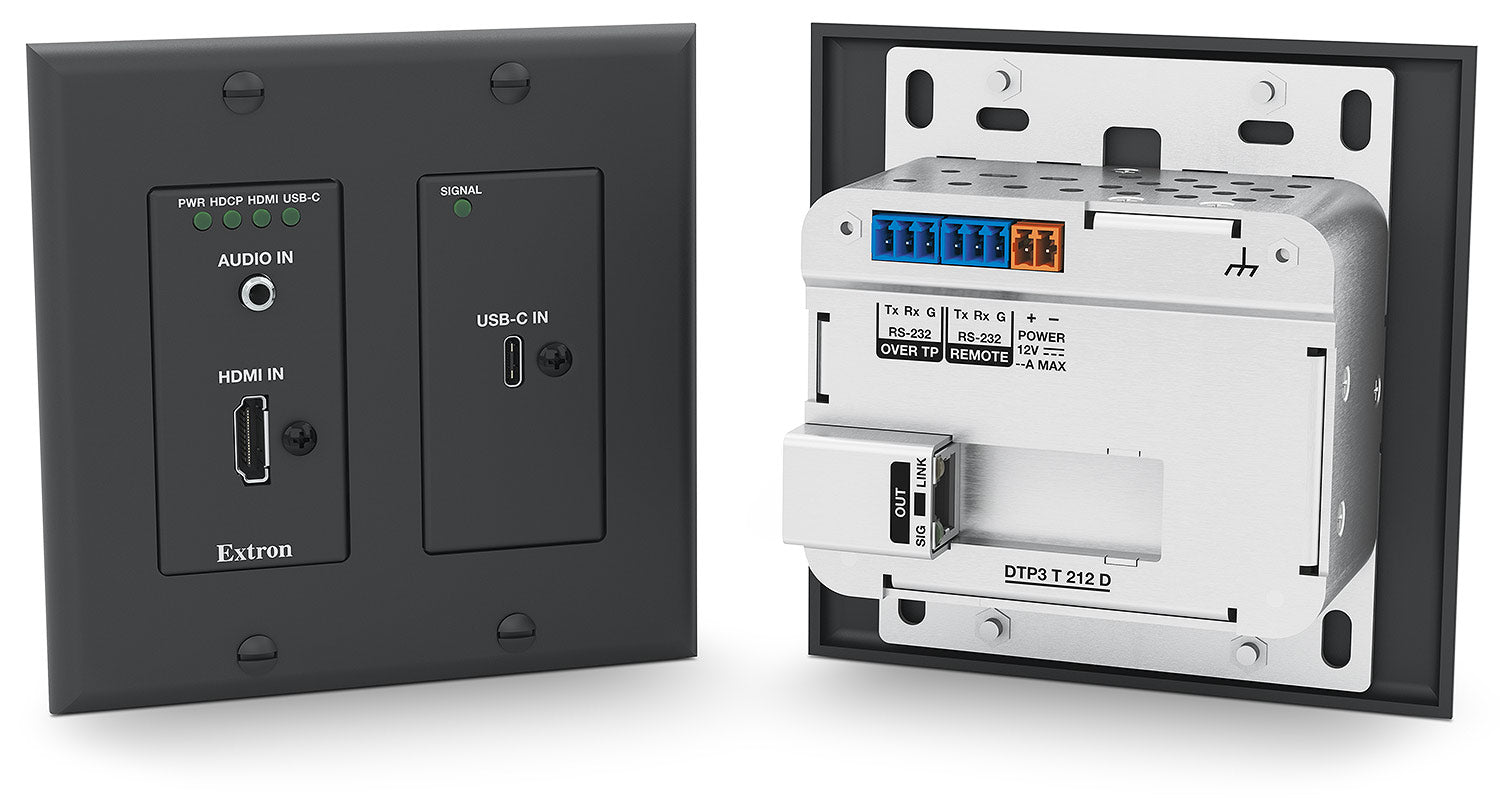

Extron DTP3 T 212 D (part number 60-1714-52, black faceplate) — a two-input decorator-style wallplate transmitter for USB-C and HDMI at 4K/60.

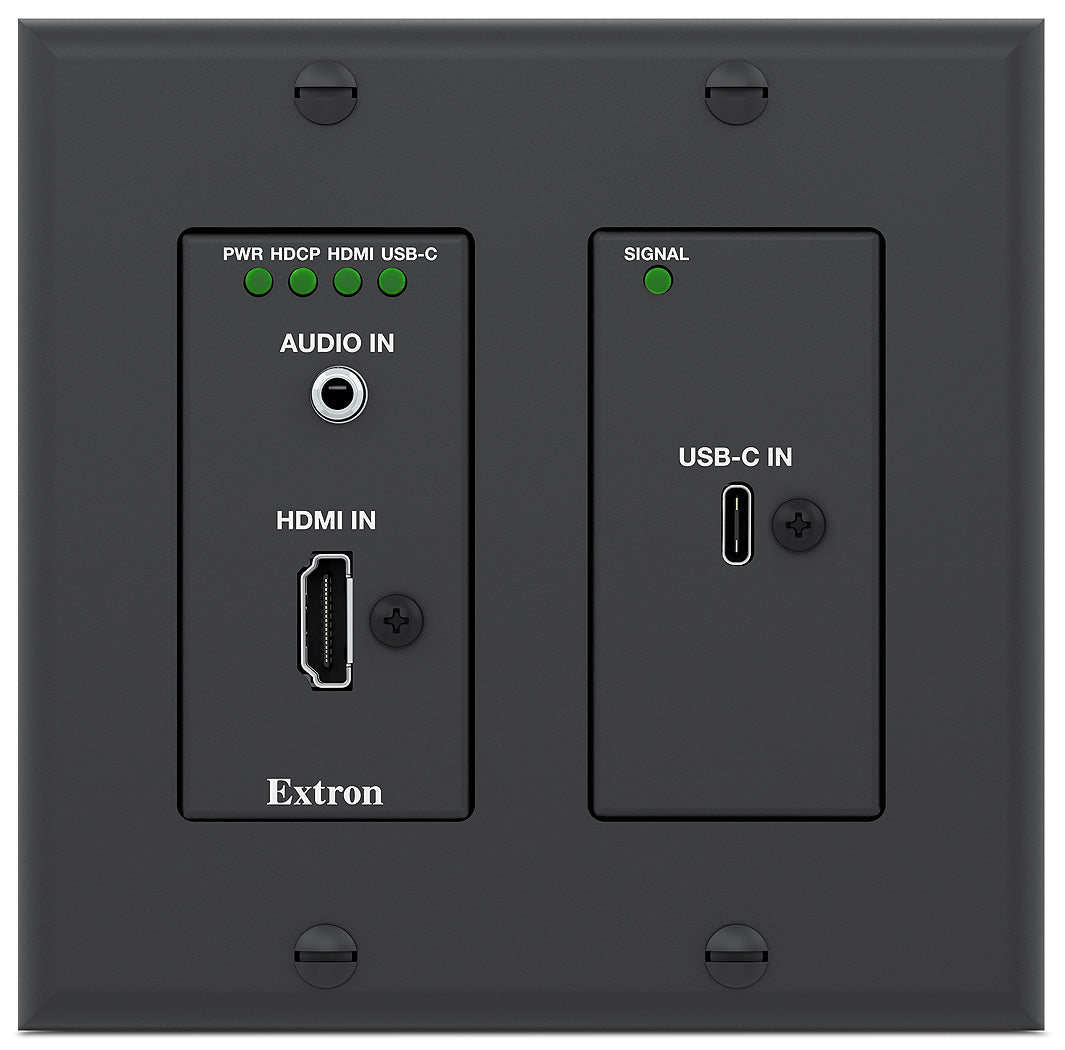

A decorator opening is a small amount of real estate, and this transmitter uses all of it. Behind a 2.6 in faceplate sit a female HDMI type A port, a female USB type C port that accepts DisplayPort Alt Mode over two or four lanes, and a 3.5 mm analog stereo jack whose signal can be embedded onto the digital video before it leaves the plate. One RJ-45 carries the lot to the receiver, and the same pair can power the unit, so no local outlet is needed at the wall. The output is switchable between DTP3 and HDBaseT for compatibility with existing endpoints.
Key Capabilities
- Two video inputs: 1 female HDMI type A and 1 female USB type C (DP Alt Mode).
- 18 Gbps (6 Gbps per color) uncompressed at a 600 MHz maximum pixel clock.
- DTP3 or HDBaseT output, user-selectable, on a single female RJ-45.
- 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
- Analog stereo input at -10 dBV nominal, greater than 10k ohm impedance.
- Remote powered from the receiver on an 18 watt budget; device draw is 6.4 watts.
- Black faceplate measuring 2.6 in H x 1.3 in W x 0.25 in D.
Where It Is Used
Decorator openings are everywhere — lectern panels, under-table cutouts, credenza faces, and wall boxes in conference rooms, classrooms, boardrooms and lecture halls. The black finish disappears against dark millwork and dark wall panels, which is why specifiers pair it with the white 60-1714-53 across a single building.
Specifications at a Glance
- Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
- Device size: 2.7 in H x 3.5 in W x 2.0 in D (4.2 in H including mounting tabs)
- Product weight: 0.55 lbs (0.25 kg)
- Thermal dissipation: 21.8 BTU/hr device, convection cooled through vent holes
- Audio: 32 kHz to 192 kHz sampling, 16/20/24 bit depths
Also referenced as Extron DTP3T212D, DTP3-T-212-D, part number 60171452.
Specifications
Specifications

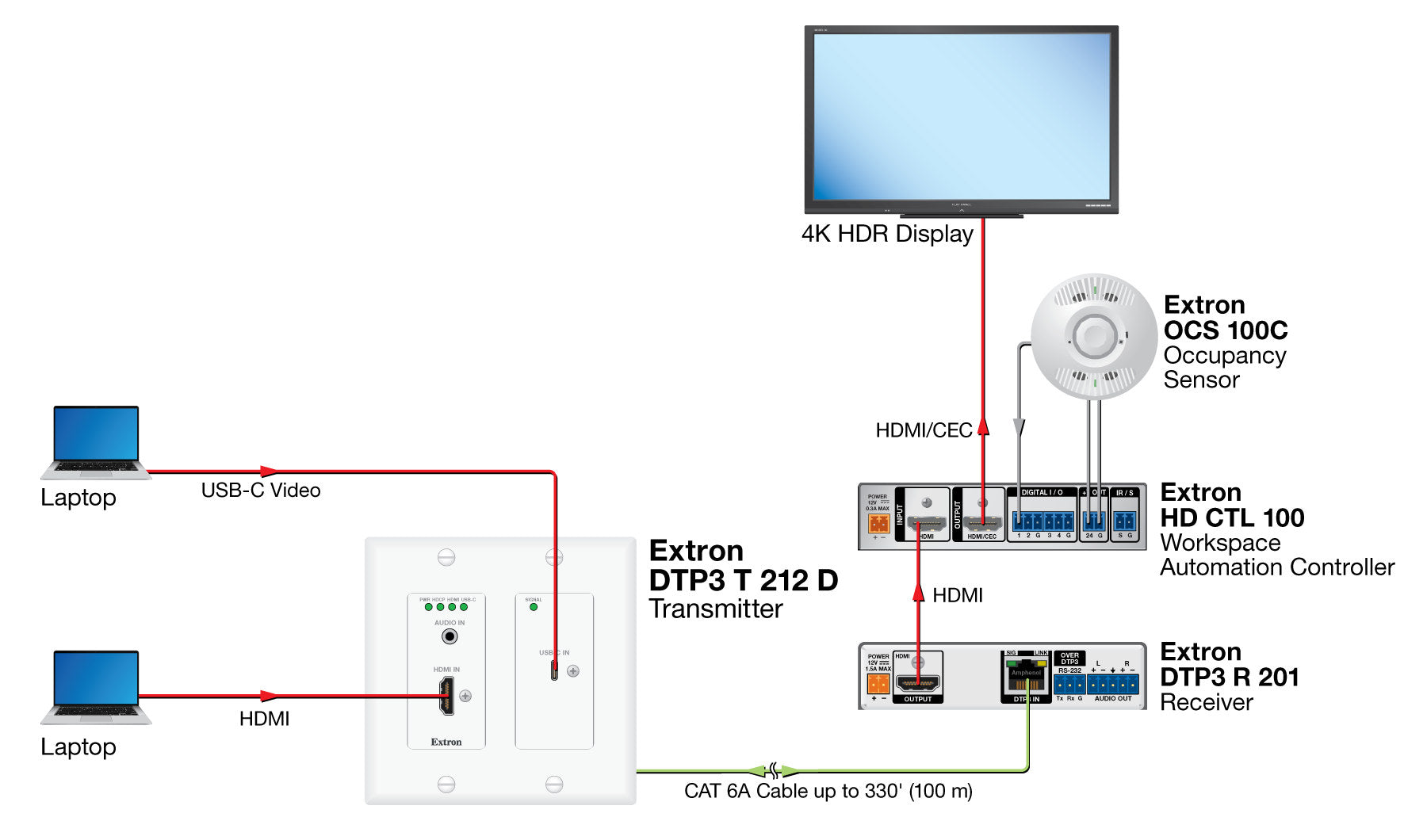

Diagram
