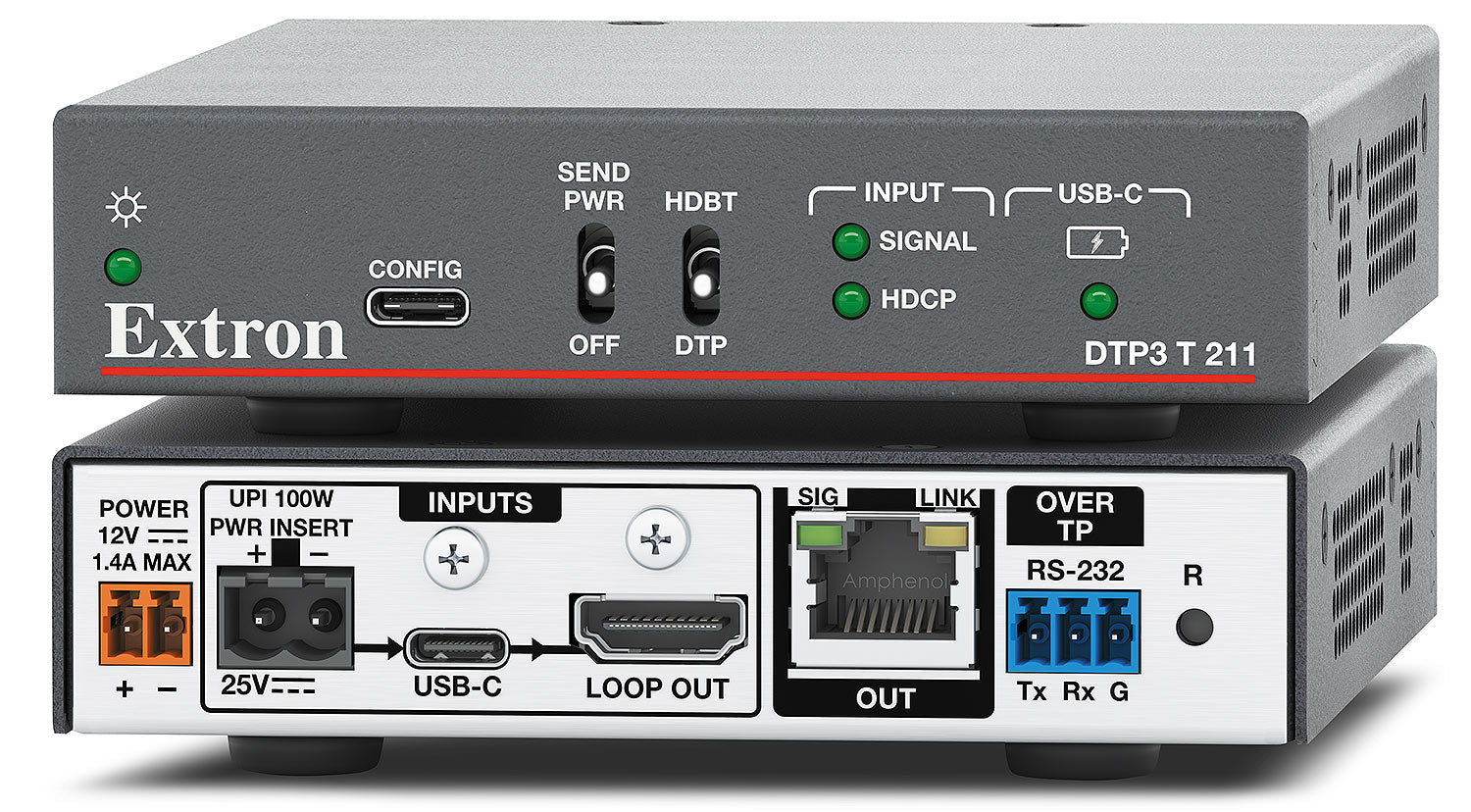

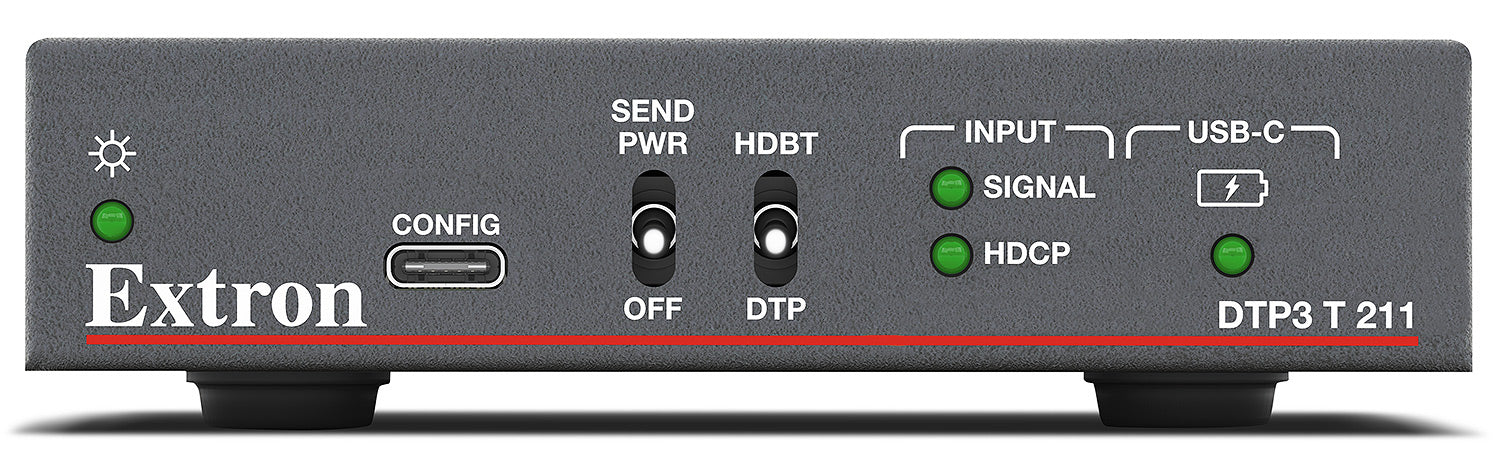

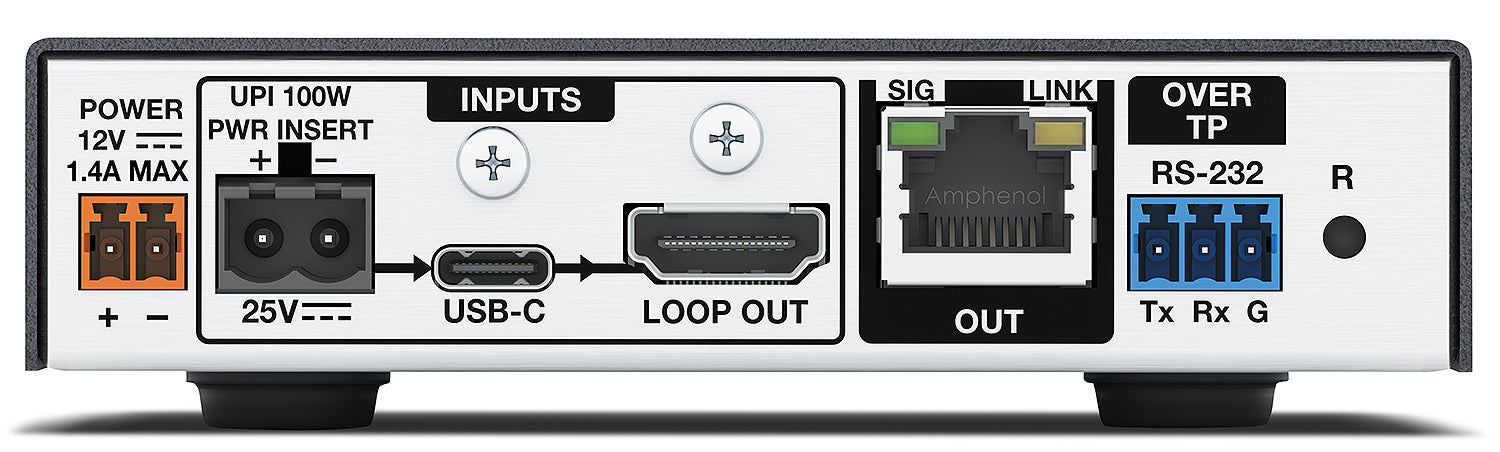

Extron DTP3 T 211 (part number 60-2070-52) — a quarter-rack USB-C transmitter that sends 4K/60 video, embedded audio and serial control over a single twisted pair run.

This is the one-cable answer for a modern laptop. A single female USB type C connector accepts DisplayPort Alt Mode over two or four lanes and hands the signal to a DTP3 output that can also be reconfigured as HDBaseT for existing infrastructure. A local HDMI loop-out mirrors the source at the transmitter for a confidence display. Pair it with an Extron UPI 100 and the same USB-C port delivers charging power to the connected device at up to 20 VDC and 5 A, so the presenter never runs flat mid-session.

Key Capabilities

Single USB-C input, DisplayPort Alt Mode DP 1.2 at RBR, HBR or HBR2/5.4 Gbps.
Output selectable between DTP3 and HDBaseT on one female RJ-45.
18 Gbps (6 Gbps per color) throughput, 600 MHz maximum pixel clock.
Full 330 ft (100 m) at 4K/60 when run on Extron XTP DTP 22 cable.
HDMI loop-out drives a local monitor alongside the extended feed.
128-256 byte EDID emulation (1-2 blocks) keeps handshakes predictable.
Powered locally at 12 VDC or remotely from the far-end receiver, 18 W budget.

Where It Is Used

Ideal where the table only has room for one cable: huddle rooms, executive boardrooms, seminar spaces, and clinical or command consoles that standardise on USB-C laptops and need charging, video and control to travel together to a rack that may be a hundred metres away.

Specifications at a Glance

Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
Standards: HDMI 2.0b, USB-C DP Alt Mode, HDCP 1.4, HDCP 2.3
Power consumption: 8.7 watts device; 10.6 watts with power supply
Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide, 0.6 lbs
Thermal dissipation: 25.4 BTU/hr device

Also referenced as Extron DTP3T211, DTP3-T-211, part number 60207052.

Specifications

Part Number: 60-2070-52

Manufacturer: Extron

Model: DTP3 T 211

Condition: New

Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 2.3

Standards: HDMI 2.0b, USB-C (DP Alt-Mode), HDCP 1.4, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, VESA: 640x480 to 4096x2160

Resolution Range, SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)

Ultra Wide and 5K Resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 @ 60 Hz, 5120x1440 @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560 @ 30 Hz, 5120x2880 @ 30 Hz

Horizontal Frequency Range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency Range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

USB-C Power Delivery: 5 VDC up to 3 A, 9 VDC up to 3 A, 12 VDC up to 3 A, 15 VDC up to 3 A, 20 VDC up to 3 A, 20 VDC up to 5 A; these voltages are available only when a UPI 100 is used

Video Input: 1 USB-C (DisplayPort Alt-Mode, 2 or 4 lanes supported); 1 female USB type C connector

DisplayPort Video: 1 DisplayPort Alt Mode, DP 1.2 (2 or 4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps

EDID Emulation: 128-256 byte EDID support (1-2 blocks)

Video Output: 1 single link HDMI or DVI-D loop out and 1 DTP3 or HDBaseT, configurable; 1 female HDMI, 1 female RJ-45

Audio Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio Bit Depths: 16, 20, 24 bit

Audio Input: 1 embedded digital audio USB-C signal; 1 female USB-C shared with the video input

Transmitter to Receiver Interconnection: 1 female RJ-45

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

USB Control Port: 1 female USB type C, front panel

USB Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron PCS

Serial Control Pass-Through Port: 1 RS-232, 3.5 mm, 3-pole captive screw connector

Baud Rate: 300 to 115200 baud

Serial Protocol: 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Power Supply: External, included with the transmitter. Input 100 to 240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption: 8.7 watts device; 10.6 watts device and power supply

Remote Power Budget: 18.0 watts

Thermal Dissipation: 25.4 BTU/hr device; 32 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +104 degrees F (0 to +40 degrees C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Mounting: Optional 1U high rack shelf; optional under-desk furniture mount kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide (25 mm H x 109 mm W x 152 mm D)

Product Weight: 0.6 lbs (0.27 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP3 T 211 60-2070-52 | DTP3 T 211

Manual | DTP3 T 211 60-2070-52 | DTP Compatibility Guide

Manual | DTP3 T 211 60-2070-52 | DTP3 T 211 Setup Guide

Manual | DTP3 T 211 60-2070-52 | DTP3 T 211 User Guide

Specifications | DTP3 T 211 60-2070-52 | DTP3 T 211

Panel Drawing | DTP3 T 211 60-2070-52 | DTP3 T 211

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 211 4K/60 USB-C DTP3 Transmitter 60-2070-52

Name: Extron DTP3 T 211 4K/60 USB-C DTP3 Transmitter 60-2070-52
Brand: Extron
SKU: EXTRON-DTP3T211-60207052
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 211 4K/60 USB-C DTP3 Transmitter

• Single USB-C input with DisplayPort Alt Mode over 2 or 4 lanes
• Output switchable between DTP3 and HDBaseT on one female RJ-45
• 18 Gbps uncompressed throughput at a 600 MHz maximum pixel clock
• 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
• HDMI loop-out feeds a local confidence monitor at the transmitter
• USB-C charging to 20 VDC at 5 A when paired with an Extron UPI 100
• Quarter-rack metal chassis, 0.6 lbs, 8.7 watt draw, convection cooled
