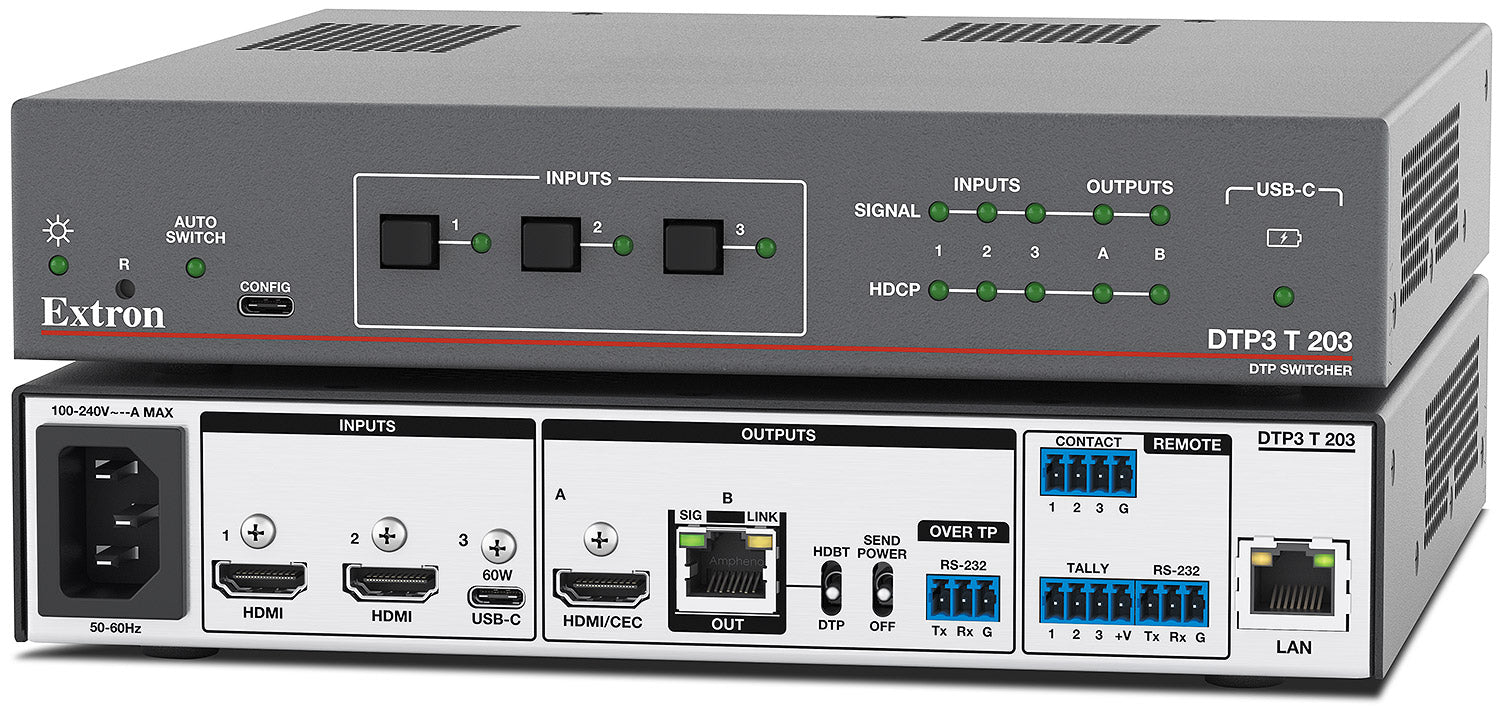

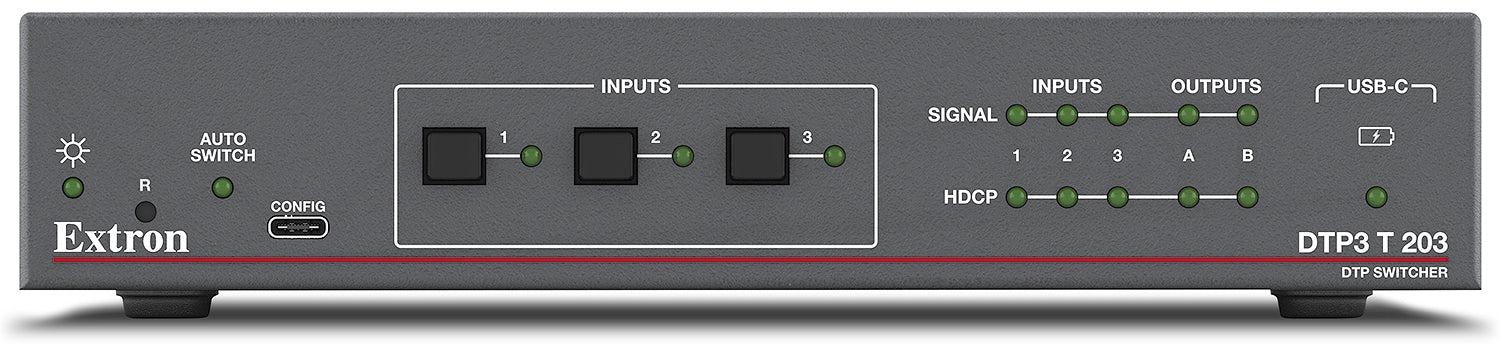

Extron DTP3 T 203 (part number 60-1885-52) — a half-rack, three-input 4K/60 switching transmitter with a DTP3 output and Ethernet control.

Most rooms need more than one way in. The DTP3 T 203 gives them three: two HDMI ports plus a USB-C port that accepts DisplayPort Alt Mode across four HBR2 lanes and simultaneously charges the attached laptop. The selected source leaves on a DTP3 twisted pair run and, in parallel, on a local HDMI connector for a monitor at the rack. Control is unusually broad for a transmitter at this size — RS-232, front-panel USB-C, 10/100 Ethernet with SSH and IEEE 802.1X, and two 4-pole contact closure and tally outputs for screen or lighting triggers.

Key Capabilities

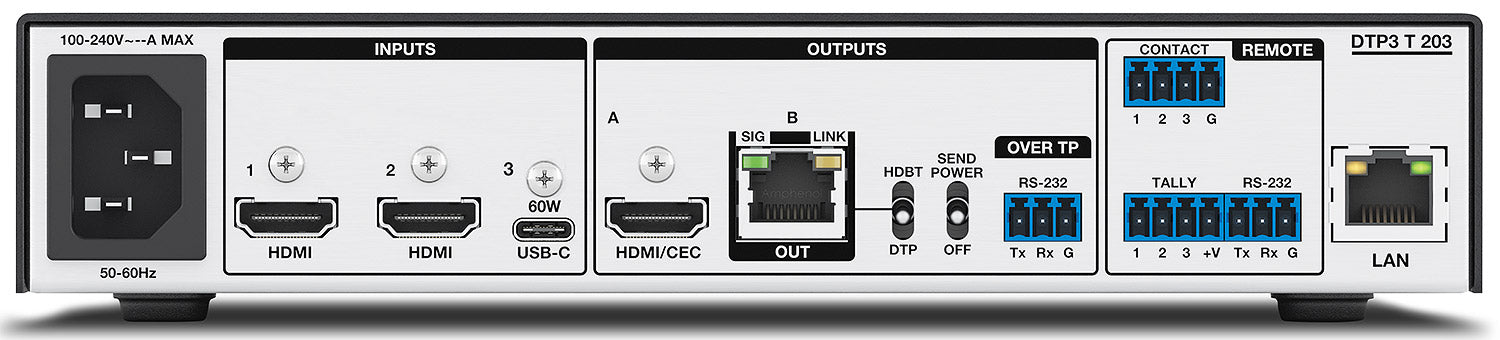

Three inputs: 2 female HDMI type-A and 1 female USB type-C on a 1U half-rack chassis.
USB-C charging up to 20 VDC at 3 A, dropping to 45 W when DTP3 Send Power is on.
18 Gbps throughput (6 Gbps per color) with a 600 MHz maximum pixel clock.
DTP3 output reaches 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
10/100Base-T Ethernet with ARP, DHCP, HTTP, SMTP, Telnet, SSH, SNMP and 802.1X.
Two 3.5 mm 4-pole contact closure and tally outputs for room automation.

Where It Is Used

Built for BYOD-heavy spaces: divisible conference rooms, active-learning classrooms, hybrid meeting suites, and training centres where presenters arrive with a mix of HDMI dongles and USB-C laptops and the AV system has to accept all of them without an adapter drawer.

Specifications at a Glance

Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
Power consumption: 90.3 W from an internal 100-240 VAC supply
Enclosure: 1.75 in H x 8.75 in W x 8.50 in D, 1U high half rack wide
Product weight: 2.17 lbs (0.98 kg)
Thermal dissipation: 95.7 BTU/hr, convection cooled

Also referenced as Extron DTP3T203, DTP3-T-203, part number 60188552.

Specifications

Part Number: 60-1885-52

Manufacturer: Extron

Model: DTP3 T 203

Condition: New

Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 2.3

Standards: HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, HDMI: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x2880 @ 30 Hz

Resolution Range, USB-C: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 240 Hz or 4K @ 60 Hz (4:4:4); ultra wide 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600

Horizontal Frequency Range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency Range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Video Input: 2 HDMI, 1 DisplayPort (Alt Mode, 4 HBR2 lanes); 2 female HDMI type-A and 1 female USB type-C

DisplayPort Video: 1 DisplayPort Alt Mode, DP 1.2 (4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps

Input Cable Length: Up to 12 ft (3.7 m)

Video Output: 1 single link HDMI (or DVI-D with adapters) and 1 DTP; 1 female HDMI type-A, 1 female RJ-45

Output Power for Active Cables: 1.25 watts max for the HDMI port

Transmitter to Receiver Interconnection: 1 female RJ-45

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

Serial Control Port: 1 RS-232, 3.5 mm captive screw, 3-pole, rear panel

Serial Pin Configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = GND

Baud Rate and Protocol: 9600 baud, 8 bit, 1 stop bit, no parity

USB Control Port: 1 female USB type-C, front panel

USB Standards: USB 2.0, low speed

Ethernet Data Rate: 10/100Base-T, half/full duplex, with auto detect

Ethernet Protocols: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet, IEEE 802.1X, SSH, SNMP

Program Control: Extron control and configuration program for Windows, Extron Simple Instruction Set (SIS), Telnet

Contact Closure/Tally Output: 2 3.5 mm captive screw, 4-pole

Power Supply: Internal. Input 100-240 VAC, 50-60 Hz

Power Consumption: 90.3 W

USB-C Power Delivery: 5 VDC up to 3 A, 9 VDC up to 3 A, 15 VDC up to 3 A, 20 VDC up to 2.25 A, or 20 VDC up to 3 A; reduces to 45 W when DTP3 Send Power is active

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +104 degrees F (0 to +40 degrees C), 10% to 90% noncondensing

Cooling: Convection, vents on the top and sides

Thermal Dissipation: 95.7 BTU/hr

Mounting: Rack mountable with an optional 1U high rack shelf

Enclosure Type: Metal

Enclosure Dimensions: 1.75 in H x 8.75 in W x 8.50 in D (1U high, half rack wide); 44 mm H x 222 mm W x 152 mm D; depth excludes connectors

Product Weight: 2.17 lbs (0.98 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, AS/NZS, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

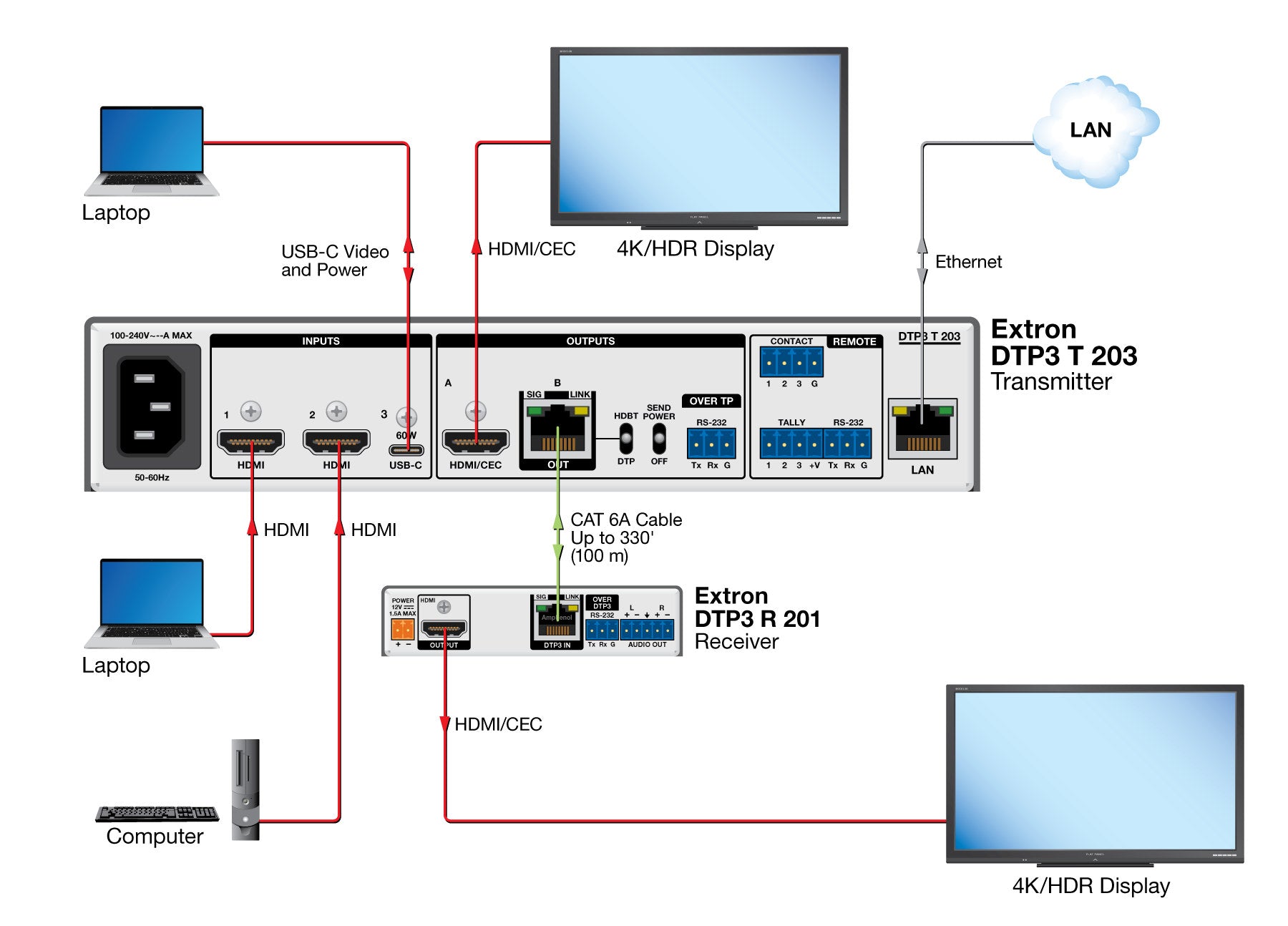

Diagram

Resources

Brochure | DTP3 T 203 60-1885-52 | DTP3 T 203 (dtp3_t_203_revA3.pdf)

Brochure | DTP3 T 203 60-1885-52 | DTP3 T 203 (dtp3_t_203_revA3_IT.pdf)

Brochure | DTP3 T 203 60-1885-52 | DTP3 T 203 (dtp3_t_203_revA3_SP.pdf)

Brochure | DTP3 T 203 60-1885-52 | DTP3 T 203 (dtp3_t_203_revA3_GE.pdf)

Brochure | DTP3 T 203 60-1885-52 | DTP3 T 203 (dtp3_t_203_revA3_FR.pdf)

Manual | DTP3 T 203 60-1885-52 | DTP Compatibility Guide

Manual | DTP3 T 203 60-1885-52 | DTP3 T 203 Network Ports, Protocols, and Licenses

Manual | DTP3 T 203 60-1885-52 | DTP3 T 203 Setup Guide

Manual | DTP3 T 203 60-1885-52 | DTP3 T 203 User Guide

Manual | DTP3 T 203 60-1885-52 | DTP互換性ガイド

Specifications | DTP3 T 203 60-1885-52 | DTP3 T 203

Panel Drawing | DTP3 T 203 60-1885-52 | DTP3 T 203

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 203 3-Input 4K/60 DTP3 Transmitter 60-1885-52

Name: Extron DTP3 T 203 3-Input 4K/60 DTP3 Transmitter 60-1885-52
Brand: Extron
SKU: EXTRON-DTP3T203-60188552
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 203 3-Input 4K/60 DTP3 Transmitter

• Three inputs: 2 female HDMI type-A plus 1 USB-C with DisplayPort Alt Mode
• USB-C charges the source at up to 20 VDC and 3 A while carrying video
• 18 Gbps uncompressed throughput at a 600 MHz maximum pixel clock
• 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 twisted pair cable
• 10/100Base-T Ethernet control with SSH, SNMP and IEEE 802.1X
• Two 3.5 mm 4-pole contact closure and tally outputs for automation
• 1U half-rack metal enclosure, 2.17 lbs, internal 100-240 VAC supply
