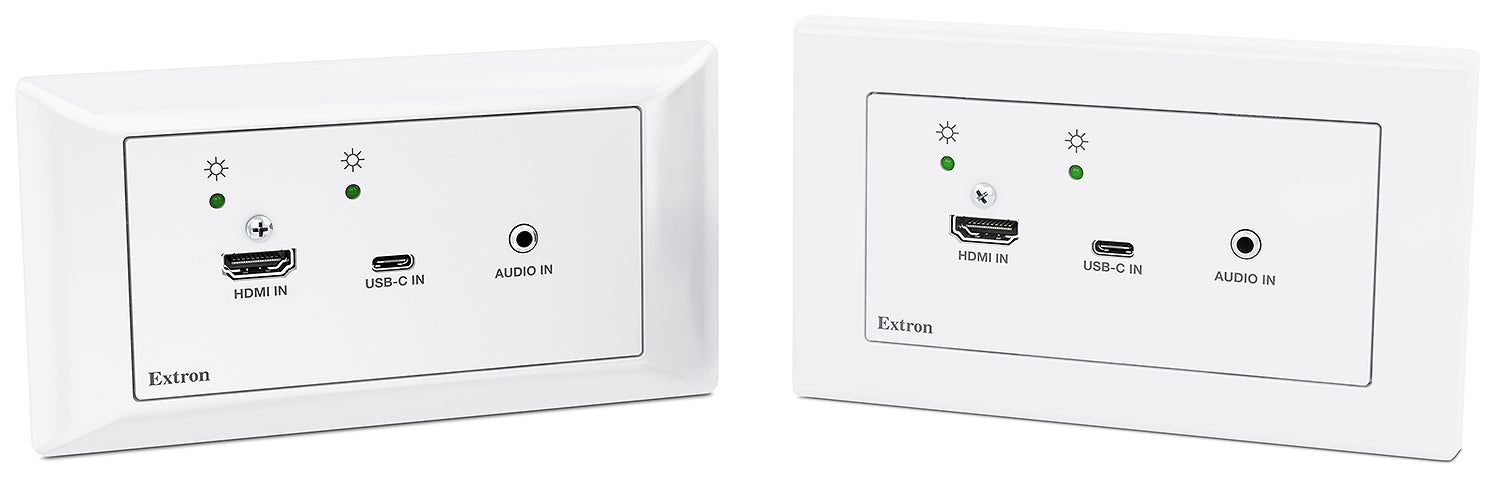

Extron DTP3 T 202 EU/MK (part number 60-1829-52) — a two-input DTP3 wallplate transmitter built for EU and MK 2-gang junction boxes.

Putting connectivity where the presenter actually stands usually means giving up either resolution or tidiness. This wallplate does neither. USB-C and HDMI both terminate at the plate; whichever is active gets encoded onto a single RJ-45 run along with analog or embedded audio, serial control and remote power. The USB-C jack accepts DisplayPort Alt Mode over two or four lanes, so a modern laptop connects with the cable already in its bag. Behind the wall, the DTP3 output is configurable as DTP3 or HDBaseT, which keeps it usable in mixed installed-base systems.

Key Capabilities

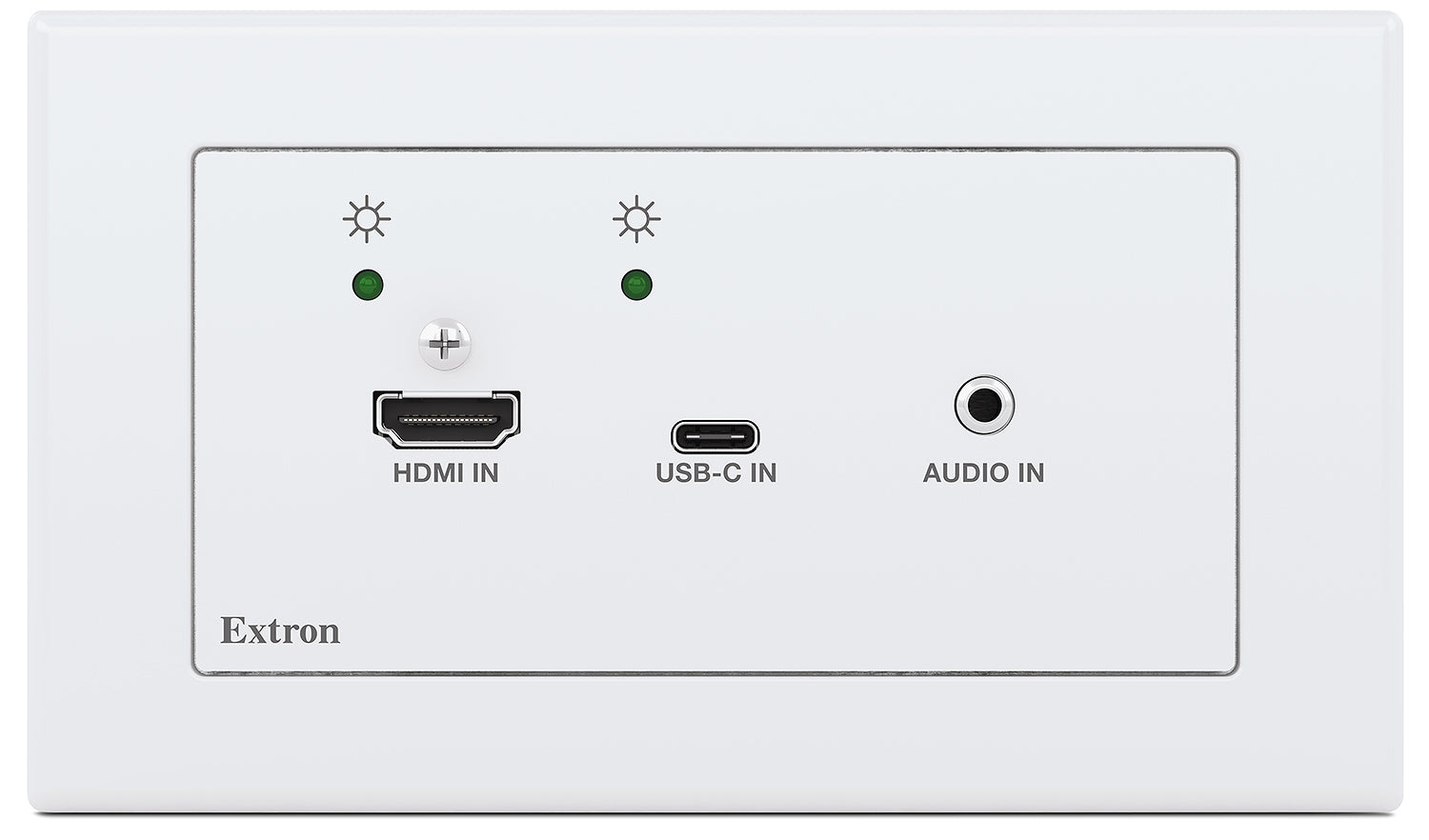

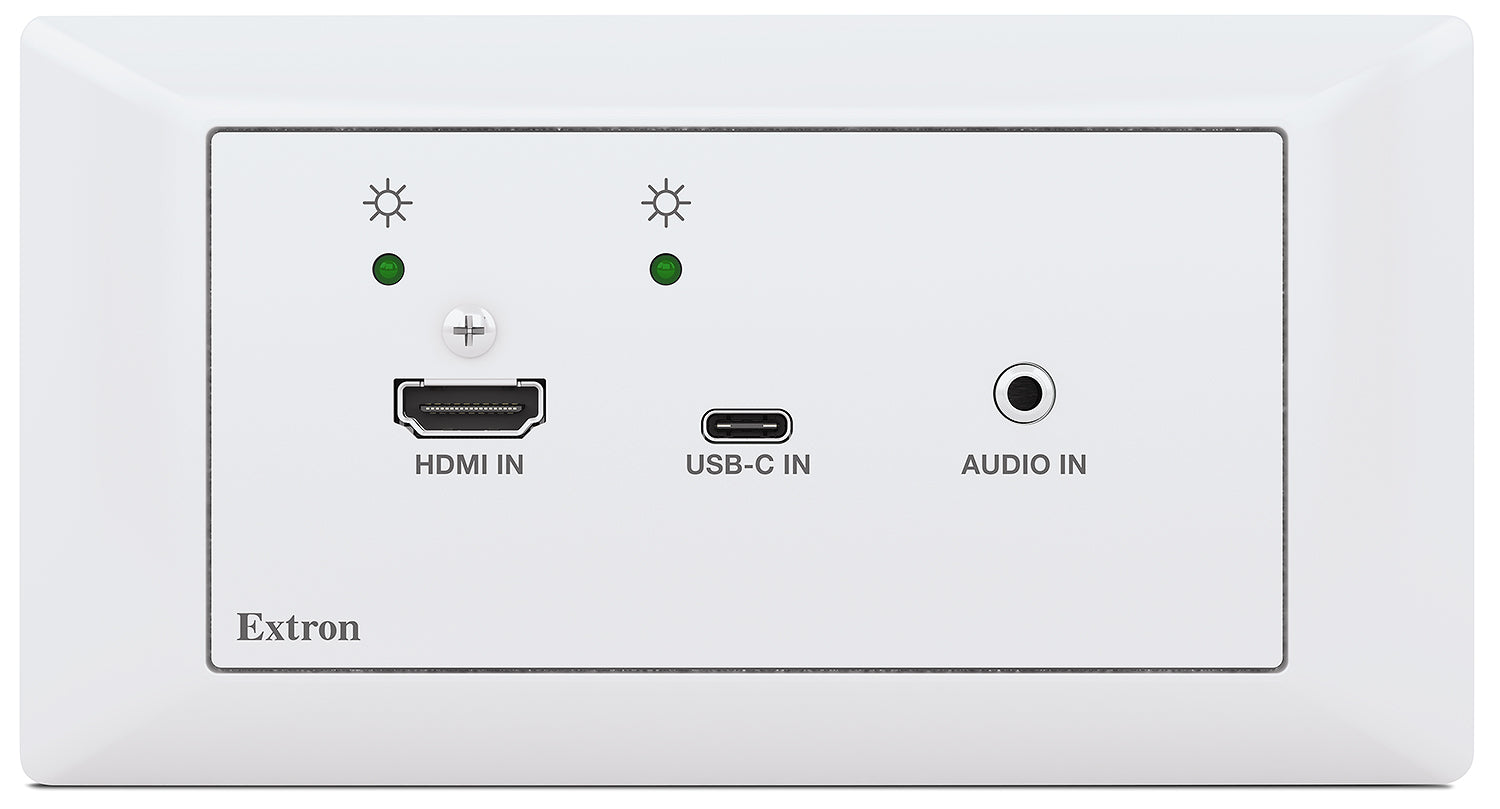

Two switchable inputs: 1 female HDMI type A and 1 female USB type C (DP Alt Mode).
Moves up to 18 Gbps (6 Gbps per color) with a 600 MHz maximum pixel clock.
Output is user-configurable as DTP3 or HDBaseT on a single female RJ-45.
Reaches 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable.
Adds a 3.5 mm unbalanced stereo input that can be embedded onto the digital video.
Fits an EU or MK 2-gang electrical junction box with the supplied frame.

Where It Is Used

Wallplate form factor suits huddle spaces, boardrooms, seminar rooms and lecture theatres across EU and MK electrical standards, plus any refurbishment where a table box is impractical and the connection point has to sit flush in the wall near the display or presenter position.

Specifications at a Glance

Signal type: HDMI 2.0b, DisplayPort 1.2 Alt Mode, HDCP 2.3
Maximum data rate: 18 Gbps (6 Gbps per color); 600 MHz pixel clock
Device enclosure: 1.84 in H x 4.32 in W x 1.54 in D; 0.6 lbs (0.27 kg)
Power consumption: 6.3 watts device; 18 watt remote power budget
Cooling: convection, no vents

Also referenced as Extron DTP3T202EUMK, DTP3-T-202-EU-MK, part number 60182952.

Specifications

Part Number: 60-1829-52

Manufacturer: Extron

Model: DTP3 T 202 EU/MK

Condition: New

Signal Type: HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 2.3

Standards: DVI 1.0, HDMI 2.0b, DisplayPort 1.2 (Alt Mode), HDCP 1.x, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range, HDMI: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide and 5K to 5120x2880 @ 30 Hz

Resolution Range, USB-C: VESA 640x480 to 4096x2160; SMPTE up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4); ultra wide to 5120x1440 @ 30 Hz

Horizontal Frequency Range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency Range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Video Input: 1 HDMI (or single link DVI-D with appropriate adapters) on 1 female HDMI type A; 1 USB-C (DP Alt Mode, 2 or 4 lanes) on 1 female USB type C

Video Output: 1 DTP3 or HDBaseT, configurable; 1 female RJ-45

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Signal to Noise: Greater than 90 dB at maximum output (15 dBu), balanced, unweighted

Stereo Channel Separation: Greater than 80 dB @ 1 kHz to 20 kHz

Audio Input: 1 PC level stereo unbalanced, 1 digital embedded audio on HDMI, 1 digital embedded audio on USB type C

Audio Input Connectors: 1 3.5 mm stereo jack, 2 channel, tip (L), ring (R), sleeve (ground); 1 female HDMI; 1 female USB type C

Audio Input Impedance: Greater than 10k ohms, DC coupled

Audio Nominal Level: -10 dBV (316 mVrms)

Audio Maximum Level: +7 dBV (unbalanced)

Audio Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Transmitter to Receiver Interconnection: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance, STP or XTP DTP 24 Cable: 1080p @ 60 Hz and 4K/UHD @ 30 Hz up to 330 ft (100 m); 4K/UHD @ 60 Hz up to 175 ft (53 m) with no couplers, or up to 150 ft (45 m) with couplers

Transmission Distance, XTP DTP 22 Cable: 1080p @ 60 Hz, 4K/UHD @ 30 Hz and 4K/UHD @ 60 Hz up to 330 ft (100 m)

Cable Requirements: Solid conductor, 24 AWG or better on STP/XTP DTP 24; 22 AWG or better on XTP DTP 22

Cable Recommendations: 400 MHz bandwidth STP for XTP DTP 24; 500 MHz bandwidth STP for XTP DTP 22

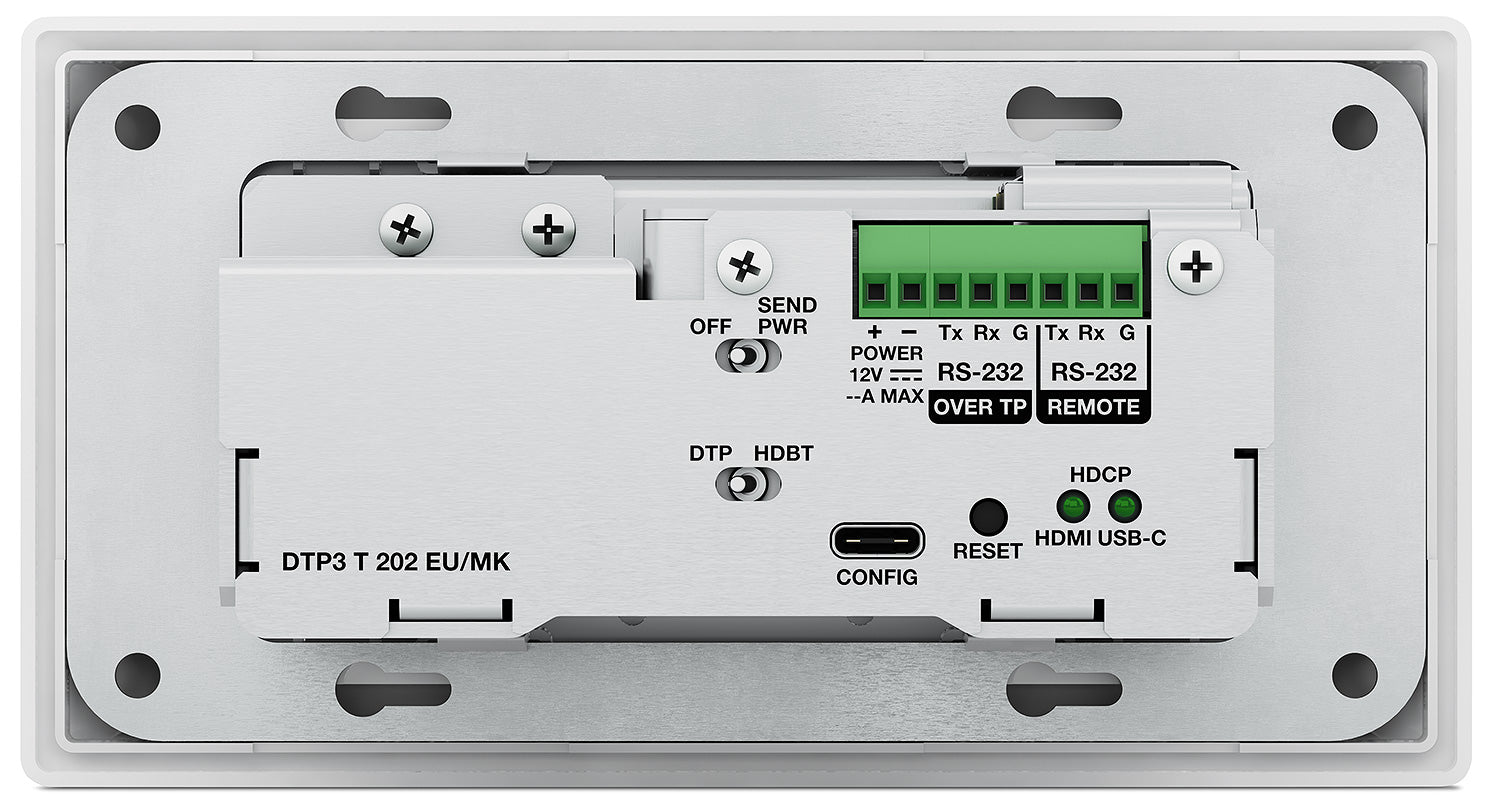

Serial Control Port: 1 RS-232 (plus or minus 5 V), 3.5 mm, 3-pole captive screw connector at 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pass-Through Port: 1 RS-232, 3.5 mm, 3-pole captive screw connector; 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

USB Control Port: 1 back panel, female USB type C

USB Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS) and Extron Product Configuration Software (PCS)

Power Supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption: 6.3 watts device; 7.0 watts device and power supply

Remote Power Budget: 18 watts

Thermal Dissipation: 21.5 BTU/hr device; 24.0 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, no vents

Mounting: Mounts in an EU/MK 2-gang electrical junction box

Enclosure Type: Metal

Enclosure Dimensions, Device: 1.84 in H x 4.32 in W x 1.54 in D

EU Model Frame: 3.17 in H x 5.98 in W x 0.4 in D

MK Model Frame: 3.4 in H x 5.8 in W x 0.4 in D

Product Weight: 0.6 lbs (0.27 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

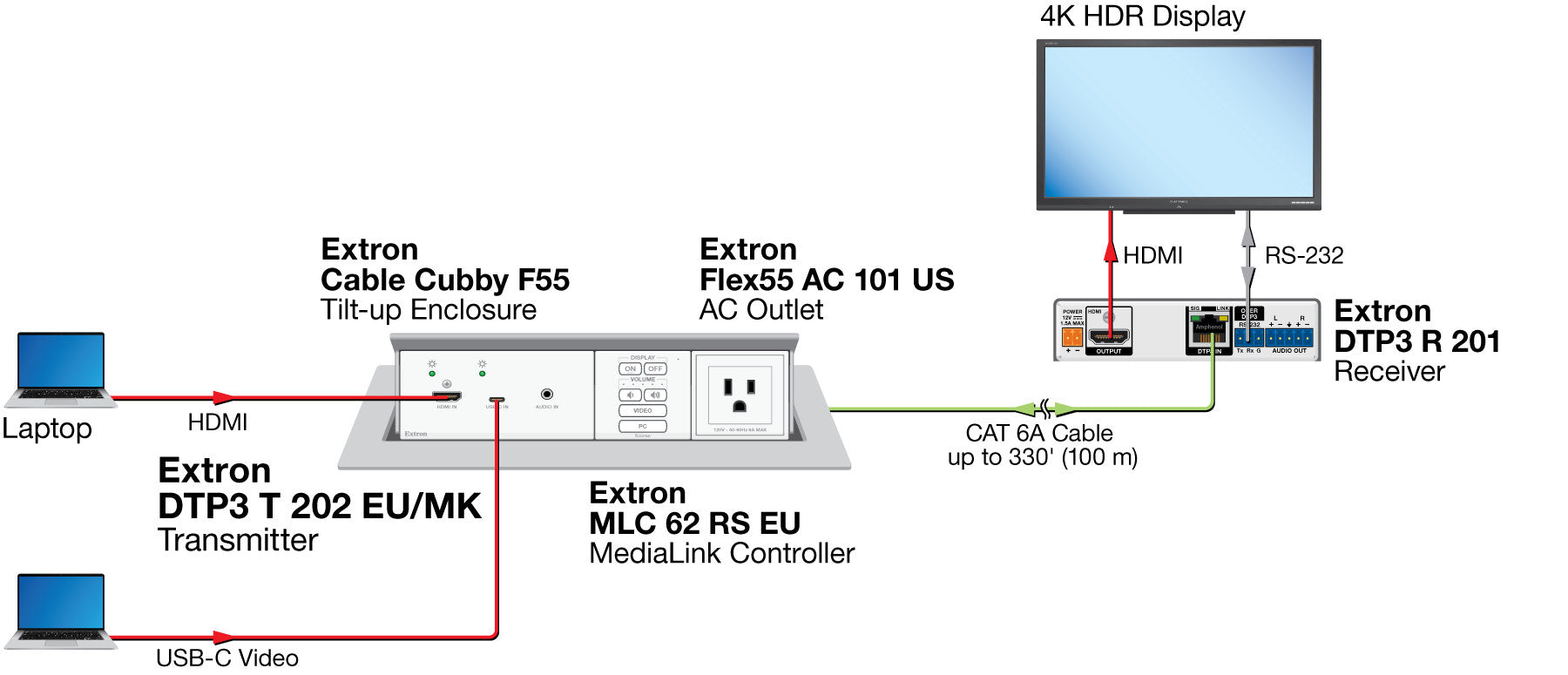

Diagram

Resources

Brochure | DTP3 T 202 EU/MK 60-1829-52 | DTP3 T 202 EU/MK

Manual | DTP3 T 202 EU/MK 60-1829-52 | DTP Compatibility Guide

Manual | DTP3 T 202 EU/MK 60-1829-52 | DTP3 T 202 EU/MK Setup Guide

Manual | DTP3 T 202 EU/MK 60-1829-52 | DTP3 T 202 EU/MK User Guide

Manual | DTP3 T 202 EU/MK 60-1829-52 | DTP互換性ガイド

Specifications | DTP3 T 202 EU/MK 60-1829-52 | DTP3 T 202 EU/MK

Panel Drawing | DTP3 T 202 EU/MK 60-1829-52 | DTP3 T 202 EU/MK

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 202 EU/MK 4K USB-C & HDMI Wallplate Transmitter 60-1829-52

Name: Extron DTP3 T 202 EU/MK 4K USB-C & HDMI Wallplate Transmitter 60-1829-52
Brand: Extron
SKU: EXTRON-DTP3T202EUMK-60182952
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 202 EU/MK 4K USB-C & HDMI Wallplate Transmitter

• Two switchable inputs: 1 female HDMI type A plus 1 USB-C with DP Alt Mode
• Carries 18 Gbps uncompressed at a 600 MHz maximum pixel clock
• DTP3 output is field-configurable as DTP3 or HDBaseT on one RJ-45
• 330 ft (100 m) at 4K/60 over Extron XTP DTP 22 cable
• 3.5 mm stereo input embeds analog audio onto the digital video signal
• Mounts flush in an EU or MK 2-gang electrical junction box
• Low 6.3 watt draw and convection cooling with no vents or fans
