Extron DTP3 T 202 4K/60 HDMI DTP3 Transmitter
- • Sends uncompressed 4K/60 HDMI up to 330 ft (100 m) on XTP DTP 22 cable
- • Handles 18 Gbps throughput at a 600 MHz maximum pixel clock
- • HDMI loop-through drives a local confidence monitor with no extra hardware
- • Bidirectional RS-232 pass-through runs 300 to 115200 baud on the same pair
- • HDCP 2.3 compliant; relays HDR10, HDR10+ and Dolby Vision
- • Powers locally at 12 VDC or remotely from the far-end DTP3 receiver
- • Quarter-rack metal enclosure, 0.6 lbs, with optional 1U shelf or desk mount
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

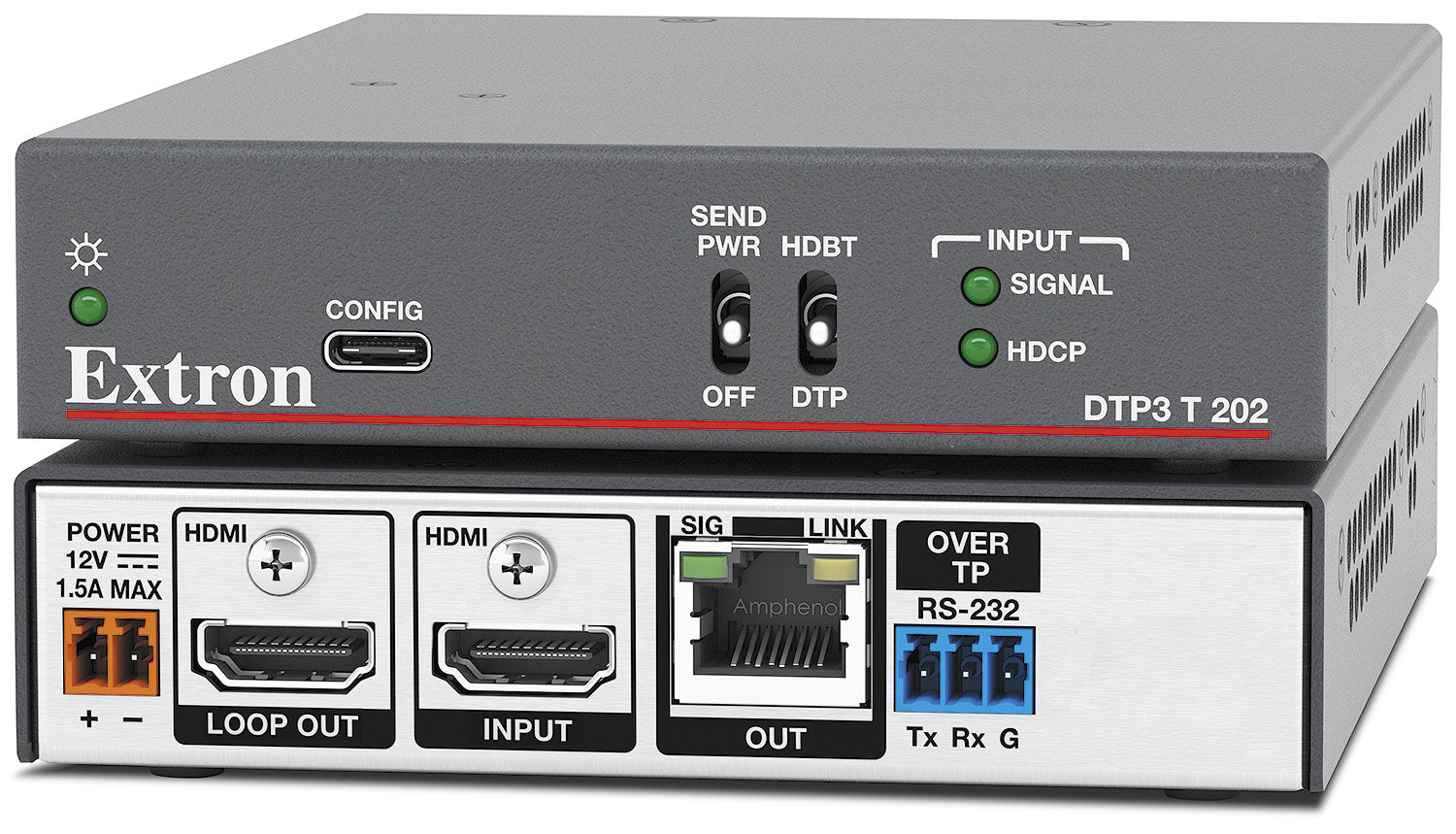

Extron DTP3 T 202 (part number 60-1869-62) — a quarter-rack DTP3 transmitter that pushes 4K/60 HDMI, embedded audio and RS-232 control down a single shielded twisted pair run.
Source equipment rarely lives where the display does. The DTP3 T 202 closes that gap by taking one HDMI feed at the source end and repackaging video, embedded audio, bidirectional serial and device power onto one RJ-45 link bound for a matching DTP3 receiver. A second HDMI jack loops the same source through locally, so a confidence monitor at the lectern costs nothing extra in hardware. Nothing is compressed along the way: an 18 Gbps signal leaves the laptop and arrives at the display unchanged, with HDR metadata intact.
Key Capabilities
- Passes up to 18 Gbps (6 Gbps per color) uncompressed at a 600 MHz maximum pixel clock.
- Reaches a full 330 ft (100 m) at 4K/60 when the run is Extron XTP DTP 22 cable.
- Loop-through HDMI output drives a local display with no separate distribution amp.
- Supports HDCP 1.x and HDCP 2.3 and relays HDR10, HDR10+ and Dolby Vision.
- Bidirectional RS-232 rides the same pair at 300 to 115200 baud for endpoint control.
- Powers locally from the supplied 12 VDC unit or remotely from the far-end receiver.
Where It Is Used
The 4.3 in wide metal enclosure tucks under a conference table, behind a lectern, or onto an optional 1U rack shelf. That makes it a natural fit for boardrooms, divisible training rooms, university lecture halls, courtrooms, and clinical review suites where a single long cable pull has to carry picture, sound and control between rooms.
Specifications at a Glance
- Signal type: HDMI 2.0b, HDCP 2.3
- Maximum data rate: 18 Gbps (6 Gbps per color); 600 MHz pixel clock
- Resolution range: 640x480 to 4096x2160, plus ultra-wide and 5K formats
- I/O: 1 female HDMI type A in, 1 female HDMI loop-through, 1 female RJ-45 DTP3 out
- Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, 0.6 lbs (0.27 kg)
Also referenced as Extron DTP3T202, DTP3-T-202, part number 60186962.
