Details

Manufacturer: Extron | Model: DTP3 T 202 | Part number: 60-1869-52 (also written 60186952)

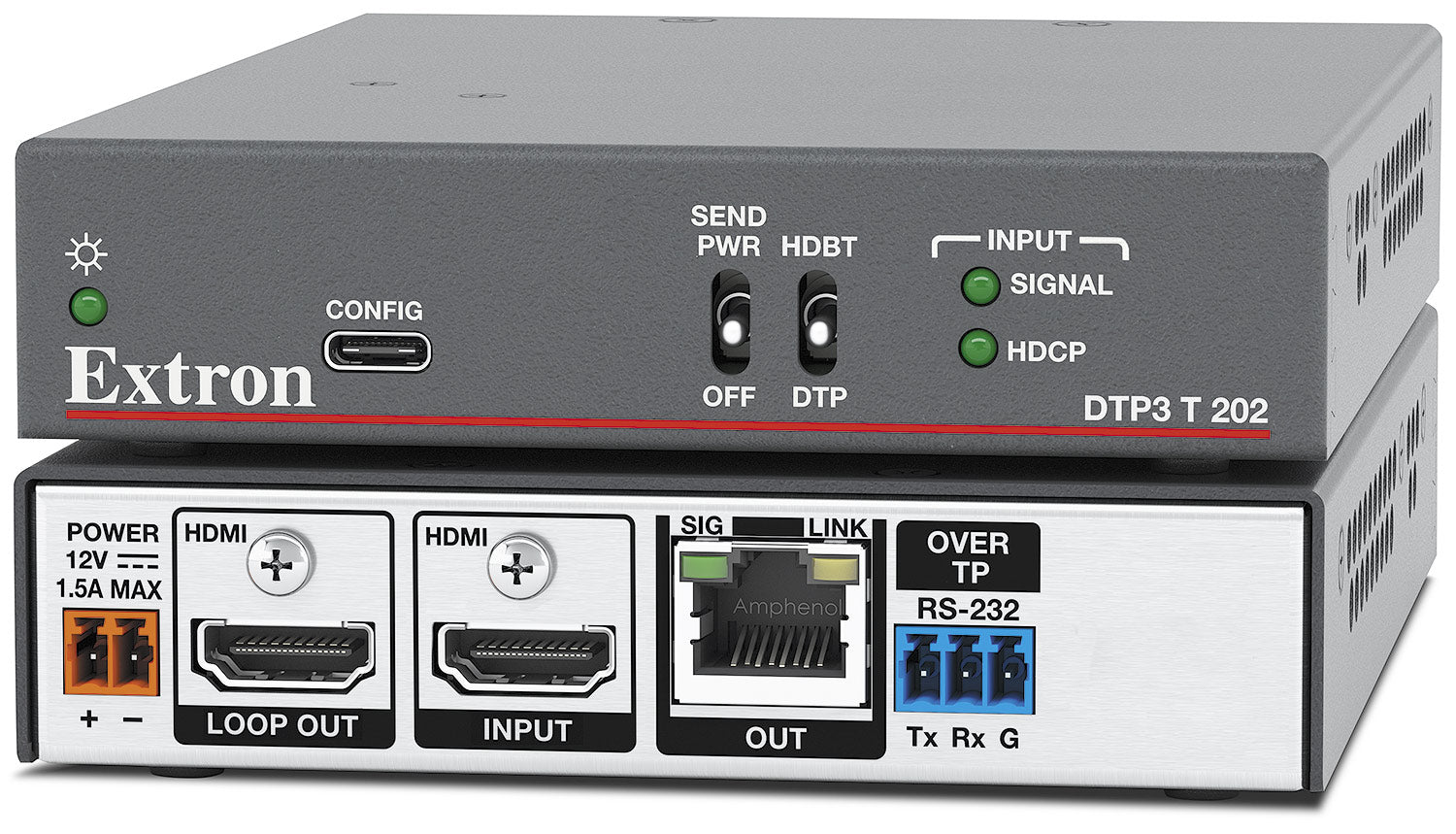

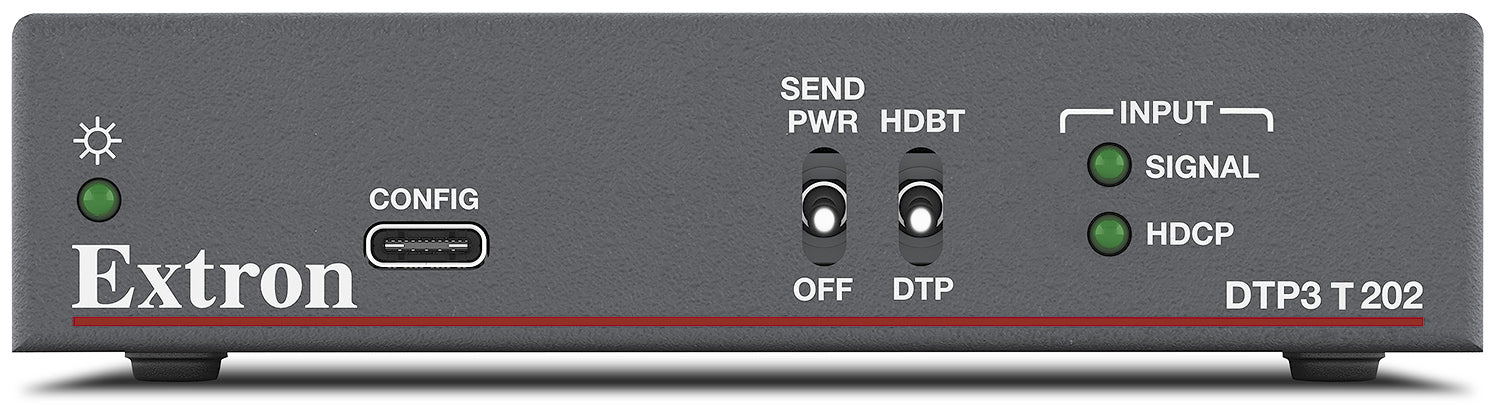

The Extron DTP3 T 202, part number 60-1869-52, is a compact quarter-rack HDMI transmitter that accepts one HDMI source, provides a buffered HDMI loop output for local monitoring, and sends the signal over shielded twisted pair cable up to 330 ft to any DTP3-compatible receiver. It transmits resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling at 18 Gbps, carries embedded audio and bidirectional RS-232 control, and complies with HDCP 2.3. The unit is powered locally by an included external supply or remotely by the connected receiver.

Conference rooms, classrooms and boardrooms use this transmitter when a local HDMI monitor and a distant display must both receive the same source simultaneously. At 4K/60 on STP or XTP DTP 24 cable, reach is 150 ft with couplers or 175 ft coupler-free. On XTP DTP 22 cable, 4K/60 extends to 330 ft. Enclosure measures 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide.

Specifications

Part Number: 60-1869-52

Manufacturer: Extron

Condition: New

1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable

4096x2160 at 30 Hz: 12 bit

4096x2160 at 60 Hz: 4:2:0

4K @ 30 Hz: Up to 330' (100 m) using XTP DTP 22 cable

4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable

4K/UHD@ 60 Hz (1): Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3') Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables

4K/UHD@ 60 Hz (1), (2): Up to 330' (100 m) using XTP DTP 22 cable Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4') Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables

4K/UHD@ 60 Hz (2): Up to 175' (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers

5120x1440 at 60 Hz: 4:4:4

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Baud rate and protocol: 300 to 115200 baud

Bit depths: 16, 20, 24 bit

Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Cable requirements: Solid conductor, 24 AWG or better

Chroma sampling1: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits — subject to the maximum data rate limit

Color bit depth1: 8, 10, 12 bits per color

Connector: 1 female HDMI type A

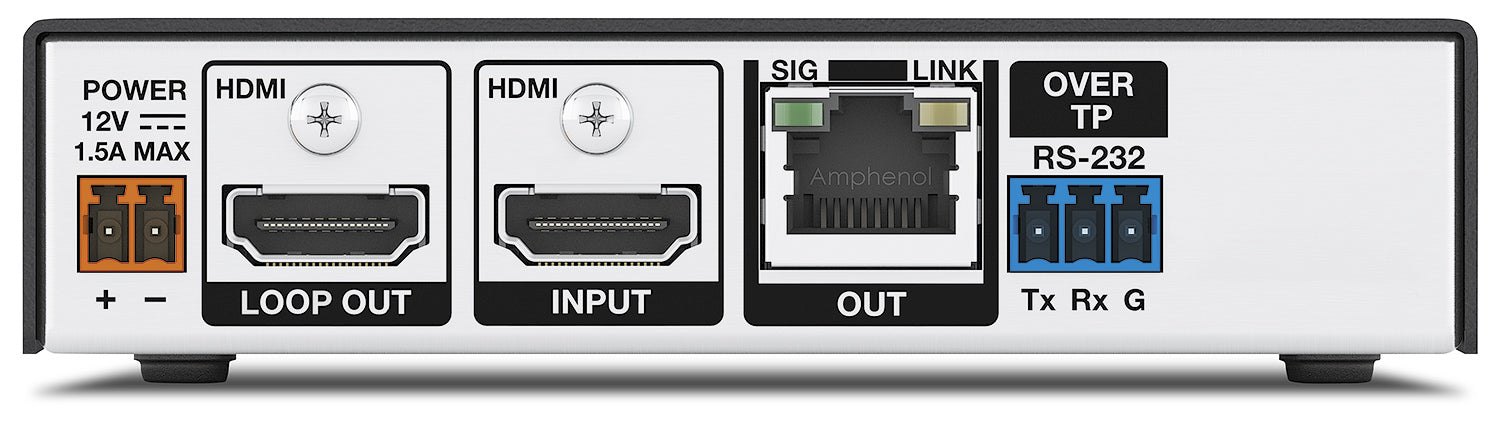

Connectors: 1 female HDMI (loop through)1 female RJ-45

Cooling: Convection, vents on top and sides

Device: 7.16 watts

Device and power supply: 8.10 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate1: 24, 25, 30, 50, or 60 fps

Furniture mount: Optional under-desk mount kit

HDR: HDR10, HDR10+, Dolby Vision

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Max. video data rate: 18 Gbps (6 Gbps per color)

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Number/signal type: 1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)

Power supply: External (included with Tx) Input: 100 to 240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.27 kg)

Program control: Extron Simple Instruction Set (SIS™) Extron Product Configuration Software (PCS)

Protocol: 8 or 7 data bits 1 or 2 stop bits No parity (default), even or odd parity

Rack mount: Optional 1U high rack shelf

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with appropriate requirements of RoHS, WEEE

Remote power budget: 18.0 watts

Resolution and Refresh Rate: Chroma Sampling

SMPTE: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)

Sampling rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Serial control pass-through ports: 1 RS-232, 3.5, mm 3-pole captive screw connector

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Signal Type: HDMI 2.0b, HDCP 2.3

Source formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Standard: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Termination standard: TIA/EIA T568B

USB control port: 1 front panel, female USB type C

USB standards: USB 2.0, low speed

Ultra Wide & 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz, 5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz

VESA: 640x480 to 4096x2160

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

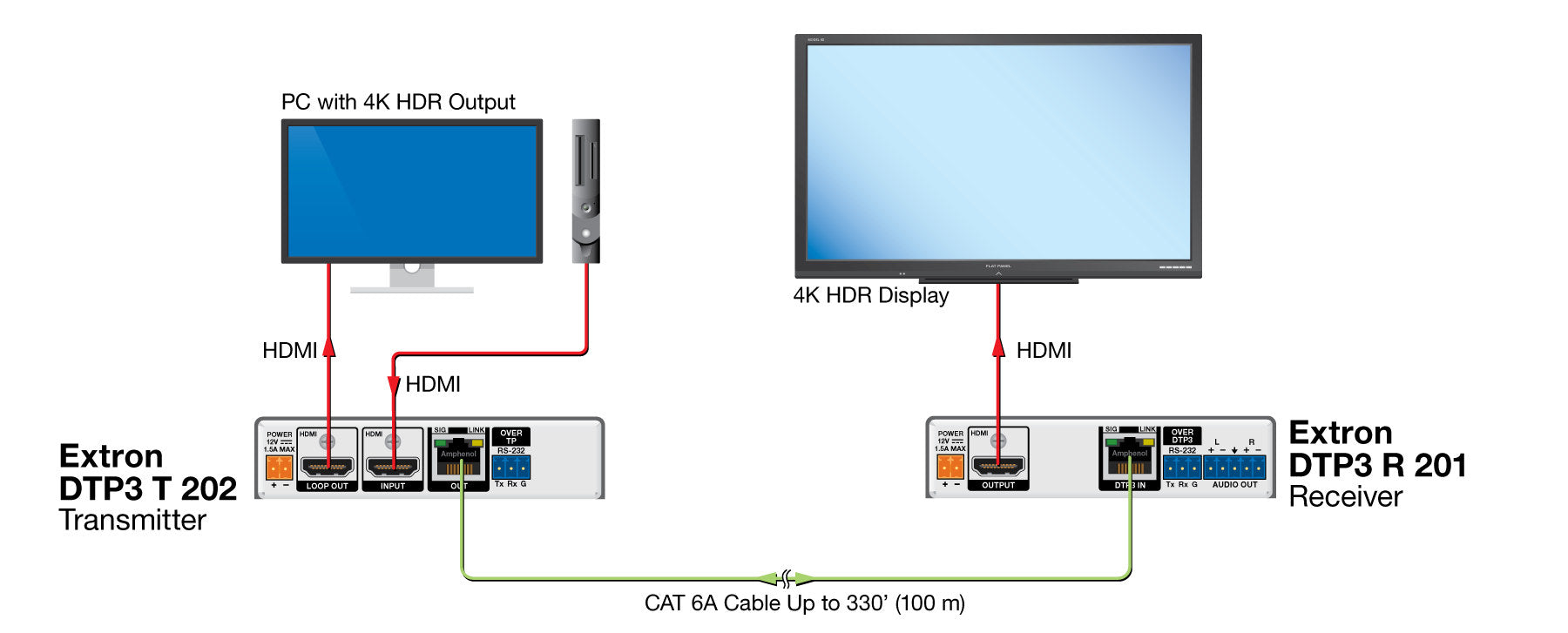

Diagram

Resources

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (dtp3_t_202_A1.pdf)

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (DTP3-T-202_BR_A4_IT_RevA.pdf)

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (DTP3-T-202_BR_A4_FR_RevA.pdf)

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (DTP3-T-202_BR_A4_SP_RevA.pdf)

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (DTP3-T-202_BR_A4_GE_RevA.pdf)

Brochure | DTP3 T 202 60-1869-52 | DTP3 T 202 (DTP3-T-202_BR_A4_RU_RevA.pdf)

Manual | DTP3 T 202 60-1869-52 | Cleaning Instruction Card

Manual | DTP3 T 202 60-1869-52 | DTP Compatibility Guide

Manual | DTP3 T 202 60-1869-52 | DTP3 T/R 201/202 Setup Guide

Manual | DTP3 T 202 60-1869-52 | DTP3 T/R 201/202 User Guide

Manual | DTP3 T 202 60-1869-52 | DTP互換性ガイド

Specifications | DTP3 T 202 60-1869-52 | DTP3 T 202

Panel Drawing | DTP3 T 202 60-1869-52 | DTP3 T 202

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 T 202 60-1869-52

Name: Extron DTP3 T 202 60-1869-52
Brand: Extron
SKU: EXTRON-DTP3T202-60186952
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 T 202 60-1869-52 HDMI DTP3 Transmitter

• Compact quarter-rack HDMI transmitter with HDMI loop output for local monitoring
• 4K/60 4:4:4 at 18 Gbps, HDCP 2.3, and embedded bidirectional RS-232 control
• 330 ft reach on XTP DTP 22 cable, 175 ft coupler-free on STP or XTP DTP 24
• Powered locally by included supply or remotely by the connected receiver
• 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide

Product discontinued.
