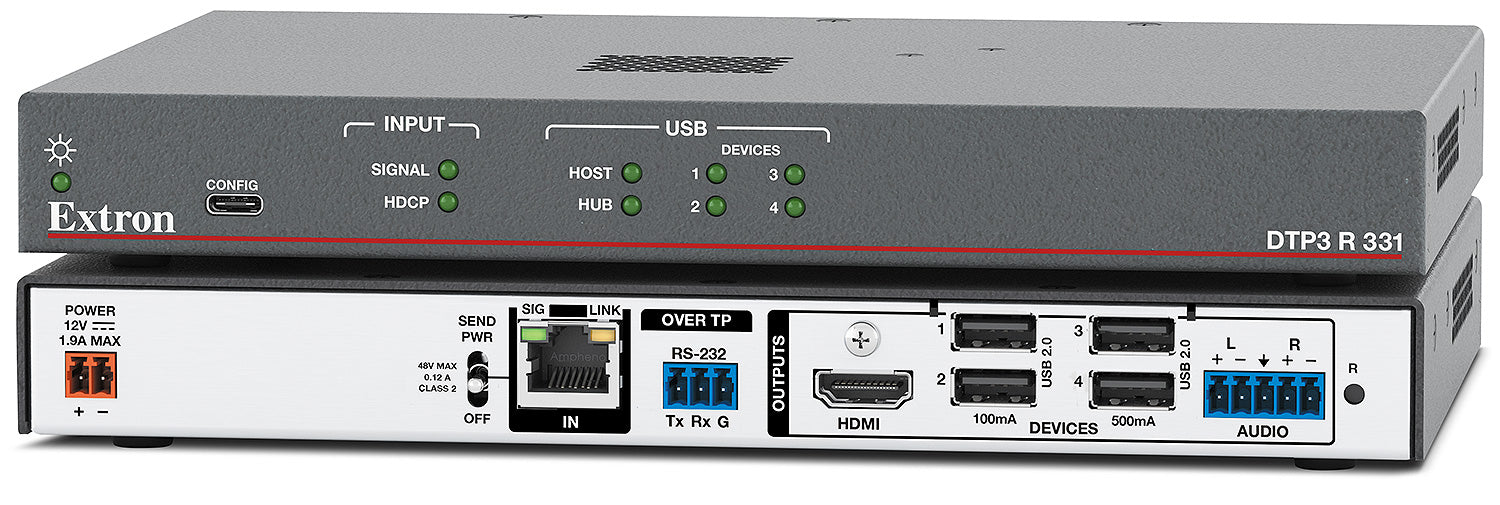

Extron DTP3 R 331 (part number 60-2092-53) — half-rack DTP3 receiver pairing uncompressed 4K/60 HDMI with High-Speed USB 2 extension, stereo audio de-embedding and bidirectional serial pass-through.

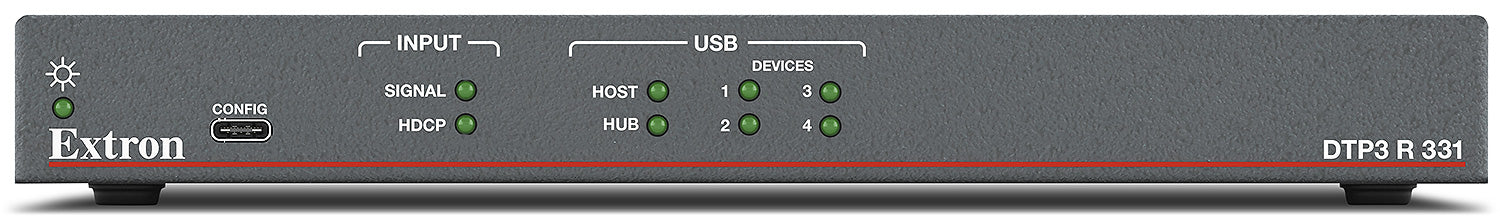

Designed as the room-side half of a point-to-point link with the DTP3 T 331, this receiver pulls video, audio, USB data, control and power off a single shielded CAT 6A cable at ranges to 330 feet. Video moves without compression at up to 18 Gbps, so 4096x2160 at 4:4:4 arrives intact with HDCP 2.3 authentication maintained. A four-port hub puts USB peripherals right at the display, with two ports rated for 500 mA to run bus-powered devices. Front-panel LEDs report signal, HDCP, USB and power status at a glance.

Key Capabilities

Integrated four-port USB 2.0 hub at up to 480 Mbps, on female USB type A connectors
Ports 3 and 4 deliver 500 mA each; ports 1 and 2 supply 100 mA for HID devices
Uncompressed 4K/60 4:4:4 with a 600 MHz pixel clock and HDR10, HDR10+ and Dolby Vision support
Stereo de-embedding with a -100 dB to 0 dB volume range in 1 dB increments
13.2 W device draw from a 12 VDC 2.0 A supply; 23.9 BTU/hr dissipation
Ships with a ZipClip 400 kit; also fits an optional 1U rack shelf or under-desk mount

Where It Is Used

Extron positions the DTP3 R 331 for courtrooms, conference and meeting rooms, classrooms, lecture halls and houses of worship — anywhere an interactive panel, camera or keyboard needs to reach a host computer parked in a distant rack.

Specifications at a Glance

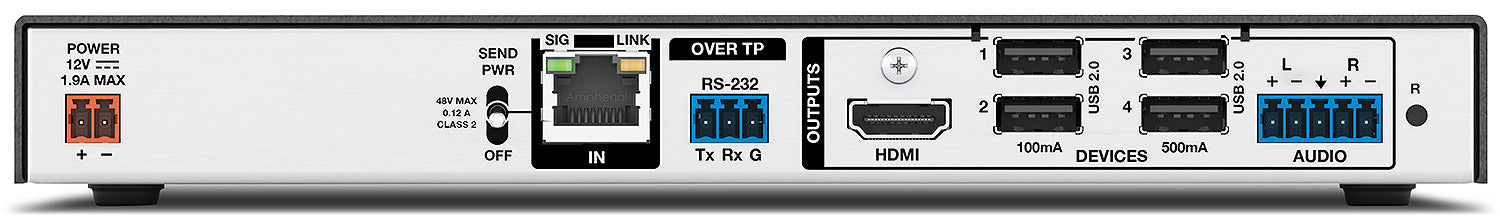

Video input: 1 DTP3 on a female RJ-45 jack; video output: 1 single link HDMI or DVI-D
Power: external 12 VDC, 2.0 A, 24 W supply; 14.6 W device plus supply
Metal enclosure 1.0 in. H x 8.75 in. W x 6.0 in. D, half rack wide
3-year product warranty and a 7-year Everlast power supply warranty

Also referenced as Extron DTP3R331, DTP3-R-331, part number 60209253.

Specifications

Part Number: 60-2092-53

Manufacturer: Extron

Model: DTP3 R 331

Condition: New

Signal type: HDMI 2.0b, HDCP 1.x, HDCP 2.3

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Resolution range (VESA): 640x480 to 4096x2160

Resolution range (SMPTE): Up to 1080p at 120 Hz, or 4K at 60 Hz with 4:4:4 chroma sampling

Ultra-wide and 5K resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 at 60 Hz, 5120x1440 at 60 Hz, 5120x2160 at 30 Hz, 5120x2560 at 30 Hz, 5120x2880 at 30 Hz

Frame rate: 24, 25, 30, 50, or 60 fps

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, and Dolby Vision

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Video input, number and signal type: 1 DTP3

Video input connector: 1 female RJ-45 jack

Video output, number and signal type: 1 single link HDMI (or DVI-D with an appropriate cable or adapter)

Audio output, number and signal type: 1 analog stereo (2-channel), balanced or unbalanced; 1 digital audio embedded with the HDMI output

Audio output connectors: (1) 3.5 mm captive screw connector, 5 pole; 1 female HDMI type A shared with the video output

Supported HDMI audio formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Supported analog audio format: Analog stereo audio

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced

Maximum audio level (Hi-Z): Greater than +12 dBV balanced; +6 dBV unbalanced

Gain error: Plus or minus 0.5 dB channel to channel

Volume control range: -100 dB to 0 dB, control 0 to 100 in 1 dB steps

Transmitter to receiver connector: 1 female RJ-45 per unit

Termination standard: TIA/EIA T568B

Transmission distance, 1080p at 60 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 30 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, no couplers): Up to 175 ft (53 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, with couplers or punch downs): Up to 150 ft (45 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 22): Up to 330 ft (100 m), with or without couplers

Cable requirement, XTP DTP 24: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair cable recommended

Cable requirement, XTP DTP 22: Solid conductor, 22 AWG or better; 500 MHz bandwidth shielded twisted pair cable recommended

USB maximum data rate: Up to high speed (480 Mbps)

USB data transfer types: Bulk, control, interrupt, and isochronous

USB hub, number and signal type: 4 USB

USB hub connectors: 4 female USB 2.0 type-A

USB standards: USB 2.0, USB 1.x

Built-in USB hubs: Minimum 0, maximum 1; 1 optional built-in hub with device hub enabled

Available USB power, ports 1 and 2: USB-A 2.0, 100 mA per port

Available USB power, ports 3 and 4: USB-A 2.0, 500 mA per port

USB control port: 1 front panel, female USB type C

USB control standards: USB 2.0, low speed

Program control: Extron Simple Instruction Set (SIS); Extron Product Configuration Software (PCS)

Serial control pass-through port: 1 RS-232, 3.5 mm, 3-pole captive screw connector

Baud rate: 300 to 115200 baud

Serial protocol: 7 or 8 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND

Power supply: External, included with the transmitter. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 2.0 A, 24 watts

Power consumption, device: 13.2 watts

Power consumption, device and power supply: 14.6 watts

Remote power budget: 18.0 watts. The receiver can be powered locally by an external supply or remotely by a transmitter across the twisted pair link.

Ambient temperature and humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Thermal dissipation, device: 23.9 BTU/hr

Thermal dissipation, device and power supply: 28.7 BTU/hr

Rack mount: Optional 1U high rack shelf, or the included ZipClip 400 mounting kit

Furniture mount: Optional under-desk mount kit, or the included ZipClip 400 mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.0 in. H x 8.75 in. W x 6.0 in. D, half rack wide (25 mm H x 222 mm W x 152 mm D). Depth excludes connectors.

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI. Complies with the appropriate requirements of RoHS and WEEE.

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

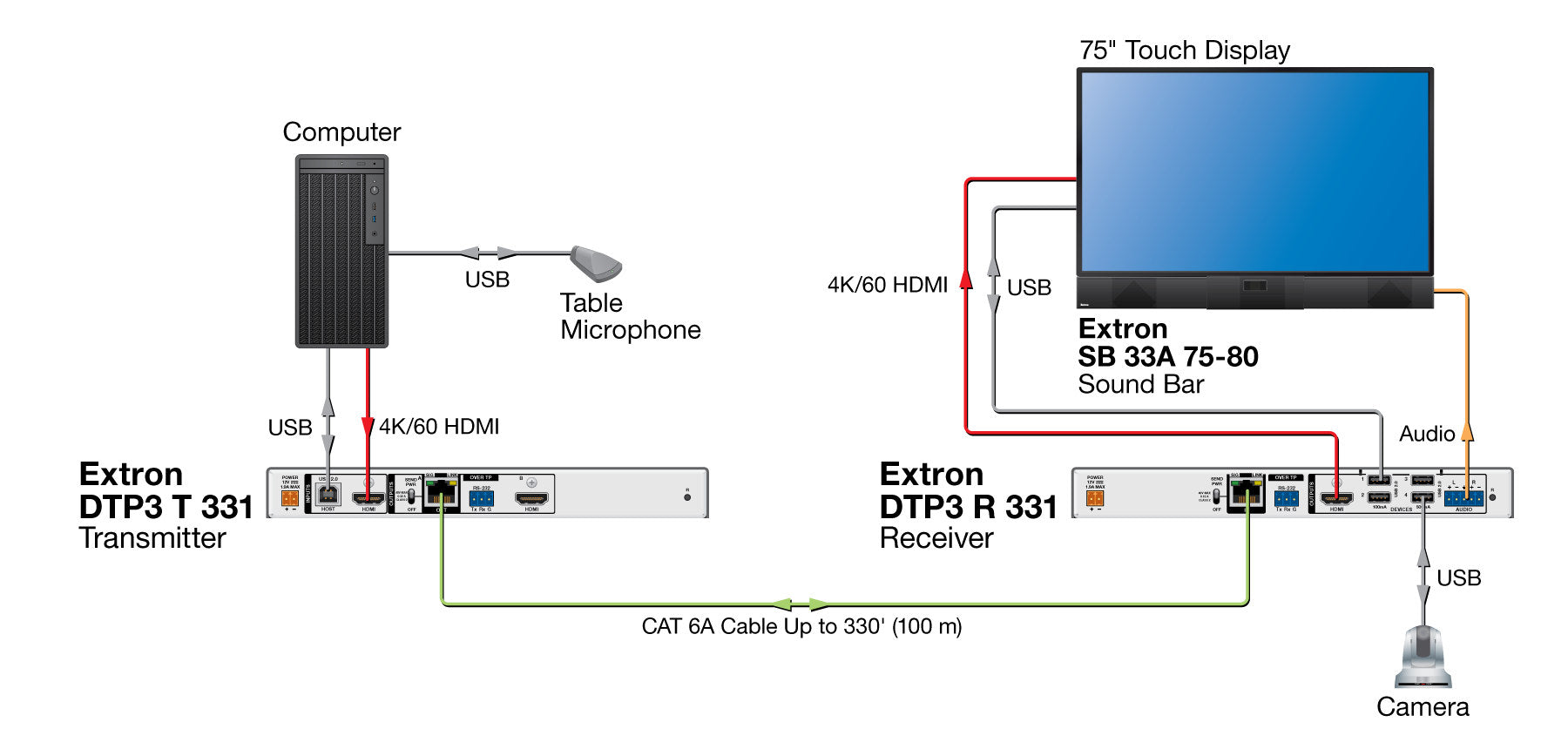

Diagram

Resources

Brochure | DTP3 R 331 60-2092-53 | DTP3 R 331

Manual | DTP3 R 331 60-2092-53 | DTP Compatibility Guide

Manual | DTP3 R 331 60-2092-53 | DTP3 T 331 and DTP3 R 331 Setup Guide

Manual | DTP3 R 331 60-2092-53 | DTP3 T 331 and DTP3 R 331 User Guide

Specifications | DTP3 R 331 60-2092-53 | DTP3 R 331

Panel Drawing | DTP3 R 331 60-2092-53 | DTP3 R 331
