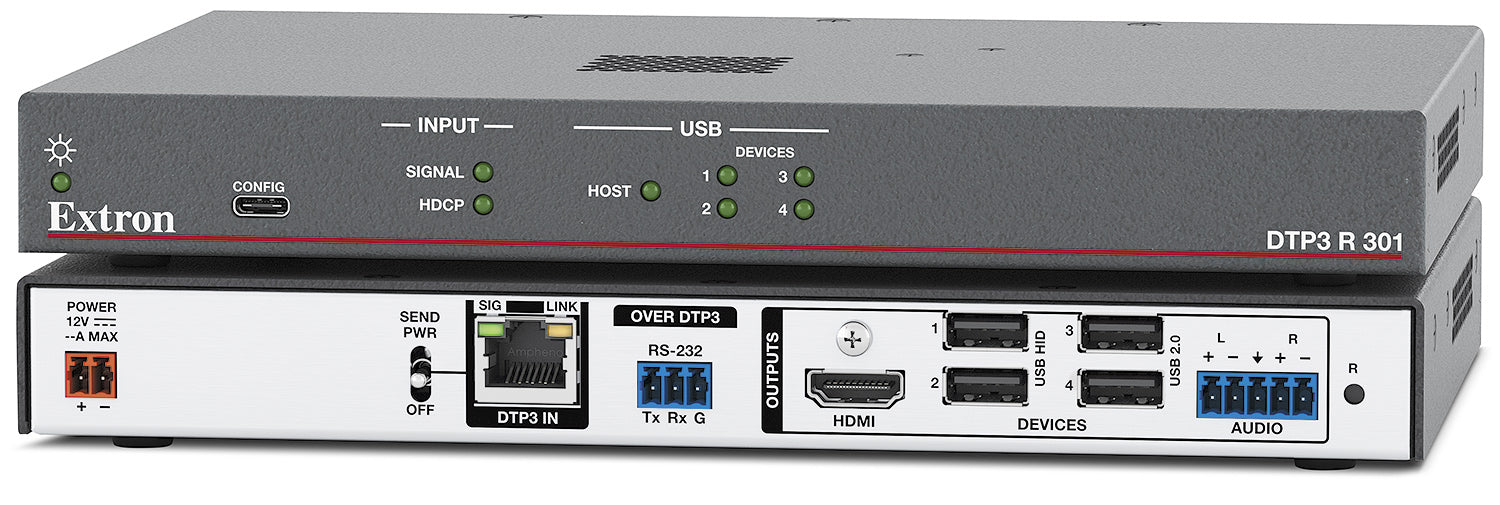

Extron DTP3 R 301 (part number 60-1773-53) — half-rack DTP3 receiver that delivers 4K/60 HDMI, de-embedded stereo audio, USB 2.0 peripheral data and RS-232 at the far end of one twisted pair run.

Where a plain video extender stops, the DTP3 R 301 keeps going: alongside the uncompressed 4096x2160 image it recovers a full USB 2.0 host connection and fans it out to four type A ports. Interactive displays, webcams, keyboards, mice and storage devices all connect at the display position while the host PC stays back in the rack, up to 330 feet away over shielded CAT 6A. Video runs at up to 18 Gbps with HDCP 2.3 preserved, stereo audio drops out to a balanced captive screw output with a full -100 to 0 dB volume range, and bidirectional serial passes through for display control.

Key Capabilities

Four-port built-in USB hub, 480 Mbps throughput, supporting bulk, control, interrupt and isochronous transfers
Uncompressed 4K/60 at 4:4:4 chroma with a 600 MHz pixel clock and 18 Gbps ceiling
Analog stereo de-embedding with volume control across a 100 dB range in 1 dB steps
Ports 1 and 2 supply 100 mA for HID devices; USB 2.0 ports deliver 500 mA each
Included ZipClip 400 kit mounts the unit to a rack shelf or under furniture
50 W external supply feeds the receiver and can remotely power a DTP3 transmitter

Where It Is Used

This receiver is built for rooms where the computer and the people are in different places: courtrooms, lecture halls and classrooms with interactive panels, conference and meeting spaces, houses of worship, and control positions that need a camera or touch panel wired back to a distant host.

Specifications at a Glance

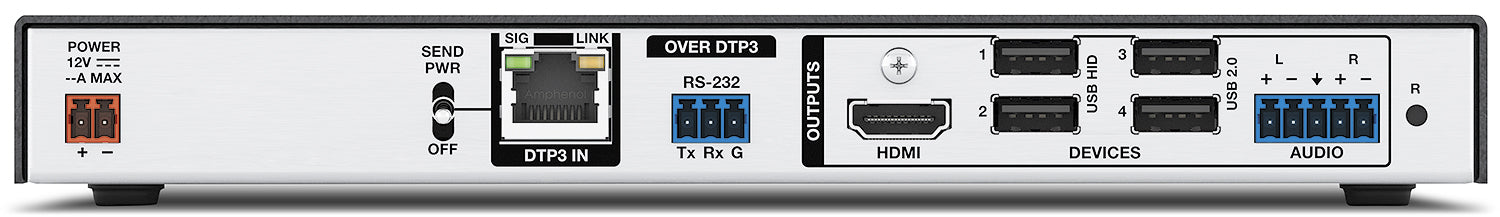

Video input: 1 DTP3 female RJ-45. Video output: 1 single link HDMI, female HDMI
Power: 12 VDC 4.2 A 50 W supply; 30.5 W device draw, 44.6 BTU/hr dissipation
Metal enclosure 1.0 in. H x 8.75 in. W x 6.0 in. D, half rack wide, 1.2 lbs
3-year product warranty plus a 7-year Everlast power supply warranty

Also referenced as Extron DTP3R301, DTP3-R-301, part number 60177353.

Specifications

Part Number: 60-1773-53

Manufacturer: Extron

Model: DTP3 R 301

Condition: New

Signal type: HDMI 2.0b, HDCP 1.x, HDCP 2.3

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Resolution range (VESA): 640x480 to 4096x2160

Resolution range (SMPTE): Up to 1080p at 120 Hz, or 4K at 60 Hz with 4:4:4 chroma sampling

Ultra-wide and 5K resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 at 60 Hz, 5120x1440 at 60 Hz, 5120x2160 at 30 Hz, 5120x2560 at 30 Hz, 5120x2880 at 30 Hz

Frame rate: 24, 25, 30, 50, or 60 fps

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Video input, number and signal type: 1 DTP3

Video input connector: 1 female RJ-45 jack

Video output, number and signal type: 1 single link HDMI (or DVI-D with an appropriate cable or adapter)

Video output connector: 1 female HDMI

Audio output, number and signal type: 1 analog stereo, balanced or unbalanced; 1 digital audio embedded with the HDMI output

Audio output connectors: (1) 3.5 mm captive screw connector, 5-pole; 1 female HDMI type A shared with the video output

Supported HDMI audio formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Supported analog audio format: Analog stereo audio

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced

Maximum audio level (Hi-Z): Greater than +11 dBu, balanced

Gain error: Plus or minus 0.5 dB channel to channel

Volume control range: -100 dB to 0 dB, control 0 to 100 in 1 dB steps

Transmitter to receiver connector: 1 female RJ-45 per unit

Termination standard: TIA/EIA T568B

Transmission distance, 1080p at 60 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 30 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, no couplers): Up to 175 ft (53 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, with couplers or punch-downs): Up to 150 ft (45 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 22): Up to 330 ft (100 m)

Cable requirement, XTP DTP 24: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended

Cable requirement, XTP DTP 22: Solid conductor, 22 AWG or better; 500 MHz bandwidth shielded twisted pair recommended

USB host support: xHCI (USB 3.2 Gen 1/2, USB 3.1 Gen 1/2, USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB data rates: Low speed 1.5 Mbps, full speed 12 Mbps, high speed 480 Mbps

USB throughput: 480 Mbps

USB data transfer types: Bulk, control, interrupt, and isochronous

USB hub, number and signal type: (1) 4-port USB hub, supporting speeds up to 480 Mbps

USB hub connectors: 4 female USB type A

Built-in USB hubs: Minimum 1, maximum 1

Available USB power: USB 2.0 500 mA per port; USB HID 100 mA per port

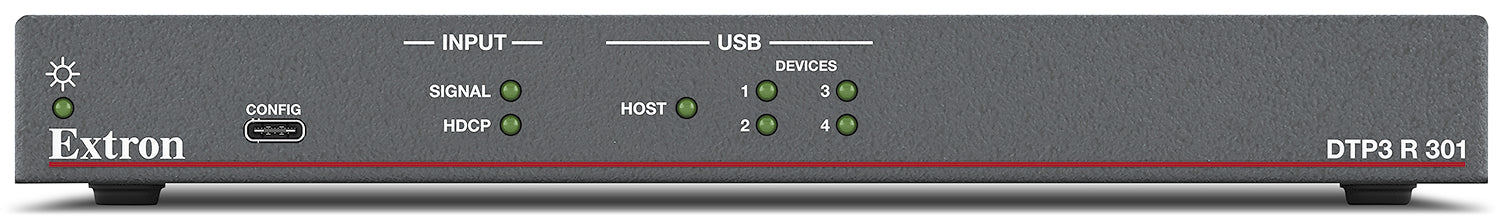

USB control port: 1 front panel, female USB-C

USB control standards: USB 2.0, low speed

Program control: Extron Simple Instruction Set (SIS); Extron Product Configuration Software (PCS)

Serial control pass-through port: (1) RS-232 via a 3.5 mm 3-pole captive screw connector

Baud rate: 300 to 115 k baud

Serial protocol: 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Power supply: External. Input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

Power consumption, device: 30.5 watts at 12 VDC

Power consumption, device and power supply: 33.9 watts at 100-240 VAC, 50-60 Hz

Remote power budget: 18.0 watts

Ambient temperature and humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Thermal dissipation, device: 44.6 BTU/hr

Thermal dissipation, device and power supply: 56.1 BTU/hr

Rack mount: Yes, with an optional 1U high rack shelf or the included ZipClip 400 mounting kit

Furniture mount: Yes, with an optional under-desk mounting kit or the included ZipClip 400 mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.0 in. H x 8.75 in. W x 6.0 in. D, half rack wide (25 mm H x 222 mm W x 152 mm D). Depth excludes connectors.

Product weight: 1.2 lbs (0.54 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI. Complies with the appropriate requirements of RoHS and WEEE.

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP3 R 301 60-1773-53 | DTP3 R 301 (dtp3_r_301_A1.pdf)

Brochure | DTP3 R 301 60-1773-53 | DTP3 R 301 (DTP3-R-301_BR_A4_IT_RevA1.pdf)

Brochure | DTP3 R 301 60-1773-53 | DTP3 R 301 (DTP3-R-301_BR_A4_FR_RevA1.pdf)

Brochure | DTP3 R 301 60-1773-53 | DTP3 R 301 (DTP3-R-301_BR_A4_SP_RevA1.pdf)

Brochure | DTP3 R 301 60-1773-53 | DTP3 R 301 (DTP3-R-301_BR_A4_GE_RevA1.pdf)

Manual | DTP3 R 301 60-1773-53 | DTP Compatibility Guide

Manual | DTP3 R 301 60-1773-53 | DTP3 TR 301 Setup Guide

Manual | DTP3 R 301 60-1773-53 | DTP3 TR 301 User Guide

Manual | DTP3 R 301 60-1773-53 | DTP互換性ガイド

Specifications | DTP3 R 301 60-1773-53 | DTP3 R 301

Specifications | DTP3 R 301 60-1773-53 | DTP3 T/R 301

Panel Drawing | DTP3 R 301 60-1773-53 | DTP3 R 301
