Details

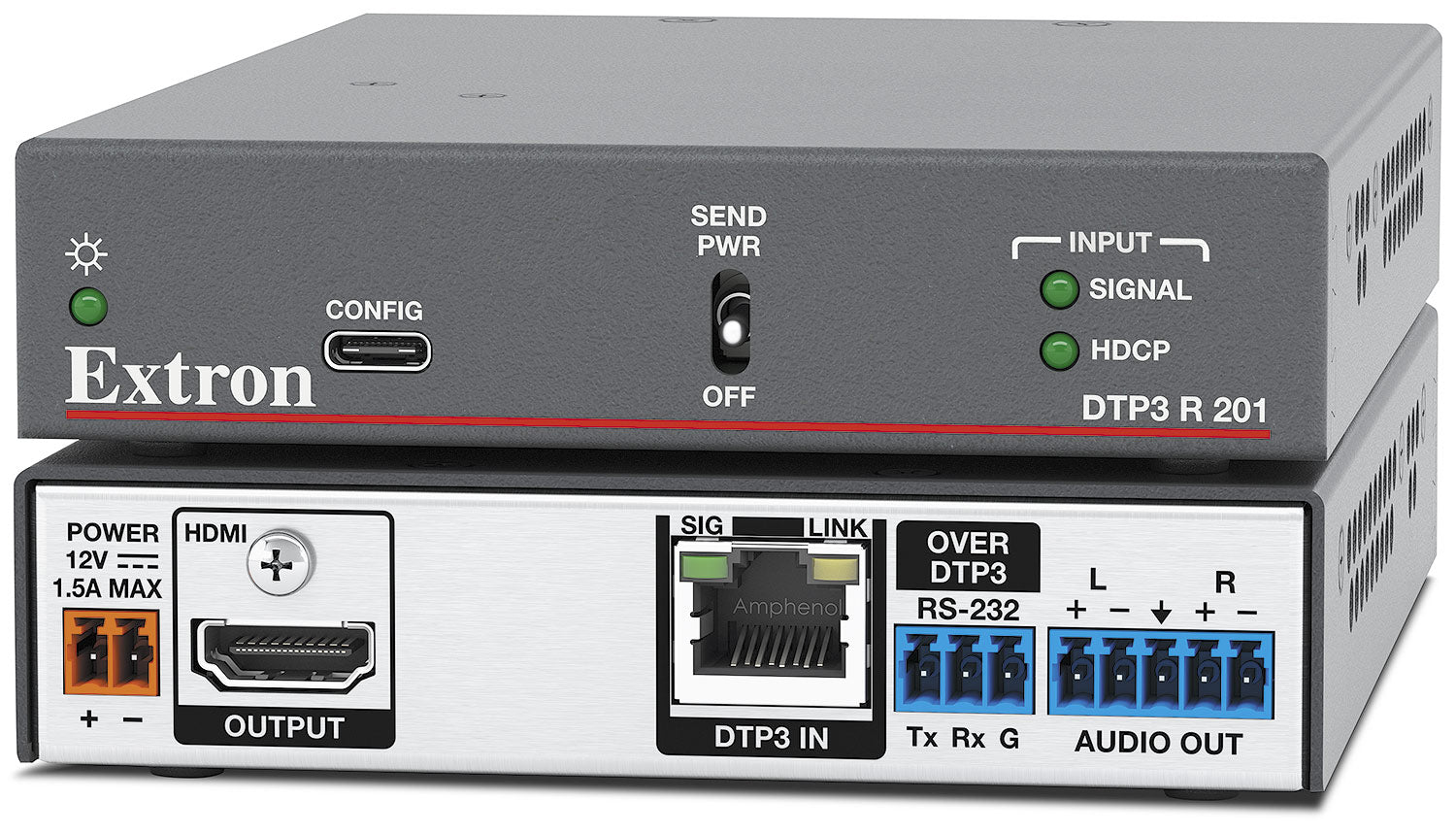

Extron DTP3 R 201 (part number 60-1869-63) — the current production build of Extron's quarter-rack DTP3 receiver for 4K/60 HDMI, de-embedded stereo audio and serial pass-through.

One shielded CAT 6A cable is all that runs between the source rack and the screen. The DTP3 R 201 recovers video, embedded audio, bidirectional RS-232 and power from that single link at distances reaching 330 feet. Because the signal path is uncompressed, a 4096x2160 image at 4:4:4 chroma keeps every bit of its 18 Gbps budget and its HDCP 2.3 authentication end to end. Stereo audio drops out to a five-pole captive screw block for local reinforcement, and the receiver will happily draw its power from the far-end transmitter so only one supply is needed for the pair.

Key Capabilities

Handles 4K/60 at 4:4:4, plus ultra-wide and 5K formats up to 5120x2880 at 30 Hz
600 MHz pixel clock and an 18 Gbps ceiling, carrying HDR10, HDR10+ and Dolby Vision
Analog stereo de-embedding, balanced or unbalanced, with plus or minus 0.5 dB channel matching
RS-232 pass-through so a control system can reach displays at the far end of the link
Power travels in either direction over the twisted pair, with an 18.0 W remote budget
Configured through PCS or SIS commands over the front-panel USB-C port

Where It Is Used

Integrators drop this receiver behind flat panels, into lecterns, under credenzas and onto rack shelves wherever the display is a long walk from the equipment. It suits conference rooms, training rooms, auditoriums, courtrooms, control and dispatch positions, signage installations and imaging review suites.

Specifications at a Glance

Input: 1 DTP3 female RJ-45. Output: 1 single link HDMI, female HDMI connector
7.37 W device draw, 8.62 W with supply, 24.20 BTU/hr thermal dissipation
Metal chassis 1.0 in. H x 4.3 in. W x 6.0 in. D, quarter rack wide, 0.6 lbs
3-year product warranty and a 7-year Everlast power supply warranty

Also referenced as Extron DTP3R201, DTP3-R-201, part number 60186963.

Specifications

Part Number: 60-1869-63

Manufacturer: Extron

Model: DTP3 R 201

Condition: New

Signal type: HDMI 2.0b, HDCP 2.3

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Resolution range (VESA): 640x480 to 4096x2160

Resolution range (SMPTE): Up to 1080p at 120 Hz, or 4K at 60 Hz with 4:4:4 chroma sampling

Ultra-wide and 5K resolutions: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080 at 60 Hz, 5120x1440 at 60 Hz, 5120x2160 at 30 Hz, 5120x2560 at 30 Hz, 5120x2880 at 30 Hz

Frame rate: 24, 25, 30, 50, or 60 fps

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Horizontal frequency range: 5 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Formats: RGB and YCbCr digital video

HDR: HDR10, HDR10+, Dolby Vision

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3

Video input, number and signal type: 1 DTP3

Video input connector: 1 female RJ-45

Video output, number and signal type: 1 single link HDMI or DVI-D (DVI requires an HDMI to DVI-D cable or adapter)

Video output connector: 1 female HDMI

Audio output, number and signal type: 1 analog stereo (2-channel), balanced or unbalanced; 1 digital audio de-embedded from HDMI

Audio output connectors: (1) 3.5 mm captive screw connector, 5 pole; 1 female HDMI type A shared with the video output

Supported HDMI audio formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Supported analog audio format: Analog stereo audio

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced

Maximum audio level (Hi-Z): Greater than +12 dBV balanced; +6 dBV unbalanced

Gain error: Plus or minus 0.5 dB channel to channel

Transmitter to receiver connector: 1 female RJ-45 per unit

Termination standard: TIA/EIA T568B

Transmission distance, 1080p at 60 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 30 Hz: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 cable; up to 330 ft (100 m) over XTP DTP 22 cable

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, no couplers): Up to 175 ft (53 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 24, with couplers or punch downs): Up to 150 ft (45 m)

Transmission distance, 4K/UHD at 60 Hz (XTP DTP 22): Up to 330 ft (100 m), with or without couplers

Cable requirement, XTP DTP 24: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended

Cable requirement, XTP DTP 22: Solid conductor, 22 AWG or better; 500 MHz bandwidth shielded twisted pair recommended

USB control port: 1 front panel, female USB type C

USB standards: USB 2.0, low speed

Program control: Extron Simple Instruction Set (SIS); Extron Product Configuration Software (PCS)

Serial control pass-through port: 1 RS-232, 3.5 mm, 3-pole captive screw connector

Baud rate: 300 to 115200 baud

Serial protocol: 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even or odd parity

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND

Power supply: External, included with the transmitter. Input 100 to 240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power consumption, device: 7.37 watts

Power consumption, device and power supply: 8.62 watts

Remote power budget: 18.0 watts. The receiver can be powered locally by an external supply or remotely by a transmitter across the twisted pair link.

Ambient temperature and humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Convection, vents on top and sides

Thermal dissipation, device: 24.20 BTU/hr

Thermal dissipation, device and power supply: 28.48 BTU/hr

Rack mount: Optional 1U high rack shelf

Furniture mount: Optional under-desk mount kit

Enclosure type: Metal

Enclosure dimensions: 1.0 in. H x 4.3 in. W x 6.0 in. D, quarter rack wide (25 mm H x 109 mm W x 152 mm D). Depth excludes connectors.

Product weight: 0.6 lbs (0.27 kg)

Regulatory compliance: CE, C-tick, C-UL, UL, FCC Class A, ICES, VCCI. Complies with the appropriate requirements of RoHS and WEEE.

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (dtp3_r_201_A2.pdf)

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (DTP3-R-201_BR_A4_RU_RevA.pdf)

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (DTP3-R-201_BR_A4_FR_RevA2.pdf)

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (DTP3-R-201_BR_A4_GE_RevA2.pdf)

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (DTP3-R-201_BR_A4_IT_RevA2.pdf)

Brochure | DTP3 R 201 60-1869-63 | DTP3 R 201 (DTP3-R-201_BR_A4_SP_RevA2.pdf)

Manual | DTP3 R 201 60-1869-63 | Cleaning Instruction Card

Manual | DTP3 R 201 60-1869-63 | DTP Compatibility Guide

Manual | DTP3 R 201 60-1869-63 | DTP3 T/R 201/202 Setup Guide

Manual | DTP3 R 201 60-1869-63 | DTP3 T/R 201/202 User Guide

Manual | DTP3 R 201 60-1869-63 | DTP互換性ガイド

Specifications | DTP3 R 201 60-1869-63 | DTP3 R 201

Panel Drawing | DTP3 R 201 60-1869-63 | DTP3 R 201

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP3 R 201 4K/60 HDMI Twisted Pair Receiver 60-1869-63

Name: Extron DTP3 R 201 4K/60 HDMI Twisted Pair Receiver 60-1869-63
Brand: Extron
SKU: EXTRON-DTP3R201-60186963
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 R 201 4K/60 HDMI Twisted Pair Receiver

• Current production part number for the Extron DTP3 R 201 receiver
• Carries uncompressed 4K/60 4:4:4 HDMI up to 330 ft (100 m) on one CAT 6A run
• 18 Gbps ceiling with a 600 MHz pixel clock and HDCP 2.3 authentication
• Analog stereo de-embedding on a 5-pole 3.5 mm captive screw output
• 7.37 W draw, 24.20 BTU/hr, with an 18.0 W remote power budget
• Supports ultra-wide and 5K formats to 5120x2880 at 30 Hz
• Quarter-rack metal enclosure, 1.0 in. high, weighing 0.6 lbs
• 3-year product warranty and 7-year Everlast power supply coverage
