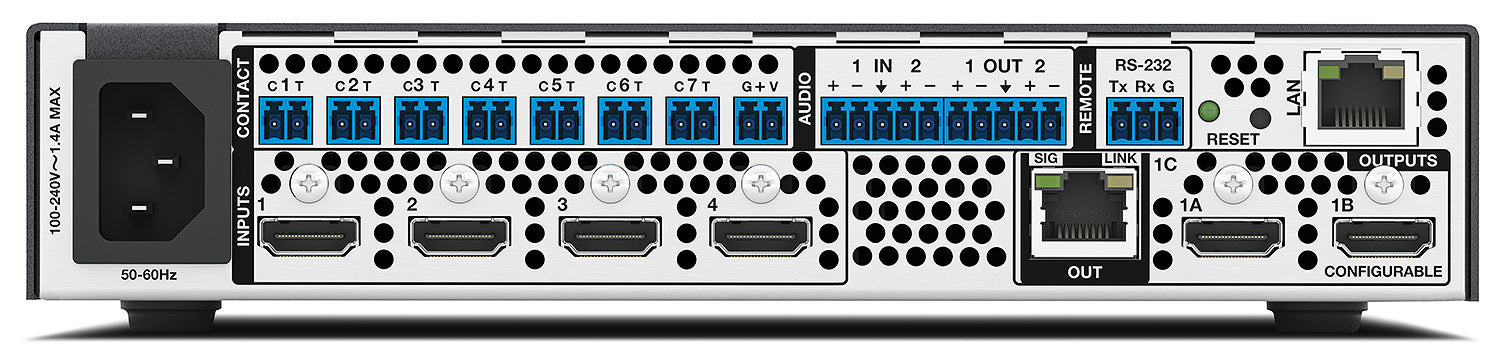

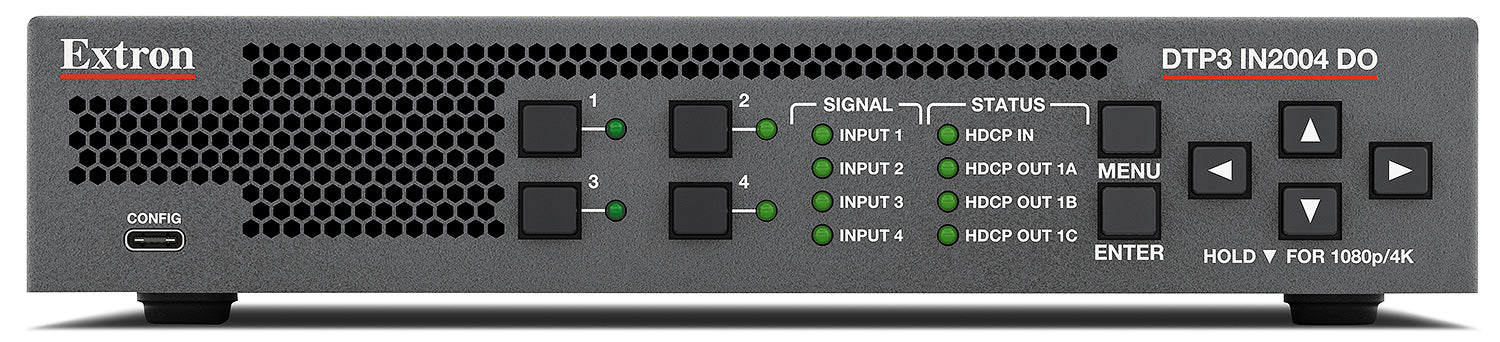

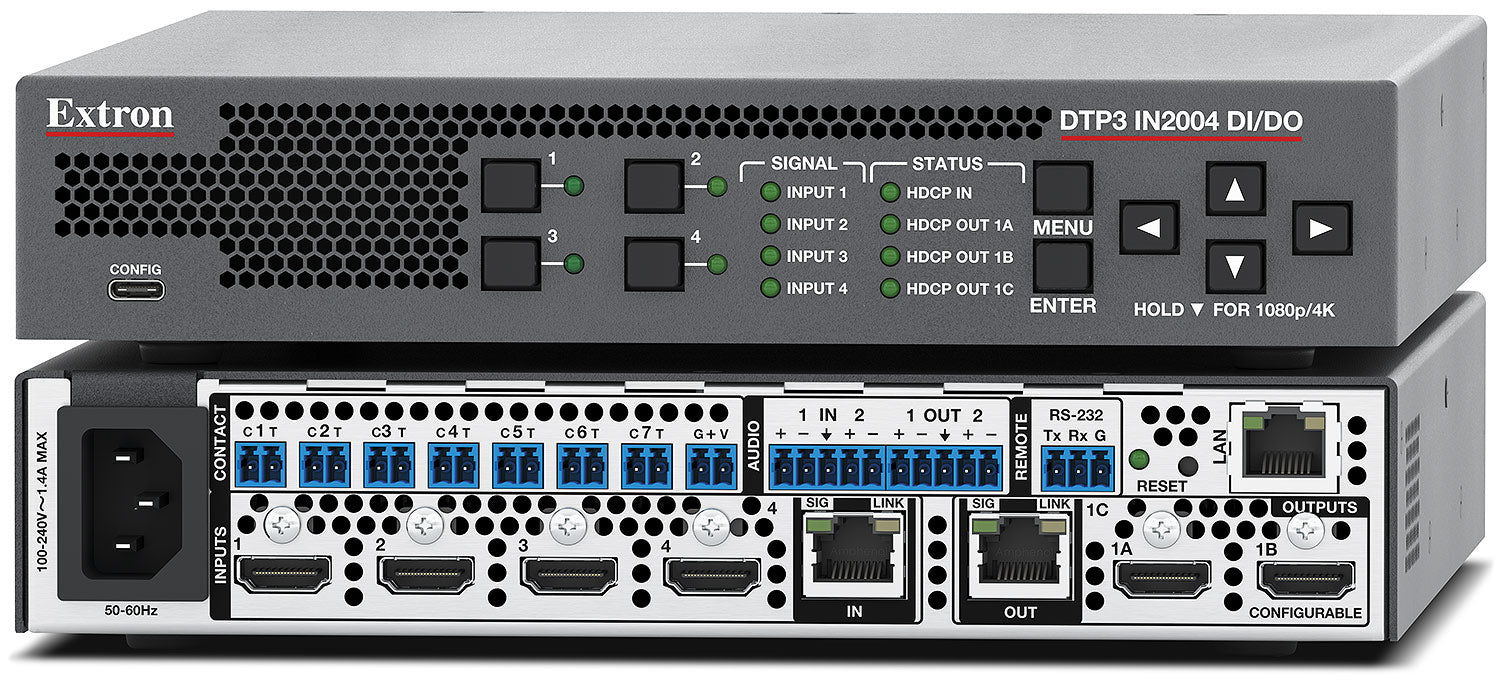

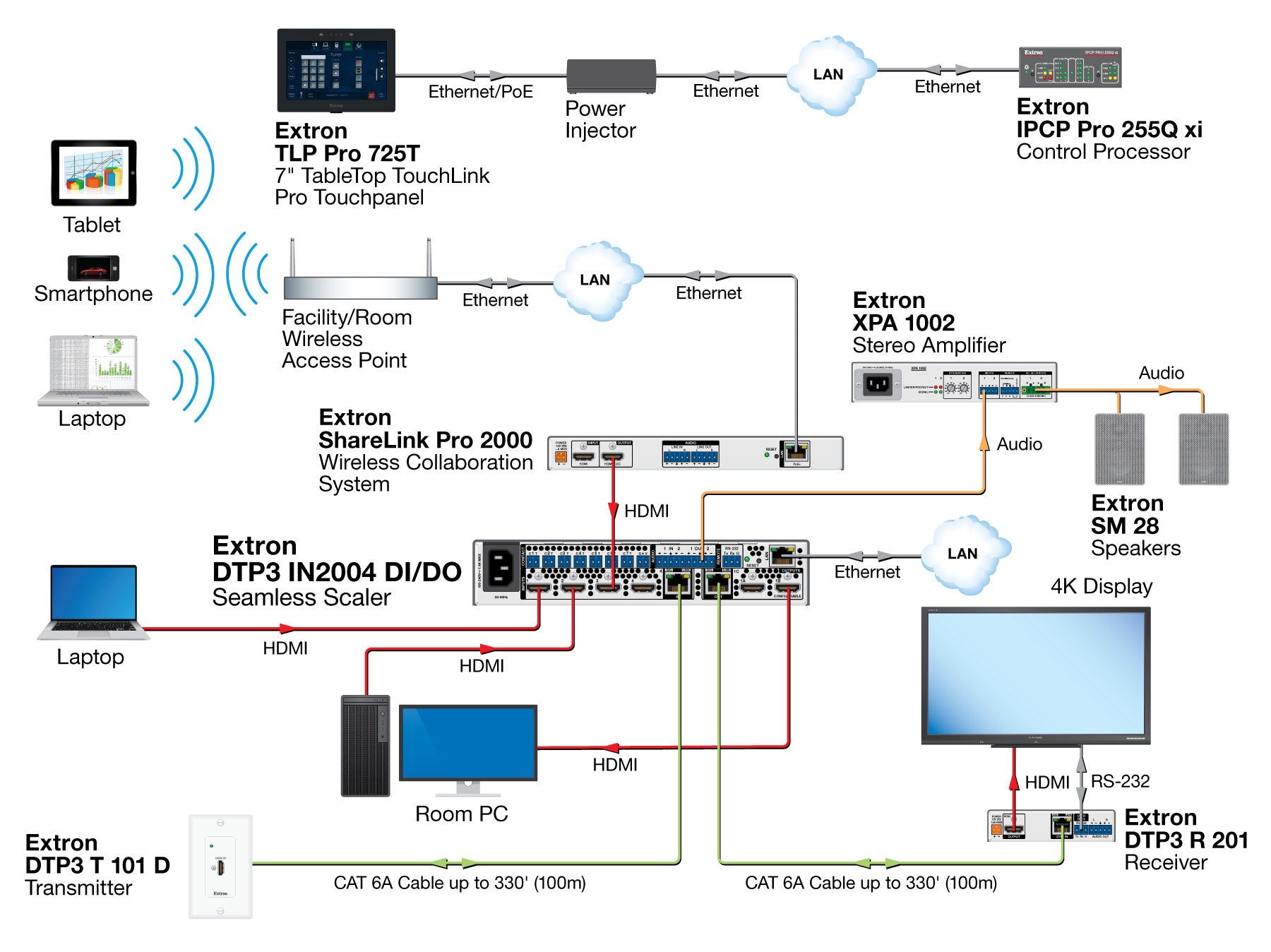

Part Number: 60-1962-03
Manufacturer: Extron
Condition: New
1080p @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4096x2160 at 30 Hz: 10 bit
4096x2160 at 60 Hz: 4:2:02
4096x2160 at 60 Hz2: 4:4:4
4K/UHD @ 30 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
4K/UHD @ 60 Hz: Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m]) Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables
Height: 4.53" (11.5 cm)
All models: 2 HDMI
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing
Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz
Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)
Baud rates: Up to 115200 baud
CMRR: >65 dB @ 1 kHz
Cable recommendations: 400 MHz bandwidth, STP cable
Cable requirements: Solid conductor, 24 AWG or better
Chroma sampling1: 4:4:4, 4:2:2, and 4:2:02
Color bit depth1: 8 or 10 bits per color
Colors: 1.07 billion (10 bit 4:4:4 processing)
Connector: 1 female RJ-45
Contact/tally ports: 7 sets (2 pins each) of contact and tally ports 1 set (1 pin each) of +V and G Tally output power +5 VDC, 0.2 A
Cooling: 2 fans, air flows front to rear
Crosstalk: ≤-80 dB @ 1 kHz, fully loaded
DTP3 IN2004 DI/DO: 3 HDMI 1 HDMI or DTP3/XPT (selectable)
DTP3 models: 1 DTP3/XTP/HDBT (configurable)
Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum
Enclosure dimensions: 1.66" H x 8.68" W x 11.5" D (1U high, half rack wide) (42 mm H x 220 mm W x 292 mm D) (Depth excludes connectors and buttons.)
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.254Subnet mask = 255.255.0.0Gateway = 0.0.0.0DHCP = off
Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP (ping), IP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP
Everlast power supply warranty: 7 years parts and labor
Frame rate1: 24, 25, 30, 50, 60, 120, 144, or 250 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Furniture mount: Yes, with optional under-desk or through-desk mounting kit
Gain: Unbalanced output: -6 dB; balanced output: 0 dB
Gain error: ±0.5 dB channel to channel
HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Horizontal frequency: 15 kHz to 270 kHz
IN2004 and DTP3 IN2004 DO: 4 HDMI
Impedance: >10k ohms unbalanced, >20k ohms balanced
Input cable equalization: Automatic
Input cable length: At 4096x2160@ 60 Hz, 4:4:4, 8 color bits: HDMI Ultra — Up to 12 feet (3.6 meters) HDMI Pro — Up to 25 feet (7.6 meters)
Input gain adjustment: -18 dB to +24 dB (analog input only)
Max. video data rate1: 18 Gbps (6 Gbps per color)
Maximum level: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): >+21 dBu, balanced; >+15 dBu, unbalanced
Nominal level: Line input: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms), adjustable
Output cable length: At 4096x2160 @ 60 Hz, 4:4:4, 8 color bits: HDMI Ultra — Up to 12 feet (3.6 meters) HDMI Pro — Up to 25 feet (7.6 meters)
Output volume range: 0 to -100 dB in 1 dB steps
Peripheral device power: 250 mA per output (HDMI outputs only)
Power supply: InternalInput: 100-240 VAC, 50-60 Hz
Product warranty: 3 years parts and labor
Program control: Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer®
Protocol: 7 or 8 data bits 1 or 2 stop bits Even, odd, mark, or space parity, no parity (default) Flow control = XON, XOFF, none
Rack mount: Yes, with optional rack shelf
Regulatory compliance: CE, c-UL, UL, AS/NZS, ICES, PSE, VCCI, RoHs, and WEEE
Resolution and Refresh Rate: Chroma Sampling
Resolution range: 640x480 to 4096x2160, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K (up to 60 Hz), 3840x2160 (up to 60 Hz) to 4096x2160 (up to 60 Hz)
S/N: >90 dB at maximum balanced output (unweighted)
Scaled resolution: 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1680x10508, 1600x12008, 11920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080p1,2,3,4,5,6,7,8, 2K1,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz
Serial control pass-through port: RS-232 can be transmitted to and from twisted pair endpoints via Ethernet insertion (DTP3 models only).
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Serial control port: 1 bidirectional RS-232, 3.5 mm, 3 pole captive screw connector (rear panel)
Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Stereo channel separation: >80 dB @ 1 kHz
Storage: 512 MB user memory
THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level
Termination standard: TIA/EIA T568B
USB control port: 1 female mini USB B (front panel )
USB standards: USB 2.0, high speed
Vertical frequency: 24 Hz to 240 Hz
