Details

Extron DTP3 CrossPoint 884 (part number 60-1696-01) — a 3U presentation matrix switcher that folds routing, 4K scaling, twisted-pair extension and networked audio into one rack frame.

This is the Standard Model of the DTP3 CrossPoint 884: the switching, scaling and ProDSP audio engine, without the built-in IP Link Pro control processor or the Class D amplifier fitted to IPCP A units. Six dedicated HDMI inputs and two selectable HDMI/DTP3 inputs feed a matrix whose shape you set in software, because four of the twisted-pair ports reverse between input and output. That yields usable arrangements anywhere between 8x12 and 12x8 from the same chassis.

Key Capabilities

Four reversible DTP3 ports, so one unit covers matrix shapes from 8x12 through 12x8
Eight HDMI and six RJ-45 outputs, every one of them scaled by Extron Vector 4K processing
Twisted-pair runs of 330 feet (100 m) at 1080p/60 or 4K/UHD 30 Hz carrying video, audio, power and RS-232
18 Gbps maximum data rate, 600 MHz pixel clock, HDMI 2.0b and HDCP 2.3
Dante networking with 32 receive and 32 transmit channels, plus a 16-channel DMP EXP link
Four mic/line inputs with switchable 48 VDC phantom power and ProDSP processing with AEC

Where It Is Used

Large divisible rooms, lecture theatres, command and control suites, houses of worship and corporate auditoriums — anywhere a single rack has to feed many displays, drive a house sound system and reach remote endpoints behind wall-mounted screens or ceiling projectors without a separate extender for every run.

Specifications at a Glance

Enclosure: 5.25 in H x 17.5 in W x 18 in D, 3U, full rack wide; 25.75 lbs (11.68 kg)
Power: internal supply, 100-240 VAC; 373.5 watts at full load
Thermal dissipation: 646.6 BTU/hr at full load
Fan noise: 52.7 dB(A) at maximum fan speed
Warranty: 3 years parts and labor

Also referenced as Extron DTP3CrossPoint884, DTP3-CrossPoint-884, part number 60169601.

Specifications

Part Number: 60-1696-01

Manufacturer: Extron

Model: DTP3 CrossPoint 884 (Standard Model)

Condition: New

Matrix Size: Configurable from 8x12 to 12x8 using four reversible DTP3 I/O ports

Signal Type: DVI 1.0, HDMI 2.0b, HDCP 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range (VESA): 640x480 up to 4K (4096x2160) @ 60 Hz or UHD (3840x2160) @ 60 Hz

Video Input: 6 HDMI; 2 HDMI or DTP3/XTP (selectable)

Video Input Connectors: 8 female HDMI type A; 2 female RJ-45

DTP3 I/Os: 4 DTP3 I/Os configurable as input or output with scaling; 4 female RJ-45

Video Output: 6 DTP3/XTP/HDBT scaled buffered outputs (configurable); 6 HDMI scaled buffered outputs; 2 HDMI scaled outputs

Video Output Connectors: 8 female HDMI type A; 6 female RJ-45

Signal Transmission Distance: Up to 330' (100 m) at 1080p @ 60 Hz and 4K/UHD @ 30 Hz over STP or XTP DTP 24 cable; up to 330' (100 m) at 4K/UHD @ 60 Hz using XTP DTP 22 cable

Video Processing: 8, 10 or 12 bits per color; 600 MHz maximum pixel clock; 1 billion colors (10 bit processing)

Audio Input: 32 Dante receive channels; 16 channels via DMP EXP port; 4 mono mic/line balanced or unbalanced with available phantom power; 0-6 channels from USB audio; 2 mono line level or 1 analog stereo; 12 digital audio de-embedded from HDMI, DTP3 or XTP inputs

Audio Input Connectors: (3) 3.5 mm 6-pole captive screw for line and mic/line; 8 female HDMI type A; 6 female RJ-45

Audio Output: 32 Dante transmit channels; 16 channels via DMP EXP port; 0-6 channels from USB audio; 2 mono line level or 1 analog stereo; 4 DTP3 I/O when configured as outputs; 8 digital audio embedded from HDMI outputs; 6 digital audio embedded from DTP3/XTP/HDBT outputs

Audio Output Connectors: (1) 3.5 mm 6-pole captive screw; 8 female HDMI type A; 6 female RJ-45; 4 female RJ-45 (DTP3 I/O); 1 female USB-C

Audio Performance: Frequency response 20 Hz to 20 kHz, ±0.5 dB; THD+Noise <0.01%; S/N >90 dB; crosstalk ≤-80 dB @ 1 kHz fully loaded

Phantom Power: +48 VDC ±10%, switchable per mic/line input

Dante Audio Transport: Dante/AES-67 software selectable; 2 RJ-45, 2-port 1 Gbps switch (primary port has PoE); 32 channel Rx, 32 channel Tx; uncompressed 24-bit, 48 kHz

EXP Port: 1 RJ-45; 16 channel Rx and 16 channel Tx; shielded CAT6 up to 10 meters

Ethernet Control Port: 1 rear panel female RJ-45; 10/100/1000Base-T, half/full duplex with auto detect; 802.1X security

USB Configuration Port: 1 front panel female USB-C; IP over USB-C, USB 2.0 high speed

Serial Pass-Through Port: (1) 3.5 mm 3-pole captive screw; 9600 to 115200 baud; 1 = Tx, 2 = Rx, 3 = GND

Storage: 5 GB user memory for logos

Program Control: Extron Product Configuration Software (PCS); Extron Simple Instruction Set (SIS)

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Consumption: 373.5 watts at full load; 155.1 watts in power save mode 1

Thermal Dissipation: 646.6 BTU/hr at full load; 327 BTU/hr in power save mode 1

Remote Power Capability: Supports DTP3 and DTP remote power on all ports (not available in XTP or HDBaseT modes)

Cooling: 2 fans, air flows from right to left as viewed from the front

Fan Noise: 52.7 dB(A), variable speed fan measured at maximum speed

Operating Temperature: +32 to +113°F (0 to +45°C), 10% to 90% humidity, noncondensing

Rack Mount: Yes, with included pre-installed brackets

Enclosure: Metal; 5.25" H x 17.5" W x 18" D (3U high, full rack wide); 13.3 cm H x 44.4 cm W x 45.7 cm D

Product Weight: 25.75 lbs (11.68 kg)

Regulatory Compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

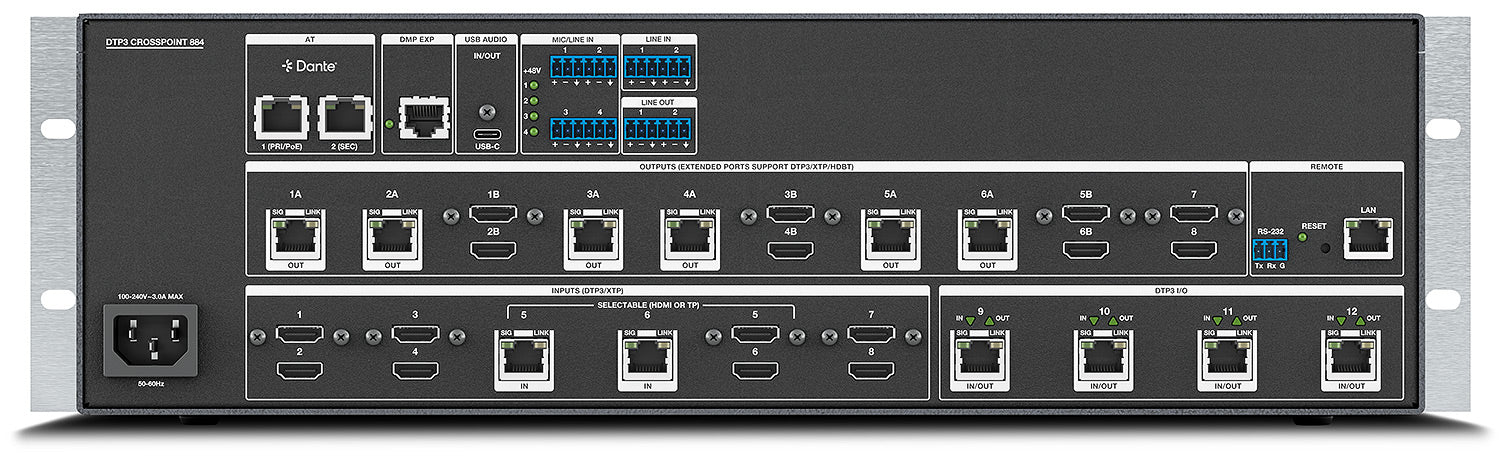

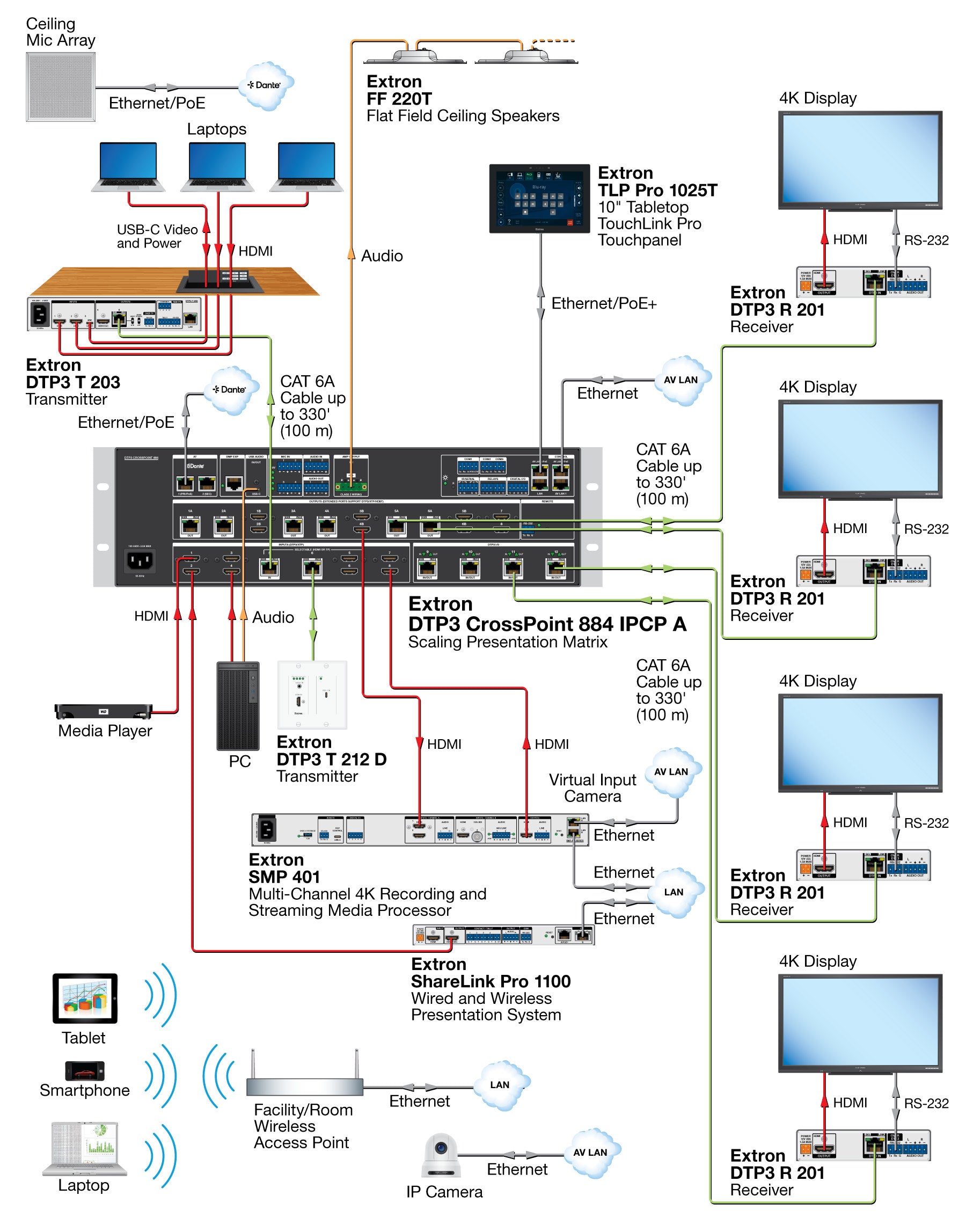

Diagram

Resources

Brochure | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint Series

Brochure | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint 系列

Brochure | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint-Serie

Brochure | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPointシリーズ

Brochure | DTP3 CrossPoint 884 60-1696-01 | Gamme DTP3 CrossPoint

Brochure | DTP3 CrossPoint 884 60-1696-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_SP.pdf)

Brochure | DTP3 CrossPoint 884 60-1696-01 | Serie DTP3 CrossPoint (dtp3_crosspoint_series_A3_IT.pdf)

Manual | DTP3 CrossPoint 884 60-1696-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | DTP3 CrossPoint 884 60-1696-01 | DTP Compatibility Guide

Manual | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint Series Network Ports, Protocols and Licenses Guide

Manual | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint Series Setup Guide

Manual | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint Series User Guide

Manual | DTP3 CrossPoint 884 60-1696-01 | Extron Dante FAQ

Manual | DTP3 CrossPoint 884 60-1696-01 | DTP互換性ガイド

Specifications | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint Series

Panel Drawing | DTP3 CrossPoint 884 60-1696-01 | DTP3 CrossPoint 884

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

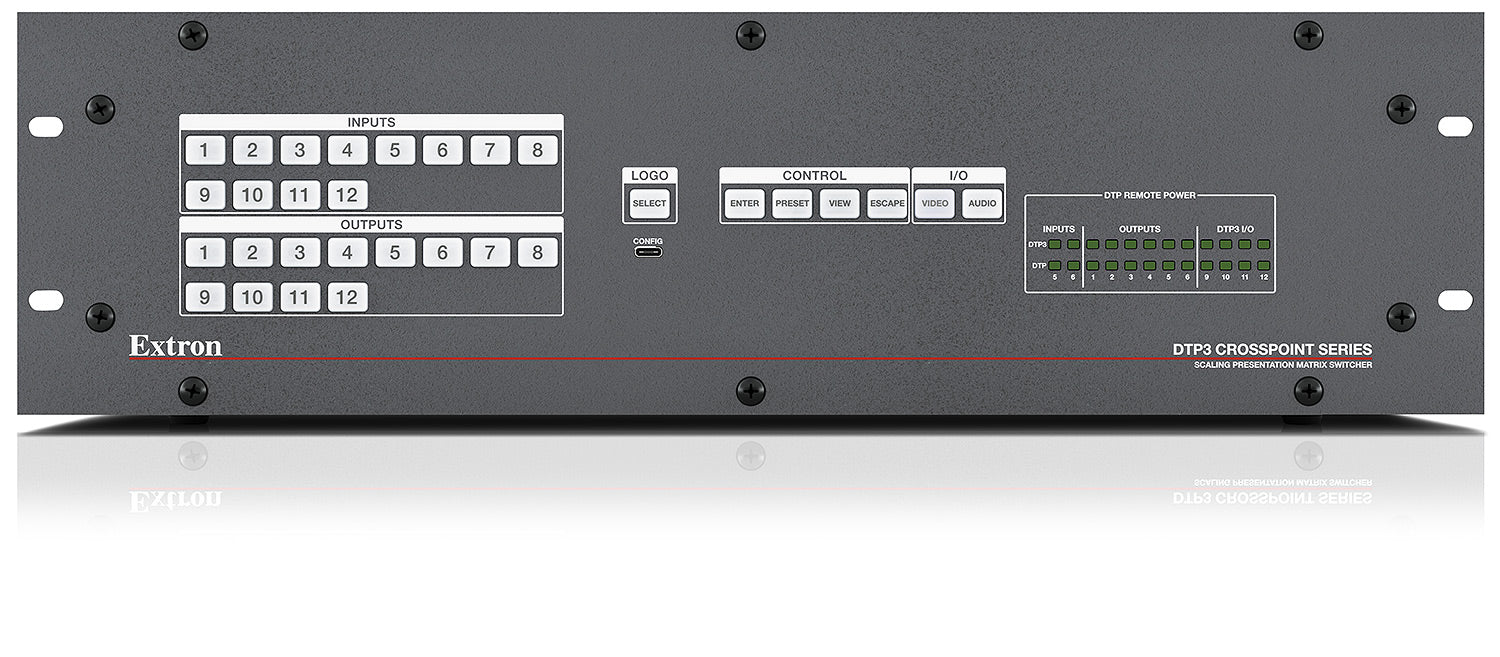

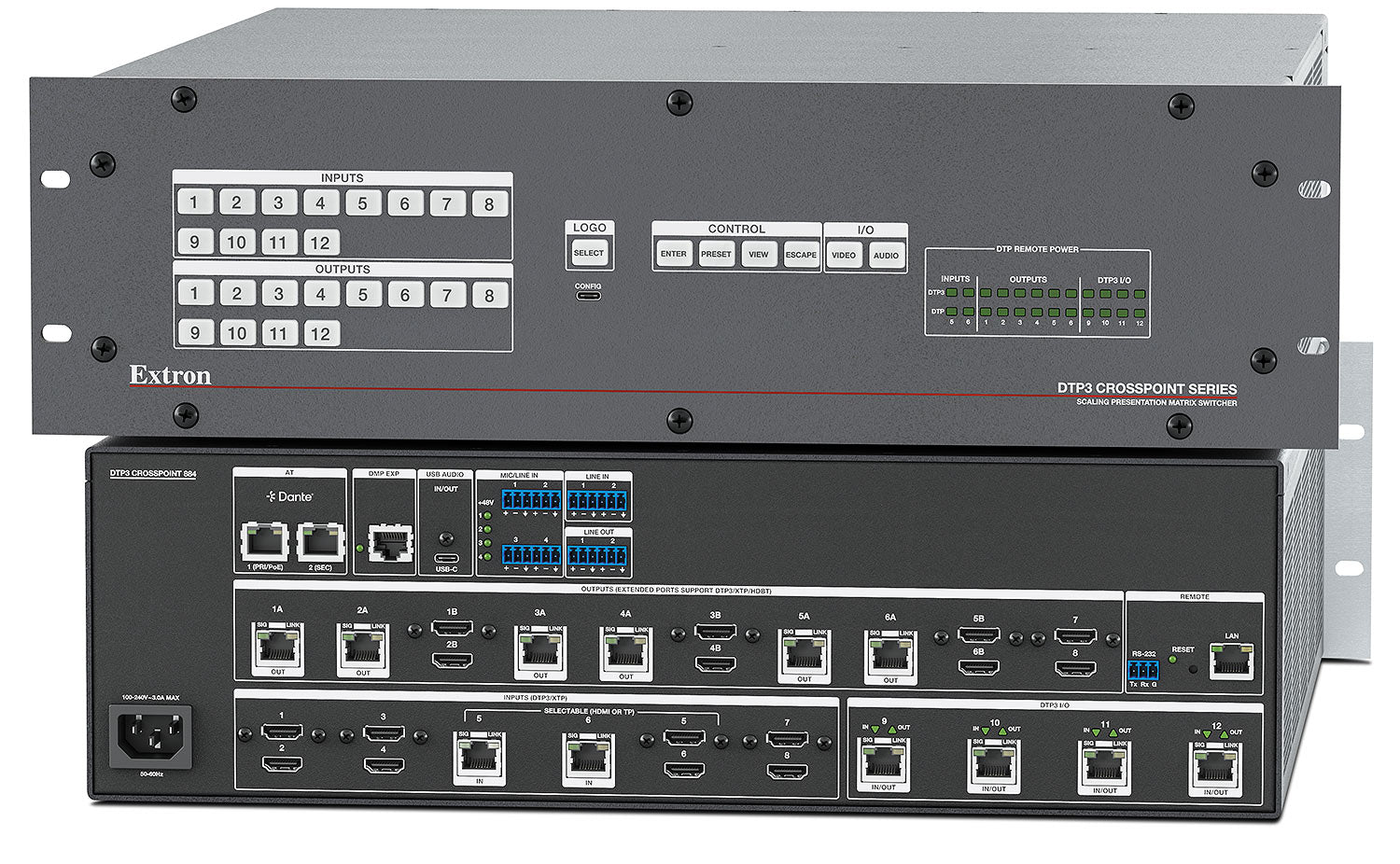

Extron DTP3 CrossPoint 884 4K/60 Presentation Matrix Switcher 60-1696-01

Name: Extron DTP3 CrossPoint 884 4K/60 Presentation Matrix Switcher 60-1696-01
Brand: Extron
SKU: EXTRON-DTP3CROSSPOINT884-60169601
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP3 CrossPoint 884 4K/60 Presentation Matrix Switcher

• Four reversible DTP3 ports run matrix sizes from 8x12 through 12x8
• Eight HDMI plus four DTP3 twisted-pair I/O ports in one 3U rack frame
• Vector 4K scaling on every output up to 4096x2160 at 60 Hz, 18 Gbps
• DTP3 links carry video, audio, power and RS-232 up to 330 ft (100 m)
• 32 Dante receive and 32 Dante transmit channels with AES67 support
• Extron ProDSP audio processing with AEC for conferencing spaces
• Draws 373.5 watts at full load; 646.6 BTU/hr thermal dissipation
• Standard Model: no built-in control processor or power amplifier
