Extron DTP3 CrossPoint 42 USB 60-1925-02

Details

Manufacturer: Extron | Model: DTP3 CrossPoint 42 USB | Part number: 60-1925-02 (also written 60192502)

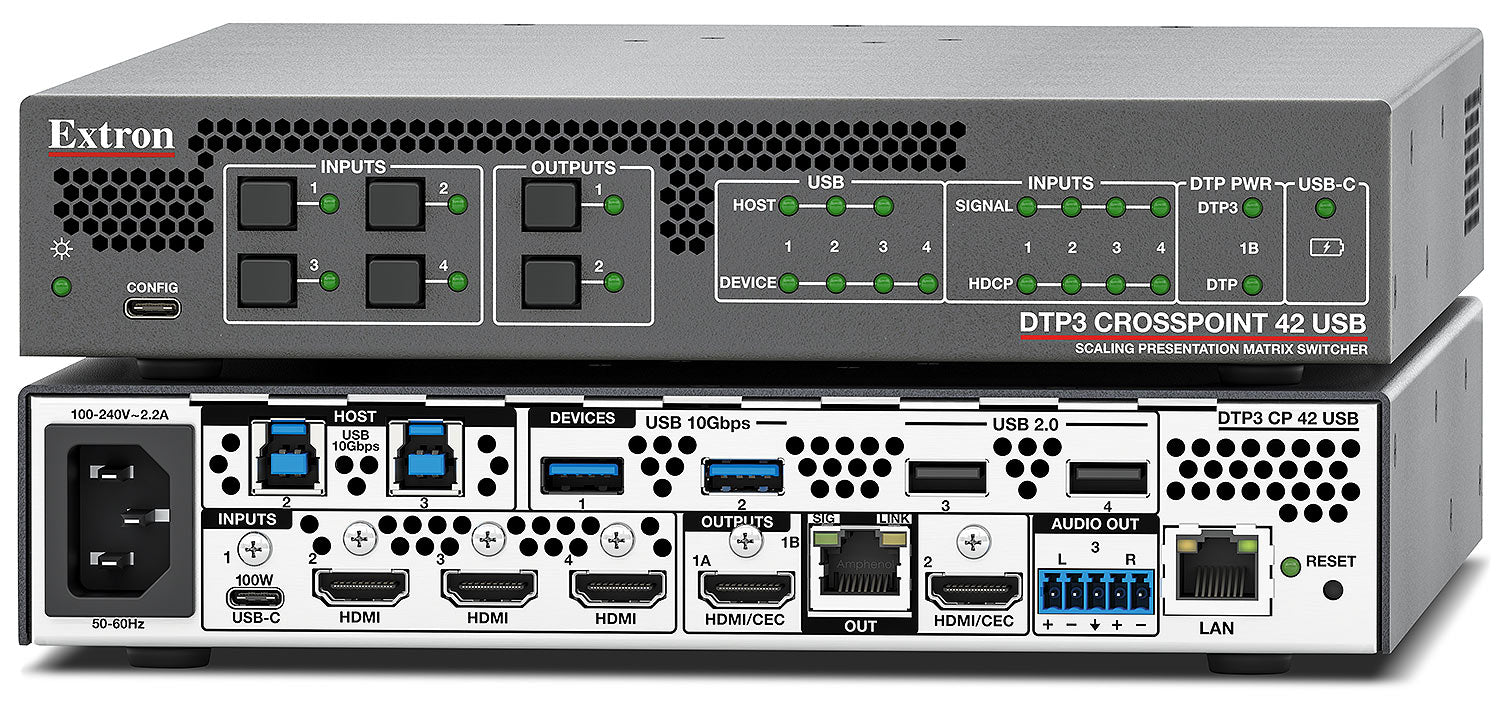

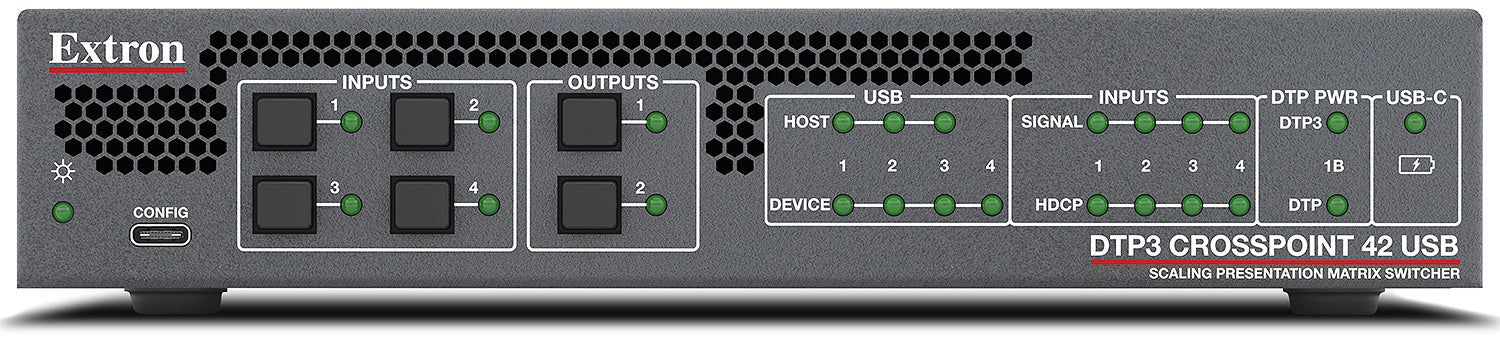

The Extron DTP3 CrossPoint 42 USB (60-1925-02) is a 4x2 4K/60 matrix switcher that adds full USB extension and 100 W laptop charging to the compact CrossPoint 42 platform. Three HDMI 2.0 inputs and one USB-C input route to simultaneous HDMI and DTP3 outputs. A USB 10 Gbps host port and four-port hub sit alongside video switching, and USB 2.0 data rides the DTP3 output link up to 330 ft so peripherals at the display can reach the room PC without extra cabling.

Key capabilities

4x2 matrix: 3 HDMI 2.0 inputs and 1 USB-C input, simultaneous HDMI and DTP3 outputs
4K/60 4:4:4 at 18 Gbps on all inputs and outputs
USB 10 Gbps host port with built-in 4-port hub
USB 2.0 data extension over DTP3 output to 330 ft (100 m)
USB-C input delivers up to 100 W laptop power delivery

Where it is used

Huddle rooms, small conference rooms, and single-instructor classrooms where BYOD USB-C laptop connection, room camera/mic routing, and remote display extension are needed in a compact half-rack chassis.

Specifications at a glance

Enclosure: 1U half-rack, 3.3 lbs
DTP3 extension: 330 ft on CAT 6A at 1080p, 150 ft at 4K/60
Warranty: 3-year product, 7-year Everlast power supply

Also referenced as Extron DTP3CrossPoint42USB, DTP3-CrossPoint-42-USB, part number 60192502.

Specifications

Part Number: 60-1925-02

Manufacturer: Extron

Model: DTP3 CrossPoint 42 USB

Condition: New

Category: 4x2 4K/60 Seamless Scaling Matrix Switcher

Max Resolution: 4096x2160 @ 60 Hz (4:2:2, up to 12-bit); 3840x2160 @ 60 Hz up to 4:4:4 8-bit; 24/25/30/50/60 fps

Max Video Data Rate: 18 Gbps (6 Gbps per color)

Signal Type Support: DVI 1.0, up to HDMI 2.0b, HDCP 2.3, DisplayPort 1.2

Video Input: 3 HDMI 2.0 inputs + 1 USB-C input (DisplayPort 1.2 Alt Mode, 2 or 4 lanes)

Video Input Connectors: 3 female HDMI type A, 1 USB-C

Video Output: Outputs 1A/1B: 1 HDMI 2.0 output + 1 DTP3/XTP/HDBaseT scaled buffered output (configurable), both active simultaneously; Output 2: 1 HDMI 2.0 output

Video Output Connectors: 2 female HDMI type A (outputs 1A/2), 1 female RJ-45 (output 1B)

Signal Transmission Distance: 1080p/60 or 4K/30: up to 330 ft (100 m); 4K/UHD@60: up to 150 ft (45 m), or up to 175 ft (53 m) with no couplers, over DTP3/XTP DTP 24 cable

Audio Performance: Gain -6 dB unbalanced / 0 dB balanced default; frequency response 20 Hz-20 kHz +/-0.5 dB; S/N >90 dB; sampling 32/44.1/48/96/192 kHz, 16/20/24-bit

USB-C Power Delivery: Up to 100 W; profiles 5V/9V/12V/15V/20V @ up to 3A, 20V @ 5A (100 W)

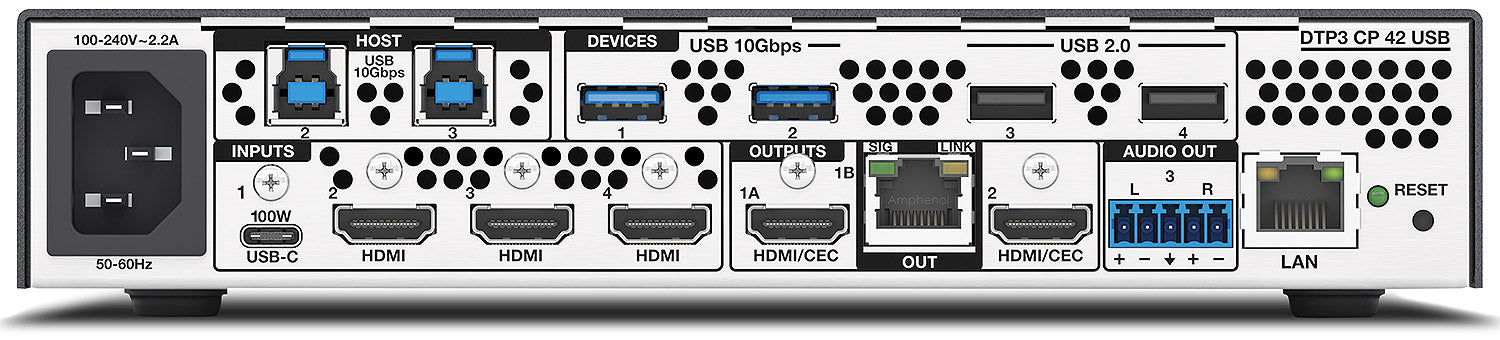

USB Host/Device Ports: 2 USB 3.2 + 1 USB-C host port; 5 USB device ports (2x USB 3.2 Type A, 2x USB 2.0/1.x Type A, 1x DTP3 twisted pair for USB 2.0 extension)

Ethernet Control: 1 rear RJ-45, 10/100/1000Base-T

Storage: 512 MB user memory for logos

Power Consumption: Full load 200.9 W; power save 43.8 W

Thermal Dissipation: 248 BTU/hr (full load)

Cooling: 2 fans, front-to-back airflow; fan noise 36 dB(A)

Mounting: Rack mount with optional rack shelf, or furniture/under-desk mount with optional kit

Enclosure Dimensions: 1.66 in H x 8.69 in W x 11.5 in D (1U high, half rack wide) (4.22 x 22 x 29 cm)

Product Weight: 3.3 lbs (1.5 kg)

Regulatory Compliance: CE, C-UL, UL, FCC Class A, VCCI, AS/NZS, ICES, RoHS, WEEE

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42 Series (dtp3_crosspoint_42_usb_rev_A2.pdf)

Brochure | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42 Series (dtp3_crosspoint_42_revA1_IT.pdf)

Manual | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42 Series Setup Guide

Manual | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42 Series User Guide

Specifications | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42

Panel Drawing | DTP3 CrossPoint 42 USB 60-1925-02 | DTP3 CrossPoint 42 Series
