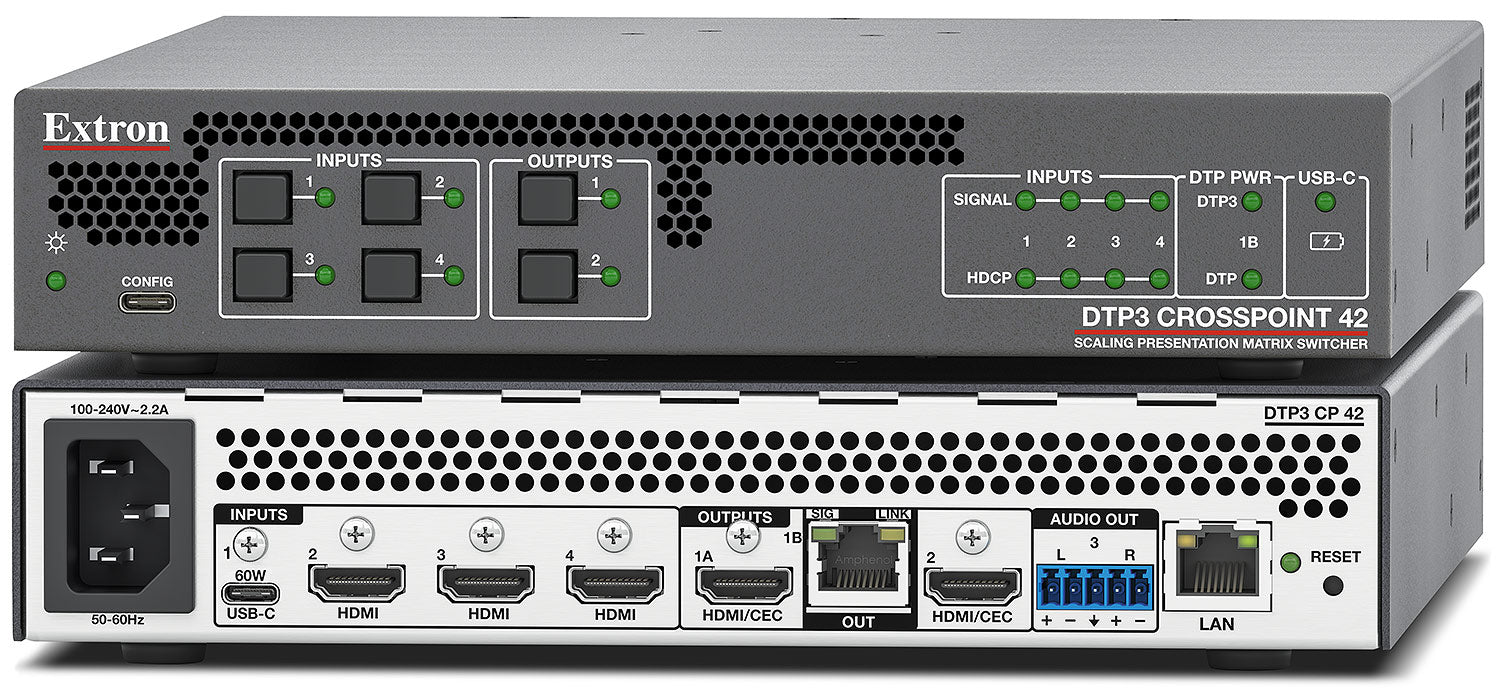

Extron DTP3 CrossPoint 42 (part number 60-1925-01) -- a compact 4x2 4K/60 presentation matrix switcher.

The DTP3 CrossPoint 42 packs a compact 4x2 presentation switcher, 4K/60 4:4:4 scaler, and signal extender into a half-rack, single-space enclosure. Three HDMI inputs and a USB-C input feed two simultaneously active outputs -- an HDMI port and a DTP3 twisted-pair port that reaches a remote display up to 330 feet away without a separate extender box. Extron's Vector scaling, EDID Minder, and SpeedSwitch technologies handle source-to-display compatibility automatically, so installers do not have to hand-match timing or resolution. Because both outputs stay active at once, one chassis can simultaneously feed a nearby monitor over HDMI and a farther display over DTP3, which keeps small installations tidy without a second switcher.

Key Capabilities

• 4x2 4K/60 4:4:4 matrix switching with 3 HDMI and 1 USB-C input
• Simultaneous HDMI and DTP3 outputs from Outputs 1A/1B
• DTP3 extension up to 330 ft (100 m) over shielded twisted pair
• Extron Vector scaling, EDID Minder, Key Minder, and SpeedSwitch technologies
• Compatible with XTP CrossPoint systems and HDBaseT displays
• Configured and managed with Extron PCS software

Where It Is Used

The compact 4x2 form factor suits huddle spaces, small conference rooms, and single-instructor classrooms where one source needs to reach a local HDMI display and a remote display over DTP3 extension, without dedicating a full rack space to switching gear.

Specifications at a Glance

• Matrix: 4x2 with simultaneous HDMI + DTP3 outputs
• Inputs: 3 HDMI 2.0 + 1 USB-C
• Video: 4096x2160 @ 60 Hz, up to 4:4:4 8-bit
• Extension: DTP3 up to 330 ft (100 m)
• Enclosure: 1U half-rack, metal

Also referenced as Extron DTP3CrossPoint42, DTP3-CrossPoint-42, part number 60192501.
