Extron DTP2 T 212 Two Input 4K/60 HDMI Switcher with DTP2 Transmitter
- • Two HDMI inputs feeding both a local HDMI output and a DTP2 RJ-45 output
- • UHD 3840x2160 at 60 Hz with 4:4:4 chroma over shielded twisted pair
- • 18 Gbps maximum data rate, 6 Gbps per color, 600 MHz pixel clock
- • HDMI output frame rates up to 240 fps; DTP2 output up to 120 fps
- • Auto-input switching by shorting two pins on the captive screw connector
- • Contact closure select and tally output with +5 V on the input 2 connector
- • Device draw 10.1 watts, 28.0 BTU/hr, in a 1U half-rack chassis
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

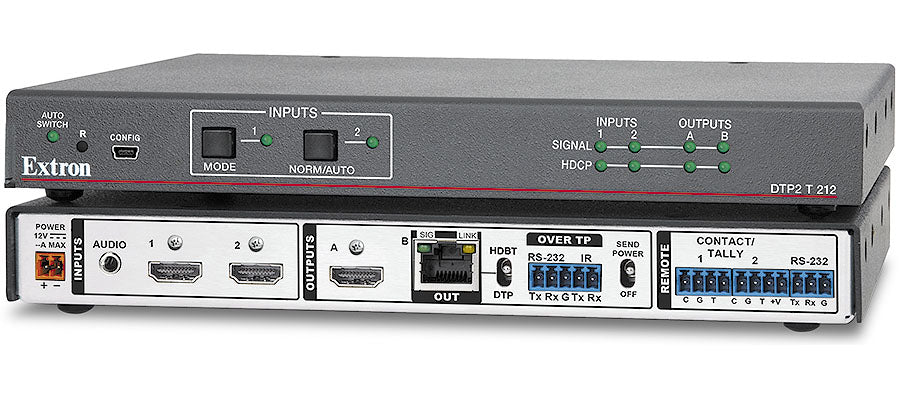

Extron DTP2 T 212 (part number 60-1587-52) — a two-input HDMI switcher with a built-in DTP2 transmitter and a local HDMI output, so one source can feed a near display and a far one at the same time.

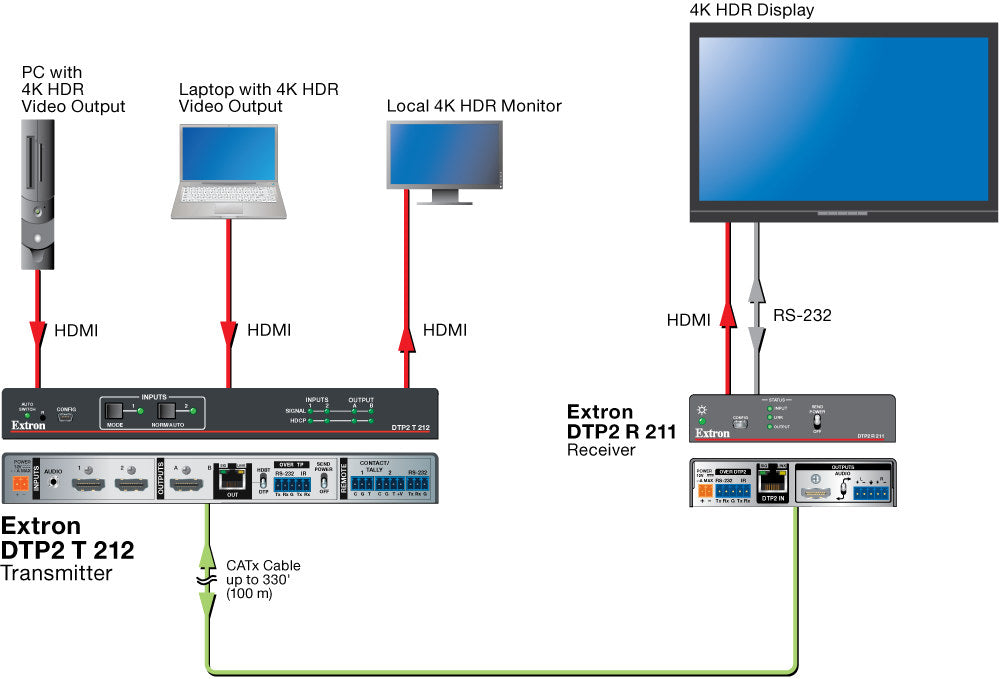

Two HDMI sources connect at the rear. Whichever is selected leaves twice: once on a local HDMI connector for a confidence monitor or a nearby screen, and once on an RJ-45 as an 18 Gbps DTP2 signal bound for a receiver up to 100 metres away. Selection can be manual over RS-232, driven by contact closures, or automatic when two pins on the captive screw connector are shorted together. Tally outputs on the same connectors light an indicator for whichever input is live.
Key Capabilities
- Two single link HDMI inputs, one local HDMI output and one DTP2 RJ-45 output
- UHD 3840x2160 at 60 Hz with 4:4:4 chroma sampling across the twisted pair link
- Auto-input switching enabled by shorting pins 1 and 2 of the serial connector
- Contact closure and tally on 3-pole and 4-pole captive screw connectors
- Analog stereo audio input that can be embedded onto the digital video signal
- Bidirectional RS-232 and IR pass-through to the far end of the DTP2 link
Where It Is Used
Lecterns and equipment shelves in classrooms, briefing rooms, simulation labs and worship spaces where a presenter needs a local monitor as well as the main display. The 1U half-rack chassis also mounts behind a rack or under a desk.
Specifications at a Glance
- 18 Gbps maximum data rate, 6 Gbps per color, 600 MHz pixel clock
- HDMI output supports frame rates to 240 fps; DTP2 output to 120 fps
- Up to 330 ft (100 m) on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
- Device draw 10.1 watts, 28.0 BTU/hr; 18 watt remote power budget
- 1.00 in H x 8.75 in W x 6.0 in D, 1.0 lb (0.453 kg)
Also referenced as Extron DTP2T212, DTP2-T-212, part number 60158752.
