Extron DTP2 T 211 HDMI 4K/60 DTP2 Twisted Pair Transmitter
- • Compact quarter-rack HDMI transmitter for DTP2 systems
- • 18 Gbps ceiling supports 4K at 30 Hz and UHD at 60 Hz over CATx
- • HDMI 1.4 and 2.0b with HDCP 1.4 and 2.3, CEA-861-F compliant
- • Analog stereo input embeds onto the digital video signal
- • Bidirectional RS-232 at plus or minus 5 V plus IR pass-through
- • Powers a DTP2 endpoint or is powered by one over the same cable
- • Fanless convection cooling; 0.562 lb (0.255 kg) metal chassis
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

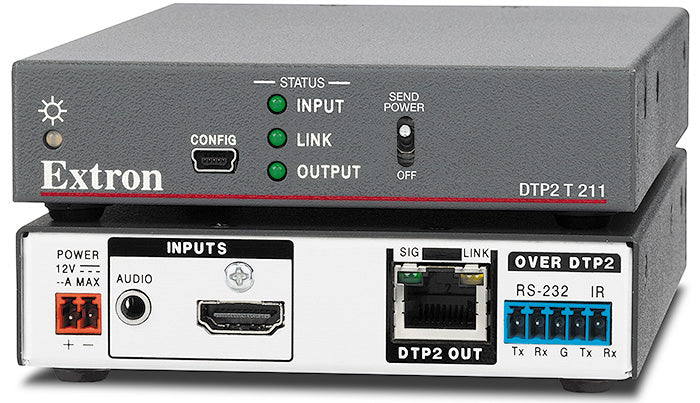

Extron DTP2 T 211 (part number 60-1631-62) — an HDMI transmitter for DTP2 systems, built into a compact quarter-rack metal chassis.
DTP2 was Extron's answer to 4K at 60 Hz over twisted pair: an 18 Gbps ceiling instead of the 10.2 Gbps of earlier DTP hardware. This transmitter takes one HDMI source, optionally folds in a stereo analog feed, and pushes the result down a shielded CATx cable to a matching receiver. Serial and infrared traffic travels the same path in both directions. Because DTP2 endpoints can power each other, only one end of the link needs a mains outlet, which is often the difference between a clean install and a new circuit.
Key Capabilities
- HDMI 1.4 and 2.0b signalling with HDCP 1.4 and 2.3, CEA-861-F compliant
- RGB digital video at 8 bit per color and 4:4:4 chroma sampling
- Stereo audio input on a 3.5 mm jack, tip left, ring right, sleeve ground
- Bidirectional RS-232 at plus or minus 5 V and IR pass-through on one connector
- Convection cooled through vents, no fan, quiet enough for a meeting room
- Mounts on an optional 1U rack shelf or an under-desk bracket
Where It Is Used
Fixed-source positions in classrooms, briefing rooms, healthcare education spaces, houses of worship and control rooms where a 4K signal has to travel further than an HDMI cable can safely carry it.
Specifications at a Glance
- Resolution range 2560x1600 or 1080p at 60 Hz, 4K at 30 Hz, UHD at 60 Hz
- Termination to TIA/EIA T568B on 1 female RJ-45 per unit
- Audio S/N above 90 dB at maximum output, THD+N 0.03% across 20 Hz to 20 kHz
- Operating range +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing
- 3 year parts and labor warranty; 7 years on the Everlast power supply
Also referenced as Extron DTP2T211, DTP2-T-211, part number 60163162.
