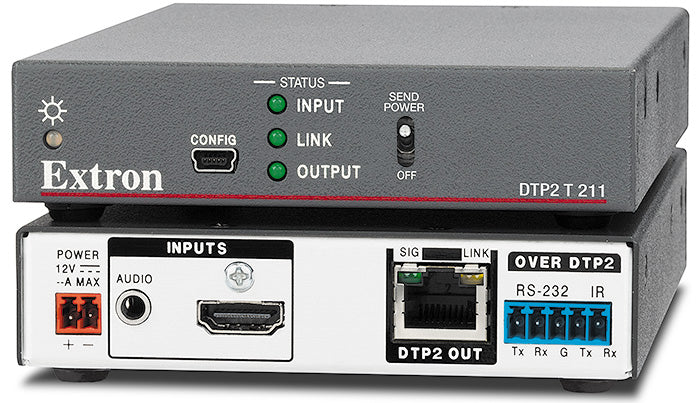

Extron DTP2 T 211 (part number 60-1631-52) — the quarter-rack DTP2 transmitter that puts an 18 Gbps HDMI link, analog audio and two-way control on one shielded CATx cable.

A DTP2 T 211 sits next to the source and hands everything to a DTP2 receiver or a DTP2-enabled switcher up to 100 metres away. HDMI arrives on a female type A connector; a 3.5 mm stereo jack accepts PC level analog audio which can be embedded onto the digital stream, then separated again at the far end. A single five-pole captive screw connector carries both RS-232 and modulated IR, so one control processor reaches devices at the display without a second cable run.

Key Capabilities

Single HDMI input handling 4K and UHD at 30 Hz plus UHD 3840x2160 at 60 Hz
18 Gbps maximum data rate, 6 Gbps per color, with HDCP 2.3 authentication
Analog stereo audio embedding configurable at the transmitter
RS-232 at 300 to 115200 baud and 30 to 60 kHz modulated IR on a shared 5-pole port
Sends or accepts remote power over the DTP2 link, 18 watt budget
UL plenum rated for heat and smoke release, excluding the power supply

Where It Is Used

Equipment closets, credenzas, lecterns and rack rows feeding distant displays in boardrooms, auditoriums, courtrooms, operating theatre viewing suites and digital signage networks. Two units fit side by side on a single 1U shelf.

Specifications at a Glance

Up to 330 ft (100 m) on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
600 MHz maximum pixel clock; horizontal 15 kHz to 150 kHz, vertical 24 Hz to 120 Hz
Audio input above 10k ohms, -10 dBV nominal, +7 dBV maximum unbalanced
Device draw 4.9 watts, 16.4 BTU/hr; 6.3 watts with the power supply
1.0 in H x 4.3 in W x 6.0 in D, 0.562 lb (0.255 kg)

Also referenced as Extron DTP2T211, DTP2-T-211, part number 60163152.

Specifications

Part Number: 60-1631-52

Manufacturer: Extron

Model: DTP2 T 211

Condition: New

Signal Type: HDMI 1.4, 2.0b; HDCP 1.4, 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: 2560x1600 @ 60 Hz or 1080p @ 60 Hz; 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, UHD (3840x2160) @ 60 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4

Color Bit Depth: 8 bits per color, subject to the maximum data rate limit

Video Formats: RGB digital video

Video Standards: DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861-F

Video Input: 1 single link HDMI (or DVI-D)

Video Input Connector: 1 female HDMI type A

Horizontal Frequency: 15 kHz to 150 kHz

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Signal Transmission Distance: Up to 330 ft (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dBu; balanced output +6 dBu

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Audio S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Audio Input: 1 PC level stereo, unbalanced; 1 digital embedded audio on HDMI. Analog audio can be configured for embedding onto the digital video signal at the transmitter and de-embedded at the receiver

Audio Input Connectors: (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground); (1) female HDMI

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +7 dBV (unbalanced)

Serial Control Port Input/Output: RS-232 via (1) 3.5 mm, 5 pole captive screw connector for RS-232 control (±5 V), shared with the IR control port

Serial Control Port Output/Input: 1 set of proprietary signals on a female RJ-45 jack

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with the RS-232 control port; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External, included with the transmitter; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 4.9 watts

Power Consumption - Device and Power Supply: 6.3 watts

Remote Power Budget: 18 watts. DTP2 devices can only send power to other DTP2 devices; do not send power to DTP devices

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents

Thermal Dissipation - Device: 16.4 BTU/hr

Thermal Dissipation - Device and Power Supply: 21.2 BTU/hr

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide (2.5 cm H x 10.9 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 0.562 lb (0.255 kg)

Regulatory Compliance: CE, C-Tick, FCC Class A, ICES, VCCI, KCC, c-UL, UL, RoHS. UL rated for use in plenum airspaces: meets UL for heat and smoke release, excluding the power supply

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

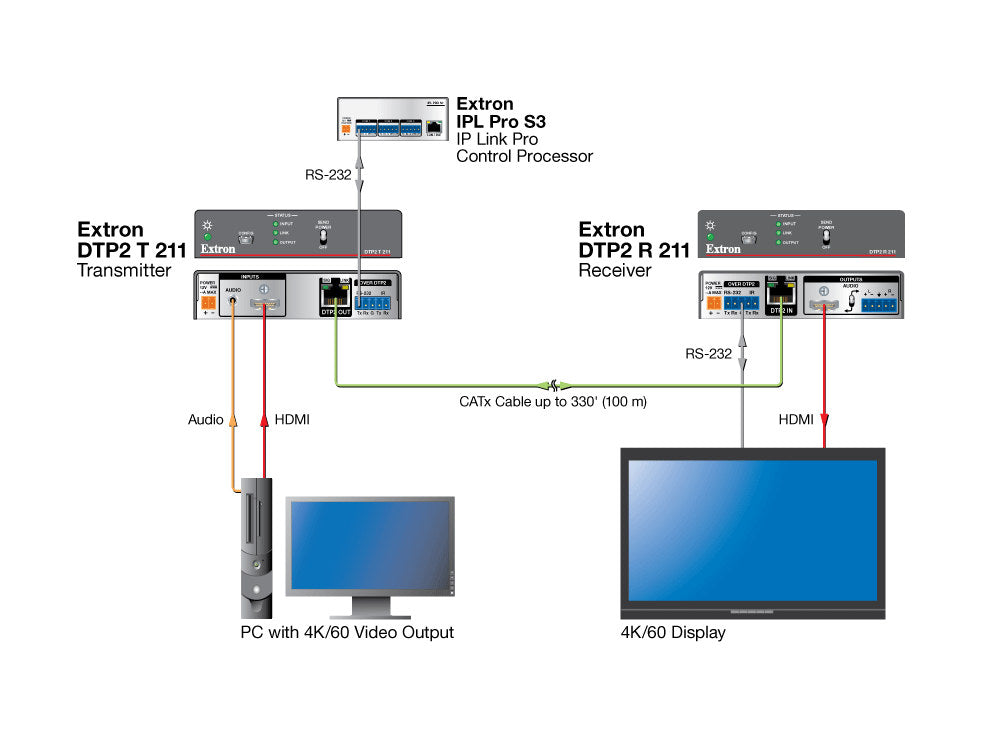

Diagram

Resources

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (dtp2_t_211_A5.pdf)

Brochure | DTP2 T 211 60-1631-52 | Everlast Power Supplies

Brochure | DTP2 T 211 60-1631-52 | Alimentatori Everlast

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (DTP2-T-211_BR_A4_IT_RevA5.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (DTP2-T-211_BR_A4_FR_RevA5.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (DTP2-T-211_BR_A4_GE_RevA5.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (DTP2-T-211_BR_A4_SP_RevA5.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (dtp2_t_211_REV_A_kr_ONLINE.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (dtp2_t_211_REV_A1_cn_ONLINE.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (DTP2-T-211_BR_A4_RU_RevA1.pdf)

Brochure | DTP2 T 211 60-1631-52 | DTP2 T 211 (dtp2_t_211_REV_A1_jp_ONLINE.pdf)

Brochure | DTP2 T 211 60-1631-52 | Everlast 电源

Brochure | DTP2 T 211 60-1631-52 | Everlast-Netzteile

Brochure | DTP2 T 211 60-1631-52 | Fuentes de alimentación Everlast

Brochure | DTP2 T 211 60-1631-52 | Sources d'alimentation Everlast

Manual | DTP2 T 211 60-1631-52 | Cleaning Instruction Card

Manual | DTP2 T 211 60-1631-52 | DTP Compatibility Guide

Manual | DTP2 T 211 60-1631-52 | DTP2 T/R 211 Setup Guide

Manual | DTP2 T 211 60-1631-52 | DTP2 T/R 211 User Guide

Manual | DTP2 T 211 60-1631-52 | DTP互換性ガイド

Specifications | DTP2 T 211 60-1631-52 | DTP2 T 211

Panel Drawing | DTP2 T 211 60-1631-52 | DTP2 T 211

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP2 T 211 4K/60 HDMI Twisted Pair Transmitter 60-1631-52

Name: Extron DTP2 T 211 4K/60 HDMI Twisted Pair Transmitter 60-1631-52
Brand: Extron
SKU: EXTRON-DTP2T211-60163152
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP2 T 211 HDMI 4K/60 DTP2 Twisted Pair Transmitter

• Carries HDMI, analog audio and control 330 ft (100 m) on one CATx run
• 18 Gbps DTP2 link, 6 Gbps per color, 600 MHz maximum pixel clock
• HDMI 2.0b with HDCP 2.3 and CEA-861-F compliance
• Embeds a PC level analog stereo input onto the digital video signal
• RS-232 and IR share one 5-pole 3.5 mm captive screw connector
• 18 watt remote power budget between DTP2 endpoints
• Quarter-rack metal chassis, 0.562 lb (0.255 kg), 4.9 watt draw
