Details

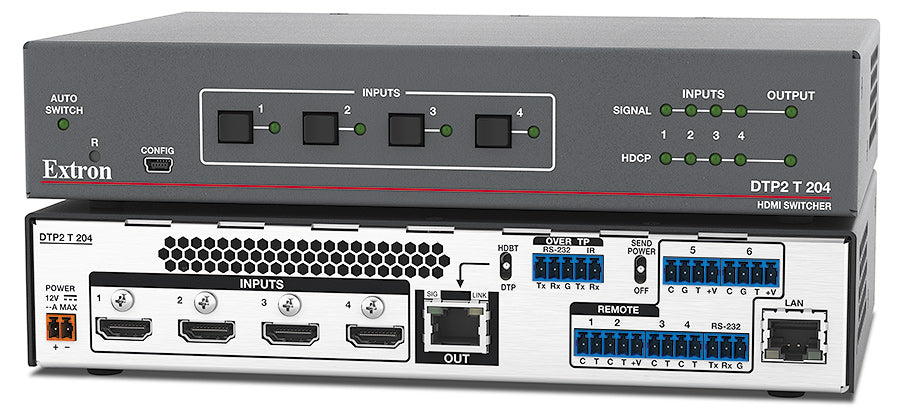

Extron DTP2 T 204 (part number 60-1626-52) — a four-input HDMI switcher whose single output is an 18 Gbps DTP2 twisted pair link rather than a local cable.

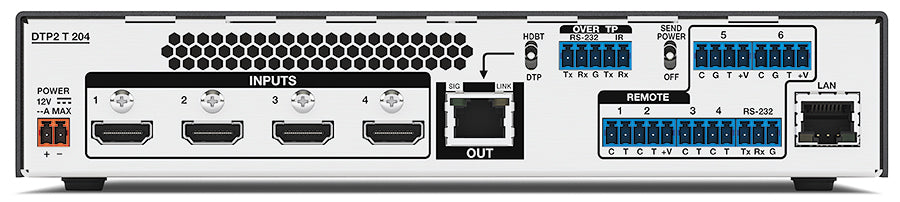

Four HDMI sources terminate on the rear panel and one RJ-45 carries the selected signal up to 100 metres to a DTP2 receiver or switcher. Unlike the smaller members of the family, this model has an Ethernet port, so it can be configured and driven from a control system or a browser as well as over RS-232 or USB. A generous set of contact closure and tally connectors, four in total, lets custom button panels select sources and light indicators without any processor at all.

Key Capabilities

Four single link HDMI inputs switched to one DTP2 output on an RJ-45 jack
4K 4096x2160 at 60 Hz in a 4:4:4 color space at 8 bit color depth
10/100Base-T Ethernet with ARP, ICMP, IP, TCP, DHCP, HTTP, SMTP and Telnet
Four contact closure and tally connectors including a 5-pole C,T,C,T,+V port
Supports HDR, Deep Color to 12-bit and HD lossless audio formats
Powered locally or remotely from selected DTP2 receivers, 18 watt budget

Where It Is Used

Multi-source lecterns, divisible rooms, simulation suites, briefing centres and control positions where four fixed sources share one distant display and the switcher itself must be reachable over the network.

Specifications at a Glance

18 Gbps maximum data rate, 6 Gbps per color, 600 MHz pixel clock
Horizontal 15 kHz to 135 kHz, vertical 24 Hz to 120 Hz up to 18 Gbps
Up to 330 ft (100 m) on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
Device draw 10.5 watts, 31.4 BTU/hr; 24 watt external supply
1.7 in H x 8.75 in W x 4.5 in D 1U half-rack chassis, 1.25 lb (0.6 kg)

Also referenced as Extron DTP2T204, DTP2-T-204, part number 60162652.

Specifications

Part Number: 60-1626-52

Manufacturer: Extron

Model: DTP2 T 204

Condition: New

Signal Type: HDMI 2.0b; HDCP 1.x, 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution: Up to 1920x1200 or 1080p @ 60 Hz with 12-bit color; 4K (4096x2160) @ 60 Hz in a 4:4:4 color space at 8 bit color; UHD (3840x2160) @ 60 Hz in a 4:4:4 color space at 8-bit color

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0; HDMI 2.0b, HDMI 1.4; HDCP 1.4, HDCP 2.3; CEA-861E

HDMI Feature Support: TMDS data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D and HD lossless audio formats. 3D support is limited to signals operating within a 164 MHz pixel clock and requires format and EDID compatibility between source and sink devices

Video Input: 4 single link HDMI (or DVI-D with appropriate adapters)

Video Input Connectors: 4 female HDMI type A

Horizontal Frequency: 15 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Video Output: 1 DTP2 output on 1 RJ-45 jack

DTP2/HDBT Signal Distance: Up to 330 ft (100 m) using STP cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP

Serial Control Port: 1 RS-232 on a 3.5 mm, 3 pole captive screw connector; pin 1 = Tx, pin 2 = Rx, pin 3 = GND; 9600 baud, 8 data bits, 1 stop bit, no parity

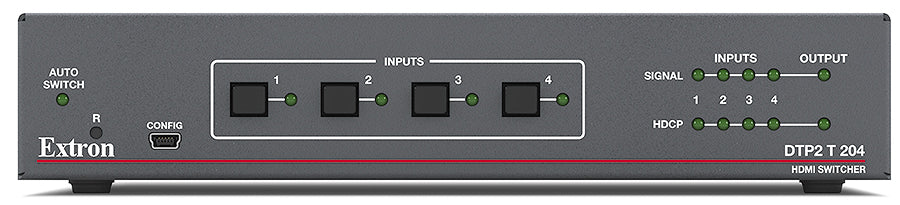

USB Control Port: 1 female mini USB B on the front panel; USB 2.0, low speed

Ethernet Data Rate: 10/100Base-T, half or full duplex, with auto detect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Program Control: Extron control and configuration program for Windows, Extron Simple Instruction Set (SIS), web browser, Telnet

Contact Closure and Tally Output: (2) 3.5 mm captive screw, 4 pole (C, G, T, +V); (1) 3.5 mm captive screw, 5 pole (C, T, C, T, +V); (1) 3.5 mm captive screw, 4 pole (C, T, C, T). C = contact, G = ground, T = tally, +V = +5 V

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 2 A, 24 watts

Power Consumption - Device: 10.5 watts

Power Consumption - Device and Power Supply: 12.8 watts

Remote Power Budget: 18 watts; the transmitter can be powered by the external supply or remotely by selected DTP2 receivers

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Thermal Dissipation - Device: 31.4 BTU/hr

Thermal Dissipation - Device and Power Supply: 39.4 BTU/hr

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit or through-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 4.5 in D, 1U high and half rack wide (43 mm H x 222 mm W x 114 mm D); depth excludes connectors

Product Weight: 1.25 lb (0.6 kg)

Regulatory Compliance: CE, c-UL, UL, PSE, RoHS and WEEE

Product Warranty: 3 years parts and labor

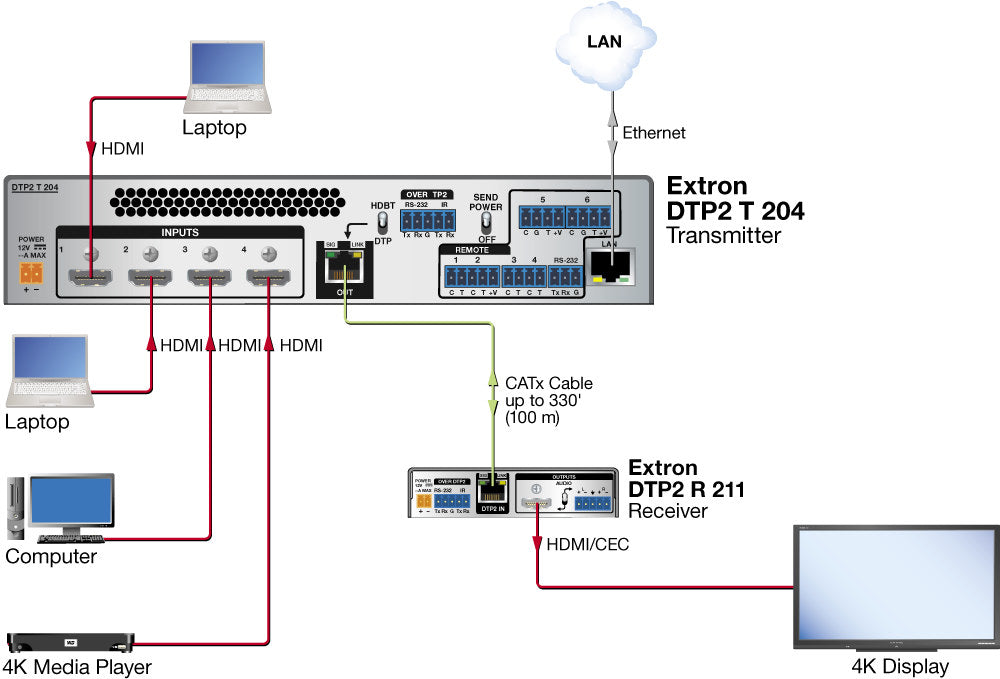

Diagram

Resources

Brochure | DTP2 T 204 60-1626-52 | DTP2 T 204 (dtp2_t_204_A.pdf)

Brochure | DTP2 T 204 60-1626-52 | Everlast Power Supplies

Brochure | DTP2 T 204 60-1626-52 | Alimentatori Everlast

Brochure | DTP2 T 204 60-1626-52 | DTP2 T 204 (DTP2-T-204_BR_A4_IT_RevA.pdf)

Brochure | DTP2 T 204 60-1626-52 | DTP2 T 204 (DTP2-T-204_BR_A4_FR_RevA.pdf)

Brochure | DTP2 T 204 60-1626-52 | DTP2 T 204 (DTP2-T-204_BR_A4_GE_RevA.pdf)

Brochure | DTP2 T 204 60-1626-52 | DTP2 T 204 (DTP2-T-204_BR_A4_SP_RevA.pdf)

Brochure | DTP2 T 204 60-1626-52 | Everlast 电源

Brochure | DTP2 T 204 60-1626-52 | Everlast-Netzteile

Brochure | DTP2 T 204 60-1626-52 | Fuentes de alimentación Everlast

Brochure | DTP2 T 204 60-1626-52 | Sources d'alimentation Everlast

Manual | DTP2 T 204 60-1626-52 | Cleaning Instruction Card

Manual | DTP2 T 204 60-1626-52 | DTP Compatibility Guide

Manual | DTP2 T 204 60-1626-52 | DTP2 T 204 Setup Guide

Manual | DTP2 T 204 60-1626-52 | DTP2 T 204 User Guide

Manual | DTP2 T 204 60-1626-52 | DTP互換性ガイド

Specifications | DTP2 T 204 60-1626-52 | DTP2 T 204

Panel Drawing | DTP2 T 204 60-1626-52 | DTP2 T 204

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP2 T 204 4-Input 4K/60 HDMI Switcher with DTP2 Tx 60-1626-52

Name: Extron DTP2 T 204 4-Input 4K/60 HDMI Switcher with DTP2 Tx 60-1626-52
Brand: Extron
SKU: EXTRON-DTP2T204-60162652
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP2 T 204 Four Input 4K/60 HDMI Switcher with DTP2 Transmitter

• Four HDMI inputs switched onto a single DTP2 twisted pair output
• 4K 4096x2160 at 60 Hz in 4:4:4 at 8 bit color depth
• 18 Gbps maximum data rate with HDR and Deep Color to 12-bit
• 10/100Base-T Ethernet control alongside RS-232 and USB
• Four contact closure and tally connectors for button panel control
• 330 ft (100 m) reach on shielded twisted pair or XTP DTP 24 cable
• 1U half-rack metal chassis, 1.25 lb (0.6 kg), 10.5 watt draw
