Extron DTP2 T 202 FB Two Input 4K/60 DTP2 Transmitter for Floor Boxes
- • Fits Ackermann, MK Electric CableLink Plus, ElectraPlan and PUK floor boxes
- • One HDMI input and one DisplayPort 1.2 input, both to UHD at 60 Hz
- • 18 Gbps HDMI path and 17.28 Gbps DisplayPort path
- • Embeds an analog stereo input onto the digital video signal
- • Reaches 330 ft (100 m) on shielded twisted pair or XTP DTP 24 cable
- • RS-232 and IR pass-through over the DTP or HDBaseT link
- • Compact 2.3 x 2.8 x 5.2 in metal body, 1.13 lbs (515 g)
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

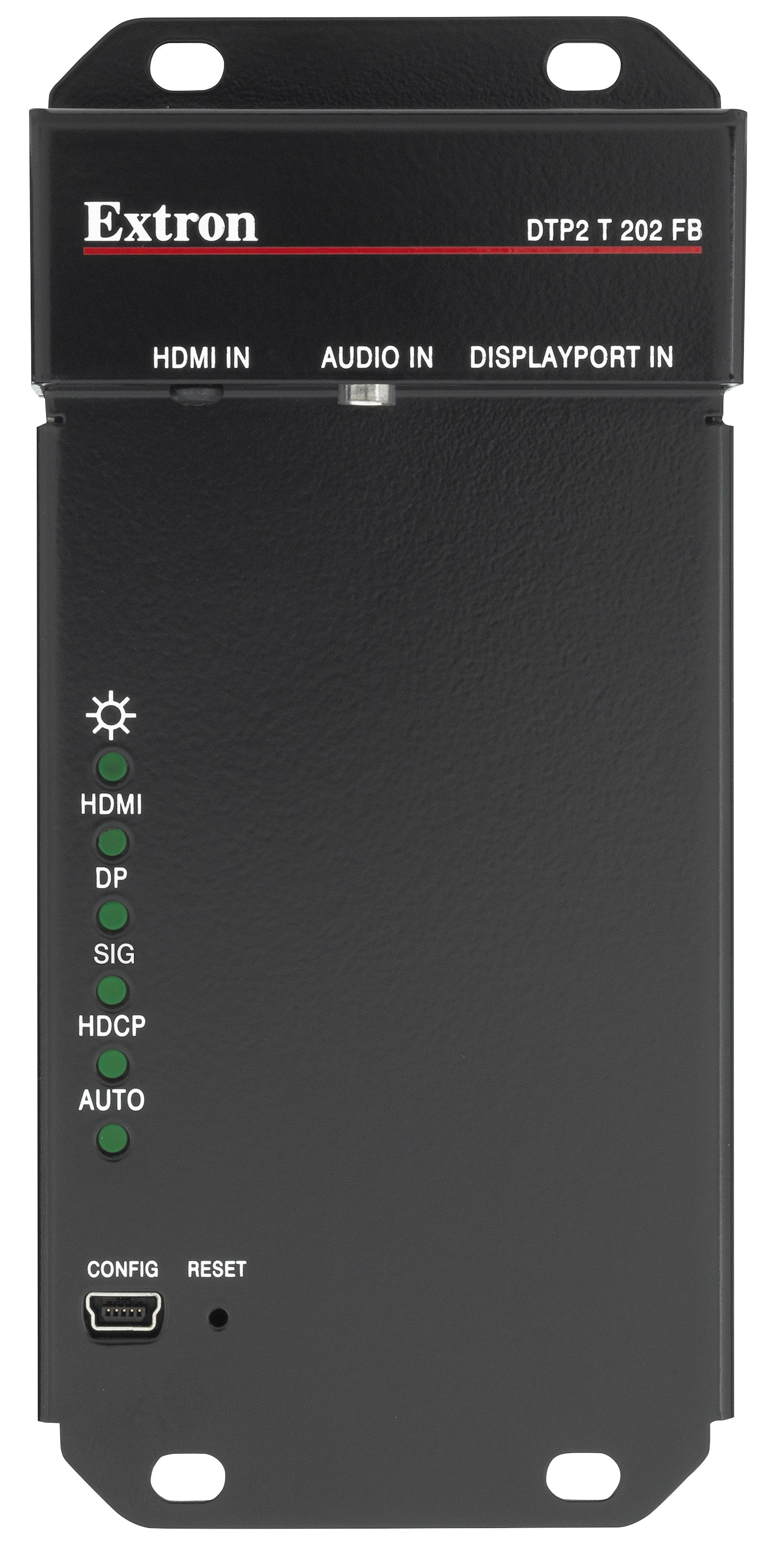

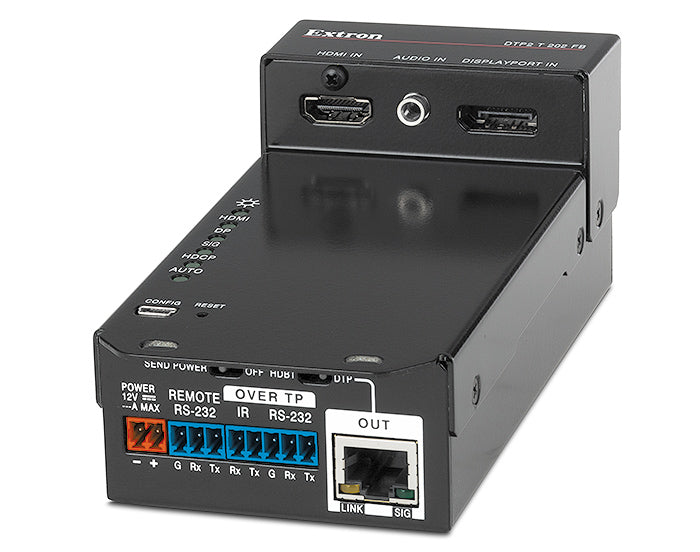

Extron DTP2 T 202 FB (part number 60-1586-52) — a two-input 4K/60 DTP2 transmitter shaped to drop into a European-style floor box.
Table boxes and floor boxes rarely leave room for a standard transmitter. This one measures 2.3 by 2.8 by 5.2 inches and mounts inside Ackermann GB3 and OBO Betterman boxes, MK Electric CableLink Plus single pan and modular boxes, ElectraPlan boxes and PUK boxes. It accepts one HDMI source and one DisplayPort source, embeds an analog stereo feed if required, and sends the result on a single shielded twisted pair cable up to 100 metres to a DTP2 receiver or switcher.
Key Capabilities
- One HDMI input and one DisplayPort 1.2 input, both handling UHD at 60 Hz
- 18 Gbps HDMI path and a 17.28 Gbps DisplayPort path, 5.4 Gbps per channel
- Analog stereo audio input embeds onto the digital video signal
- Embedded formats include PCM, Dolby Digital 5.1, Dolby Digital EX and DTS-ES

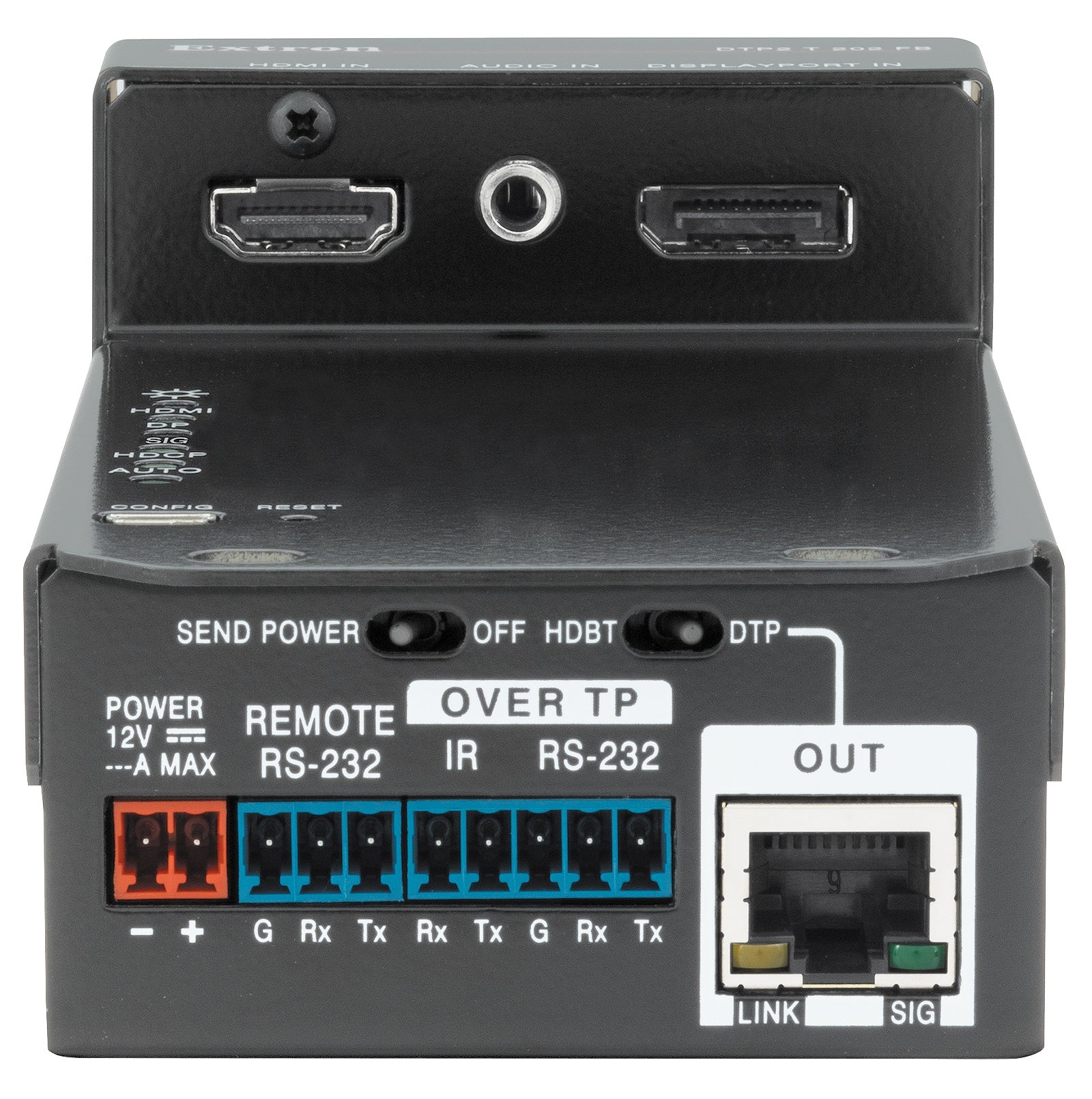

- RS-232 and IR pass-through over the DTP or HDBaseT link for far-end control
- Powered locally or remotely across the twisted pair, 18 watt budget
Where It Is Used
Boardroom tables, conference floor boxes, lecture theatre wells and furniture-integrated connection points across European fitouts, where a laptop on DisplayPort and a fixed HDMI source share the same run back to the rack.
Specifications at a Glance
- HDMI resolution to 2560x1600 at 60 Hz or UHD 3840x2160 at 60 Hz with 4:4:4
- 600 MHz maximum pixel clock; horizontal 15 kHz to 135 kHz, vertical 24 Hz to 120 Hz
- Up to 330 ft (100 m) on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
- Device draw 8.7 watts, 29.6 BTU/hr; 24 watt external supply
- 2.3 in H x 2.8 in W x 5.2 in D, 1.13 lbs (515 g)
Also referenced as Extron DTP2T202FB, DTP2-T-202-FB, part number 60158652.
Specifications
Specifications

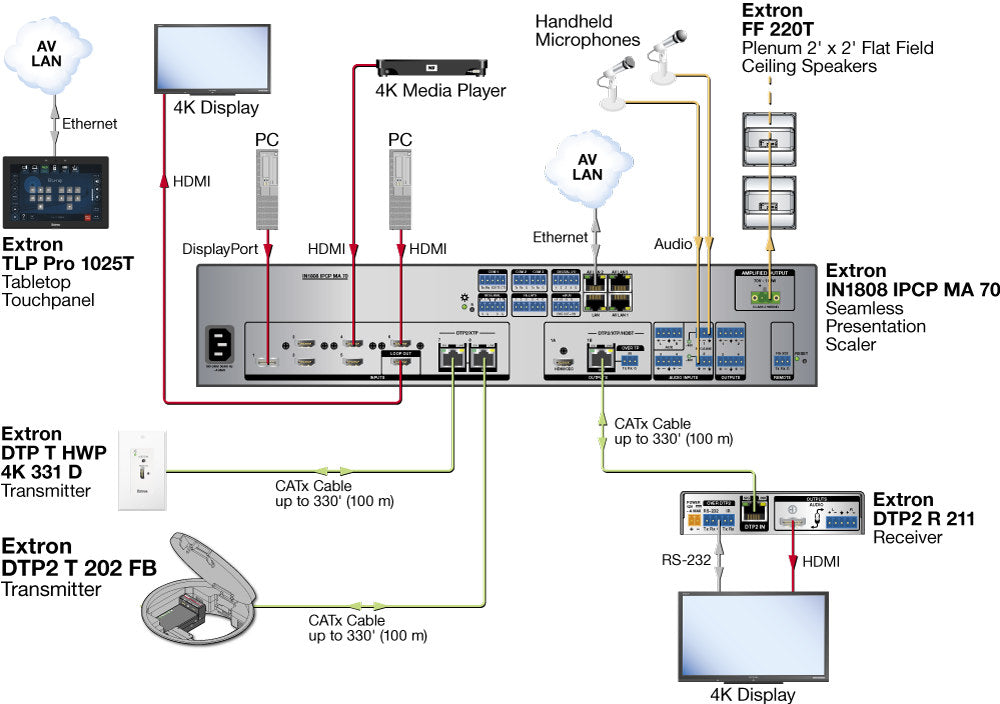

Diagram
