Details

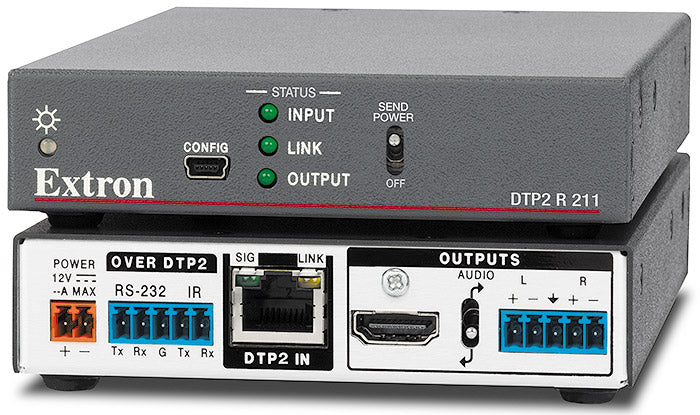

Extron DTP2 R 211 (part number 60-1631-63) — Extron's HDMI 4K/60 DTP2 receiver with audio de-embedding, listed as the 330 foot receiver in the current Extron part table.

Pair this receiver with a DTP2 transmitter or a DTP2-enabled switcher and a single shielded CATx cable replaces an HDMI run, an audio run and a control run. Video arrives on a female HDMI type A connector; stereo audio leaves on a five-pole captive screw connector that can be set for de-embedded HDMI audio or for analog audio passed down the link from a matrix switcher. DDC traffic for EDID and HDCP is kept alive continuously in both directions, so displays and sources stay negotiated even across the full 100 metres.

Key Capabilities

Recovers video up to UHD 3840x2160 at 60 Hz and 4K 4096x2160 at 30 Hz
18 Gbps data rate supports HDR, 12-bit Deep Color and HD lossless audio formats
Stereo output impedance 50 ohms unbalanced or 100 ohms balanced
RS-232 and IR share one 5-pole 3.5 mm captive screw control connector
Convection cooled through vents; no fan and no moving parts
Rack or furniture mountable with the optional 1U shelf or under-desk kit

Where It Is Used

Lecture halls, boardrooms, broadcast monitoring positions, hospital imaging review rooms and video walls where the display sits far from the rack. Plenum rating and remote powering suit above-ceiling and in-wall placements.

Specifications at a Glance

Signal type HDMI 1.4 and 2.0b with HDCP 1.4 and 2.3
Horizontal frequency 24 kHz to 135 kHz, vertical 24 Hz to 120 Hz at up to 18 Gbps
Audio input nominal -10 dBV (316 mVrms), maximum +7 dBV unbalanced
Device and power supply together draw 7.7 watts, 25.1 BTU/hr
3 year parts and labor warranty; 7 years on the Everlast power supply

Also referenced as Extron DTP2R211, DTP2-R-211, part number 60163163.

Specifications

Part Number: 60-1631-63

Manufacturer: Extron

Model: DTP2 R 211

Condition: New

Version: HDMI 4K/60 Rx - 330 feet (100 m)

Signal Type: HDMI 1.4, 2.0b; HDCP 1.4, 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: 2560x1600 @ 60 Hz or 1080p @ 60 Hz with 12-bit color; 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, UHD (3840x2160) @ 60 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861-E

System Video Input (Transmitter): 1 single link HDMI (or DVI-D) on 1 female HDMI type A

Video Output: 1 single link HDMI (or DVI-D) on 1 female HDMI type A

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Signal Transmission Distance: Up to 330 ft (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dBu; balanced output +6 dBu

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Audio S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Audio Input: 1 PC level stereo, unbalanced; 1 digital embedded audio on HDMI. Analog audio can be configured for embedding onto the digital video signal at the transmitter and de-embedded at the receiver

Audio Input Connectors: (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground); (1) female HDMI

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +7 dBV (unbalanced)

Audio Output: 1 stereo (2 channel), balanced or unbalanced

Audio Output Connector: (1) 3.5 mm captive screw connector, 5 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (600 ohm): >+11 dBu, balanced

Serial Control Port Input/Output: 1 set of proprietary signals on a female RJ-45 jack

Serial Control Port Output/Input: RS-232 via a 3.5 mm, 3 pole captive screw connector; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with the RS-232 control port; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External, included with the transmitter; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 6.1 watts

Power Consumption - Device and Power Supply: 7.7 watts

Remote Power Budget: 18 watts. DTP2 devices can only send power to other DTP2 devices; do not send power to DTP devices

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents

Thermal Dissipation - Device: 19.6 BTU/hr

Thermal Dissipation - Device and Power Supply: 25.1 BTU/hr

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide (2.5 cm H x 10.9 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 0.529 lb (0.240 kg)

Regulatory Compliance: CE, C-Tick, FCC Class A, ICES, VCCI, KCC, c-UL, UL, RoHS. UL rated for use in plenum airspaces: meets UL for heat and smoke release, excluding the power supply

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (dtp2_r_211_A4.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (dtp2_r_211_REV_A1_cn_ONLINE.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (DTP2-R-211_BR_A4_RU_RevA1.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (dtp2_r_211_REV_A1_jp_ONLINE.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (DTP2-R-211_BR_A4_IT_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (DTP2-R-211_BR_A4_FR_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (DTP2-R-211_BR_A4_SP_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-63 | DTP2 R 211 (DTP2-R-211_BR_A4_GE_RevA4.pdf)

Manual | DTP2 R 211 60-1631-63 | Cleaning Instruction Card

Manual | DTP2 R 211 60-1631-63 | DTP Compatibility Guide

Manual | DTP2 R 211 60-1631-63 | DTP2 T/R 211 Setup Guide

Manual | DTP2 R 211 60-1631-63 | DTP2 T/R 211 User Guide

Manual | DTP2 R 211 60-1631-63 | DTP互換性ガイド

Specifications | DTP2 R 211 60-1631-63 | DTP2 211 Tx/Rx

Specifications | DTP2 R 211 60-1631-63 | DTP2 R 211

Panel Drawing | DTP2 R 211 60-1631-63 | DTP2 R 211

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP2 R 211 4K/60 HDMI Twisted Pair Receiver 60-1631-63

Name: Extron DTP2 R 211 4K/60 HDMI Twisted Pair Receiver 60-1631-63
Brand: Extron
SKU: EXTRON-DTP2R211-60163163
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP2 R 211 HDMI 4K/60 DTP2 Receiver with Audio De-Embedding

• Extron part 60-1631-63, the HDMI 4K/60 Rx rated for 330 feet (100 m)
• Handles UHD 3840x2160 at 60 Hz and 4K 4096x2160 at 30 Hz
• 18 Gbps DTP2 link with HDR, 12-bit Deep Color and HD lossless audio
• Stereo output selectable for de-embedded or pass-through analog audio
• Bidirectional RS-232 and modulated IR on one shared control connector
• Quarter-rack chassis mounts on a 1U shelf or under a desk
• UL plenum rated for heat and smoke release, excluding the power supply
