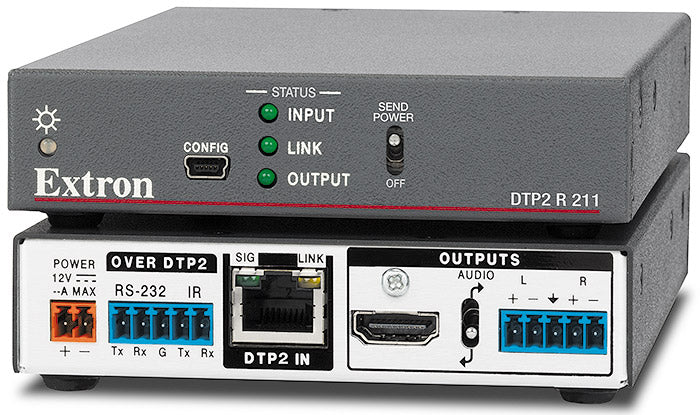

Extron DTP2 R 211 (part number 60-1631-53) — a quarter-rack DTP2 twisted pair receiver that recovers 4K/60 HDMI, analog audio and two-way control at the display end of a 100 metre run.

DTP2 raises the ceiling to 18 Gbps, which is what makes 4K/60 at full 4:4:4 chroma possible over ordinary shielded CATx. This receiver sits behind a display or in a rack, takes the twisted pair feed from a DTP2 transmitter or matrix, and hands off HDMI on a type A connector plus a five-pole captive screw audio output that can be wired balanced or unbalanced. The stereo output can carry audio de-embedded from the HDMI stream or analog audio passed through from the source end.

Key Capabilities

HDMI 2.0b signalling with HDCP 2.3 and support for HDR and Deep Color to 12-bit
Audio output selectable between de-embedded HDMI audio and pass-through analog
Balanced or unbalanced stereo on a 5-pole 3.5 mm captive screw connector
Bidirectional RS-232 from 300 to 115200 baud and 30 to 60 kHz modulated IR
Remote power over the DTP2 link, with an 18 watt budget
Plenum rated by UL for heat and smoke release, excluding the power supply

Where It Is Used

Behind flat panels, inside display mounts, in credenzas and in rack rows serving conference rooms, control rooms, digital signage and medical review displays. The quarter-rack body leaves space for a second unit on the same shelf.

Specifications at a Glance

18 Gbps maximum data rate, 6 Gbps per color, 600 MHz pixel clock
Up to 330 ft (100 m) on 24 AWG solid-conductor 400 MHz STP or XTP DTP 24 cable
Audio output above +11 dBu balanced into 600 ohms, gain error within 0.1 dB
Device draw 6.1 watts, 19.6 BTU/hr; 18 watt remote power budget
1.0 in H x 4.3 in W x 6.0 in D, 0.529 lb (0.240 kg)

Also referenced as Extron DTP2R211, DTP2-R-211, part number 60163153.

Specifications

Part Number: 60-1631-53

Manufacturer: Extron

Model: DTP2 R 211

Condition: New

Signal Type: HDMI 1.4, 2.0b; HDCP 1.4, 2.3

Maximum Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: 2560x1600 @ 60 Hz or 1080p @ 60 Hz with 12-bit color; 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, UHD (3840x2160) @ 60 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861-E

System Video Input (Transmitter): 1 single link HDMI (or DVI-D) on 1 female HDMI type A

Video Output: 1 single link HDMI (or DVI-D) on 1 female HDMI type A

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Signal Transmission Distance: Up to 330 ft (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dBu; balanced output +6 dBu

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Audio S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Audio Input: 1 PC level stereo, unbalanced; 1 digital embedded audio on HDMI. Analog audio can be configured for embedding onto the digital video signal at the transmitter and de-embedded at the receiver

Audio Input Connectors: (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground); (1) female HDMI

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +7 dBV (unbalanced)

Audio Output: 1 stereo (2 channel), balanced or unbalanced

Audio Output Connector: (1) 3.5 mm captive screw connector, 5 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: ±0.1 dB channel to channel

Audio Output Maximum Level (600 ohm): >+11 dBu, balanced

Serial Control Port Input/Output: 1 set of proprietary signals on a female RJ-45 jack

Serial Control Port Output/Input: RS-232 via a 3.5 mm, 3 pole captive screw connector; pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with the RS-232 control port; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External, included with the transmitter; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 6.1 watts

Power Consumption - Device and Power Supply: 7.7 watts

Remote Power Budget: 18 watts. DTP2 devices can only send power to other DTP2 devices; do not send power to DTP devices

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents

Thermal Dissipation - Device: 19.6 BTU/hr

Thermal Dissipation - Device and Power Supply: 25.1 BTU/hr

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide (2.5 cm H x 10.9 cm W x 15.2 cm D); depth excludes connectors

Product Weight: 0.529 lb (0.240 kg)

Regulatory Compliance: CE, C-Tick, FCC Class A, ICES, VCCI, KCC, c-UL, UL, RoHS. UL rated for use in plenum airspaces: meets UL for heat and smoke release, excluding the power supply

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (dtp2_r_211_A4.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (dtp2_r_211_REV_A1_cn_ONLINE.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (DTP2-R-211_BR_A4_RU_RevA1.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (dtp2_r_211_REV_A1_jp_ONLINE.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (DTP2-R-211_BR_A4_IT_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (DTP2-R-211_BR_A4_FR_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (DTP2-R-211_BR_A4_SP_RevA4.pdf)

Brochure | DTP2 R 211 60-1631-53 | DTP2 R 211 (DTP2-R-211_BR_A4_GE_RevA4.pdf)

Manual | DTP2 R 211 60-1631-53 | Cleaning Instruction Card

Manual | DTP2 R 211 60-1631-53 | DTP Compatibility Guide

Manual | DTP2 R 211 60-1631-53 | DTP2 T/R 211 Setup Guide

Manual | DTP2 R 211 60-1631-53 | DTP2 T/R 211 User Guide

Manual | DTP2 R 211 60-1631-53 | DTP互換性ガイド

Specifications | DTP2 R 211 60-1631-53 | DTP2 211 Tx/Rx

Specifications | DTP2 R 211 60-1631-53 | DTP2 R 211

Panel Drawing | DTP2 R 211 60-1631-53 | DTP2 R 211

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DTP2 R 211 4K/60 HDMI Twisted Pair Receiver 60-1631-53

Name: Extron DTP2 R 211 4K/60 HDMI Twisted Pair Receiver 60-1631-53
Brand: Extron
SKU: EXTRON-DTP2R211-60163153
Availability: InStock

Manufacturer: Extron

Type: DTP Systems

Extron DTP2 R 211 HDMI 4K/60 DTP2 Receiver with Audio De-Embedding

• Recovers 4K/60 at 4:4:4 chroma over 330 ft (100 m) of shielded CATx
• 18 Gbps maximum data rate, 6 Gbps per color, 600 MHz pixel clock
• HDMI 2.0b with HDCP 2.3, HDR support and 12-bit Deep Color
• Stereo output switchable between de-embedded HDMI audio and analog pass-through
• Balanced or unbalanced output on a 5-pole 3.5 mm captive screw connector
• Remote powered over the DTP2 link with an 18 watt budget
• Quarter-rack metal chassis, 0.529 lb (0.240 kg), UL plenum rated

Product discontinued.
