Extron DTP T HWP 4K 331 D Long Distance 4K HDMI Wallplate Transmitter
- • White plate version of Extron's 330 ft (100 m) HDMI DTP transmitter
- • Full 100 metre reach at every supported resolution, not just 1080p
- • HDMI 1.4 signalling with HDCP 2.3 and 10.2 Gbps maximum data rate
- • Dedicated 3.5 mm stereo input carried beside embedded HDMI audio
- • Bidirectional RS-232 and IR on one 5-pole captive screw connector
- • Recessed rear switch converts the output to HDBaseT signalling
- • Fits a 1-gang wall box or mud ring; 3 year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

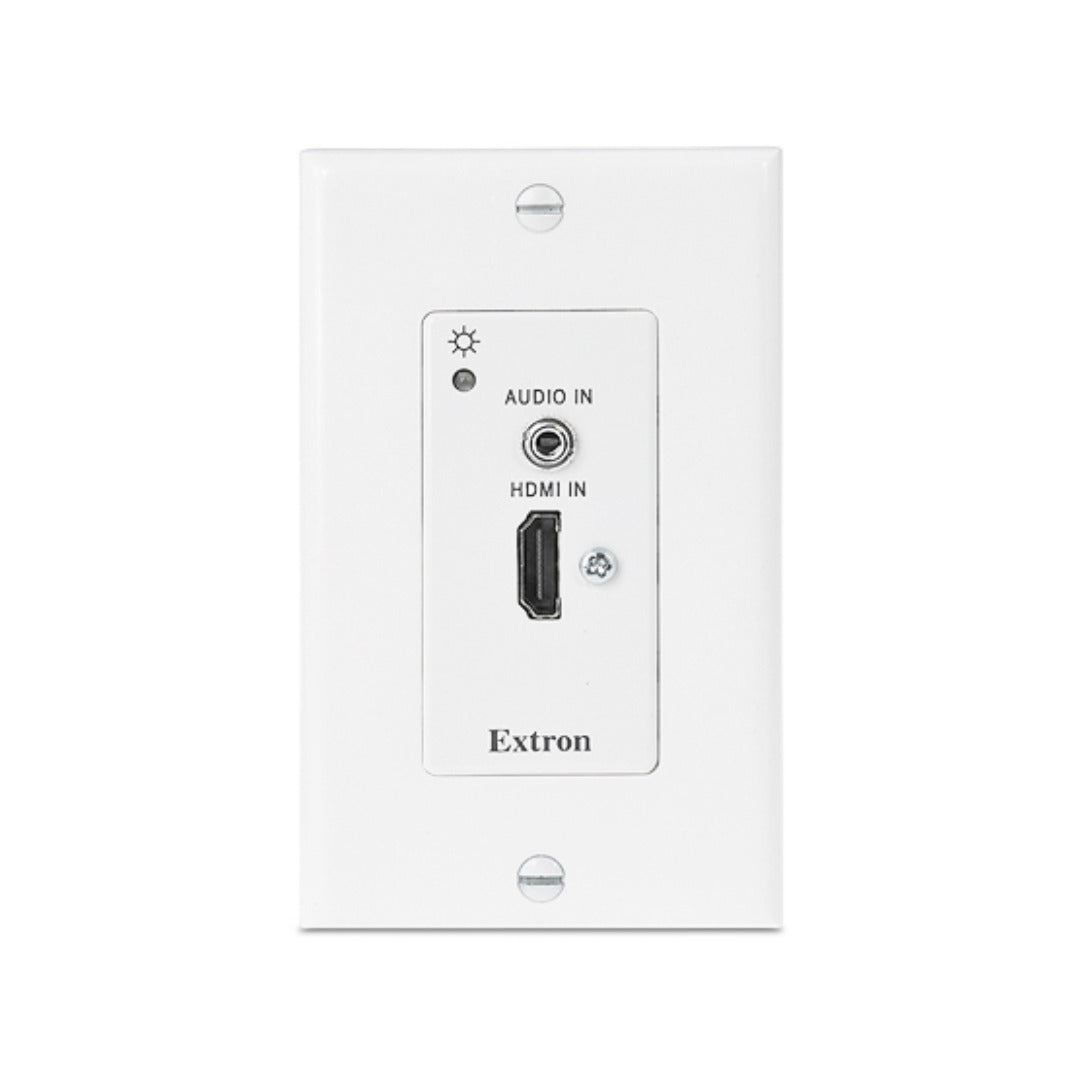

Extron DTP T HWP 4K 331 D (part number 60-1421-53) — the white finish of Extron's 330 foot single-gang HDMI DTP transmitter.
Distance is what separates this plate from the rest of the DTP T HWP 4K D line. Every supported resolution, from 1080p through 2560x1600 to 4K and UHD, travels the full 330 feet (100 meters) on a single shielded CATx run to a DTP 330-enabled endpoint. That makes it the wallplate to specify when the rack and the presenter are simply not in the same part of the building. An HDBaseT output mode is available from a recessed rear switch for installations that terminate on a third-party display.
Key Capabilities
- Full 100 meter reach at every supported resolution, not just at 1080p
- Single HDMI input on the faceplate plus a dedicated unbalanced stereo audio jack
- Bidirectional RS-232 and IR pass-through on one 5-pole 3.5 mm captive screw connector
- Analog audio and embedded HDMI audio are carried at the same time and split at the receiver
- Supports Deep Color to 12 bit, CEC pass-through and HD lossless audio formats
- Ships with an external 12 VDC power supply; remote powering available in DTP mode
Where It Is Used
Long cable pulls in convention space, university lecture theatres, stadium suites, medical education auditoriums and campus buildings are the typical use. The white plate matches existing decorator-style hardware in most commercial interiors.
Specifications at a Glance
- Signal type HDMI 1.4 with HDCP 2.3, up to 10.2 Gbps video data rate
- Frame rates of 24, 25, 30, 50 or 60 fps at 4:4:4, 4:2:2 or 4:2:0 chroma sampling
- Requires solid conductor 24 AWG or better STP with at least 400 MHz bandwidth
- RJ-45 interconnect terminated to TIA/EIA T568B
- Mounts in a 1-gang wall box or mud ring; 3 year parts and labor warranty
Also referenced as Extron DTPTHWP4K331D, DTP-T-HWP-4K-331-D, part number 60142153.
