Extron DTP T HWP 4K 331 D Long Distance 4K HDMI Wallplate Transmitter
- • Holds 330 ft (100 m) at 1080p, 2560x1600 and 4K/UHD alike
- • Single-gang decorator plate for wall, floor box or furniture mounts
- • HDMI 1.4 with HDCP 2.3 and a 10.2 Gbps maximum video data rate
- • Adds an unbalanced stereo audio input alongside embedded HDMI audio
- • DTP or HDBaseT output selected by a recessed rear-panel switch
- • Remote powering over the twisted pair link when set to DTP mode
- • Ships with a 12 VDC, 1 A, 12 watt external power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

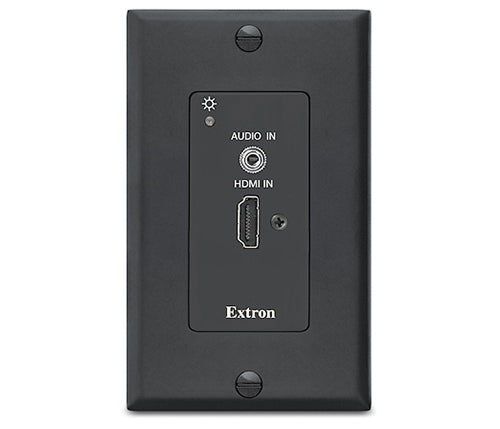

Extron DTP T HWP 4K 331 D (part number 60-1421-52) — the black long-distance single-gang decorator-style transmitter for HDMI, analog audio and two-way control.
The 331 D is the long-reach member of the DTP T HWP 4K D family. Where the 231 D tapers off at higher resolutions, this model holds 330 feet (100 meters) at 1080p, at 2560x1600 and at 4K/UHD alike, so a source plate can sit on the opposite side of a large venue from the rack without a mid-span repeater. It pairs with DTP 330-enabled receivers, switchers and presentation matrices, and a rear-panel switch reconfigures the output for an HDBaseT display instead.
Key Capabilities
- One shielded CATx cable carries HDMI, embedded audio, analog audio, RS-232, IR and power
- Rear-panel switch selects DTP or HDBaseT output signaling
- Separate 3.5 mm stereo input travels alongside the audio embedded in HDMI
- CEC passes through and DDC keeps EDID and HDCP negotiation alive end to end
- Remote powering over the twisted pair link whenever the unit runs in DTP mode
- Installs in a 1-gang wall box or mud ring with the supplied decorator faceplate
Where It Is Used
Auditoriums, large lecture halls, houses of worship, arena control rooms and multi-floor corporate fitouts are the natural home for a 100 meter transmitter. Floor boxes and furniture-mounted connection panels are equally practical given the single-gang body.
Specifications at a Glance
- 330 ft (100 m) reach at 1080p @ 60 Hz, 2560x1600 @ 60 Hz and 4K/UHD @ 30 and 60 Hz
- HDMI 1.4 with HDCP 2.3; maximum video data rate 10.2 Gbps, 3.4 Gbps per color
- 4096x2160 and 3840x2160 at 30 Hz in 4:4:4, or at 60 Hz in 4:2:0, 8 bit per color
- External supply: 100-240 VAC in, 12 VDC 1 A 12 watts out
- Device body 2.8 in H x 1.7 in W x 1.9 in D (7.1 x 4.3 x 4.8 cm); 3 year warranty
Also referenced as Extron DTPTHWP4K331D, DTP-T-HWP-4K-331-D, part number 60142152.
