Extron DTP T HWP 4K 231 D (part number 60-1421-13) — the white version of Extron's single-gang decorator-style 4K HDMI DTP transmitter.

Where a source connection has to live at the wall, in a floor box or inside furniture, this plate keeps the hardware out of sight and the cabling down to one shielded CATx run. It accepts a single HDMI source plus an unbalanced stereo audio feed and delivers both, along with two-way RS-232 and IR, to a DTP-enabled receiver or switcher. The analog audio channel stays separate from the audio embedded in the HDMI stream, so a room microphone mix and a laptop soundtrack can travel together and be split again at the far end.

Key Capabilities

HDMI 1.4 signaling with HDCP 2.3 authentication maintained across the link
Supports Deep Color to 12 bit, 3D and HD lossless audio formats within the data rate limit

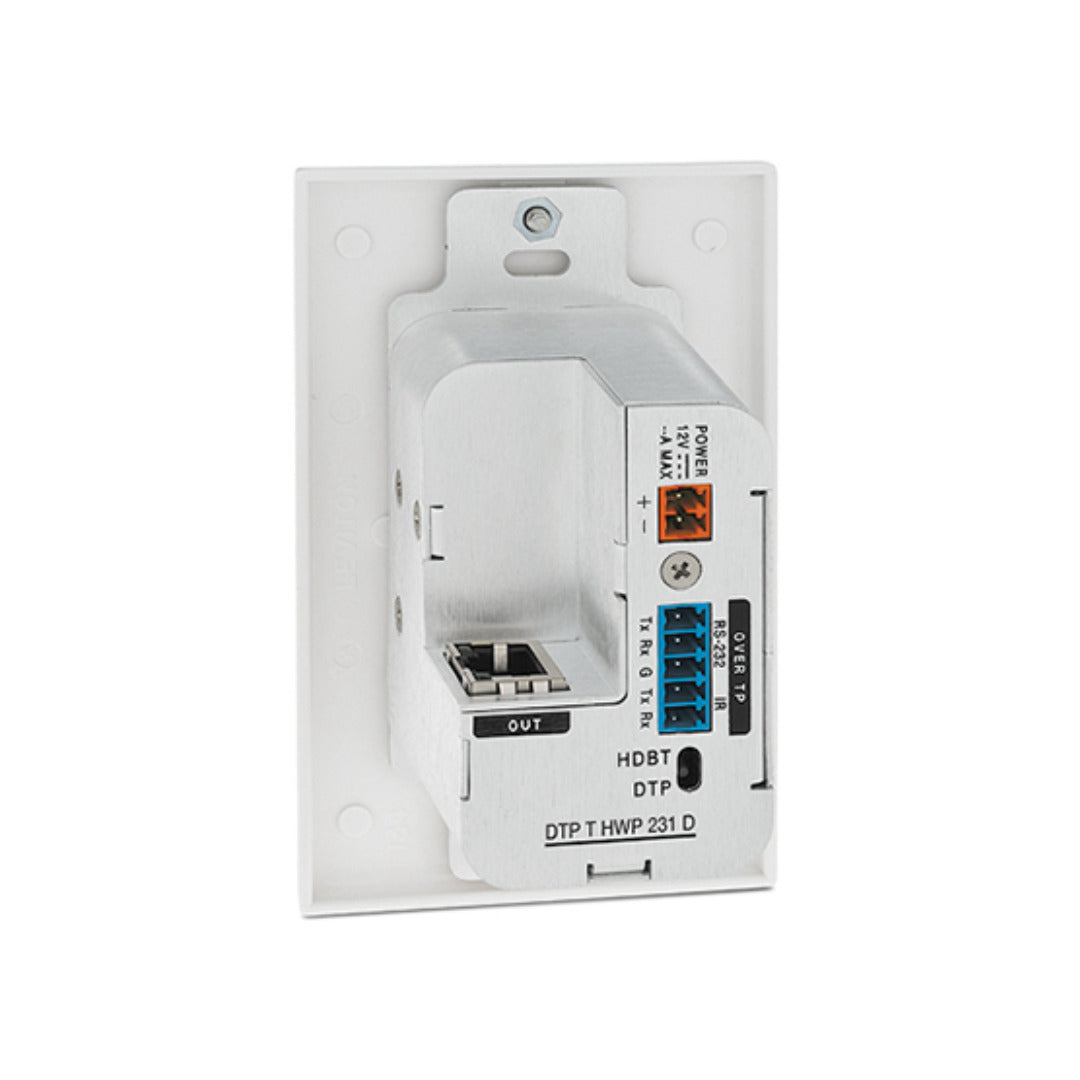

Recessed rear switch selects DTP or HDBaseT output signaling
Over TP port carries bidirectional RS-232 at 300 to 115200 baud and 30 to 60 kHz modulated IR
Powered locally from the included 12 VDC supply or remotely in DTP mode
Fits a 1-gang wall box at least 3 in (7.6 cm) deep, or the supplied mud ring

Where It Is Used

Training rooms, briefing centers, exam rooms, courtrooms and shared meeting spaces use this plate to put an HDMI connection exactly where a presenter stands. The white finish blends with standard decorator wallplates already installed in most commercial interiors.

Specifications at a Glance

Transmission to 230 ft (70 m) at 1080p @ 60 Hz; 130 ft (40 m) at 4K/UHD
Resolution range to 2560x1600 @ 60 Hz reduced blanking and 4K (4096x2160) @ 30 Hz
Audio input >10k ohms, -10 dBV nominal, +7 dBV maximum, unbalanced
Faceplate 2.6 in H x 1.3 in W x 0.3 in D; device 2.8 in H x 1.7 in W x 1.9 in D
Storage -40 to +158 °F, operating +32 to +122 °F, 10% to 90% noncondensing

Also referenced as Extron DTPTHWP4K231D, DTP-T-HWP-4K-231-D, part number 60142113.

Specifications

Part Number: 60-1421-13

Manufacturer: Extron

Model: DTP T HWP 4K 231 D

Condition: New

Version: HDMI Decorator-Style Tx, White - 230 feet (70 m)

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Resolution Range: Up to 2560x1600 @ 60 Hz (reduced blanking) or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum 4K Capability: 4096x2160 and 3840x2160 at 30 Hz with 4:4:4 chroma sampling, 8 bit per color; 4096x2160 and 3840x2160 at 60 Hz with 4:2:0 chroma sampling, 8 bit per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits, subject to the maximum data rate limit

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0, HDMI 1.4, HDCP 2.3, CEA-861E

Video Input: 1 single link HDMI (or DVI-D) input

Video Input Connector: 1 female HDMI type A

Interconnection Connector: 1 female RJ-45 per unit for 1 cable connecting the transmitter and receiver

Termination Standard: TIA/EIA T568B

Transmission Distance - 1080p @ 60 Hz: Up to 230 ft (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable

Transmission Distance - 2560x1600 @ 60 Hz: Up to 130 ft (40 m) using STP cable or XTP DTP 24 cable

Transmission Distance - 4K/UHD @ 30 and 60 Hz: Up to 130 ft (40 m) using STP cable or XTP DTP 24 cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth STP cable

Output Mode Signaling: DTP mode carries HDMI with embedded audio, analog audio, RS-232 and IR, and remote power; HDBaseT mode carries HDMI with embedded audio plus RS-232 and IR

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

S/N: >90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz to 20 kHz

Audio Input: 1 stereo (2 channel), unbalanced; analog audio is not embedded onto the digital video signal

Audio Input Connector: (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground)

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +7 dBV, unbalanced

Serial Control Port: RS-232 via (1) 3.5 mm, 5 pole captive screw connector, shared with the IR control port

Serial Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

Serial Control Pin Configuration: Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control Port: (1) 3.5 mm, 5 pole captive screw connector shared with the RS-232 control port; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 3.0 watts

Power Consumption - Device and Power Supply: 3.9 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Thermal Dissipation - Device: 10.0 BTU/hr

Thermal Dissipation - Device and Power Supply: 13.3 BTU/hr

Mounting: Furniture or wall mount with a 1-gang wall box or mud ring

Enclosure Type: Metal

Faceplate Dimensions: 2.6 in H x 1.3 in W x 0.3 in D (6.6 cm H x 3.3 cm W x 0.6 cm D)

Device Dimensions: 2.8 in H x 1.7 in W x 1.9 in D (7.1 cm H x 4.3 cm W x 4.8 cm D); overall height 4.2 in (10.7 cm) including mounting tabs, mounting holes 3.2 in (8.2 cm) apart on center, depth excludes connectors

Product Weight: 0.2 lbs (0.1 kg)

Regulatory Compliance: AS/NZS, C-tick, c-UL, CE, FCC Class A, ICES, UL

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231 D (dtp_t_hwp_4k_231_d_A4.pdf)

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Everlast Power Supplies

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Alimentatori Everlast

Brochure | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231 D (DTP-T-HWP-4K-231-D_BR_A4_SP_RevA1.pdf)

Brochure | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231 D (dtpthwp4k231d_bro_A1_cn.pdf)

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Everlast 电源

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Everlast-Netzteile

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Fuentes de alimentación Everlast

Brochure | DTP T HWP 4K 231 D 60-1421-13 | Sources d'alimentation Everlast

Manual | DTP T HWP 4K 231 D 60-1421-13 | Cleaning Instruction Card

Manual | DTP T HWP 4K 231 D 60-1421-13 | DTP Compatibility Guide

Manual | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231/331 D Setup Guide

Manual | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231/331 D User Guide

Manual | DTP T HWP 4K 231 D 60-1421-13 | DTP互換性ガイド

Specifications | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231 D

Panel Drawing | DTP T HWP 4K 231 D 60-1421-13 | DTP T HWP 4K 231 D
