Extron DTP T HWP 4K 231 D 4K HDMI Decorator-Style Wallplate Transmitter
- • Sends HDMI, analog audio and control up to 230 ft (70 m) on shielded CATx
- • One-gang footprint fits a standard wall box or the supplied mud ring
- • Handles 4K/UHD at 30 Hz in 4:4:4 and at 60 Hz with 4:2:0 chroma
- • 10.2 Gbps maximum data rate, 300 MHz pixel clock, HDCP 2.3
- • Recessed rear switch selects DTP or HDBaseT output mode
- • Bidirectional RS-232 and IR share one 5-pole 3.5 mm captive screw port
- • Draws 3.0 watts and can be powered remotely over the DTP link
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

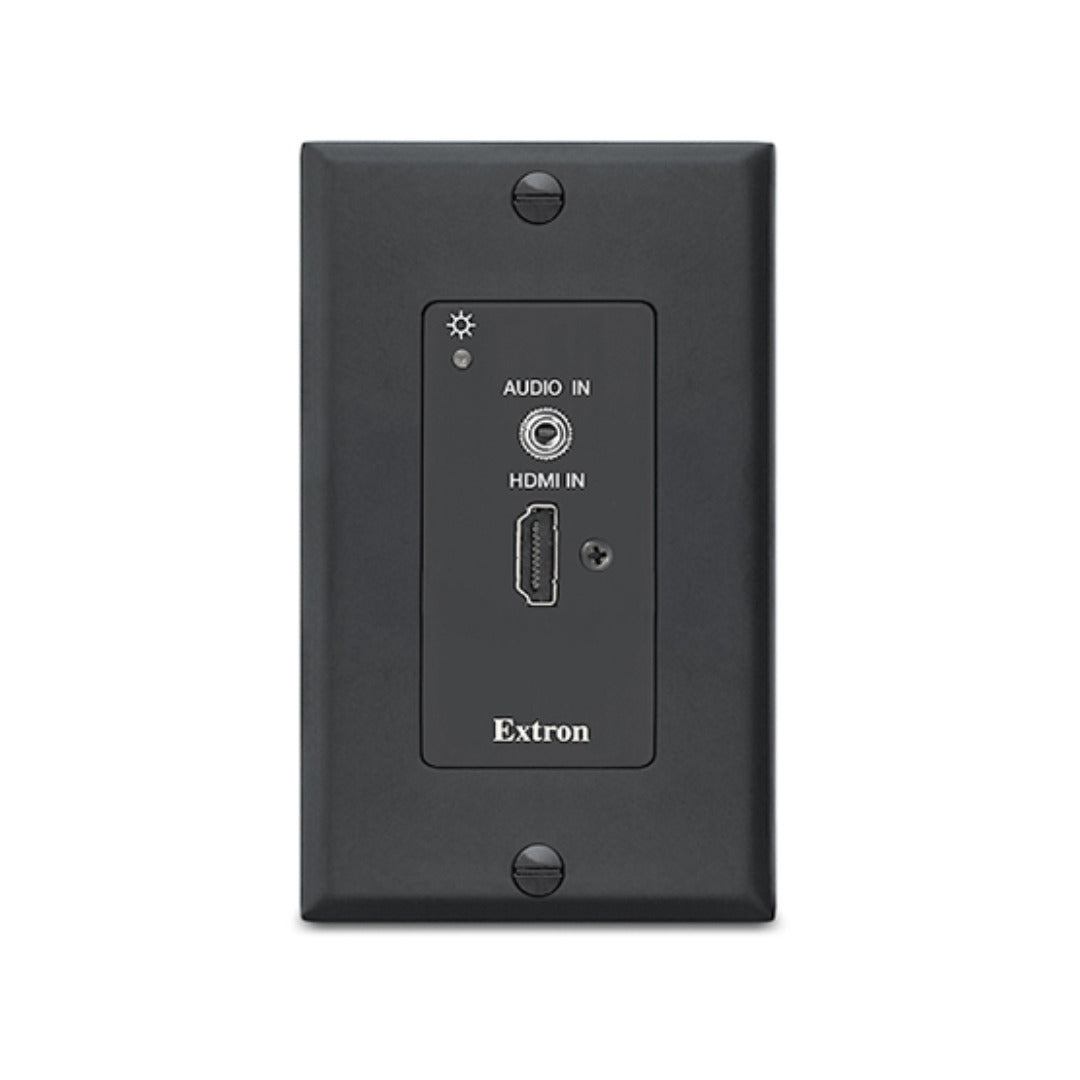

Extron DTP T HWP 4K 231 D (part number 60-1421-12) — the black single-gang decorator-style DTP transmitter for HDMI, analog audio and bidirectional control.
One gang is often all the wall will give you. This transmitter fits that footprint and still moves an HDMI signal, an unbalanced stereo audio feed and a two-way RS-232 or IR link down a single shielded CATx cable to a DTP-enabled receiver, switcher or presentation matrix. A recessed rear switch flips the output between DTP and HDBaseT signaling, so the same plate can feed an Extron endpoint today and an HDBaseT display later. Analog audio rides alongside the embedded HDMI audio rather than replacing it, arriving on a separate connector at the receiver.
Key Capabilities
- Single link HDMI input on the front face, with an adjacent 3.5 mm stereo audio jack
- DTP or HDBaseT output mode chosen with a recessed rear-panel switch
- Bidirectional RS-232 and IR share one 5-pole 3.5 mm captive screw connector
- Remote powering across the twisted pair link when the unit is set to DTP mode
- Mounts in a 1-gang wall box or the supplied mud ring, decorator faceplate included
- Passes CEC and keeps DDC, EDID and HDCP 2.3 communication intact end to end
Where It Is Used
Lecterns, huddle spaces, classrooms, floor boxes and furniture-mounted connection points all benefit from a plate this small. Integrators use it wherever a single 4K-capable source has to reach a projector or display on the far side of a room, a corridor or a floor.
Specifications at a Glance
- 1080p @ 60 Hz to 230 ft (70 m); 2560x1600 @ 60 Hz and 4K/UHD to 130 ft (40 m)
- Maximum data rate 10.2 Gbps, 3.4 Gbps per color; 300 MHz maximum pixel clock
- 4096x2160 and 3840x2160 at 30 Hz in 4:4:4, or at 60 Hz in 4:2:0, 8 bit per color
- Device draw 3.0 watts, 10.0 BTU/hr; 12 watt remote power budget
- 0.2 lbs (0.1 kg); 3 year product warranty, 7 years on the Everlast power supply
Also referenced as Extron DTPTHWP4K231D, DTP-T-HWP-4K-231-D, part number 60142112.
Specifications
Specifications

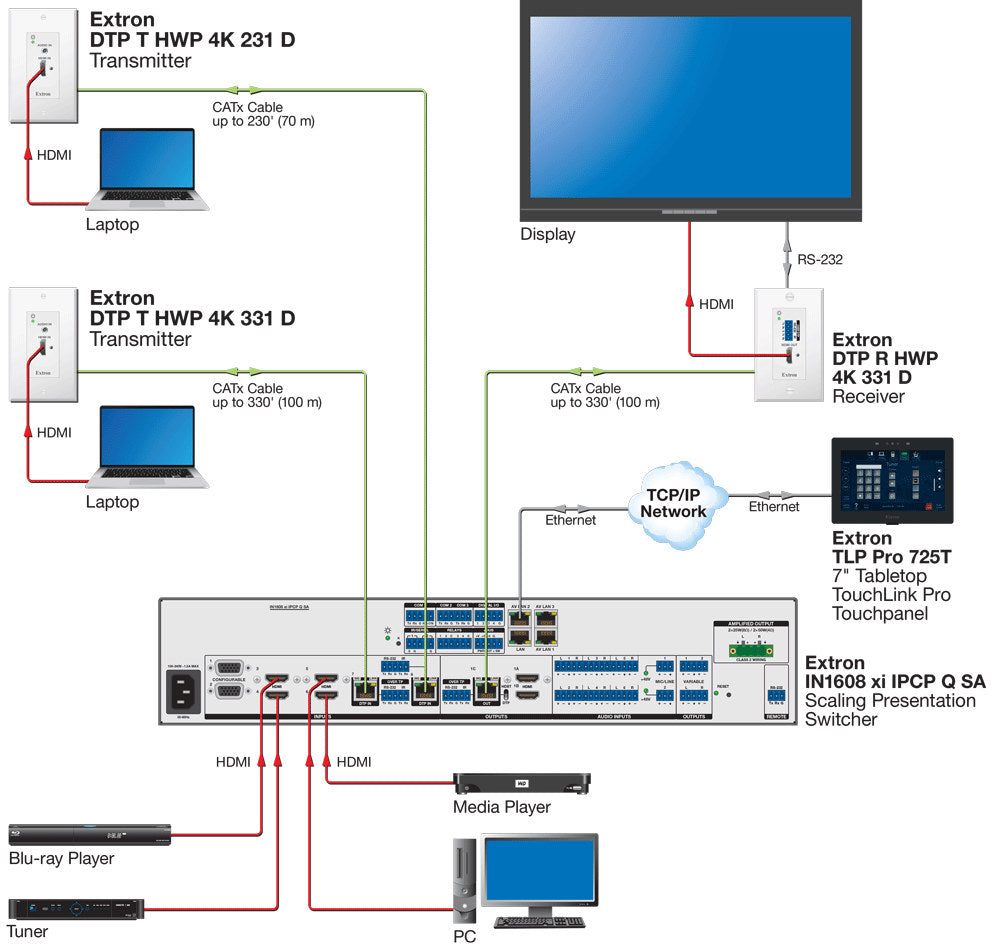

Diagram
