Extron DTP T HWP 232 D Two-Input HDMI Wallplate Transmitter
- • Two HDMI sources travel one shielded CATx run to 230 ft (70 m)
- • Decorator-style plate fits a two-gang wall opening or the MR 200 mud ring
- • Analog stereo audio embeds onto the DTP stream, set per input
- • Supports 1920x1200, 1080p/60 and 2048x1080p 2K at 8 bit color
- • 6.75 Gbps maximum data rate with a 165 MHz pixel clock
- • Auto, contact closure, or RS-232 input switching at 9600 baud
- • 3 year product warranty and 7 year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP T HWP 232 D (part number 60-1365-63) — a decorator-style wallplate transmitter that puts two HDMI connections at the wall and sends one shielded CATx run back to the rack.
Wall-mounted source plates answer a recurring problem in rooms where the display, the lectern and the equipment rack sit far apart. This unit accepts two HDMI sources, each paired with a 3.5 mm stereo audio input, and delivers them on a single DTP 230 line to a matching receiver or DTP-enabled processor. Input selection happens automatically, by contact closure, or over RS-232 at 9600 baud. The same plate relays RS-232 in both directions and passes modulated IR outward for far-end device control.
Key Capabilities

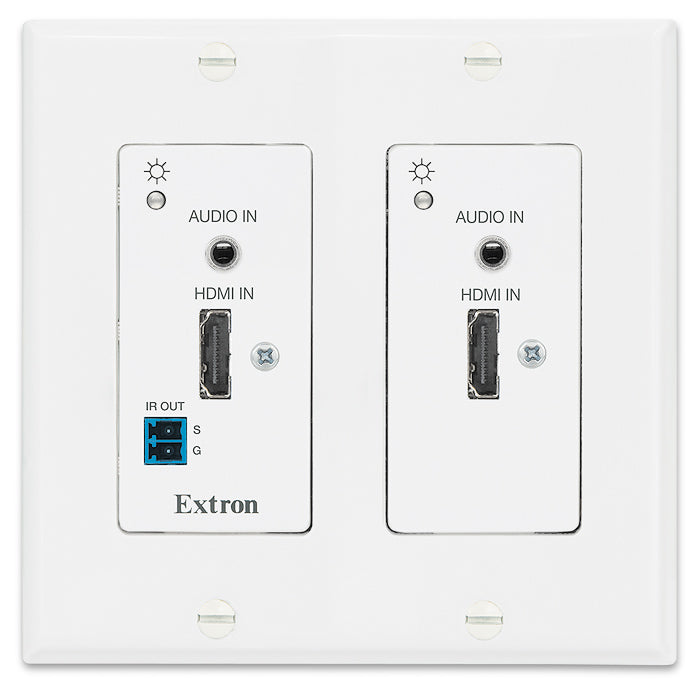

- Two single link HDMI inputs, female HDMI type A; DVI-D sources connect through an adapter
- Single DTP 230 output on a female RJ-45 jack wired to TIA/EIA T568B
- Embeds unbalanced analog stereo audio onto the digital stream, configurable per input
- Bidirectional RS-232 pass-through and a 2-pole IR output covering 30 kHz to 60 kHz

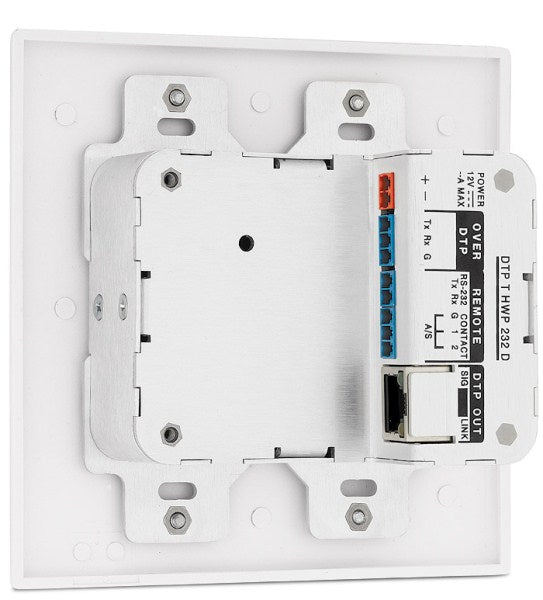

- Recessed reset button and front mini USB type B port for SIS control and firmware updates
- Local 12 VDC powering or remote powering across the twisted pair link, 12 watt budget
Where It Is Used
Integrators specify this plate for training rooms, lecture halls, operating-room viewing suites, command centers and conference spaces where two sources terminate at a wall location. A two-gang decorator opening and a shallow metal body keep the install tidy behind a standard faceplate.
Specifications at a Glance
- Transmission distance up to 230 ft (70 m) over shielded twisted pair or XTP DTP 24 cable
- Handles 1920x1200, 1080p @ 60 Hz and 2048x1080p @ 60 Hz (2K), 8 bit color
- 6.75 Gbps maximum data rate; 165 MHz maximum pixel clock
- Power supply external, 100-240 VAC in, 12 VDC 1.5 A 18 watts out; 5.6 watts with supply
- Operating range +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing
Also referenced as Extron DTPTHWP232D, DTP-T-HWP-232-D, part number 60136563.
