Extron DTP T HWP 232 D 2-Input HDMI Wallplate Transmitter
- • Two HDMI inputs behind a single 2-gang decorator-style faceplate
- • Sends video, audio and control 230 ft (70 m) on one shielded twisted pair run
- • 6.75 Gbps data rate and 165 MHz pixel clock for 1920x1200, 1080p/60 and 2K
- • Embeds two unbalanced stereo analog audio inputs onto the DTP signal
- • Audio response of 20 Hz to 20 kHz at ±0.5 dB with over 90 dB signal to noise
- • Input selection by RS-232 at 9600 baud or by simple contact closure
- • Bidirectional RS-232 and IR pass-through to the far-end DTP endpoint
- • 3-year product warranty plus 7-year Everlast power supply coverage
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

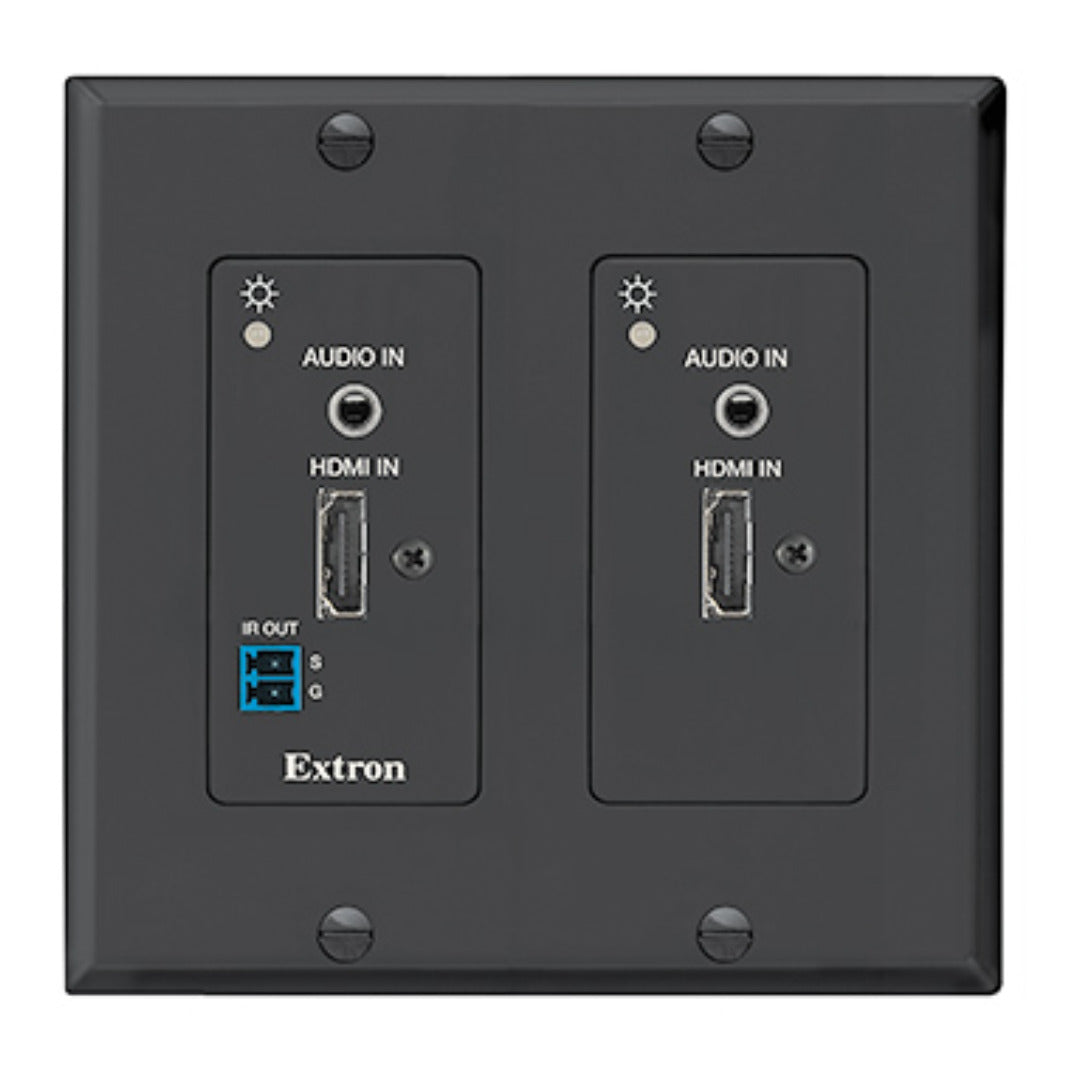

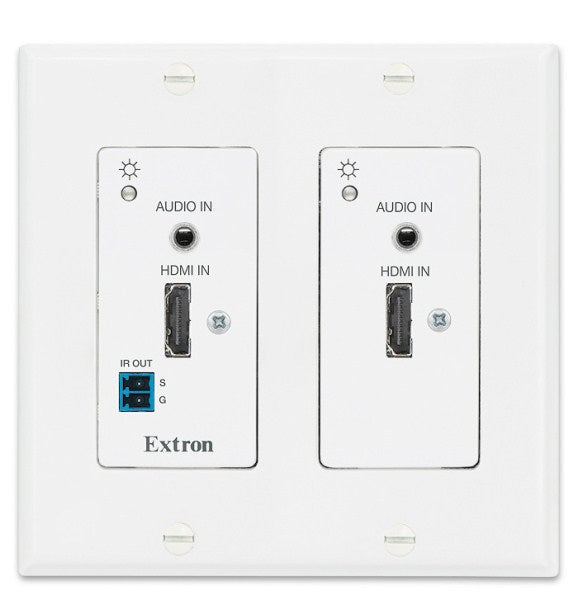

Extron DTP T HWP 232 D (part number 60-1365-12) — a decorator-style wallplate transmitter that takes two HDMI sources, adds analog stereo audio, and sends everything up to 230 ft (70 m) over a single shielded twisted pair run.

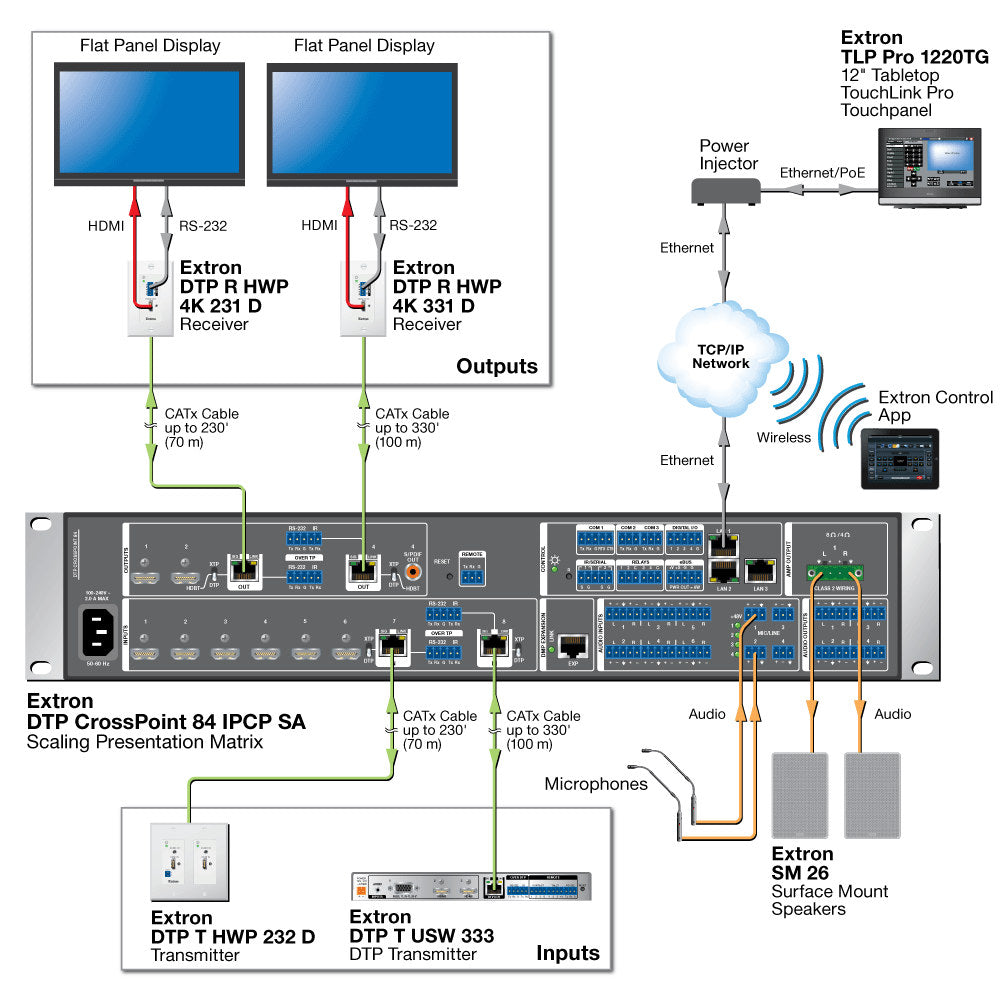

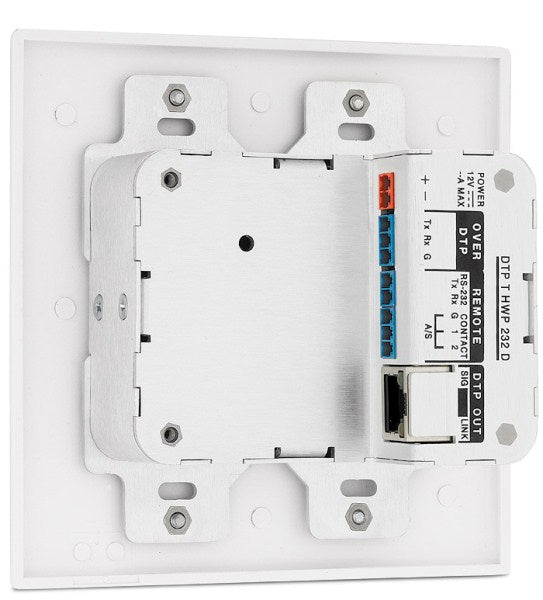

Two presenters at one table usually means two wallplates, two cable runs and a switcher somewhere in between. This transmitter handles all of it inside the wall. Two female HDMI type A jacks accept single link HDMI or, with an adapter, DVI-D. Each input has its own 3.5 mm stereo jack for unbalanced analog audio, which the unit embeds onto the DTP signal so the audio arrives with the picture. Selection is driven either by RS-232 commands or by contact closure on the shared 3.5 mm five-pole captive screw connector. That same port also carries bidirectional RS-232 and modulated IR pass-through out to the far-end DTP 230 or DTP 330 endpoint for control of remote sources and displays, and the link can supply or accept remote power within a 12 W budget.
Key Capabilities
- Two single link HDMI inputs on one two-gang decorator-style faceplate
- 230 ft (70 m) reach on shielded twisted pair or XTP DTP 24 cable
- 6.75 Gbps data rate and 165 MHz pixel clock for 1920x1200, 1080p/60 and 2K
- Two unbalanced stereo analog audio inputs embedded onto the DTP link
- Audio performance of 20 Hz to 20 kHz ±0.5 dB with greater than 90 dB S/N
- RS-232 control at 9600 baud plus contact closure input switching
Where It Is Used
Conference rooms, huddle rooms, classrooms, training suites and multipurpose spaces finished with standard decorator wallplates are the natural fit. It works well wherever two laptops need to share one display, the connection point has to look like part of the wall, and the switching electronics belong out of sight in a remote rack.
Specifications at a Glance
- Video: DVI 1.0, HDMI, HDCP 1.2, EDID 1.3, CEA-861E
- Audio input: nominal -10 dBV (316 mVrms), maximum +7 dBu unbalanced
- Cable: solid conductor 24 AWG or better, 400 MHz bandwidth STP recommended
- Power: 4.1 W device draw from an external 12 VDC, 1.5 A, 18 W supply
- Warranty: 3 years parts and labor, plus a 7-year Everlast power supply warranty
Also referenced as Extron DTPTHWP232D, DTP-T-HWP-232-D, part number 60136512.
