Extron DTP T EU 232 Two-Input HDMI VGA DTP Transmitter
- • HDMI and VGA inputs on one 2-gang EU faceplate
- • DTP 230 output reaches 230 ft (70 m) over shielded twisted pair
- • Handles 1920x1200 and 1080p/60, plus 2048x1080p at 60 Hz (2K)
- • 6.75 Gbps maximum data rate with a 165 MHz pixel clock
- • Two unbalanced stereo audio inputs on 3.5 mm jacks
- • RS-232 and IR pass-through for control of the remote endpoint
- • Low 4.1 W draw; powers locally or remotely on a 12 W budget
- • 3-year product warranty plus 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP T EU 232 (part number 60-1569-12) — a two-input transmitter on a 2-gang EU faceplate that sends video, audio and control down one twisted pair link.

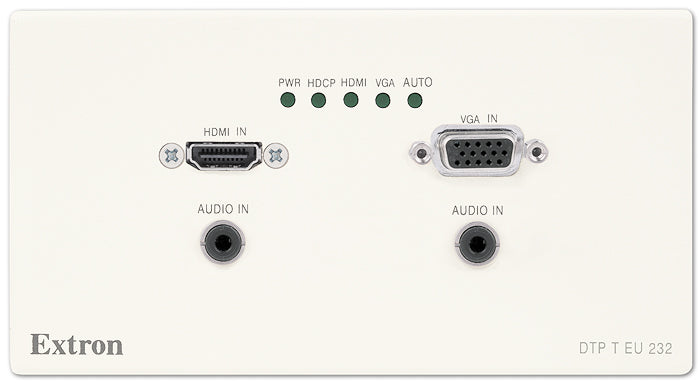

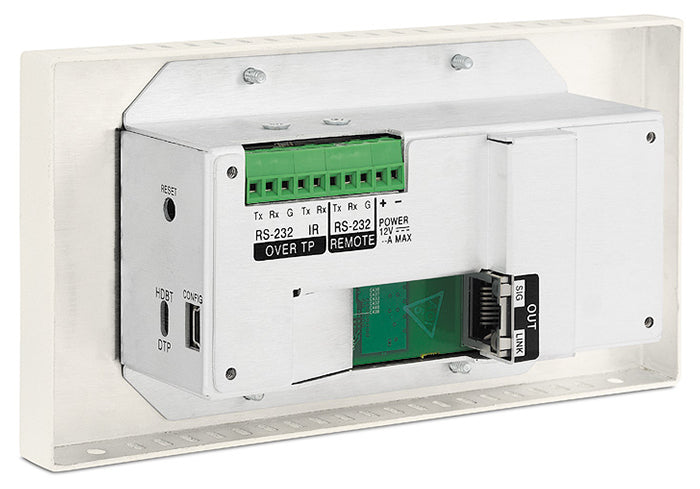

This is the connection point a presenter actually touches. One female HDMI type A port takes a digital source, one female 15-pin HD port takes analog RGBHV, and a pair of 3.5 mm stereo jacks accept unbalanced analog audio alongside them. Everything is combined into a DTP 230 output on a female RJ-45 and travels up to 230' (70 m) on shielded twisted pair. Embedded digital audio rides the digital path and is understood in formats from 2-channel PCM through Dolby Digital 5.1 and DTS-ES Discrete 6.1.
Key Capabilities
- Two video inputs — HDMI (or DVI-D with the right adapter) and analog RGBHV — in a single wall or furniture position.
- Resolution support to 1920x1200 or 1080p at 60 Hz with 8-bit color depth, plus 2048x1080p at 60 Hz for 2K workflows.
- Two unbalanced stereo audio inputs on 3.5 mm jacks, greater than 10k ohms and DC coupled.
- Bidirectional RS-232 pass-through from 300 to 115200 baud and IR pass-through from 30 kHz to 60 kHz.
- Local RS-232 control at 9600 baud plus a side-panel mini USB type B port for high-speed USB 2.0 setup.
- Powers locally or remotely across the twisted pair within a 12 W remote power budget.
Where It Is Used
Mounted in a 2-gang EU electrical junction box or a furniture cutout, this transmitter belongs in European-standard huddle rooms, seminar spaces, classrooms, training suites and clinical conference areas — anywhere the input plate must sit flush at the table or wall while the switcher and display live elsewhere.
Specifications at a Glance
- Maximum data rate 6.75 Gbps (2.25 Gbps per color), 165 MHz maximum pixel clock
- Standards: DVI 1.0, HDMI, HDCP 1.2, EDID 1.3, CEA-861E
- Faceplate 3.2" H x 6.0" W x 0.5" D; device body 1.9" H x 4.3" W x 1.4" D
- Power: external 12 VDC, 1.5 A supply; 4.1 W device draw; 13.9 BTU/hr
- Warranty: 3 years parts and labor, with a 7-year Everlast power supply warranty
Also referenced as Extron DTPTEU232, DTP-T-EU-232, part number 60156912.
