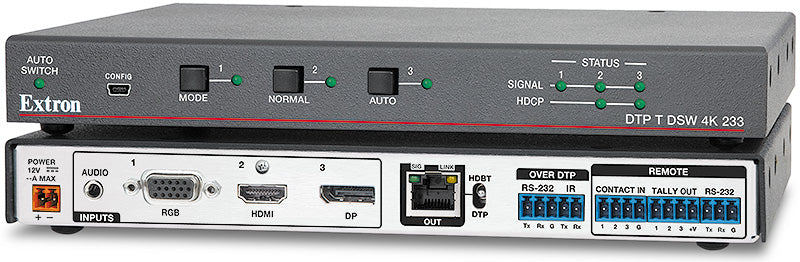

Extron DTP T DSW 4K 233 (part number 60-1487-12) — a three-input switcher and DTP transmitter that puts DisplayPort, HDMI and VGA sources onto one shielded twisted pair run.

Rooms rarely have just one kind of source. This model takes a DisplayPort 1.1a connection, a single-link HDMI 1.4 connection and an analog RGBHV feed on a 15-pin HD port, adds an unbalanced stereo audio input, and sends whichever input is selected out of a single RJ-45 jack as a DTP 230 output. Because the transmitter can push DC back down that same cable, a compatible DTP receiver at the far end does not need its own outlet — a real saving when the display is a ceiling-mounted projector.

Key Capabilities

Three video inputs on one half-rack chassis: DisplayPort, HDMI with HDCP 1.4, and VGA through WUXGA.
Digital inputs accept 2560x1600 at 60 Hz with reduced blanking, or 4096x2160 at 30 Hz; 4K and UHD at 60 Hz ride along with 4:2:0 chroma subsampling.
Data rates of 10.2 Gbps on HDMI and 10.8 Gbps on DisplayPort, each clocked to a 300 MHz maximum pixel clock.
RS-232 and modulated IR from 30 kHz to 60 kHz pass over the twisted pair to drive the remote endpoint.
Front-panel mini USB B and a rear RS-232 port for setup using Extron Simple Instruction Set commands.
Contact-closure input selection and a tally output, both on 4-pole captive screw connectors.

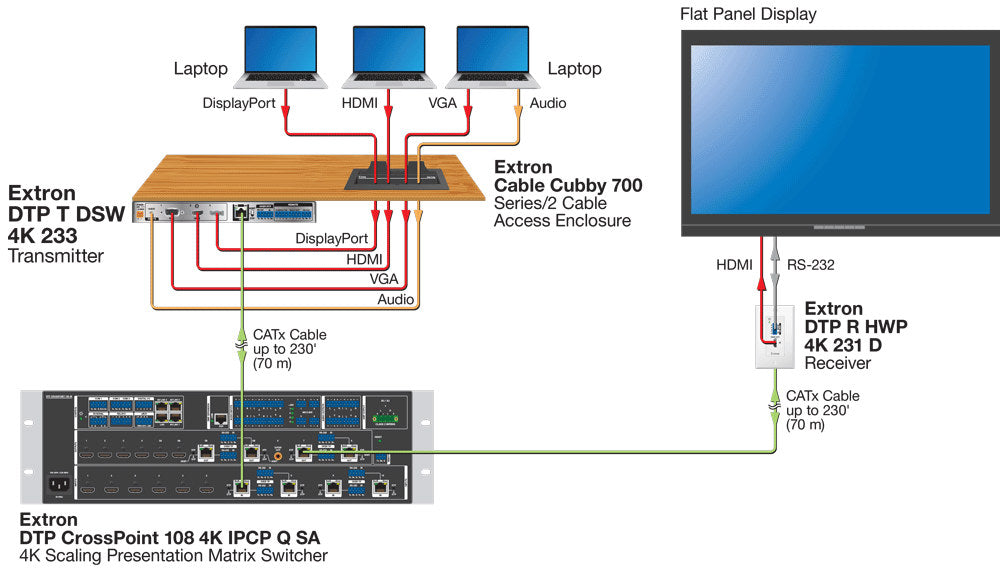

Where It Is Used

A one-inch profile and half-rack footprint let this unit sit in a credenza, a lectern or an equipment closet. It fits boardrooms, classrooms, lecture halls, training suites and control rooms — anywhere a guest laptop, a resident PC and a legacy analog source have to share a display sitting at the other end of a long cable pull.

Specifications at a Glance

Reach: 230' (70 m) at 1080p/60, and 130' (40 m) at 2560x1600/60 or at 4K/UHD 30 and 60 Hz
VGA path: unity gain, 170 MHz (-3 dB) bandwidth, 15 kHz to 145 kHz horizontal frequency
Power: external 12 VDC, 2 A supply; 6.8 W device draw; 12 W remote power budget
Enclosure: metal, 1.0" H x 8.75" W x 6.0" D, 1.1 lbs (0.5 kg)
Warranty: 3 years parts and labor

Also referenced as Extron DTPTDSW4K233, DTP-T-DSW-4K-233, part number 60148712.

Specifications

Part Number: 60-1487-12

Manufacturer: Extron

Model: DTP T DSW 4K 233

Condition: New

Frame Rate: 24, 25, 30, 50, or 60 fps (50 and 60 fps apply to HDMI signals only)

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0 (4:2:0 applies to HDMI signals only)

Color Bit Depth: 8 bits per color

Signal Type: HDMI 1.4, DisplayPort 1.1a, HDCP 1.4

Maximum Video Data Rate, HDMI: 10.2 Gbps (3.4 Gbps per color)

Maximum Video Data Rate, DisplayPort: 10.8 Gbps (2.7 Gbps per lane)

VGA Input Gain: Unity

VGA Input Bandwidth: 170 MHz (-3 dB)

VGA Input Crosstalk: -50 dB @ 10 MHz, -30 dB @ 100 MHz

HDMI Input Maximum Pixel Clock: 300 MHz

HDMI Input Resolution Range: Up to 2560x1600 (reduced blanking) @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

HDMI Input Color Bit Depth: 8, 10, or 12 bits, subject to the maximum data rate limit

HDMI Input Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

DisplayPort Input Maximum Pixel Clock: 300 MHz

DisplayPort Input Resolution Range: Up to 2560x1600 (reduced blanking) @ 60 Hz or 4K (4096x2160) @ 30 Hz

DisplayPort Input Standards: DisplayPort 1.1a

Video Input Number/Signal Type: 1 VGA-WUXGA RGBHV, 1 single link HDMI (or DVI-D), 1 DisplayPort

Video Input Connectors: 1 female 15-pin HD, 1 female HDMI type A, 1 female DisplayPort

VGA Input Nominal Level: 1.0 Vp-p

VGA Input Minimum/Maximum Levels: Analog 0.3 V to 1.5 Vp-p with no offset

VGA Input Impedance: 75 ohms

VGA Input Horizontal Frequency: 15 kHz to 145 kHz

VGA Input Vertical Frequency: 30 Hz to 170 Hz

VGA Input Return Loss: <-40 dB @ 5 MHz

Video Output Number/Signal Type: 1 DTP 230 (output)

Video Output Connector: 1 RJ-45 jack

Termination Standards: TIA/EIA T568B

Signal Transmission Distance, 1080p @ 60 Hz: Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable

Signal Transmission Distance, 2560x1600 @ 60 Hz: Up to 130' (40 m) using STP cable or XTP DTP 24 cable

Signal Transmission Distance, 4K/UHD @ 30 and 60 Hz: Up to 130' (40 m) using STP cable or XTP DTP 24 cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth STP cable

Sync Input Type: RGBHV, bi-level and tri-level sync

Sync Input Level: 1.9 V to 5.0 Vp-p

Sync Input Impedance: 510 ohms

Sync Maximum Input Voltage: 5.0 Vp-p

Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio THD + Noise: 0.03% @ 1 kHz at nominal level

Audio S/N: >90 dB at maximum input (unweighted)

Stereo Channel Separation: >80 dB @ 1 kHz

Audio Input Number/Signal Type: 1 stereo, unbalanced

Audio Input Connector: (1) 3.5 mm mini audio jack; tip (L), ring (R), sleeve (Gnd)

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +6 dBV, unbalanced

Serial Control Port: RS-232 via 1 rear panel 3.5 mm, 3-pole captive screw connector

Serial Pin Configuration: Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Gnd

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Contact Closure: (1) 3.5 mm 4-pole captive screw connector; Pin 1 = input 1, Pin 2 = input 2, Pin 3 = input 3, Pin 4 = Gnd

Tally Output: (1) 3.5 mm 4-pole captive screw connector; Pin 1-3 = input tally grounds, Pin 4 = +5 V

USB Control Port: 1 front panel female mini USB B

USB Standards: USB 2.0, low speed

Program Control: Extron Simple Instruction Set (SIS)

RS-232 Over TP Port: Bidirectional RS-232 via 1 rear panel 3.5 mm, 5-pole captive screw connector (shared with the IR control port); pins 1 = Tx, 2 = Rx, 3 = Gnd

RS-232 Over TP Baud Rate: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

IR Pass-Through Control Port: 1 bidirectional rear panel 3.5 mm, 5-pole captive screw connector; TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz; pins 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: External; Input: 100-240 VAC, 50-60 Hz; Output: 12 VDC, 2 A, 24 watts

Power Consumption, Device: 6.8 watts

Power Consumption, Device and Power Supply: 8.4 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents on top and sides

Thermal Dissipation, Device: 23.1 BTU/hr

Thermal Dissipation, Device and Power Supply: 28.6 BTU/hr

Rack Mount: Yes, with optional rack shelf kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 8.75" W x 6.0" D (1" high, half rack wide); 2.5 cm H x 22.2 cm W x 15.2 cm D (depth excludes connectors)

Product Weight: 1.1 lbs (0.5 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory, Safety: CE, c-UL, UL

Regulatory, EMI/EMC: CE, C-tick, FCC Class A, ICES (CE and FCC testing is conducted with STP cable)

Regulatory, Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor
